Dahua NKB1000 Guía de instalación y uso

Equipment Model Firmware Course Version Date

NKB1000 V20180115 V1.0 2018/2/9

· How to control the PTZ camera with keyboard?

Page1

ConnectionVia Network/RS485 Network/Address Config Operation

…

Network

…

Control PTZ Camera (HDCVI/Analog/IP) via network or RS485

Keyboard Control PTZ Camera

· How to control the PTZ camera with keyboard?

Page2

ConnectionVia RS485 Network/Address Config Operation

…

Network

…

Control PTZ Camera (HDCVI/Analog/IP) via network or RS485

Keyboard Control PTZ Camera(Via RS485)

· How to control the PTZ camera with keyboard via RS485?

Page3

①Controlling PTZ Cameras – Via RS485.

ConnectionVia RS485 Address Config Operation

RS485

Keyboard Control PTZ Camera

· How to control the PTZ camera with keyboard via RS485?

Page4

Suppose the RS485 address of the PTZ camera is 100, baud rate is 9600, protocol is Pelco-D, then we

should add a “zone” in the keyboard as follows:

ConnectionVia RS485 Address Config Operation

ID: 1

Name: Door1

Type: SD

Link: COM485

485Addr: 100

Rule: PELCOD

BaudRate: 9600

DataBit: 8

Parity: None

StopBit: 1

Note: you can set any ID or Name, but should set other parts based on the actual configuration of the PTZ camera.

RS485connection is available for NKB1000/KBD1000/KB1000.

Keyboard Control PTZ Camera

· How to control the PTZ camera with keyboard via RS485?

Page5

ConnectionVia Network Network/Address Config Operation

…

Network

…

Control PTZ Camera (HDCVI/Analog/IP) via network or RS485

Keyboard Control PTZ Camera(Via Network)

· How to control the PTZ camera with keyboard via network?

Page6

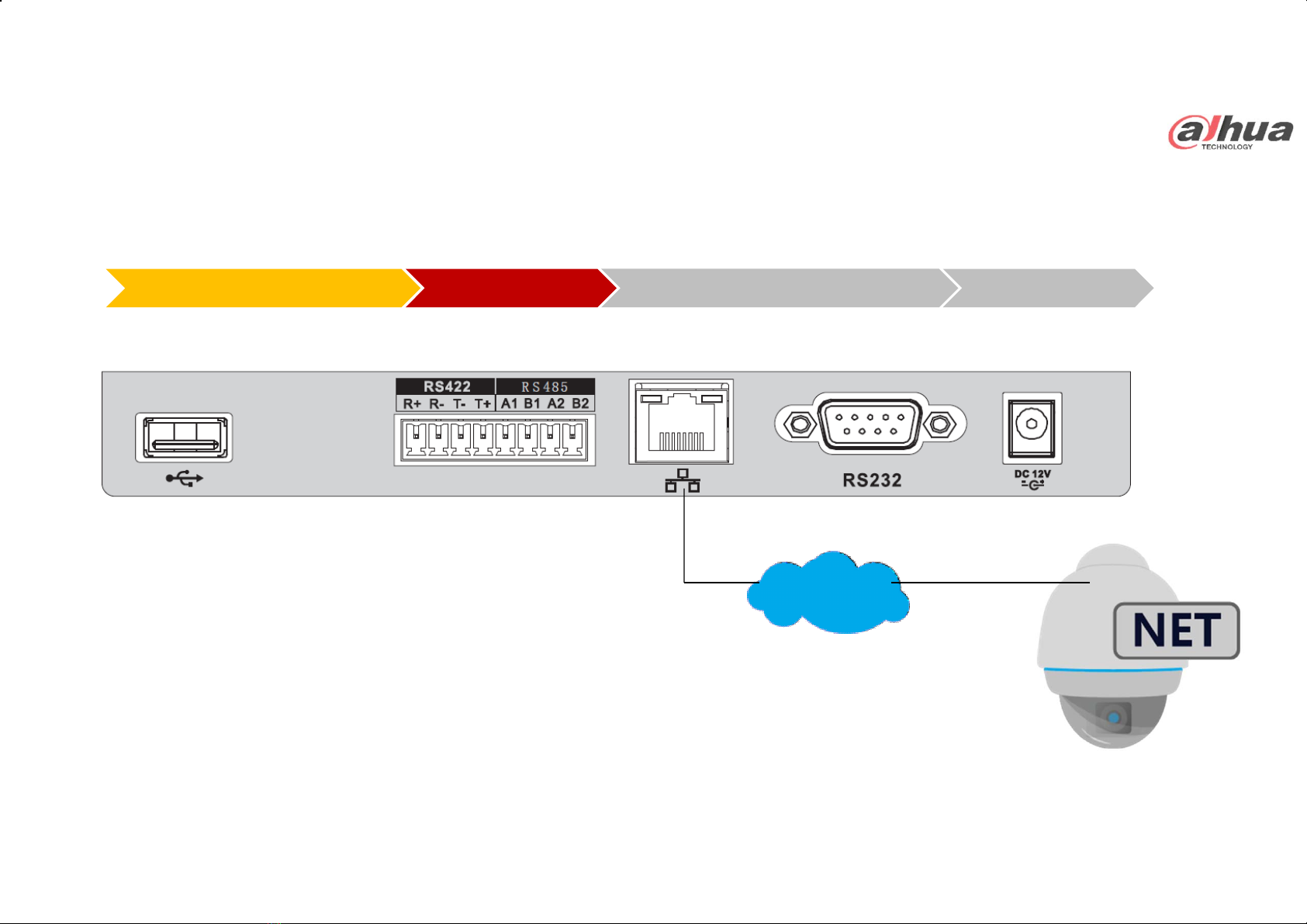

②Controlling PTZ Cameras – Via Network

ConnectionVia Network Network Config Operation

Network

Keyboard Control PTZ Camera(Via Network)

· How to control the PTZ camera with keyboard via network?

Page7

Suppose the IP address of the PTZ camera is 10.15.7.3, port is 37777, password of admin is “qwerty”. Then

we should add a “zone” in the keyboard as follows:

ConnectionVia Network Network Config Operation

ID: 1

Name: Door1

Type: SD

Link: NET

IPAddr: 10.15.7.3

Port: 37777

Rule: DH-2

PW: qwerty

Note: you can set any ID or Name, but should set other parts based on the actual settings of the PTZ camera.

Network connection is only available for NKB1000.

Keyboard Control PTZ Camera(Via Network)

· How to control the PTZ camera with keyboard via network?

Page8

After you’ve added the PTZ camera to the “zone” list of the keyboard.

Enter the “Zone Control” menu, input the ID of the PTZ camera, click “ENTER”, the keyboard will connect to

the PTZ camera and show the following interface.

You can also choose other ways to connect: name, address, etc.

ConnectionVia Network/RS485 Network/Address Config Operation

Keyboard Control PTZ Camera

· How to control the PTZ camera with keyboard?

Page9

IRIS: control the aperture

FOCUS: control the focus

ZOOM: zoom in/out

OTHER: Speed dome OSD

PRESET: Set/call preset

SCAN: Set/call scan

PAN: Call pan

TOUR: Set/call tour

PATTERN: Set/call pattern

Pan/Tilt/Zoom

Keyboard Control PTZ Camera

ConnectionVia Network/RS485 Network/Address Config Operation

· How to control the PTZ camera with keyboard?
