Dahua K Series Manual de usuario

Dahua K Series Cube Network Camera Quick Start Guide

V 1.0.0

Dahua Technology CO., LTD

1Packing List

Packing List Packing List

Packing List

Device ×1 QSG ×1

Power Adapter ×1 Screw Package ×1

Installation Position Map ×1

2Product Appearance

Product Appearance Product Appearance

Product Appearance

Figure 2-1 Figure 2-2

Figure 2-3

Please refer to the following sheet for more details about each port.

SN Name

1 Network port

2 Reset/WPS button

3 Digital input/output

4 Power port

5 Built-in speaker

Sheet 2-1

Note:

For reset, long press for 8 seconds and then the light off; For WPS, one quick press.

Please refer to the following sheet for more details about status of indicator light.

Indicator light status Device status

Red light normally on Booting

Green light slow flashing Booting completed, await wifi config, enter smart

config status;

Green light quick flashing Wifi smart config in progress, including WPS,

management frame and etc.

Green light normally on Wifi connection succeeded, operate normally.

Red and green lights flash

alternately

Device upgrade

Red light slow flashing Network connection failure or disconnection after

network connection success.

Red light quick flashing Device malfunction, fail to boot up; alarm or SD card

malfunction

Sheet 2-2

6 Micro SD card slot

7 Indicator light

8 Built-in MIC

9 IR LED

10 PIR

Operate by Easy4ip

Operate by Easy4ip Operate by Easy4ip

Operate by Easy4ip

Power on the device with power adapter.

2. Connect your smart

phone to your WiFi network.

download and install the

Easy4ip APP

3. Open Easy4ip APP (take

IOS

4. Tap “register” for first use.

Operate by Easy4ip

Operate by Easy4ip Operate by Easy4ip

Operate by Easy4ip

APP

APPAPP

APP

Power on the device with power adapter.

phone to your WiFi network.

Scan the

“Easy4ip APP”

Easy4ip APP

IOS

as an example), tap login to login the APP

, see

Figure 3-1

“Easy4ip APP”

QR on the packing box,

, see

Figure 3-1.

5. Tap “+” to add devices.

6. Choose “Wireless”.

Figure 3-2

Figure 3-3

Figure 3-4

7. Name the camera and scan the QR code on camera.

Figure 3-5

8. Input the Wi-Fi password.

Figure 3-6

9. Waiting for 60s to finish the Wi-Fi connection.

Figure 3-7

Note: If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat

step 6-9;

Figure 3-8

4Operate

Operate Operate

Operate by DMSS APP

by DMSS APPby DMSS APP

by DMSS APP

Step 1

Power on the camera.

Step 2

Connect iphone to a WiFi signal.

Step 3

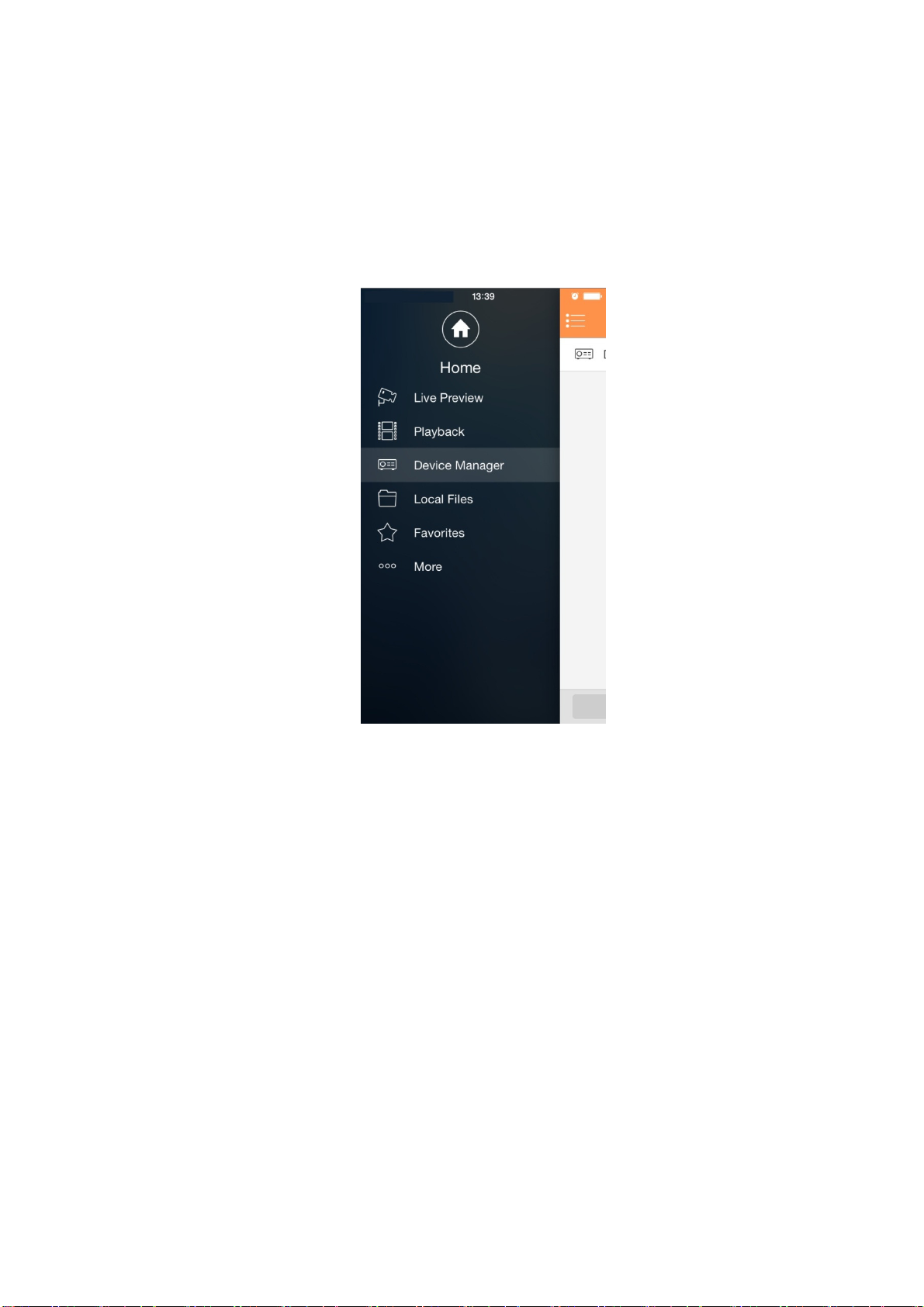

Open DMSS (downloaded from APP Store), choose Device Manager.

Figure 4-1

Step 4

Click “+”.
