Dahua VTO2000A Series Manual de instrucciones

Equipment Model Firmware Course Version Date

VTO2000A General_VTOXXX_Eng_P_16M_V3.120.0000.0.R

.20170803

V1.0 2017/10/30

VTH1550CH General_VTH151X_Eng_P_V4.000.0000.0.R.201

70803

IPC-HDW1220SN Software Version: 2.420.0000.14.R, build :

2016-04-18

DMSS iOS Version 3.49.001

iDMSS Lite

How to Connect VTO and VTH

Page1

Overview

Video talk function between VTO and VTH can split into 3 types:

You should set up VTO and then set up VTH to successfully connect those two

types of devices.

1 VTO

1 VTH

1 VTO

mVTH

n VTO

m VTH

Page2

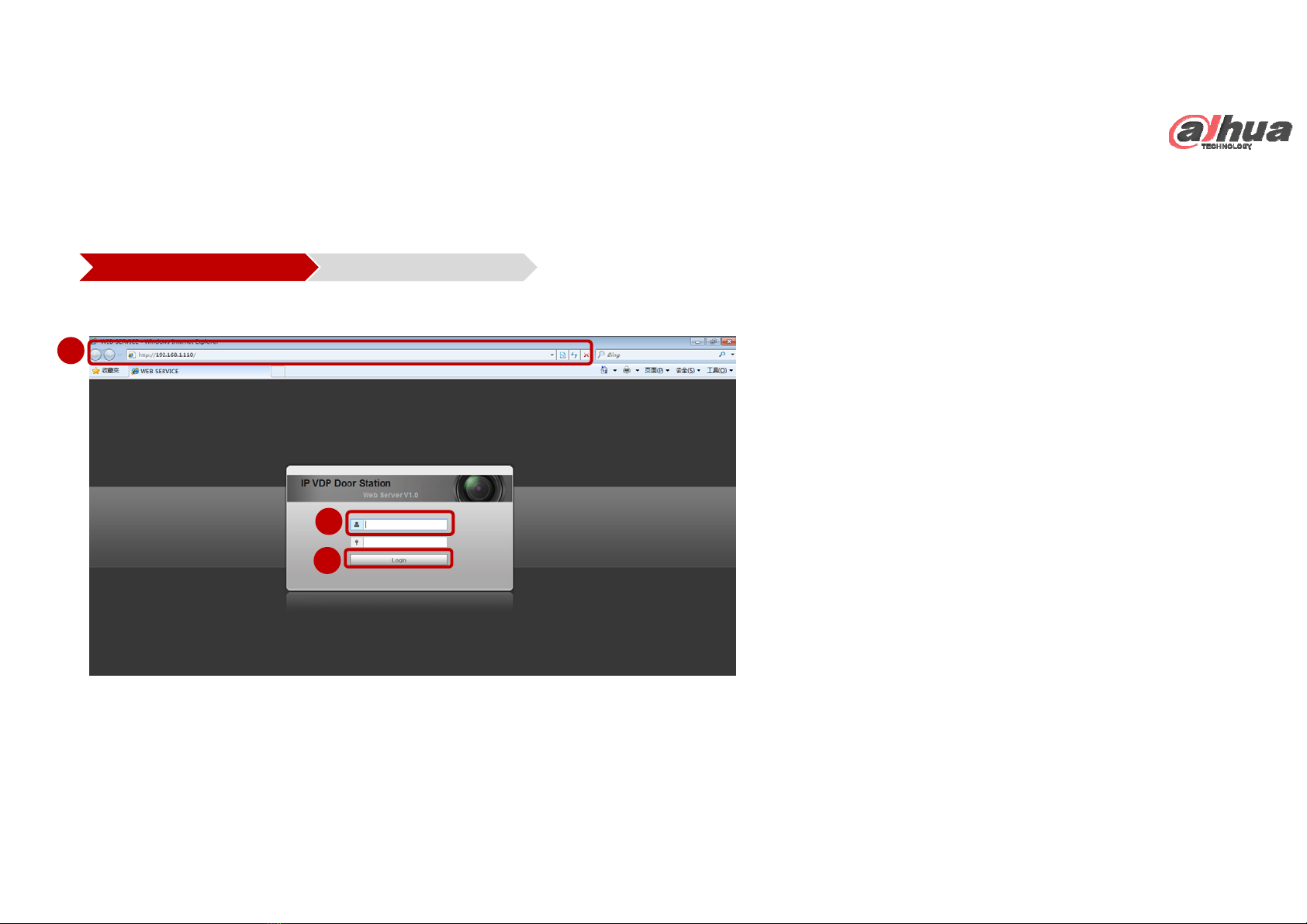

①Filled in the VTO IP address in the IE explorer, it will

show a log interface .

②Then input username and password

③Click on login

Note:

VTO default IP address is 10.22.5.189 or 192.168.1.110.

Default username and password are both ‘admin’. Please

change user password after first time login.

How to Configure: 1 VTO+1VTH

VTO Web Config Main VTH Setup

Page3

④setup the device type as ‘villa station’

VTO Web Config Main VTH Setup

⑤Setup the Building number, Building Unit number and VTO number.

Note: the setting range of VTO number is 6901~6999, and the number

format is 69XX.

⑥The MGT setting is usually for apartment system, if there

is a management center in the villa system, you can

configure the MGT; if not necessary, just keep default. For

detailed configuration instructions, please refer to How to

Configure: SmartPSS).

How to Configure: 1 VTO+1VTH

Page4

⑦Select System Config>Indoor Management，

Click “add” button to add VTH

VTO Web Config Main VTH Setup

⑧Add the indoor monitor’s room NO, and click

“OK”, save the setting.

How to Configure: 1 VTO+1VTH

Page5

⑨Reboot the device

How to Configure: 1 VTO+1VTH

VTO Web Config Main VTH Setup

Page6

①On the VTH’s screen, please long press ‘Setting’ for 6 seconds until the “Password Verification” is appeared.

②Input VTH Project password 888888.

③Click “OK” to go to the new set page.

How to Configure: 1 VTO+1VTH

VTO Web Config Main VTH Setup

Page7

④Select “VTH Set” to set the VTH IP address.

⑤According to VTO config, input room No. It need be same with the VTH short No.

⑥The default Config is “Master”, it means the VTH is the main VTH.

⑦Click “OK”, save the setting.

How to Configure: 1 VTO+1VTH

VTO Web Config Main VTH Setup

456

Page8

⑧Select “VTO Set” to check the VTO configuration.

⑨Input main VTO IP.

⑩Input main VTO’s user name and password.

default user name : admin

default password : admin

Choose “ON” to open the enable status.

How to Configure: 1 VTO+1VTH

VTO Web Config Main VTH Setup

After the above operation steps, if the icon of right

top of the screen change from to , it

means you can make a call between VTO and VTH.

Page9

How to Configure: 1 VTO+m VTH

VTO Web Config Main VTH Setup

Note: If there are more than 2 VTHs, you can set group call function of VDP. Maximum support for 5 VTH.

①Login VTO2000A web interface http://192.168.1.110 ,

System Config -> LAN Config, make sure to tick the

‘Group Call’, and click OK to save.

②System Config -> Indoor Manager, click on ‘Add’. You

need to input room number of VTH in the ‘VTH Short

No’, such as 101. Refer to page 8.

③Reboot the device.

Extension VTH Setup
