UK/

US Instructions

IMPORTANT!

Read the operating and safety instructions

BEFORE placing the document shredder

into operation.

You must follow the instructions.

Keep the operating instructions in a safe

place ready for later use.

Table of Contents

1. Important information . . . . . . . . . . . . . . 6

1.4 Scope of supply . . . . . . . . . . . . . . . . . 60

1.5 Technical specifications . . . . . . . . . . . . 60

2. Operation . . . . . . . . . . . . . . . . . . . . . 61

2.5 Paper shredding . . . . . . . . . . . . . . . . 62

2.12 CD, DVD & card shredding . . . . . . . . . . . 64

3. Maintenance . . . . . . . . . . . . . . . . . . . . 65

3.1 Emptying shredding waste. . . . . . . . . . . 65

3.4 Possible malfunctions . . . . . . . . . . . . . . 66

3.4/3.7 Overload. . . . . . . . . . . . . . . . . . . . 66/67

3.6/3.9 Overheated . . . . . . . . . . . . . . . . . . 66/67

3.15 Cleaning the shredder. . . . . . . . . . . . . . 69

1.1 Intended use, warranty

The document shredder is designed for shredding

paper.

Wear, damage due to improper use or unauthorised

modifications and repairs are not covered by the war-

ranty or the guarantee.

This document shredder is not suitable for industrial

use.

1.2 Safety instructions

- Do not place the device near a source of heat.

- Store, transport and operate the device in an

upright position only.

- Only use liquids and gases on the device that com-

ply with DAHLE guidelines.

- Do not open up the device.

- Only operate the device in closed spaces, at tem-

peratures between 10°C and 25°C and at a non-

condensing humidity between15% and 95%.

- Ensure that the building installation has short-

circuit protection (max. 16 A).

- Do not operate the document shredder without

inserting documents.

- Use paper trays one at a time only.

Dispose of the document shredder

properly in an environmentally friendly

way at an authorised collection point. Do

not dispose of any parts of the document

shredder or packaging in domestic waste.

1.3 Key to pictograms

Important information

User information/safety instructions

WARNING

Place the device in a stable position on

the floor, leaving a gap of 100 mm to

the wall, ensure no heat can accumulate,

engage brake mechanisms (depending on

type)

Do not use near caustic substances.

Do not use near inflammable liquids or

gases.

Automatic start-up

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

Do not expose to moisture

This document shredder is not intended

to be used by children (the product is

not a toy).

Do not touch the paper feed with your

hands.

Do not allow items of clothing to come

into contact with the paper feed.

Do not allow your hair to come into

contact with the paper feed.

Keep spray cans away from the device.

Remove paper clips and staples before

shredding.

Do not insert any diskettes.

Always wear safety goggles when

destroying CDs/DVDs!

Disconnect the document shredder from

the electrical power supply before perfor-

ming maintenance work.

Technical specifications - Subject to

technical modifications.

Noise level when operated without shred-

ding documents

Shredded paper particles

Shredded CD/DVD strips

Shredded card particles

Weight

The power plug is used to disconnect the

power supply.

The mains socket must be easily accessi-

ble at all times.

How to use

Document shredder on standby

Document shredder in operation

Automatic shut-down!

The document shredder will switch off

automatically to cool down if used for a

long time and /or if overloaded

Maintenance instructions / troubleshoo-

ting

Container full

Possible malfunctions

Automatic switch-off when housing is

open

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

Wir erkläre iniger Verantwortlichkeit, dass der DAHLE Aktenvernichter* den einschlägigen

Sicherh esundheitsanforderungen der EG-Produktsicherheitsrichtlinie** entspricht. Das Gerät

stimmt üb en folgenden harmonisierten Normen*** und Spezifikationen****,

gemäß d ngen der Richtlinien*****. Ausgabe******.

22080

220 - 240 V

50 - 60 Hz

3,2 x 10 mm

O-0

DIN 66399

P-4 / F-1

≤54 dB (A)

11,8 kg

DIN 66399

T-4 / E-3

380mm

530mm

270mm

17 l

max.5

1.4

1.5

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

OVERLOAD OVERHEAT BIN FULL POWER

REV

OVERLOAD

pp g

OVERHEAT BIN FULL POWER

REV POWER FWD

22080

max. 5

50-60 Hz

2.1

2.2

2.3

2.4

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

DIN A4

80 g/m

max. 6

2.6

2.7

2.5

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

DIN A4

80 g/m

max. 80

2.8

2.9

2.10

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

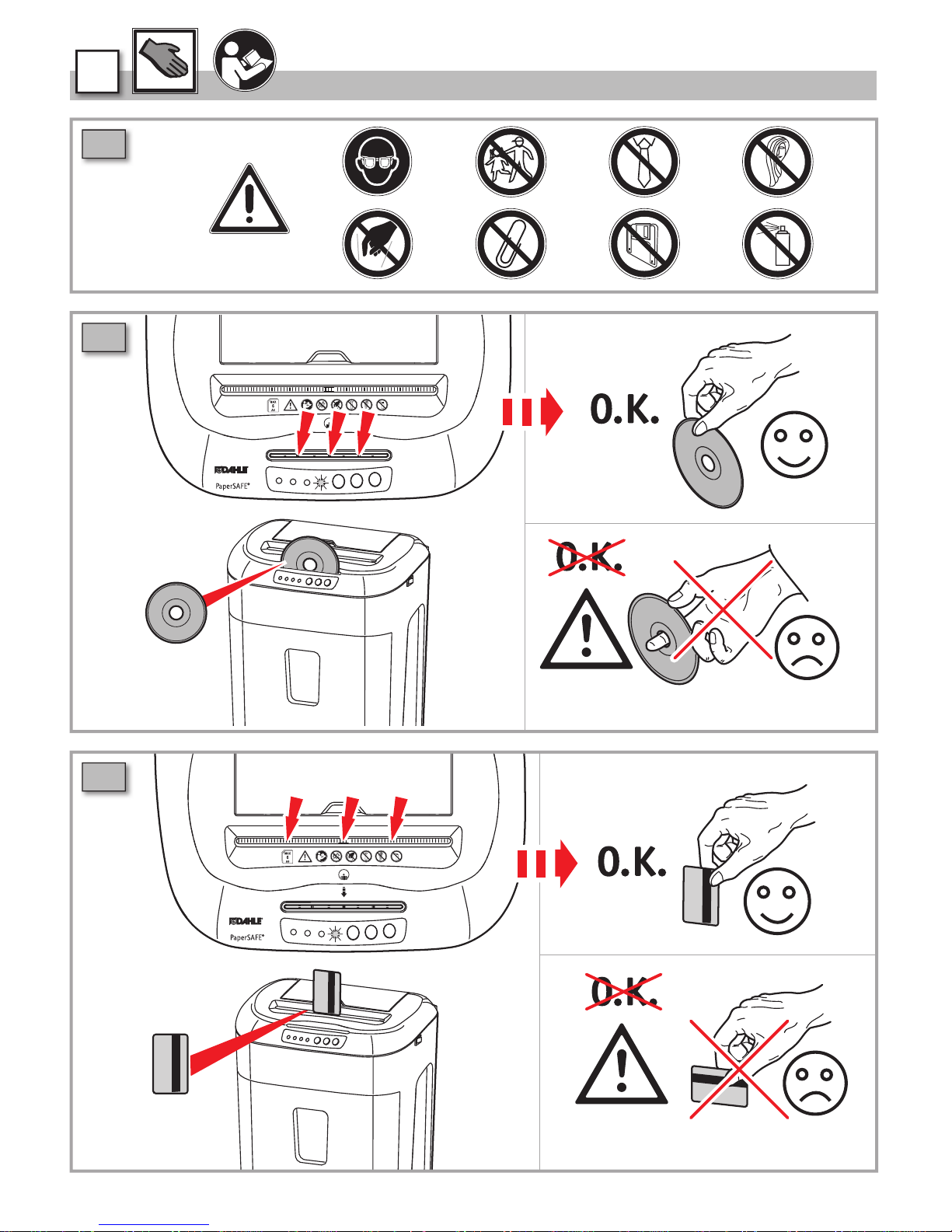

2.11

max. 1

OVERLOAD

Product ist not intended for use by children

Le produit n‘est pas destiné à l´usage des enfants

OVERHEAT BIN FULL POWER

REV POWER FWD

22080

CD/DVD

2.12

max. 1

OVERLOAD

Product ist not intended for use by children

Le produit n‘est pas destiné à l´usage des enfants

OVERHEAT BIN FULL POWER

REV POWER FWD

22080

Credit card

2.13

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

OVERLOAD OVERHEAT BIN FULL POWER

REV POWER FWD

3. 3.

BIN FULL POWER

REV

3.1

3.2

3.3

2.3

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com

OVERLOAD OVERHEAT BIN FULL POWER

REV POWER FWD

BIN FULL POWER

REV POWER

3 Sek.

OVERLOAD OVERHEAT BIN FULL POWER

3.4

3.5

3.6

2.6.

ProSource Packaging, Inc. - 14911 Stuebner Airline Rd. Ste. A - Houston, TX 77069 - Phone: (281) 453-8801 - www.machine-solution.com
