INSTRUCTION MANUAL

■First applying the Air Bubble Washing System in the world.

■Applying One-Touch Operation System.

■Realizing calm washing through the innovational low-noise

design.

■Before operating this washer, please read this instruction

completely. Thank you

Model: DWF-7589/8089

Full-Auto Electric Washing Machine

➣Your washer is equipped with the

bubble generator that generates a

great deal of air bubble.

➣The air bubbles knock the dirt out

of the clothes during wash and

they push up the heavy dirt to

remove it during rinse.

➣Because the double washing

method using both air bubble &

water current is applied to this

washer, wash efficiency is excellent

in comparison with the original

washer system.

The First Air Bubble Washing

System in the World CONTENTS Page

PARTS AND FEATURES.........................................................2

WASHER SAFETY...................................................................3

INSTALLATION INSTRUCTIONS...........................................4

ELECTRICAL REQUIREMENTS............................................5

INLET HOSE CONNECTION..................................................6

OPERATING YOUR WASHER...............................................7

THE FUNCTIONS OF THE CONTROL PANEL...................8

WASHING PROCEDURE AND COURSE SELECTION

........9

GENERAL PROCEDURE FOR OPERATION....................11

CARING FOR YOUR WASHER...........................................12

HOW TO CLEAN THE FILTER............................................13

REMOVING STAINS.............................................................14

TROUBLE SHOOTING.........................................................15

SPECIFICATION...................................................................16

A NOTE TO YOU

Thank you for buying a DAEWOO appliance.

DAEWOO washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely.

Please read it carefully.

•GROUND WIRE

In case of 3-wire

power cord, ground

wire will not be

provided

•POWER CORD

•HOSE DRAIN

•LINT FILTER

•COLD WATER TAP

After using the washer,

close the water tap

•DETERGENT CASE

•PULSATOR

•POWER SWITCH

•CONTROL PANEL

• BLEACH INLET

• HOT WATER TAP

After using the washer, close the water tap.

In case of the single valve model,

there is no hot water valve.

•ADJUSTABLE LEG

•SOFTENER INLET

PARTS AND FEATURES

ACCESSORIES

DRYTEN (OPTION) COVER UNDER (OPTION) WATER TAP ADAPTER INLET HOSE

HOSE DRAIN (FOR NON-PUMP)HOSE DRAIN CLAMPHOSE DRAIN (FOR PUMP) CONNECTOR INLET(OPTION)

DRYTEN

The parts and features of your washer are illustrated on this page.

Become familiar with all parts and features before using your washer.

NOTE

•

The drawings in this book may vary from your washer model.

They are designed to show the different features of all models covered by this book,

Your model may not include all features.

Read all instructions before using your washer

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer, follow

basic precautions including the following:

Understanding your responsibilities

•Do not wash items that are soiled with vegetable or cooking oil.

These items may contain some oil after laundering.

Due to the remaining oil, the fabric may smoke or catch fire by itself.

•Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the

same wash. Hazardous fumes can form.

•Unplug power supply cord before attempting to service your washer.

•Do not wash fiberglass materials.

Small particles can stick to fabrics and cause skin irritation.

•Do not use hot water that temperature is over 50°C (120°F).

It can cause a deformation of plastic parts.

•Do not spray water on the control panel and back cover of the washer.

It can cause a fire or an electric shock.

•Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be

used or stored in or near your washer.

Do not add flammable fluids to your wash

water.These substances give off vapors

that can create a fire hazard or explosion.

•Do not allow children to operate, play

with, or crawl on or inside your washer.

Supervise children closely when your

washer is used near them.

•After starting a cycle, do not reach into

the spin basket unless all motion stops.

•Do not tamper with the controls.

Please ...

•Have only a qualified person install, repair,

or replace parts on washer.

•Maintain washer properly.

•Protect washer from the weather and

keep it where the temperature will not fall

below freezing.

•Do not install the washer at a place of

extremely high humidity. It could cause an

Electrical shock or a short circuit.

•Connect washer to the correct outlet,

electrical supply, water supply, and drain.

•Ground washer properly.

WASHER SAFETY

Non-Pump Model Pump Model

Location of washer

Check location where washer will be installed. Make sure you have everything

necessary for correct installation.

Proper installation is your responsibility.

•Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

Drain system

Never forget to install drain hose before operating your washer.

The packing box is opened, there are a drain hose, and a hose clamp in the washer.

INSTALLATION INSTRUCTIONS

•Connect the drain hose to the drain outlet

at the back side of the washer, and fasten

it tightly with the clamp attached.

• Connect the drain hose to the drain outlet

at the back side of the washing machine,

and fasten it tightly with the clamp

supplied.

Hose clampDrain hose

Hose Clamp

Drain Outlet

Drain hose

If the washer is installed on an unsuitable floor, it could

make considerable noise, vibrate and cause a malfunction.

If washer is not level, adjust the front leg(A) up or down for

horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of

bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1M of the

upper back of the washer cabinet and provide water

pressure 0.3kgf/cm 2-8kgf/cm 2 (2.94N/cm 2-78.4cm2).

UP DOWN A

NOTES

• The opening must not be obstructed by carpeting when the washing machine is

installed on a carpeted floor.

Recommended earthing method

WARNING

Laundry tub drain system Standpipe drain system

Pump Model

Non-Pump Model

1In case that it goes over

a door sill.

Don’t let the height of

the drain hose exceed

20cm from the bottom

of washer.

2In case of extending the

drain hose.

Don’t let the total length

exceed 3m.

3Be careful that the end

of the drain hose is not

immersed in water.

• Top of tub must be at least 86cm

(34inches) high and no higher than 130cm

from bottom of washer (A)

•Needs a 3cm minimum diameter

standpipe with minimum carry away

capacity of 30liters per minute.

•Top of tub must be at least 86cm

(34inches) high and no higher than 130cm

from bottom of washer (B)

20Cm

ELECTRICAL REQUIREMENTS

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord (A) having a

earthing plug (B). To minimize possible shock hazard, the cord must

be plugged into a mating earthing-type wall receptacle (C).

If a mating wall receptacle is not available, it is the personal

responsibility and obligation of the customer to have the proper

earthed wall receptacle installed by a qualified electrician.

•Electrical earth is required on this washer

•If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

•Don’t earth to a gas pipe

•Don’t change the power supply cord plug.

•Check with a qualified electrician if you are not

sure the washer is properly earthed.

electrical shock hazard:failure to follow these instructions could result in

death or serious injury.

Be careful not to confuse hot water inlet and cold water inlet.

In using only one water tap or in case of attached one water inlet valve, connect the

inlet hose to the cold water inlet valve.

For Screw-Shaped Tap

For Ordinary Tap

INLET HOSE CONNECTION

1Pull down the collar of

the inlet hose to separate

it from the water tap

adapter.

2Loosen the four screws

properly in fitting into

water tap.

123

Fit the water tap adapter

into the water tap tap

and tighten the four

screws evenly while

pushing up the adapter

so that the rubber

packing can stick to the

water tap tightly.

4Remove the tape, and

screw connector B into

connect A tightly.

5Connect the inlet hose to

the water tap adapter by

puling down the collar of

the hose end.

6Connect the inlet hose

adapter of the hose to

the water inlet of the

washer by turning it

clockwise to be fixed

tightly.

•Please check the rubber

packing inside the inlet hose

adapter of the hose.

Connect the inlet hose to

the water tap by

screwing the connector

tightly.

Connect the connector-

inlet supplied if

necessary.

Insert the inlet hose

adapter into the water

inlet of a washer and turn

it to be fixed.

*Cheek the packing in the inlet

TAPE

Connector B

Connector A

Connector

Rubber

Packing

Hose

Connector

Rubber

Packing

Hose

Connector

inlet

Sorting

Preparing clothes for washing

To obtain the best wahing results, you must operate your washer properly.

This section gives you this important information.

OPERATING YOUR WASHER

•Close zippers, snaps, and hooks to avoid

snagging other items.

Remove pins, buckles, and other hard

objects to avoid scratching the washer

interior.

•Empty pockets and turn them inside out.

• Turn down cuffs and turn synthetic knits

out to avoid pilling.

•Tie strings and sashes so they will not

tangle.

•Treat spots and stains.

(see "Removing stains" on page14)

•Drop items into washer loosely. Items

should move easily through wash water

for best cleaning and wrinkle-free results.

•Load washer properly and select correct

load size setting.

Overloading and selecting a setting too

small for the wash load can:

- cause poor cleaning

- increase wrinkling

- create excessive lint

- wear out items faster (because of pilling)

•Mix large and small items in each load.

Load evenly to maintain washer balance.

An off balance load can make the washer

vibrate during spin.

•Reduce wash time when using a small

load size setting. Loads with only a few

small items need less wash time.

•Use a large load size setting to reduce

wrinkling with permanent press clothes

and some synthetic knits. These items

should have more room to move in the

water than heavy items (towels, jeans)

•Separate heavily soiled items from, lightly soiled ones, even if they would normally be

washed together.

•Separate dark colors from light colors, colorfast items from non-colorfast item.

THE FUNCTIONS OF THE CONTROL PANEL

START

HOLD

POWER

WATER

LEVEL COURSE RES. PROCESS

WASH

TEMP.

HIGH

COLD MEDIUM

LOW

SMALL

HOT

WASH TEMP. DETERGENT

FUZZY REMAIN RINSE

SPRAY RINSE

SPINWASH

RES.

MIN.

BLANKET

ECONOMY

SUIT

SOAK

CONTROL

ONLY SPIN

•Press this switch to turn the power on or off.

•It can be used to choose water temperature to be supplied.

• As the button is pressed, water temperature will be repeated.

COLD ➝COLD+HOT ➝HOT

•In case of the single valve model, there is no wash temperature

selector function.

•It can be used to adjust amount of water according to the size of the

load to be washed.

•As the button is pressed, water level is selected by

MEDIUM ➝HIGH ➝SMALL ➝LOW

•It can be used to pre-engage time for wash.

•It is the button for the partial process or the combination of each

process (wash, rinse, spin) (See page 10)

•If you want to change wash time, rinse times, spin time, you must

press this button after selecting each process by the process button.

Also, this button can be used to spin only. (See page 10)

•It can be used to select the full-automatic course.

•As the button is pressed, course will be selected by following order:

FUZZY➝BLANKET➝ECONOMY ➝SUIT(WOOL) ➝SOAK

•Operation and temporary stop is repeated as it is pressed.

•When you want to change course in operating;

press the "START/HOLD" button➝Select the course that you want to

change ➝press the "START/HOLD" button again.

POWER

WATER

LEVEL

RES

PROCESS

CONTROL

ONLY SPIN

COURSE

START/

HOLD

WASH

TEMP.

FULL AUTOMATIC COURSE

1. FUZZY COURSE (SENSOR);

• This selection is for general washing except extraordinary clothes.

•Artificial brain sensor selects properly the various kind of washing condition such as

washing time, rinse times, spin time and water level.

5. SOAK COURSE;

•This selection is effective for blue-jean, climbing clothes, ruck sack, sports wear, etc...

•If you want to soak, press the course button to adjust to "SOAK" .

adjust to

"SOAK"

POWER

START

HOLD

COURSE

adjust to

water level and

water temperature

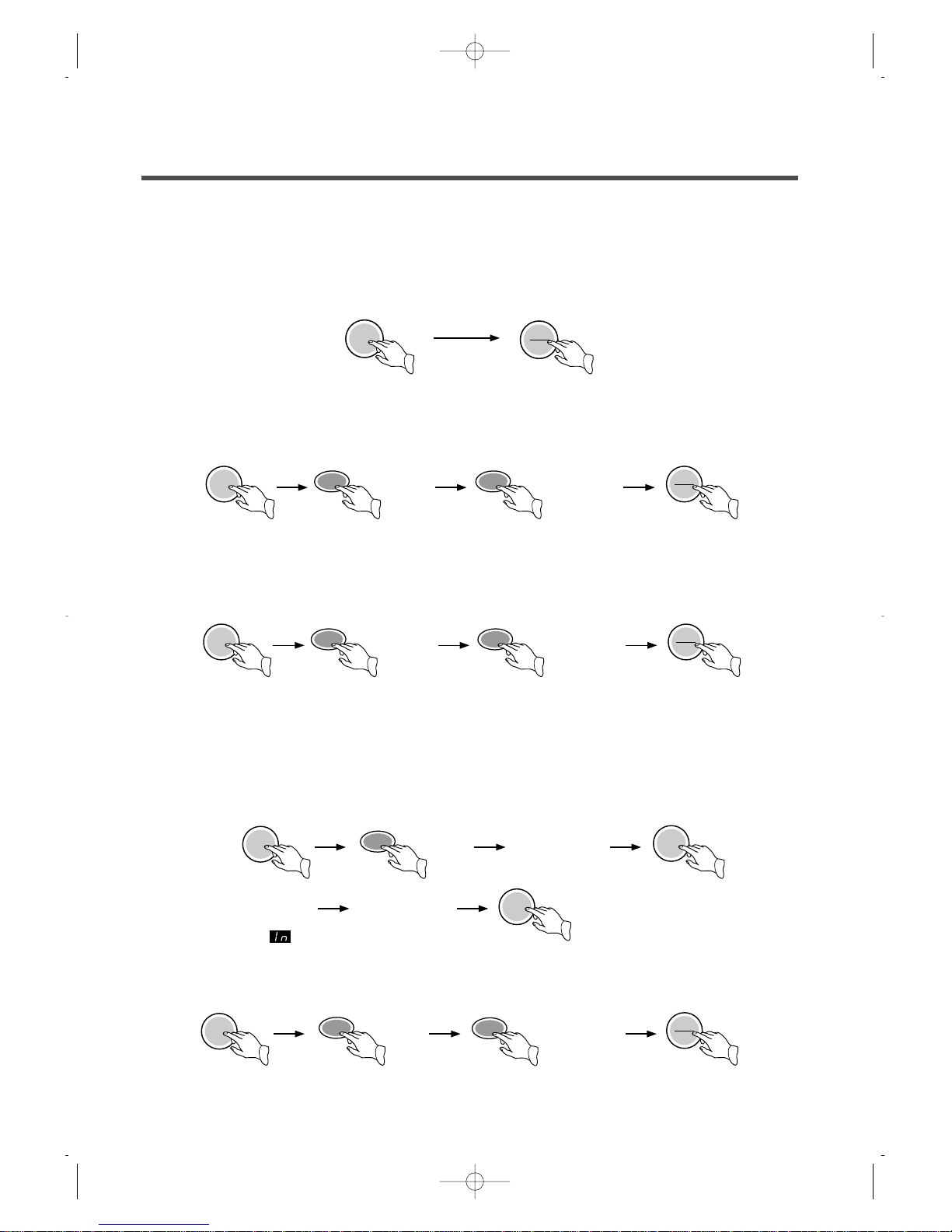

WASHING PROCEDURE AND COURSE SELECTION

POWER

START

HOLD

adjust to Put the exclusive

detergent DRYTEN

of 26g into the tub

for dilution with water.

Close the lid and press the

S/H button once again.

After dissolving of

detergent, lamp

will buzzer will

sound.

Put the clothes into

the tub after the

buzzer sounds.

POWER

START/

HOLD

COURSE

START/

HOLD

2. BLANKET COURSE;

•This selection is effective for blanket, curtain, carpet, etc ...

•Do not wash general-electric blanket absolutely. (4kg’s limitation for one-time-wash)

Procedure to press the button;

3. ECONOMY COURSE;

•This selection is useful to reduce water consumption and washing time for less dirty

clothes.

Procedure to press the button;

4. SUIT(WOOL) COURSE

•This selection is effective for suit clothes. (1.2kgs limitation for 1 time-wash)

•Do not put leather clothes, or chamois clothes into the washing tub for washing.

It may cause shrinkage or deformation to the clothes.

•Please use the neutral detergents only.

•The water temperature is fixed to COLD

•The water level LOW&SMALL is not selected.

adjust to

"BLANKET"

POWER START

HOLD

COURSE

adjust to water

level and water

temperature

adjust to

"ECONOMY" adjust to

water level and

water temperature

POWER

COURSE

START

HOLD

"SUIT(WOOL)"

WASH TIME CONTROL

•As the control button is pressed, wash time will be repeated as

following;

➝

10min.

•If you dont want wash process, you must adjust wash time to 0 min.

RINSE TIMES CONTROL

•As the control button is pressed, Rinse times will be repeated as

following;

1) Pump Model 2 Rinse

➝

3 Rinse

➝

4 Rinse

➝

0 Rinse

➝

1 Rinse

2) Non-Pump Model 2 Rinse

➝

3 Rinse

➝

4 Rinse

➝

1 Spray Rinse

➝

2 Spray Rinse

➝

3 Spray Rinse

➝

4 Spray Rinse

➝

0 Rinse

➝

Rinse

•If you dont want Rinse process, you must adjust Rinse times to 0 times.

•If you select spray Rinse, the LED of spray Rinse is lighted

(NON-PUMP MODEL)

SPIN TIME CONTROL

•As the control button is pressed, spin time will repeated as following;

➝

3min.

•If you dont want spin process, you must adjust spin time to 0 min.

Reserved Washing

• Reservation can be made from 2 hours to 48hours.

example) Tomake reservation to complete washing in 8hours.

• Now the reservation is made.

PARTIAL PROCESS & COMBINATION

POWER

PROCESS

CONTROL

ONLY SPIN

PROCESS

CONTROL

ONLY SPIN

PROCESS

CONTROL

ONLY SPIN

START

HOLD

REMAIN

adjust to "8"

REMAIN

CONVINIENT OPERATION FOR SPIN ONLY

• If you want spin only, it is convinient to operate

the button as following.

POWER

START

HOLD

CONTROL

ONLY SPIN

"--" SHALL BLINK

adjust to

"the Res" close

the lid

START

HOLD

COURSE

RES.

MIN

RES

RES.

MIN

`10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Daewoo

Daewoo

Daewoo DW-7510 Manual de usuario

Daewoo

Daewoo DWF-G300 series Manual de usuario

Daewoo

Daewoo DWD-FD2442 Manual de usuario

Daewoo

Daewoo DWF-150LD Manual de usuario

Daewoo

Daewoo DWF-170M Manual de usuario

Daewoo

Daewoo DWF-200HBTC Manual de usuario

Daewoo

Daewoo DWD-HB143 Series Manual de usuario

Daewoo

Daewoo DWD-FU1081 Manual de usuario

Daewoo

Daewoo DWF-1098 Manual de usuario

Daewoo

Daewoo DWDHQ1221 Manual de usuario

Daewoo

Daewoo DWD-M1041 Manual de usuario

Daewoo

Daewoo DW-3000 Series Guía de instalación

Daewoo

Daewoo WM710T1WU1RS Manual de usuario

Daewoo

Daewoo DWD-L100 Series Manual de usuario

Daewoo

Daewoo DWD-NT1211 Manual de usuario

Daewoo

Daewoo DWC-1011W Manual de usuario

Daewoo

Daewoo DW-1411 Manual de usuario

Daewoo

Daewoo DWF-800WP Manual de usuario

Daewoo

Daewoo KUD-WD135 SERIES Manual de usuario

Daewoo

Daewoo DWF-S99NS Manual de usuario

Daewoo

Daewoo DWF-752M Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Daewoo

Daewoo DWF-900M Manual de usuario

Daewoo

Daewoo C-ED1243NPX Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
