Daewoo DW-3000 Series Guía de instalación

Table of contents

Chapter I : Twin Tub Washing Machine

1. Technical point of some key parts ----------------------

1-1. Spin Timer --------------------------------------------------------- 2

1-2. Drain Pump -------------------------------------------------------

1-3. Pressure Switch -------------------------------------------------

1-4. Safety Device of Motors --------------------------------------

1-5. Safety Device of Spin Dryer ---------------------------------

1-6. Gear Housing ----------------------------------------------------

1-7. Spin Bellows Assembly ---------------------------------------

2. Specification of some key parts -------------------------- 6

2-1. V-Belt & Pulley Motor ------------------------------------------

2-2. Timer ----------------------------------------------------------------

3. Improvements of New Models ----------------------------

3-1. DW-160C(170C) --------------------------------------------------

3-2. Others 1, 2 --------------------------------------------------------- 16

4. Trouble Shooting Guide ------------------------------------- 23

Chapter II : Fully Automatic Washing Machine

1. Specification of New Models ------------------------------

1-1. DWF-100M's ------------------------------------------------------

1-2. DWF-900,160,170's ---------------------------------------------

1-3. DWF-750, 800's --------------------------------------------------

2. Sequence Chart of New Models --------------------------

2-1. DWF-100M's, 100C's, 1098's, 1094's, 1089's ------------ 32

2-2. DWF-900's, 160's, 170's, 174W's ---------------------------

2-3. DWF-750's, 800's ------------------------------------------------

3. Sequence Chart of Electrical Parts ---------------------

All New Models

4. Main Function of PCB ---------------------------------------

All New Models

5. The Principle of Load Sensing ---------------------------- 44

6. Trouble Shooting Guide ------------------------------------- 45

7. Testing(Demonstration) Mode ----------------------------

All New Models

8. Radical Function ----------------------------------------------- 57

9. Gear Mechanism ----------------------------------------------- 62

9-1. Wash & Spin Mode ---------------------------------------------

9-2. Structure -----------------------------------------------------------

9-3. Concerning Clutch Spring -----------------------------------

10. Technical Report ---------------------------------------------

10-1. Air Bubble -------------------------------------------------------

10-2. Pulley Motor ----------------------------------------------------- 72

Chapter I : Twin Tub Washing Machine

1. Technical point of some key parts

1-1. Spin Timer

Function

Structure and Principle of Activation

1-2. Drain Pump

The Spin Timer is the switch providing to the Spin Motor(Drain Pump Motor) during the set

spin dry time, and is a spring-type time switch comes on upon turning and those contact

points comes off after the set time.

1) The main shaft turns due to the unwinding force when the spin timer is turned and the

spring timer wound, with that force being delivered through each gear and the spring slowly

unwinding at a speed finally controlled by the angle assembly.

2) The contact point turns ON and the assembly angle is set in motion, which is in the CAM

groove in the OFF state, comes off the groove when the MAIN SHAFT is turned to wind the

spring. The contact point turns OFF, return to CAM groove when the spring unwind

completely.

Drain pump is designed to drain the water in selecting drain, spinning and water level being

high. Draining capacity is 18l/min. when the drain hose is 1.5m height.

a) Drain : The Drain Pump is turned on when the Drain Selector Knob is set to "DRAIN" while

the Wash Timer is ON. In this case the Drain Select Knob open the Drain Valve and drain

time can be controlled by Wash Timer.

b) Spinning : The POWER is provided to Spin Motor and the Drain Pump Motor by Spin

Timer so that the water is drained simultaneously with spinning.

1-3. Pressure Switch

1-4. Safety Device of Motors

1-5. Safety Device of Spin Dryer

c) water level being high : The Drain Pump is turned on when the water level reaches

approx. 9.5cm above level High. It is then turned off when the water level returns to level

High. It is operated automatically so that the water level maintains between level High and

approx. 9.5cm above level High.

n case excess

ve stra

s p

ace

on t

e motor

ue to excess

ve e

ectr

ty, over

eat

ng, or

overloading so that the temperature of motor reaches to about 135℃the thermal protector

attached to the motor shuts off the motor automatically. In this case the motor does not

operate, and is activated only after about an hour when motor temperature drops to about

85℃.

Note : Some

roducts do not offer this o

tion.

The Spin Dryer is an apparatus which eliminates the water from laundry through centrifugal

separation generated by rapid revolution(approximately 1,600 revolution per minute for

frequency of 60Hz). Accordingly, there are a Door Switch to cut off the power going into the

Spin Motor when Door Spin *0 is operated and a brake system to stop the rotating Spin

Dryer.

Drain Pump Motor

Drain Pump Motor is a shaded pole motor with a pump impeller, rotate about 2650 rpm to

operate the pump fan to drain.

As a mechanical switch, Pressure Switch turns ON by air pressure when the water level

reaches approx. 9.5cm above level High so that the Power is provided to the Drain Pump

which designed to drain the water to prevent overflow out the tub.

Door Switch

When the Door Spin *0 is operated during spin drying the Lever of the Door Switch which

sites the Door Spin *0 falls off the contact, and cuts off the Power going into the Spin Motor.

Brake System

When the Door Spin *0 is opened, the Plate Control Wire which sites separately atop and

Door Spin *0 drop down and loosens the Link Wire and Link Brake. And when the Brake

Band touches the Drum coupling Assembly and stops the Spin Dryer as it is pulled by the

spring in the Brake Fix Assembly.

1-6. Gear Housing

(at 60Hz)

1-7. Spin Bellows Assembly

Brake Band Gap Control Method

The Band Brake works best when the gap between it and the Drum Coupling is about 2mm

when the Door Spin *0 is closed. The Spin Dryer stops slowly if the gap is larger in which

case the screw of the Wire Guide may be loosened and adjusted upwards. If the gap

between the two is too narrow, the Spin Dryer revolution is affected and the Wire Guide may

be adjusted downward to maintain the Brake Band gap adequately.

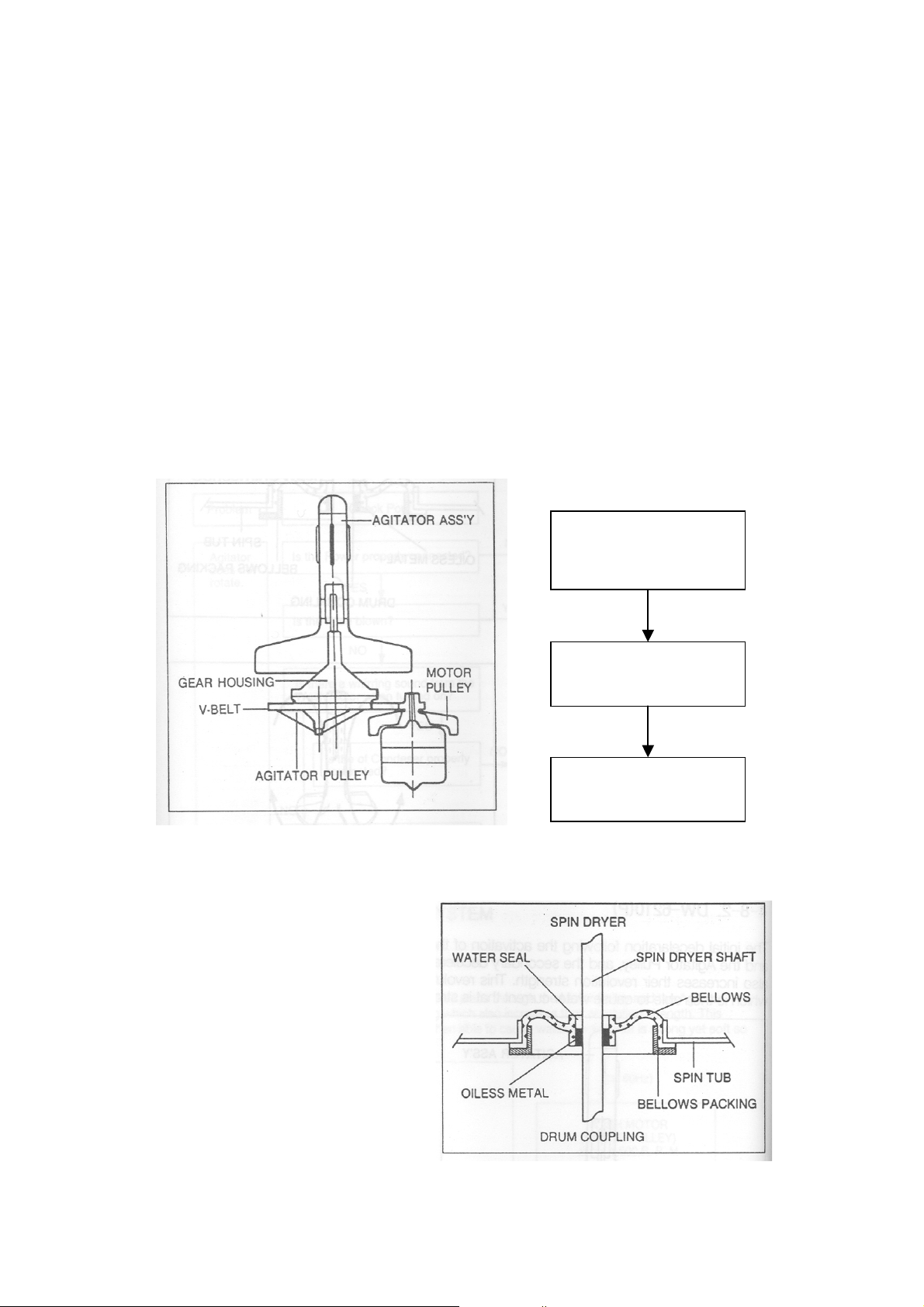

The initial deceleration following the activation of the Wash Motor takes place through the

Motor Pulley and the Agitator Pulley, and the secondary deceleration is done by the gears in

the Gear Housing which also increases their revolution strength. This revolution speed and

strength is delivered to the Agitator, which is then able to cause water current that is strong

yet soft so that wash loads are not damaged.

The wrinkled rubber device on the

bottom of the spindryer is called

Spin Bellows assembly. It has a

waterseal and a oilless metal

inside to prevent leakage and so

that the Spin Dryer may work

smoothl

WASH MOTOR

(MOTOR PULLEY)

about 1600 RPM

AGITATOR PULLEYS

about 271 RPM

AGITATOR

about 65 RPM

4.18:1

5.91:1 V-BELT

GEAR HOUSING

ASS'Y

2. Specification of some key parts

2-1. V-BELT & PULLEY MOTOR

TYPE PART CODE TYPE(IN) PART CODE

50Hz M32 450M700020 Ø31 3618431700

60Hz M31 3616590400 Ø24 3618431600

50Hz M32 450M700020 Ø31 3618431700

60Hz M31 3616590400 Ø24 3618431600

50Hz Ø31 3618431700

60Hz Ø24 3618431600

50Hz Ø31 3618431700

60Hz Ø24 3618431600

50Hz Ø31 3618431700

60Hz Ø24 3618431600

50Hz ----

60Hz M24 3616590700 Ø26 3618432700

450M700020

DW-4000's

DW-800C's

MODEL

DW-500M's

DW-170C's

DW-3000's

PULLEY

M25 4504B00020

DW-160C's

V-BELT

A36.6 3616500800

M32

2-2. TIMER

1) WASH TIMER

TYPE RESIN PART CODE TYPE RESIN PART CODE

110/60 S-K30A UL-94(HB) 3619910741

220,240/50 S-K30AP UL-94(HB) 3619910701 S-K30A UL-94(HB) 3619910741

100/50,60 S-K30AS UL-94(HB) 3619910721

220/60 S-K30AS UL-94(HB) 3619910721

110/60

220,240/50 S-K30A UL-94(HB) S-K30AP UL-94(HB) 3619910701

100/50,60

220/60 S-K30A UL-94(HB)

110/60

220,240/50 S-K40A UL-94(HB) 3619905401 S-K40A UL-94(HB) 3619905401

220,240/50 S-K40B UL-94(V0) 3619905501

100/50,60

220/60 S-K40A UL-94(HB) 361995401

110/60 S-K80NT UL-94(HB) 3619910941

220,240/50 S-K80NT UL-94(HB) 3619910941 S-K80NT UL-94(HB) 3619910941

100/50,60 S-DT15TJ UL-94(HB) 3619911140

220/60 S-K80NT UL-94(HB) 3619910941

110,120/60 S-DT15NT UL-94(HB) 3619911100 S-DT15NT UL-94(HB) 3619911100

220,240/50 S-DT15NT UL-94(HB) 3619911100

220,240/50

100/50,60

220/60

110,120/60 S-DT15NT 3619911100 S-DT15NT UL-94(HB) 3619911100

220,240/50

100/50,60

220/60

DW-170C's

PUMP N0N PUMP

DW-800C's

DW-160C's

DW-3000's

DW-500M's

DW-4000's

MODEL
