Daewoo DWF-7094 Manual de usuario

Service Manual

Auto Washer

Model :DWF-7094

DAEWOO ELECTRONICS CO., LTD.

OVERSEAS SERVICE DEPT.

1. SPECIFICATIONS

SPECIFICATIONS

NO.ITEMDWF-7094

1POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE AND CYCLE

POWER CONSUMPTION

MACHINE NON-PUMP

WEIGHT PUMP

4 DIMENSION (WXHXD)

5 WASHING COURSE FULL AUTOMATIC 6 COURSE

(FUZZY, MEMORY, BLANKET, SUIT, HEAVY, ECONOMY)

WATER CONSUMPTION

WATER LEVEL SELECTOR

OPERATING WATER PRESSURE

0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)

60Hz

9 50Hz

SUIT COURSE

10PULSATOR

WATER LEVEL CONTROL

ELECTRONICAL SENSOR

12 ANTI NOISE PLATE O

GEAR MECHANISM ASS’Y

14 LINT FILTER O

15 SOFTENER INLET O

FUNCTION FOR SOAK WASH

17 ALARM SIGNAL O

RESIDUAL TIME DISPLAY

AUTO. WATER SUPPLY

20 NEW WATER FLOW WATER FLOW FOR ADJUST THE UNBALANCED LOAD

FUNCTION FOR BUBBLE

AUTO RE-FEED WATER

23 AUTO POWER OFF O

50Hz

400W

60Hz

430W

42.5Kg (GROSS : 48Kg)

43.5Kg (GROSS : 49Kg)

610mm X 965mm X 655mm

NORMAL 190L

HIGH(68L), MEDIUM(57L)

LOW(46L), SMALL(35L)

E.SMALL(28L)

WASH : 115~125, SPIN : 740~760

WASH : 110~115, SPIN : 660~670

WASH : 60 (60Hz), 50 (50Hz)

6 WINGS (Ø376mm)

SPUR GEAR

REVOLUTION

PER MINUTE

2. STRUCTURE OF THE WASHING MACHINE

STRUCTURE

„‡

¿ł

¿„ ˆº … …… ¯„ ˙ – ¯» … ˜ ‰” „¿´

¿ /

ˇ‰ˆ`⁄`

„‡

–…

……`ƒ•ﬁ „ ¿´

DAEWOO AUTOMATIC WASHER

¿´ …

„¿´…

‡ˆ …

……¯„ ¯»…

˙–

¿„

‡† ”‰ˆ £

‰ˆ £»¿¿

”—

– ·ª¿ ”„ ´ …

”‚†

14 10

61234»¿1

˘`

• BLEACH INLET

• HOT WATER TAP

• POWER SWITCH

• CONTROL PANEL

• PULSATOR

• ADJUSTABLE LEGS

• GROUND WIRE

In case of 3-wire power cord

ground wire will not be provided.

• COLD WATER TAP

After using the washer,

close the water tap

and turn off the power.

• POWER CORD

• DETERGENT CASE

• HOOK HOLE

• LINT FILTER

• HOSE DRAIN

After using the washer, close the water

tap and turn off the power. In case of

the single valve model, There is no

hot water valve.

DRYTEN

HOSE DRAIN O AS [NON-PUMP]

COVER UNDER [OPTION]

HOSE DRAIN O AS [PUMP]

WATER TAP ADAPTER

HOSE DRAIN CLAMP

INLET HOSE

CONNECTOR INLET [OPTION]

Accessories

The parts and features of your washer are illustrated on this page.

Be come familiar with all parts and features before using your washer.

NOTE

• The drawing in this book may vary from, your washer model. They are designed to show the different fea-

tures of all models covered by this book, Your model may not include all features.

• Page references are included next to same features.

Refer to those pages for more information about the features.

3. DIRECTIONS FOR INSTALLATION AND USE

DIRECTIONS

The openings must not

be obstructed by carpet-

ing when the washing

machine is installed on a

carpeted floor.

§§

Installation Of The Under Base Cover [Option]

§§

How To Install On An Inclined Place

¡The place where it would be exposed to

direct sunlight.

¡The place nearby a heater or heat appli-

ance.

¡The place where it would be supposed

to be frozen in winter.

¡The kitchen with coal gas and a damp

place like a bathroom.

NOTES

10Cm

Install the washer on a horizontal

solid floor. If the washer is installed

on an unsuitable floor, it could make

considerable noise and vibration.

Installing Place

NNeevveerriinnssttaalllliinntthheesseeppllaacceess

2Push the noise insulation plate

into the end, which decrease

the noise made by this washer.

1The packing box

opened, there is a

noise insulation plate

at the bottom of the back

(DWF-7094, 8094) or front

(DWF-1094).

2Check the Horizon

Status

Check the position of tub above

the center of the washer.

1Horizon

Setting

After controlling the height

by turning the adjustable

leg, let the washer put

down to the ground.

Keep the machine body

more than 25cm apart from

the wall surface. It will

make easy cleaning the

drain filter which is equipped

at the back side of it. And if

it comes into contract vibra-

tion may occur.

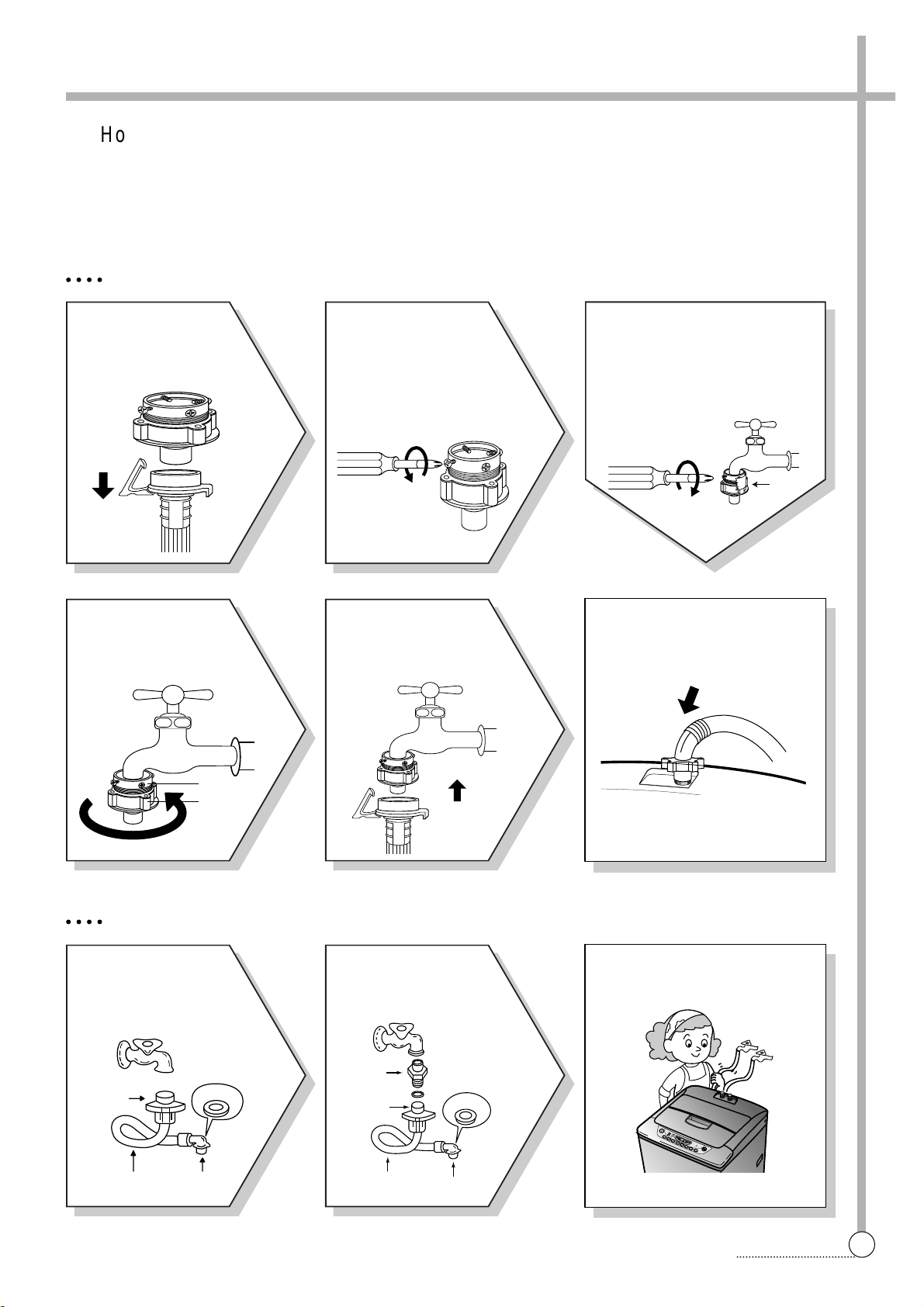

CONNECTION

FOR ORDINARY TAP

6Connect the inlet hose adapter

of the hose to the water inlet of

the washer by turning it clock-

wise to be fixed tightly.

• Please check the rubber packing

inside the inlet hose adapter of

the hose.

1Pull down the collar

of the inlet hose to

separate it from the

water tap adapter. 2Loosen the four

screws at the water

tap adapter, but don’t

loosen the screws until

they are separated from

the water tap adapter.

4Remove the tape,

and screw connector

B into connect A tightly. 5Connect the inlet

hose to the water tap

adapter by puling down

the collar of the hose end.

3Connect the water tap

adapter to the water tap tight-

en the four screws evenly

while pushing up the adapter

so that the rubber packing

can stick to the water tap

tightly.

§§

How to Connect the Inlet Hose

Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.

In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet

valve.

Do not over tighten : this could cause damage to couplings.

FOR SCREW-SHAPED TAP 3Insert the inlet hose adapter

into the water inlet of a washer

and turn it to be fixed.

• Assert the packing in the inlet

1Connect the inlet

hose to the water tap

by screwing the con-

nector D tightly. 2Connect the connec-

tor-inlet supplied if

necessary.

Inlet Hose

Connector D Rubber

Packing

Connector C

Connector

Inlet

Rubber

Packing

Connector D

Connector C

Hose

„‡

¿ł

¿„ ˆº … …… ¯„ ˙ – ¯» … ˜ ‰” „¿´

¿ /

ˇ‰ˆ`⁄`

„‡

–…

……`ƒ•ﬁ„¿´

DAEWOOAUTOMATICWASHER

¿´ …

„¿´…

‡ˆ …

……¯„¯»…

˙–

¿„

‡†”‰ˆ£

‰ˆ£»¿¿

”—

– ·ª¿ ”„´…

”‚†

14 10

6 1 2 3 4 »¿ 1

˘`

TAPE

Connector B

Connector A

§§

How to Connect the Inlet Hose

Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.

In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet

valve.

Do not over tighten : this could cause damage to couplings.

CONVENIENCE

§§

How To Clean The Filter

Remove the dirt

from the inlet filter

with a brush.

Pull the

power plug

out before

cleaning it.

Turn off the

water supply

to the washer

and sperate the

Pull the

inlet filter out.

CLEANING THE LINT FILTER

CLEANING THE WATER INLET FILTER

• Clean the filter when water leaks from, the water inlet.

CLEANING THE DRAIN FILTER

• In case “U” shape drain hose, this filter’s equipped at the cack side of washer.

• This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ...

• If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.

3Return the filter as it was, and

insert the filter frame into the

slot.

1Pull the Filter frame

upward. 2Turn the lint filter

inside out, wash to

the lint off with water.

1Put down the

remained water in the

hose. And put a container

under the filter to collect

water.

2Turn the cap counter

clockwise. 3Pull out the filter assembly off

the case of the main body.

6Turn the cap clockwise tightly.

4Clean the drain filter

removing the foreign

stuffs. 5

Put in the filter along the

guiding prominence of the

case. Please note the left

position of the filter adjusting

the groove to the guide rib.

FILTER CONTAINER

CAP

SLIT

CASE

FILTER

CAP

FILTER

CAP

FILTER CASE

GUIDE

RIB

SLIT

CAP

Filter Frame

Lint Filter

4. FEATURE AND TECHNICAL EXPLANATION

EXPLANATION

WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••

MOTOR C.W

SINGAL C.C.W

TIME(SEC.) 0.3 0.3 0.3 0.3 0.3 0.3 •••••••

35 SEC. (About 29 Times)

FILL WASH STOP WASH STOP

• 2’ 28’ 2’ 28’

SOAK PROCESS MAIN PROCESS

60 Minute

Feature of the Washing Machine

1The first air bubble washing system in the world.

2Quiet washing through the innovational low-noise design.

3The wash effectiveness is much more enhanced because of the air bubble washing system.

4The laundry detergent dissolves well in water because of the air bubble washing system.

5The adoption of the water currents to adjust the unbalanced load.

6One-touch operation system.

Water Current to Adjust the Unbalanced Load

It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 35

seconds.(But, the SUIT course have no operation of the water currents to adjust the unbalnced load.)

EFFECT

It reduces vibration and noise effectively while spinning.

WATER FLOW

Function for Soak Wash

DISPLAY THE RESIDUAL TIME

When the SOAK WASH is selected, the total wash time increases because 60 minutes for soak process are added

to the time of main process.

PROGRESS

Automatic Water Supply System For Blanket Wash

The water level would be lowered because the blanket absorbs water at the beginning of washing. Therefore, after

30 seconds, the operation is interrupted to check the water level, and then the water is supplied again until the select-

ed water level is reached.

‘ ’ mark indicates the operation of the water currents to adjust the unbalanced load.

NOTES

EXPLANATION

FUNCTIONAL PRINCIPLE

1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to

“OFF” point

2 In case of continuous draining, residual drain time is determined by micom.

Draining time as a whole = D + 90 Residual drain time.

The time remembered by micom.

Asymmetrically designed pulsator

makes the cyclone water fow, which get

rid of the washing dead zone to

increase the washing effect and reduce

the entanglement of laundry.

Draining Good draining The washer begins spin process after drainage.

condition Bad draining Draininig time is prolonged.

No draining Program is stopped and gives the alarm.

Drain Time Movement of the Program

Less than Continue draining

15 minutes

More than Program stops and gives the alarm with blinked on display lamp.

15 minutes

Pulsator System

When the pulsator is rotated C.W or C.C.W at a high speed, it makes the cyclone water flow from the asymmetrically

designed pulsator as shown below.

Automatic Drainning time Adjustment

This system adjusts the draining time automatically according to the draining condition.

EXPLANATION

Contact of safety switch Lid closing

Lid opening

Contact lever A

Normal (ON)

Position of

unbalanced load (OFF)

Automatic Unbalance Adjustment

Circulating-Water Course and Lint Filter

The alarm finished when you close the lid after opening

it. Check the unbalance of the wash load and the instal-

lation condition.

NOTES

Filter Tub

Outer tub

Water

channel

Pulsator

This system is to prevent abnormal vibration during intermittent spin and spin process.

FUNCTIONAL PRINCIPLE

1When the lid is closed, the safety switch

contact is “ON” position.

2In case that wash loads get uneven during

spin, the outer tub hits the safety switch

due to the serious vibration, and the spin

process is interrupted.

3In case that P.C.B. ASS’Y gets “OFF” signal

from the safety switch, spin process are

stopped and rinse process is started auto-

matically by P.C.B. ASS’Y.

4If the safety switch is operated due to the

unbalance of the tub, the program is

stopped and the alarm is given.

CIRCULATING-WATER

The washing and rinsing effects have been

improved by adopting the water system in

which water in the tub is circulated in a

designed pattern.

When the pulsator rotates during the washing

or rinsing process, the water below the pul-

sator vanes creates a water currents as shown

in figure.

The water is then discharged from the upper

part of the tub through the water channel.

About 40 L/min. water is circulated at the ‘high’

water level, standard wash load and standard

water currents.

EXPLANATION

Much lint may be obtained according to the kind of

clothes to be washed and some of the lint may also

sticks to the clothes.

To minimize this possibility a lint filter is provided on

the upper part of the tub to filter the wash water as it

is discharged from the water channel. It is good to

use the lint filter during washing.

HOW TO REPLACE LINT FILTER

1Pull the filter frame upward.

2Turn the lint filter inside out, and wash the lint off with water.

3Return the filter as it was, and fix the filter frame to the slot.

When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be

counted down according to process.

When operation is finished, the TIME INDICATOR will light up .

STRUCTURE

FUNCTIONAL PRINCIPLE

1When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and

revolves the pulley by gear assembly for reducing.

2When the pulley is rotated, the pulley winds the wire to open the drain valve.

3Therefore, rotation of pulley changed to the linear moving of wire.

4The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.

5After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the

lever.

6When the power is turned off, the drain valve is closed because the wire returns to original position.

Bleach Inlet

Filter

Pulsator

Pull

Loosen

Pulley

Lever

Inductive ring

Magnet

Coil of motor

Magnet of motor

Lint Filter

Residual Time Display

Drain Motor

Bleach

Inlet

Filter

Pulsator

Tabla de contenidos

Otros manuales de Arandela de Daewoo

Daewoo

Daewoo DWM-7510 Manual de usuario

Daewoo

Daewoo DWF-150LD Manual de usuario

Daewoo

Daewoo DWF-5590DP Series Manual de usuario

Daewoo

Daewoo DWD-UD123X Manual de usuario

Daewoo

Daewoo DWD-AF1011 Manual de usuario

Daewoo

Daewoo DWC-UD1222 Manual de usuario

Daewoo

Daewoo DWF-33CG Series Manual de usuario

Daewoo

Daewoo DWF-7589 Manual de usuario

Daewoo

Daewoo WM510T0WU0ES Manual de usuario

Daewoo

Daewoo DWC-UD121X Series Manual de usuario

Daewoo

Daewoo DWF-750 Manual de usuario

Daewoo

Daewoo DWF-173M Manual de usuario

Daewoo

Daewoo DWF-165WD Manual de usuario

Daewoo

Daewoo DWM-160C Manual de usuario

Daewoo

Daewoo DWD-FT1081 Manual de usuario

Daewoo

Daewoo DWD-1211RT Manual de usuario

Daewoo

Daewoo DWD-F1011 Manual de usuario

Daewoo

Daewoo DWD-E115R Manual de usuario

Daewoo

Daewoo DWD-MH1011 Manual de usuario

Daewoo

Daewoo DWF-G300 series Manual de usuario

Daewoo

Daewoo DWF-900M Manual de usuario

Daewoo

Daewoo DWF-600M Manual de usuario

Daewoo

Daewoo DW-900C Manual de usuario

Daewoo

Daewoo DWF-750 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
