Daewoo DWD-E1200R S Manual de usuario

SVC MANUAL

DWD-E1200R’S

DWD-E1200W’S

DRUM WASHING MACHINE

2005. 09

DRUM WASHING MACHINE

DRUMWASHINGMACHINE

SERVICEMANUAL

1. WHAT IS DRUM?..........................................................................2

2. SPECIFICATION OF DRUM WASHING MACHINE .....................6

3. VERIFICATION OF DRUM ASSY ................................................7

4. PARTS LIST FOR EACH ASSY....................................................8

5. SEQUENCE CHART OF PCB.....................................................23

6. TROUBLE SHOOTING ...............................................................32

7. WIRING DIAGRAM .................................................................... 48

8. TROUBLESHOOTING REGARDING DRAIN .............................56

9. INSTALLATION GUIDE...............................................................57

10. ATTENTION POINT WITH SERVICE........................................59

One of the famous washers in the globe which uses laundry falling energy.

1.WHATISDRUM?

1.WHATISDRUMWASHER?

❖The biggest capacity with compact size

❖Environmently friendly washer with NANO technology

• Sterilizing up to 99.9%

❖No damage and entanglement but excellent washability

❖4way savings-noise, vibration, washing times, energy

❖Self-cleaning course of Drum

❖Good washing performance with heating system

❖Condensing dry system with saving energy

❖Sunshine dry effects with infrared x-ray

❖Big door glass with easy laundry take-in/out

❖The higest spin speed - 1200rpm

2.Salespointofourwasher

• DD CONTROL : DIRECT DRIVE SYSTEM

• BLDC MOTOR

3. THE DIRECT DRIVE SYSTEM OF DRUM WASHING MACHINE

TUB

DRUM

LIFTER

WASH

BLDC

DRAIN

PUMP

(MOTOR)

4.DRIVESYSTEM

3. INLET PARTS

• COLD : 3-WAY

- COLD, PREWASH, DRY

• COLD : 2-WAY

- COLD, PREWASH

5. DOOR PARTS

• DOOR LOCK S/W

: ADDING CLOTHES

• LOCK HINGE

• DOOR AS : GLASS

• GASKET

7. DRAIN PARTS

• DRAIN PUMP(MOTOR)

• VALVE HOUSING

• DRAIN HOSE I

6. DRY PARTS

• HEATER DRY : OPTION

• BLOWER FAN

• FAN MOTOR : BLDC

• THERMISTOR

• THERMOSTAT

: FUSE, BI-METAL

• CONDENSING SYSTEM

• DRY FAN DRIVE

→GENERATION OF

HEATER’S HEAT

→TEMP. SENSOR

→100°C OFF 90°C ON :

OPTION

DRAIN PARTS

1. CONTROLLER

• MAIN PCB

• FRONT PCB

• HARNESS

• NOISE FILTER

• POWER CORD : 15A

2. DRIVE PARTS

• BLDC MOTOR

• DRUM

• BEARING

• SPIDER/SHAFT

• TUB

• WEIGHT BALANCER

4. WASH HEATING

• WASH HEATER : OPTION

• THERMISTOR

• 40°C FIXED TEMP.

CONTROL : OPTION

• 60°C, 90°C BOIL

8. SUPPORTER

•BASE

•DAMPERAS:3(70N)

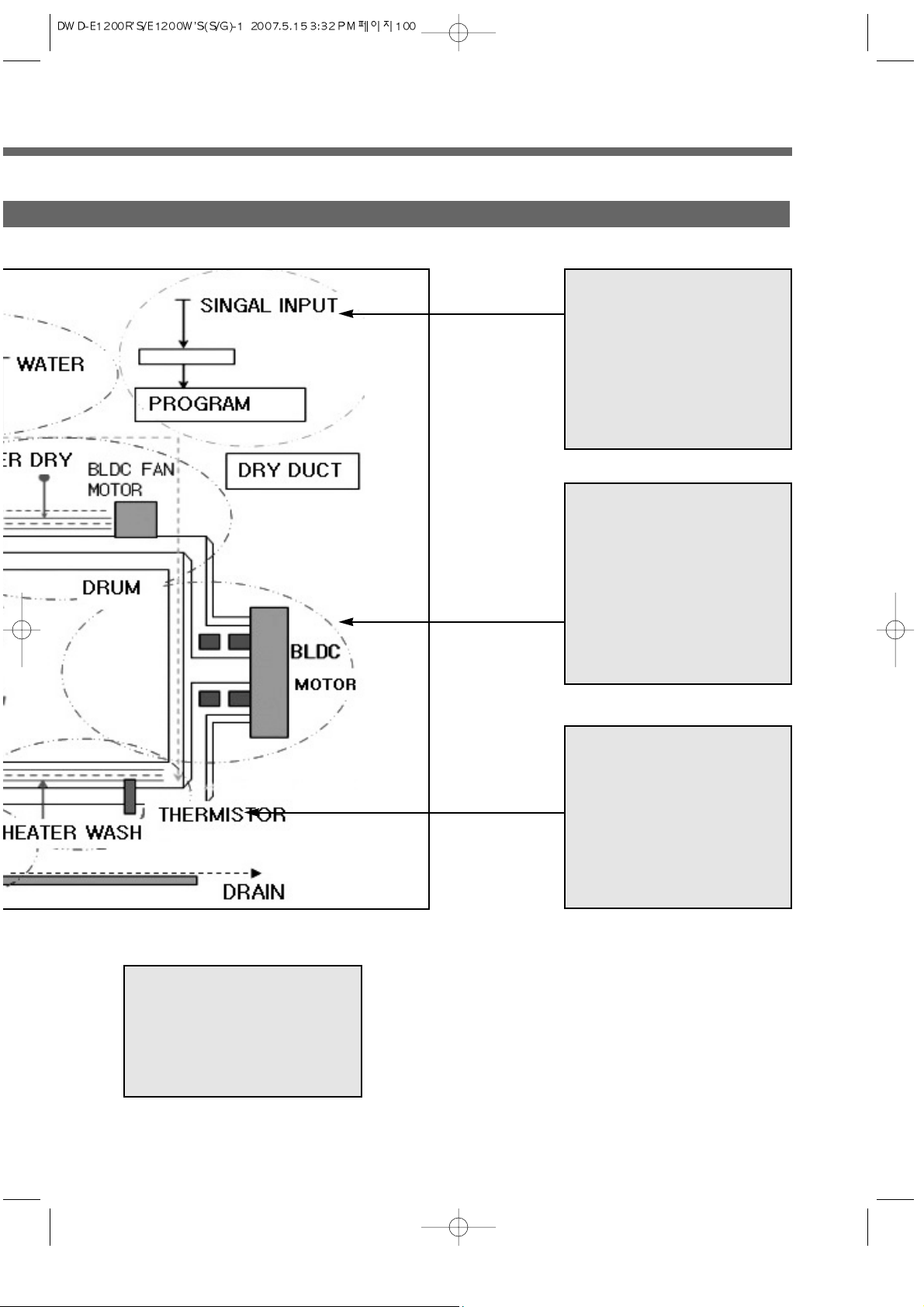

5.FUNCTION

1. CONTROLLER

(1-1) MAIN PCB

(1-2) FRONT PCB

(1-3) NOISE FILTER

3. INLET PARTS

(3-1) 3-WAY INLET VALVE

(3-1) 2-WAY INLET VALVE

(3-2) 1-WAY INLET VALVE (HOT)

(3-3) INLET BOX AS

4. DOOR AS

(4-1) GLASS DOOR

(4-2) HINGE DOOR

(4-3)DOOR LOCK S/W

6. WASH HEATING

• WASH HEATER

• THERMISTOR

5. DRY : DUCT B AS

2. PARTS for DRIVING

(2-1) LIFTER AS

(2-2) GASKET

(2-3) WEIGHT BALANCER

(2-4) ROTOR

(2-5) STATOR

(2-6) SHAFT

(2-7) BEARING

(2-8) SPIDER

(2-9) DRUM

(2-10) TUB

(2-11) BASE

BLDC MOTOR

PARTS for

TRANMITTING

• FAN

MOTOR

(2-9)

(2-6)

(2-7)

(2-4)

(2-5)

(2-11)

(2-10)

• TEMP. FUSE

• BI-METAL

S/W

• HEATER DRY

• TEMP.

SENSOR

(2-7)(2-8)

• FAN

HOT)

7. DRAIN

(7-1) PUMP AS

(7-2) HOSE DRAIN I

(7-3) HOSE DRAIN

8. SUPPORTER

(8-1) BASE U

(8-2) DAMPER AS : 3(70N)

(8-3) SPRING :

FRONT - 2 (BLACK)

REAR - 2 (YELLOW)

(5) (3-3)(3-2) (1-2)

(2-2)

(4-3)

(4-1)

(4-2)

(2-3)

(7-2)

(7-1)

(8-1)

(7-3)(8-2)(1-1)(1-3)

(2-1)

(6)

(8-3)

EMP. FUSE

(3-1)

ATER DRY

• TEMP.

SENSOR

2.DRUMWASHINGSPECIFICATIONOFMACHINE

1.PANELTYPE1

DIMENSION(WxDxH) 630mm(W) x 755mm(D) x 950mm(H)

MACHINE WEIGHT 90 / 85kg

WATER CONSUMPTION WASH 130 / DRY 28

WASHING CONSUMPTION 32

POWER SOURCE Option

POWER WASHING 1100W (Heating ) ~ 2400W : Option

CONSUMPTION DRY 1250W ~2400W : Option

WASHING 11 kg (Domestic)

CAPACITY SPIN 11 kg (Domestic)

DRY 6.5 kg (Domestic)

WASHING TYPE DRUM TYPE

DRY TYPE Digital condensing dry system

OPERATION WATER PRESSURE 29kPa ~ 784kPa(0.3kgf/cm

~8kgf/cm

)

NO PARTS NAME

1 FRME DOOR O

2 DOOR WINDOW

3 DCD STICKER

4 PANEL LOWER

5 CABINET FRONT

6 PANEL LOWER

7 FRAME TOP F

8 FRAME TOP R

9 CABINET

10 PLATE TOP

11 CASE HANDLE

12 HANDLE CAP

13 BADGE

14 WINDOW DISPLAY

15 DECO. WINDOW

BUTTON DOOR UNLOCK

17 BUTTON FUNCTION

18 DECO. FUNCTION

19 PLATE DISPENSER

20 BUTTON POWER

21 BUTTON DIAL OUT

22 BUTTON DIAL IN

23 BUTTON DIAL IN

24 HOLDER COURSE IN

25 HOLDER COURSE OUT

26 HANDLE CABINET

27 BASE UNDER

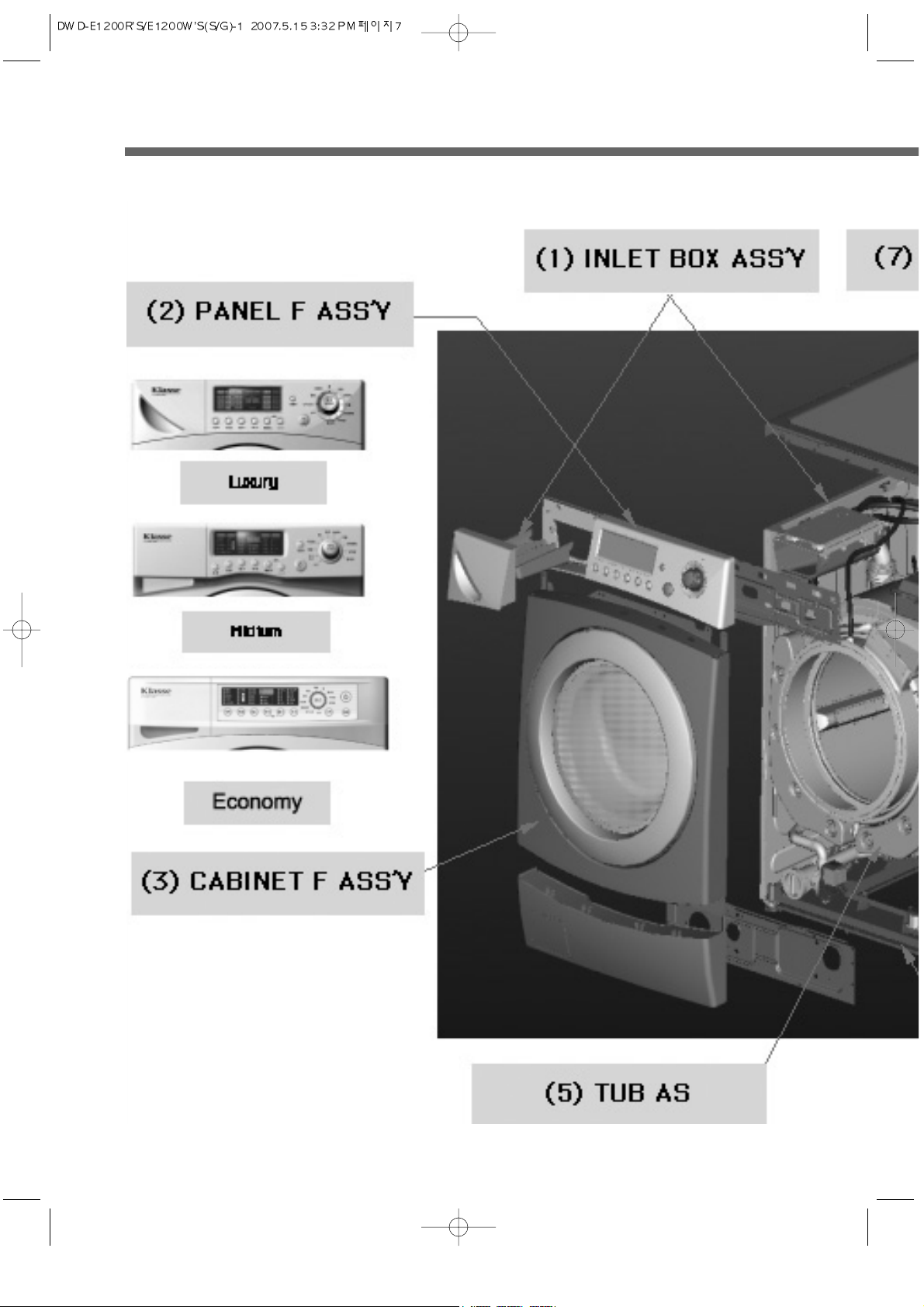

3.VERIFICATIONOFDRUM ASSY
