Daewoo DWC-UD1212 Manual de usuario
Service Manual
Drum Washing Machine
Model:DWC-UD1212
Apr. 2008
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
S/M No. : CUD121DC01
10
1. PANEL F AS
5. PARTS LIST BY ASS’Y
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
A01 PANEL F OUTER 3614287900 ABS 1
A02 PANEL F INNER 3614288000 ABS 1
A03 DECORATOR START 3611686300 ABS 1
A04 BUTTON POWER 3616637100 ABS 1
A05 DECORATOR COURSE 3611686200 ABS 1
A06 WINDOW COURSE 3615505700 Trans parency ABS 1
A07 BUTTON DIAL IN 3616637300 ABS 1
A08 BUTTON DIAL OUT 3616637500 Trans parency 1
A09 BUTTON START 3616637600 ABS 1
A10 BUTTON RES 3616637200 ABS 1
A11 BUTTON FUNCTION 3616637700 ABS 1
A12 WINDOW DISPLAY 3615505600 Trans parency ABS 1
A13 CASE HANDLE 3611146800 ABS 1
A14 HANDLE CAP 3612611300 ABS 1
A15 SPRING CASE HANDLE 3615116000 SUS 304, D=0.6 1
A16 CASE PCB F 3611146700 HIPS 1
A17 HOLDER LED 3613054000 ABS 1
A18 HOLDER LED COURSE 3613053900 ABS 1
A19 PCB AS DWD-T120R FRONT PCB ASSY 1
ῡῡttQQRRUUGG@
@
PANEL F AS: 36142T1211
PEDIR PANEL F AS
PEDIR PANEL F AS
NO DISPONIBLE
PCB AS
PRPSSW2D31
CASE DETERGENT AS:
36111T1200
PEDIR CASE
DETERGENT AS
PEDIR CASE
DETERGENT AS
NO DISPONIBLE
12

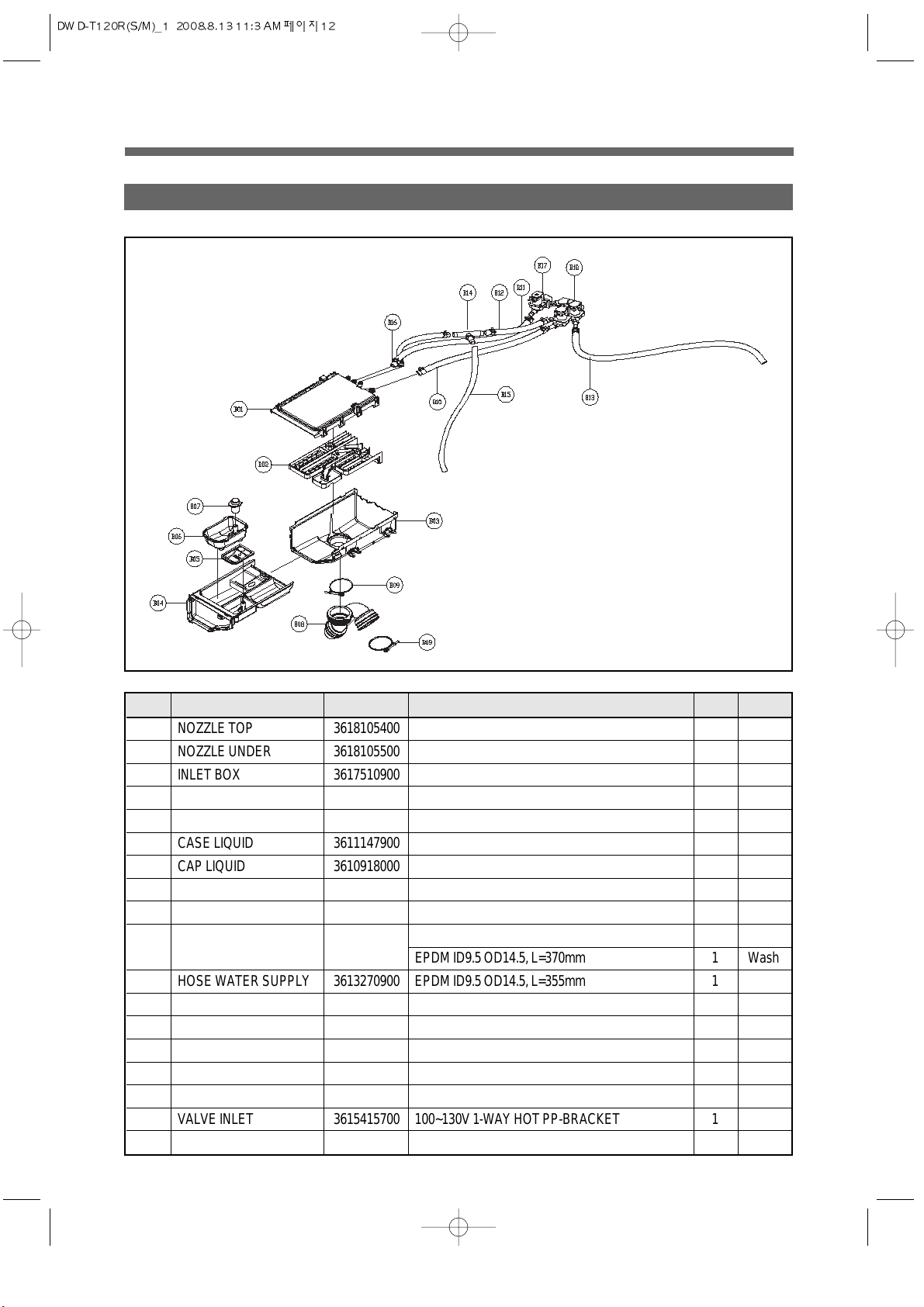

2. INLET BOX AS
No. PARTS NAME CODE SPECIFICATIONS Q’TY
REMARK
B01 NOZZLE TOP 3618105400 PP 1
B02 NOZZLE UNDER 3618105500 PP 1
B03 INLET BOX 3617510900 PP 1
B04 CASE DETERGENT 3611146400 PP 1
B05 CAP SOFTENER 3610918300 PP 1
B06 CASE LIQUID 3611147900 PP 1
B07 CAP LIQUID 3610918000 PP 1
B08 HOSE INLET 3613272000 EPDM, "U" TRAP 1
B09 CLAMP AS 3611203200 ID=60, WIRE+GUIDE+BOLT+NUT 2
B10 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=320mm 1 Combo
EPDM ID9.5 OD14.5, L=370mm 1 Wash
B11 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=355mm 1
B12 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=170x2 2
B13 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=460mm 1
B14 PIPE JOINT(HOSE INLET) 3614413300 PP 1
B15 HOSE WATER SUPPLY 3613270930 EPDM ID8.5 OD12.5, L=530mm 1
B16 CLAMP HOSE 3611205800 100H, ID=13.8 W=10.0 0.9T 8
B17 VALVE INLET 3615415700 100~130V 1-WAY HOT PP-BRACKET 1
B18 VALVE INLET 3615415060 100~130V 3-WAY 1
INLET BOX AS:
3617505721
PEDIR INLET BOX AS
PEDIR INLET BOX AS
PEDIR INLET BOX AS
CASE LIQUID AS:
3611148100
PEDIR CASE LIQUID AS
PEDIR CASE LIQUID AS
CASE DETERGENT AS:
36111T1200
NO DISPONIBLE PARA ESTE MODELO
NO DISPONIBLE PARA ESTE MODELO
13
3. CABINET F ASSY
14
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
C01 CABINET F 3610813000 SECD 0.8 t 1
C02 PLATE HINGE SUPPORT 3614539800 SPG 0.8 t 1
C03 HINGE DOOR 3612903800 AL 1
C04 CAP HINGE DOOR 3610916500 POM 4
C05 FRAME DOOR O 3612209905 ABS, CR 1
C06 HANDLE COVER 3612611500 ABS 1
C07 HOOK DOOR 3613100900 ZNDC 1
C08 SPRING HOOK 3615115400 SUS304 1
C09 HOOK SHAFT 3613101000 SUS, D=3.0 1
C10 SWITCH DOOR LOCK 3619047200 DL-S1 125V 16A 1
C11 FRAME DOOR I 3612209800 PP 1
C12 PROTECTOR GLASS 3618304300 PC 1
C13 STOPPER DOOR 3615202400 ABS 1
C14 DOOR GLASS 361A110600 GLASS 1
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
DOOR AS: 3610DRT100
15
4. CABINET ASSY
16
No. PARTS NAME CODE SPECIFICATIONS Q’TY
REMARK
D01 NOZZLE AIR 3618103110 PP, DWD-100DR 1
D02 FRAME TOP R 3612209300 GI 1.6 t 1
D03 FRAME TOP L 3612209400 GI 1.6 t 1
D04 CABINET 3610812900 SGCC 0.8 t 1
D05 COVER BACK AS 3611425540 COVER BACK + PAD CABINET 1
D06 STOPPER SPRING 3615202200 POM, DWD-100DR 2
D07 FIXTURE PLATE 3612008000 POM, 130RP 8
D08 FRAME UPPER 3612209500 SBHG, 1.2 t 1
D09 FRAME LOWER 3612204200 SBHG, 1.2 t 1
D10 HANDLE CABINET 3612608100 PP, DWD-100DR 4
D11 FRAME COVER 3612209600 SBHG, 1.2 t 1
D12 VALVE INLET 3615414800 HOT, 220~240 1
D13 VALVE INLET 3615415060220~240V,3WAY,RINSE GUIDE,PP/BRACKET 1
3615414900 220~240V,2WAY,PP/BRACKET
D14 CASE PCB MAIN 3611146200 HIPS, DWD-T110R 1
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE PARA ESTE MODELO
PRPSSW2D41
17
5. BASE U AS
18
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
E01 BASE U 3610393200 PP, DWD-T120R 1
E02 SUPPORTER LEG 3615303600 PO+, 3.0T 4
E03 FIXTURE LEG 3612006400 ABS, DWD-100DR 4
E04 SPECIAL BOLT 3616029000 10 X 1.25, 51MM 4
E05 FOOT 3612100600 BUTYL, DWD-100DR 4
E06 REACTOR 52G043J003DWD-100DR, 4A 1
E07 DAMPER FRICTION 361A700150 110N AKS ST=170-260 DL=197.5 LOW NOISE 2
E08 DAMPER FRICTION 361A700110 70N AKS ST=170-260 DL=197.5 LOW NOISE 2
E09 DAMPER PIN 361A700200 AKS D=14.5 4
E10 EMI FILTER(K19B) 3611908770
DWLF-K19(B110),X0.47U.Y1000P.VAR471K.NON FUSE
1
NO DISPONIBLE
NO DISPONIBLE
LEG ADJUST AS:
3617703600
E03+E04+E05
PEDIR
LEG ADJUST AS
PEDIR
LEG ADJUST AS
PEDIR
LEG ADJUST AS
19
6. TUB ASSY
