VACUUM CLEANER
RC-6005B
READ AND KEEP THIS
• Thank you for purchasing this vacuum cleaner.
• For proper operation, please read and this manual before use.
OWNER’S MANUAL
CONTENTS
•Description and operation.....................................2,3
•Cleaning the filter and Changing the dustbag...........4
•Precaution for safe use .............................................5
•Specifications...........................................................6
•Before asking for service...........................................6
POWER CONTROLACCESSORY NOZZLEWIDE SUCTION NOZZLE
2
DESCRIPTION AND OPERATION
HOSE CONNECTION
PIPE CONNECTION
• To connect the nozzle, hold the
tubes and the handle:
insert the narrowed section.
2
1
•Connecting the hose : insert the
hose firmly into the hose inlet.
(“Click”)
•Disconnecting the hose: press
the button and pull the hose out
of the vacuum cleaner.
CLICK!
SUCTION CONTROL
•The suction control at the hand
grip enable you to control suction.
•Use this nozzle for cleaning both
carpeted and uncarpeted floors.
•Move slide control to set power
level.
Floors Carpet
DUSTING
BRUSH
CREVICE
NOZZLE
PRACTICAL PARKINGPOWER CONTROL
DUST METER
3
ON/OFF SWITCH
•Press the on/off switch.
CORD REWIND
•Rewind the power cord by
pressing the cord rewind button.
•When the color of the dust
meter is changed to RED for
long time, change the dust
bag<page 4.>
STORAGE
•If you want to store the cleaner,
hitch the brush clip onto the
vacuum cleaner
•If you want to stop vacuum
cleaning for a while, you can
place the brush clip into the rest.
ROL
he hand
l suction.
•Move slide control to set power
level.
BRUSH
BRUSH
CLIP
4

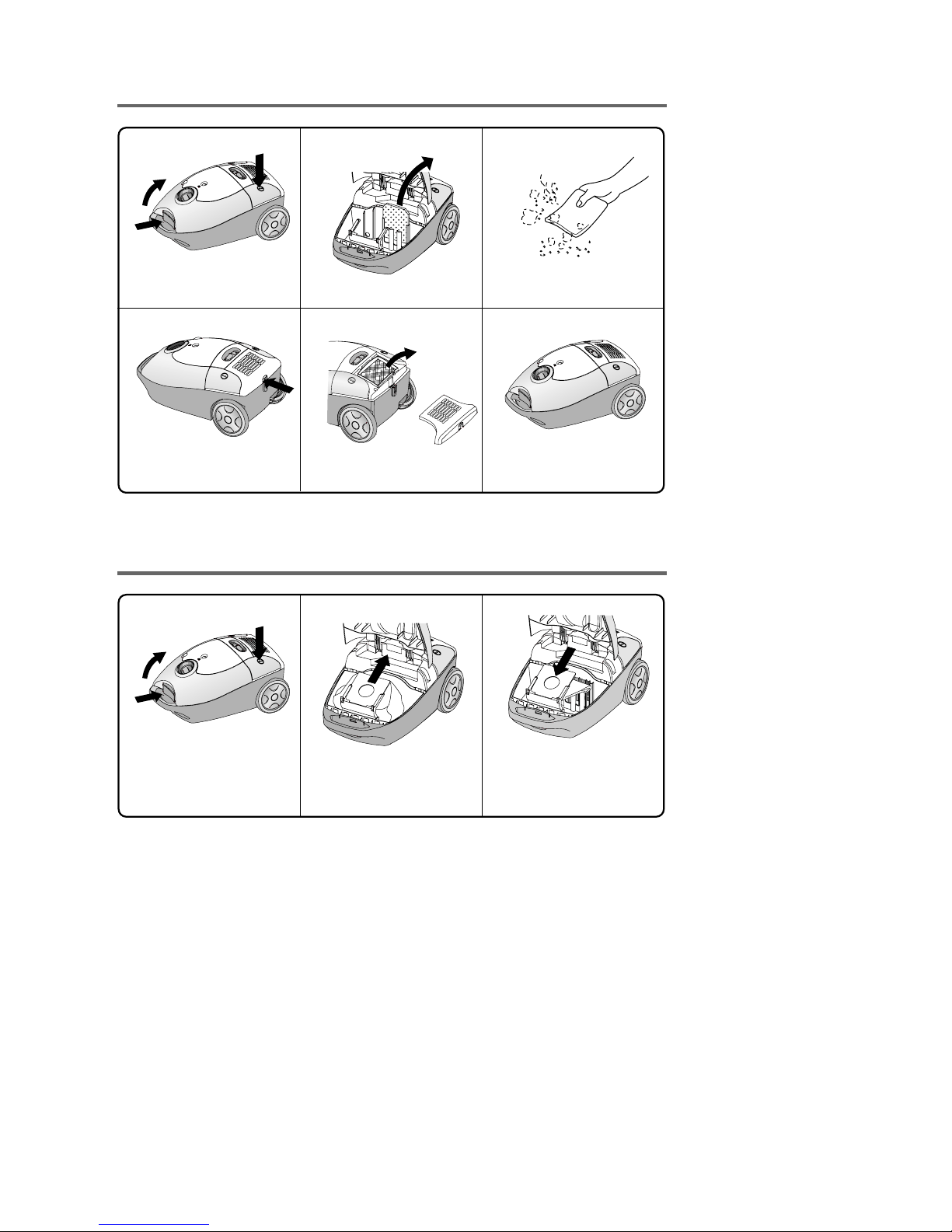

CLEANING THE FILTER
CHANGING THE DUST BAG
•Switch off
•Open the cover. •Pull out motor proctection filter. •Shake the dust out of the filter.
•Close the cover.
•Switch off and open the cover. •Hold the cover while
separating the dustbag from
the dustbag holder.
•Open the exhaust grill. •Pull out the exhaust filter.. •Shake the dust out of the filter.
•Close the exhaust grill..
1
2
•Insert the new dust bag into
the dustbag holder properly
as shown in picture.
•Close the cover.
1
2
231
564
MOTOR PROTECTION
FILTER
EXHAUST
FILTER
Note: If no dust bag has been placed into the dustbag holder, the cover can not be closed.
5

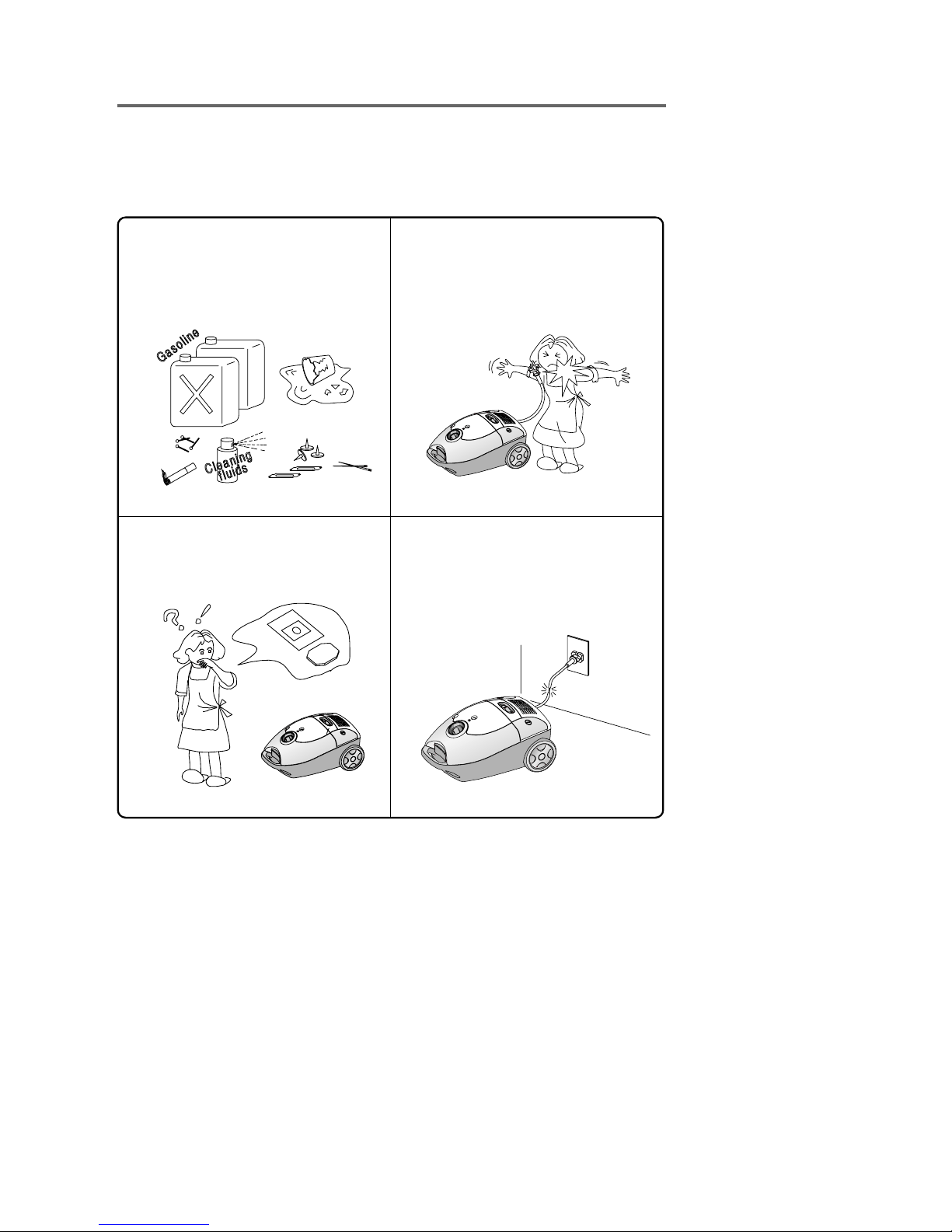

•Do not vacuum areas which contain moisture
or water and inflammable matter, needles,
pins, razor blades, matches, cigarette-ends,
etc., since they may damage the cleaner or
dust bag or cause a fire.
•Make sure a dust bag and a motor protection
filter are always inserted.
•When rewinding the power cord, hold the plug
body before pressing the cord rewind button to
prevent whipping.
•Do not pull the power cord out beyond the
specified length.
•This product provided with a cable which, if
damaged, must be replaced by a repair shop
authorized by the manufacturer since special
tools are required.
This vacuum cleaner should only be used for normal dry household dust and dirt.
The manufacturer cannot be responsible for any damage caused by use or operation of the cleaner
contrary to these instructions.
If the cleaner is wrongly operated for a purpose other than that for which it is intended, no liability can be
accepted for any possible damage.
PRECAUTIONS FOR SAFE USE
6
■ Before Asking for Service, please check each item below if you have trouble with your cleaner.
BEFORE ASKING FOR SERVICE
Problem
Suction power is weak.
The cleaner does not work.
Power cord does not rewind.
Check Point
•Dust bag
•Pipe or hose
•Power cord
•ON/OFF switch
•Power cord
Measure
If dust bag is dirty, replace it.
If clogged or blocked, remove the object.
Check if power cord is plugged.
Check if the power switch is turned on.
Pull the power cord out a little and press
the cordrewind button.
•Specifications can be changed for improvement without notice.
Model
Rating
Watts
Weights(Net)
Dimension (L X W X H)
Cord Length
RC-6005B
220V/50Hz
1500W
5.6kg
478X 286 X 235mm
6m
SPECIFICATIONS
