Daewoo DSD-9251M Manual de usuario

DSD-9251M

DSD-9251MA

INSTRUCTION MANUAL

COLOR TELEVISION

Broadcasting

Digital VVideo

CONTENTS

GENERAL INFORMATION 3

Main Features 3

For your Safety 4

Unpacking 4

General Operation 4

Remote Control

Front Panel

Rear Panel

INSTALLATION 7

Connecting to TV

using SCART support

Connecting to TV using RCA support

Connecting to TV & VCR using SCART support 8

INITIAL INSTALLATION 9

Selecting Language 9

Setting Time 10

Selecting Antenna 10

Selecting Switch

Selecting Satellite 10

Selecting LNB

Entering LNB frequency

Testing Signal Level 11

Setting up Confirmation 12

Searching Channel 12

Completing Installation 12

GENERAL VIEWING FUNCTION 13

Selecting Channel 13

Pausing Frame

Recalling Previous Channel

Adjusting TV & Radio mode

Viewing Channel Information

Controlling Volume & Audio

SAT key and Favorite key Function

CHANNEL MANAGER 17

Main Menu 17

Channel Manager 17

TV Channel Manager 18

Favorite Channel 18

Moving Channel 19

Locking Channel 19

Renaming Channel 19

Deleting SAT or Channel 20

Sorting Channel 20

Fast Edit Mode 21

GO TO FUNCTION 21

EPG (Electronic Program Guide) 22

TIMER 23

Easy Timer 23

Advanced Timer 23

USER INSTALLATION 24

Installation Guide 24

Antenna Setup 24

Antenna Direction Help 25

Channel Search 26

System Setting 29

Parental Lock 30

Factory Default 31

COMMON INTERFACE 32

RECEIVER INFORMATION 32

FRONT PANEL DISPLAY 32

TROUBLE SHOOTING 33

The Digital Satellite Receiver is easy to use, and allows you to watch Free digital

programs broadcasted via satellite. You can also watch scrambled programs

using Common Interface (CI) function(option). This instruction manual will guide

you through the initial installation of your receiver. It also describes how to take

full advantage of a wide range of features that are easily accessible. Read this

instruction manual carefully before installing your receiver.

. High quality Digital Video & Audio.

. Fully DVB compliant.

. Common Interface with 2 PCMPIA slot(option).

. Install Wizard system.

. One Step Direct move menu system. (Go To function)

. Friendly and easy-to-use menu system.

. Various channel editing functions. (favorite, move, lock, rename, delete and

sort)

. User programmable Satellite & Transponder information.

. Automatic search for newly added transponder. (NIT search)

. Stores up to 2000 channels.

. Individual channel volume saving function.

. Timer function.

. Automatic reserved channel moving system.

. Electronic Program Guide. (EPG)

. Teletext function support.

. Antenna Positioning Help feature.

. Support video output - CVBS.

. Provide various switch types, LNB types and NTSC/PAL monitor type.

. SCPC/MCPC receivable from C/Ku Band.

. Multi LNB control by DiSEqC 1.0 and 22 KHz switching.

. Motorized system controlled by DiSEqC 1.2*

. 256 color On-Screen-Display.

* DiSEqCTM is a trademark of EUTELSAT.

Main Features

GENERAL INFORAMTION

. Allow clear space of more than 10cm from the top, back and both sides for sufficient

ventilation.

. Do not cover the Digital Satellite Receiver nor place it on a unit that emits heat.

. Use a soft cloth and a mild solution of washing liquid to clean the casing.

. Do not connect or modify cables when Digital Satellite Receiver is plugged in.

. Do not remove the cover.

. Do not allow the unit to be exposed to extreme heat, cold or humidity.

. Never allow liquid, spray or other

materials

to come into contact with the inside of the

Digital Satellite Receiver.

.This unit is designed for continuous operation. Switching it off does not disconnect it from

the mains(Stand-by). To disconnect it from the mains, you have to unplug the mains.

When unpacking, check to make sure that all of the following items are included:

. 1 x Remote Control Unit(RCU) .

2 x AA battery(option)

. 1 x Instruction Manual . 1 x RCA Cable(option)

Throughout this manual you will notice that the daily operation of your Digital Satellite

Receiver is based on a series of user-friendly On Screen Display menus. These menus

will help you to get the most out of your Digital Satellite Receiver, and guide you through

installation.

All function can be carried

out by using the keys on the remote control, and some of the

functions can also be carried out by using the buttons on the front panel.

The Digital Satellite Receiver is easy to use, and adaptable for future upgrades.

Note that new software may change the functionality of Digital Satellite Receiver.

If you have

difficulties with the operation of your Digital Satellite Receiver, please refer to

the relevant section of this manual or call your dealer or customer service center for

keep.

You can watch scrambled programs by inserting the right smart card into the right

CAM(Conditional Access Module), and the CAM into the CI Slot. You can see two CI

slots when you open the front door of your receiver. CAM and smart card are not

included in your Receiver. If you want to watch some scrambled programs, contact the

broadcaster and he will inform you the needed CAM and smart card.

For Your Safety

Unpacking

General Operation

Common Interface(Option)

GENERAL INFORAMTION

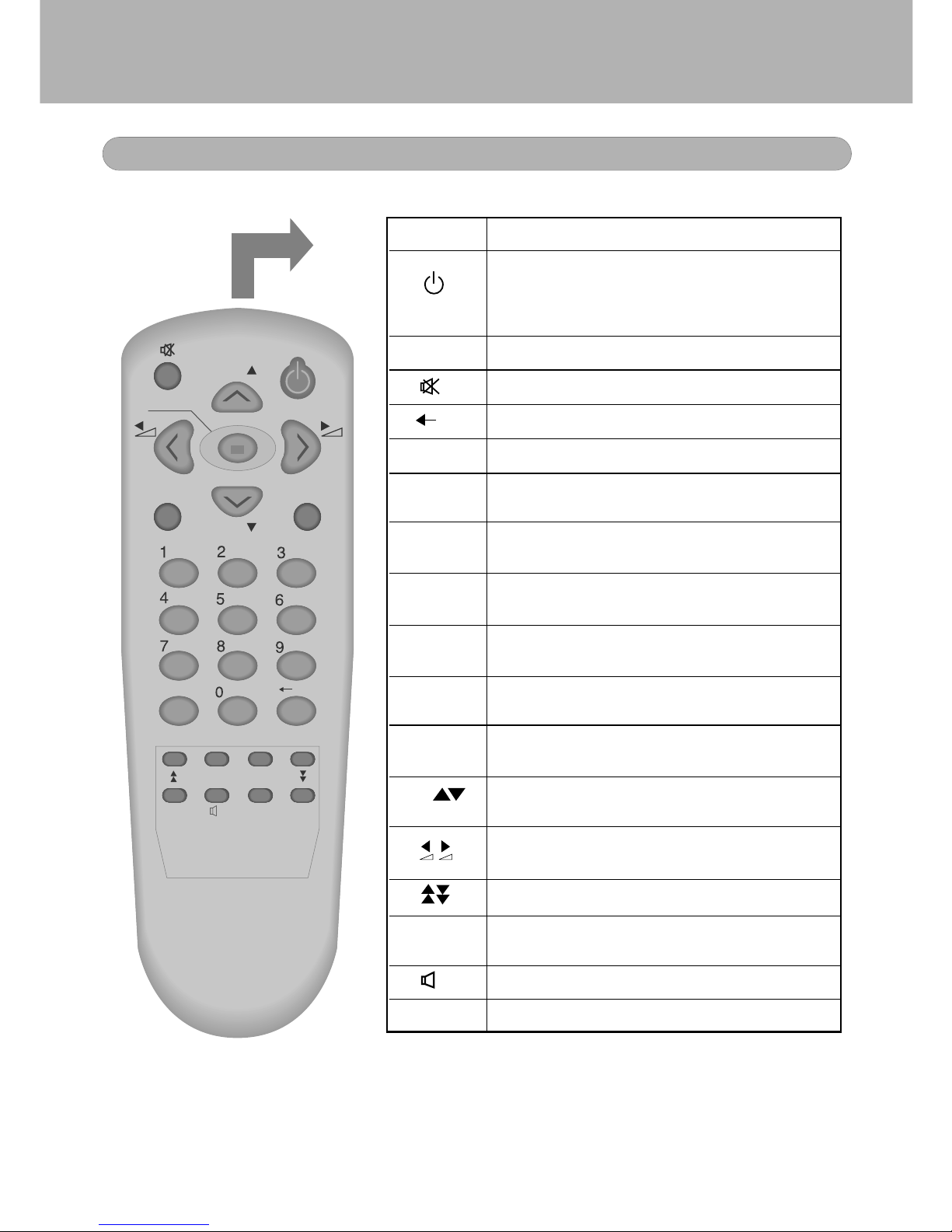

Remote Control

OK/LIST

TV/RADIO

EXIT

PAUSE TXT

INFO EPG

ALT-AUDIO

Key Function

Switches between the operational mode

and stand-by mode of the receiver (Green

lamp lights up during the operation, Red

lamp lights up in stand-by mode)

TV/ RADIO Switches between TV and Radio mode.

Mutes the sound.

Switches back to the previous channel.

INFO Shows information of the current channel.

MENU Displays the menu on the screen, and calls the

command box.

EXIT Returns to the previous menu on the menu

screen.

ALT-AUDIO

When watching a channel, switches the

languages.

EPG Calls up the EPG

(Electronic Program Guide)

OK/LIST Executes the selected item in the menu screen,

or enters the desired value in any input mode.

0 - 9 Enter the number in the required menu item or

select a channel number to watch.

PR Change channel, or moves to the next higher or

lower item in the menu.

Adjusts the volume, or moves to the left or right

item in menu.

Moves up / down a page in the channel list.

PAUSE Press once to freeze the screen picture.

Press once again to go to the normal mode.

Selects the different audio mode.

TXT Switches to the Teletext mode.

GENERAL INFORAMTION

Front Panel

Rear Panel

CAUTION

90-250V~

50/60Hz, 30W

VIDEO

AUDIO

LNB IN

LNB OUT

13/18V

Max. 500mA

CONNECT TO TV USING A SCART CABLE

LNB IN : CONNECT TO SATELLITE ANTENNA

LNB OUT : CONNECT TO ANOTHER RECEIVER

CONNECT VIDEO TO ATV USING RCA JACK

CONNECTAUDIO L/R TO TV OR AUDIO TUNER

geprufte

Sicherheit

OFF

RS 232

RS232 : CONNECT TO APC FOR S/W UPGRADE

Opened Front Door (option).

2 CI Slot for conditional access module(CAM),

(option).

Changes the channel, or moves to the preview

and next item in the menu.

Switches between the operational

mode and stand-by mode.

*Warning: Do not insert anything but CAM into the CI Slot, for your safety.

The Common interface is not compatible with other PCMCIA card.

INSTALLATION

DSR

SATELLITE

DISH

TERRESTRIAL

ANTENNA

IN VIDEO

AUDIO

DSR

SATELLITE

DISH

TERRESTRIAL

ANTENNA

This section explains the connection of the Digital Satellite Receiver with various

Video devices. Refer to the manuals supplied with the equipment for the

installation of outdoor equipment such as the Satelliet dish. When adding a new

equipment, be sure to refer to the related parts of the manual for the installation.

Connecting to TV using SCART support

Connecting to TV using RCA support

INSTALLATION

Connecting to TV &VCR using SCART support

VIDEO

OUT

VIDEO

VCR

DSR

SATELLITE

DISH

TERRESTRIAL

ANTENNA

INITIAL INSTALLATION

Once you have correctly installed the Digital

Satellite Receiver, "INSTALLATION GUIDE" will

guide you through the installation process.

When you turn on the Digital Satellite Receiver,

a picture will be displayed on the screen which

indicates that you have started the installation

procedure.

This "INSTALLATION GUIDE" menu is

designed for a quick and easy installation.

During the installation process, the OK key

always confirms a selection within these

menus. Selecting NEXT and pressing the OK

key will take you to the next step in the

installation process.

Selected box is highlighted for easy identification.

You can always go back to the previous menu

by selecting BACK and pressing the OK key.

Use the keys to move up and down from

one line to another. On Select Box, use

the to change settings and press the OK

key to display the List Box. You can also use

the numeric keys on the remote control to

enter numeric value directly.

Select the desired language.

To go to the next procedure after selecting

your language, select NEXT and press the OK

key.

To quit, select EXIT and press the OK key.

Selecting Language

INITIAL INSTALLATION

Select your local time referring to the city

name displayed on the screen. Local time can

be adjusted +/- 12 hours in reference to UTC.

For example, if you are in London, local time

shall be 0:00.

If daylight saving time is in effect, select ON

from the menu.

Local time will be automatically set. To

continue, select NEXT and press the OK key.

Setting Time

Select the switches with which you want to

configure the antenna.

These switches are related to the antenna

selection, and you can select up to 8 antennas

with the combination of these switches.

For example, if you have 2 antennas, you can

assign Antenna 1 for 0 volt and 14 volt, Antenna 2

for 0 volt and 18 volt.

If you have only one antenna, select all of the

switches as None.

Selecting Switch

Select a satellite from the pre-programmed

list. You have to select a proper satellite

considering the installed antenna direction and

switch selection.

Note : The Digital Satellite Receiver

can store

up to 64 satellites.

Selecting Satellite

Select the antenna index and the type that you

want to configure. If you have the antenna

with DiSEqC 1.2 motorized system, then you

can use the DiSEqC 1.2 functions.

Before using the DiSEqC 1.2, you have to set

the limit of antenna movement.

If you select the DiSEqC 1.2 in the antenna

type, you will see 3 buttons of limit setting.

Selecting Antenna

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Daewoo

Daewoo

Daewoo DTD-25G1 ME Manual de usuario

Daewoo

Daewoo DTQ-29M2FS Manual de usuario

Daewoo

Daewoo DTQ-14Q1 Manual de usuario

Daewoo

Daewoo DTQ-14U1FS/20U1FS Manual de usuario

Daewoo

Daewoo DUA-3270GB Manual de usuario

Daewoo

Daewoo CP21S8 Series Manual de usuario

Daewoo

Daewoo DTM-2930MP Manual de usuario

Daewoo

Daewoo CM25101S Manual de usuario

Daewoo

Daewoo DTU-14 D3VG Manual de usuario

Daewoo

Daewoo DTH-20D5FSN Manual de usuario

Daewoo

Daewoo DTQ-14P2FCM Manual de usuario

Daewoo

Daewoo DTQ-21A24N Manual de usuario

Daewoo

Daewoo DTY-25G1 Manual de usuario

Daewoo

Daewoo DTQ-20D5FSN Manual de usuario

Daewoo

Daewoo DTQ-21U4SSN Manual de usuario

Daewoo

Daewoo DTQ-20U4SC Manual de usuario

Daewoo

Daewoo DTQ 27S2FCC Manual de usuario

Daewoo

Daewoo DTR-14D9ME Manual de usuario

Daewoo

Daewoo DTJ-28B1F Manual de usuario

Daewoo

Daewoo DTY-29Z9 Manual de usuario

Daewoo

Daewoo DTC-29G1 Manual de usuario

Daewoo

Daewoo DTQ 13V6FCB Manual de usuario

Daewoo

Daewoo DTQ-14D4SSPM Manual de usuario

Daewoo

Daewoo DTC-20, DTC-21, DTY-21, DTY-25 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
