Daewoo CM25101S Manual de usuario
CM25101S
CM27101S
INSTRUCTION MANUAL
Color Television
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying
the appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID
THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
NOTE TO CATV SYSTEM INSTALLER
THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE
820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR,
SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE
BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.
CAUTION
The AC power cord provided with this product is polarized (one blade wider than the other).
To provide power to the TV, insert the AC plug into a standard 120V 60Hz polarized outlet.
NOTE
Never connect the plug to an electrical source other than one providing 120V 60Hz power. Use only the attached power cord.
If the polarized AC cord does not fit into a non-polarized outlet, do not cut or file the blade. You are responsible for having the
obsolete outlet replaced with a polarized outlet.
If you feel a static discharge when touching the unit, and the unit does not function, simply unplug the unit from the outlet.
When you plug the unit back in, it should work normally.
Do not install power cords near any heating element or cooking appliances.
Daewoo Electronics
Corporation of America
120 Chubb Avenue,
Lyndhurst, NJ 07071
1-800-DAEWOO8 (1-800-323-9668)
Fax:201-935-5284
Dear Customer :
Daewoo Electronics Corporation of America would like to thank you for choosing this color television
receiver. It incorporates a host of features designed to give you excellent performance for many years to
come.
We realize that you’re eager to turn it on and begin enjoying the high-quality pictures it delivers just as
quickly as possible, but we ask you to take a few minutes to read the instructions in the booklet to familiarize
yourself with the receiver, its functions and some features which may be new to you. If you follow the
instructions, this unit should give you many years of viewing pleasure.
If for any reason it does not, we want to hear about it. Please write to us at the address above. Daewoo
always welcomes comments and suggestions on this or any of our other products.
On the other hand, when you discover the enjoyment, reliability and ease of use that is built into it, we
hope that you will tell your friends, and consider Daewoo when you make your next purchase of home
entertainment equipment.
In addition to TV receivers, Daewoo produces a full line of audiovisual products built to the same high
design, engineering, and manufacturing standards as this unit.
Here are a few tips that will keep your TV receiver looking great and performing for years to come.
.Avoid putting it in excessively hot locations. Damage to the cabinet or premature component failures
can result.
.There are ventilation holes in the bottom and rear of the cabinet. Make sure that they remain unob-
structed. Do not place the receiver on top of a thick cloth.
.If you don’t plan to use the receiver for several days, it’s a good idea to unplug it from the power outlet.
.Many common household cleaning agents, sprays, solvents, and polishes will cause permanent damage to
the surface of the cabinet. The best cleaning agents are mild soap and a damp cloth.
Again, thank you for choosing this Daewoo product. We have employed advanced engineering techniques
in its design, and manufactured it in one of the world’s most up-to-date production facilities. The result is
a TV receiver that we know you will be as proud to own as we were to create.
Very truly yours,
DAEWOO ELECTRONICS
CORPORATION OF AMERICA
CONTENTS
1
Table of Contents
Table of Contents
Chapter 1: Overview of Your Equipment ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯2
Your TV's Front Panel ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯2
Your TV's Back Panel ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯3
Your Remote Control ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4
Installing your remote control batteries ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯5
Notes ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯5
Chapter 2: Connecting an Antenna or Cable to Your TV ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯6
Connecting an Antenna ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯6
Connecting a Cable System ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯7
Connecting Other Pieces of Equipment ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8
Safety Note ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8
Chapter 3: Operating Your TV ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9
Turning your TV On ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9
Programming Your TV's Channel Memory ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9
Changing Channels⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10
Changing the Volume ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10
Changing The TV's Channel Memory ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11
Adding/Deleting a channel to memory ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11
Displaying the Current Channel ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11
Changing the TV’s Input ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯12
Adjusting Video Settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯13
Returning to the factory settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯14
Descriptions of video settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯14
Chapter 4: Using Timer Functions ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯15
Setting the Clock ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯15
Setting the Wake-up Time ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯15
Setting the Off Time ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯16
Canceling the Wake-up Time or Off Time ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯16
Setting the Sleep Timer ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯17
Chapter 5 : Using the Special Features⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18
Changing the Language of the On-Screen Menus ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18
Captioning ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18
CC on Mute ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯19
Power Restore⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯19
Parental Control Settings, Description of Parental Control Settings ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯20~21
Ch Labels ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯23
Chapter 6 : Adjusting the Sound⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯25
Selecting stereo/SAP ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯25
Adjusting the Bass ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯26
Adjusting the Treble ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯27
Chapter 7 : Troubleshooting ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯28
Warranty ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯29
Overview of Your Equipment
Your TV comes with a remote control. The section below summarizes the buttons, controls, and ter-
minals that you will use with your TV.
Your TV's Front Panel
1 POWER
Use this button to turn your TV on or off.
2WCHV
Use these buttons to change channels on your TV, or to select items in the menu
system.
3 CVOLB
Use these buttons to change your TV's volume, to activate selections in the menu
system, or to change audio and video settings.
4 MENU
Use this button to turn the TV's menu system on and off.
5 Remote control receiver
This receiver receives a signal from your remote control. Do not block it.
6 VIDEO IN jack
Use this jack to receive a video signal from another A/V component.
7 AUDIO IN jack
This receiver reUse this jack to receive a audio signal from another A/V component.
2
Chapter 1 :
Overview of Your Equipment
CHAPTER
1
12 345
POWER CH VOL MENU
67
VIDEO 2 IN
VIDEO (MONO)
AUDIO
LR
CM27101S
12 345
POWER CH VOL MENU
CM25101S
Your TV's Back Panel
1 Antenna terminal(ANT)
Use this terminal to attach an antenna or cable system to your TV.
2 VIDEO IN
This terminal allows the TV to receive a video signal from another component,
such as a VCR.
3 AUDIO IN
This terminal allows the TV to receive an audio signal from another component,
such as a VCR.
3
Chapter 1 :
Overview of Your Equipment
123
VIDEO
VIDEO 1 IN
AUDIO
L(mono) R
ANT
123
VIDEO AUDIO
L(mono) R
ANT
CM27101S CM25101S
4
Chapter 1 :
Overview of Your Equipment

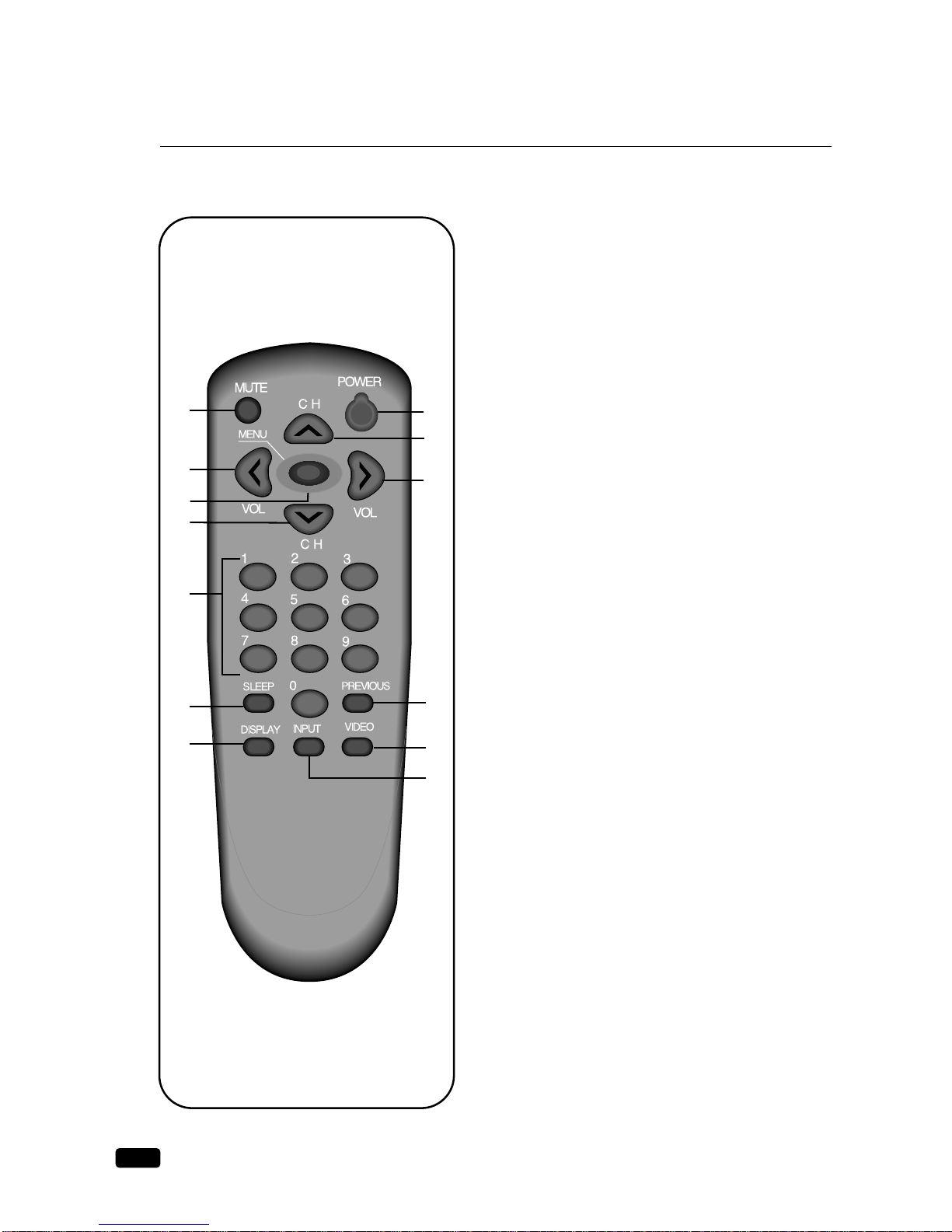

Your Remote Control
1. POWER
Use this button to turn your TV on or off.
2. MUTE
Use to turn the TV’s sound on and off.
3. WCHV
Use these buttons to change channels on your TV, or
select items in the menu system.
4. C
VOL
B
Use these buttons to change your TV's volume, to
activate selections in the menu system, or to change
audio and video settings.
5. MENU
Use this button to turn the TV’s menu system on and
off.
6. DISPLAY
Use this button to display the channel
number and status.
7. INPUT
Use this button to select the TV
’
s signal source.
8. VIDEO
Use this button to display video adjustment
items.
9. 0-9
Use these buttons to change channels.
10. SLEEP
Use this button to program the TV to turn off after a
certain time.
11. PREVIOUS
Use this button to return to the previous channel you
were watching.
4
1
8
7
11
3
9
10
2
6
3
4
5
5
Chapter 1 :
Overview of Your Equipment
Installing your remote control batteries
1
Open the battery compartment on the back of the remote control.
2
Install two AA-size batteries (not included) as shown. Make sure the “+” and “-” terminals are
oriented correctly.
3
Replace the cover.
Notes
Do not mix different types of batteries, or mix an old and a new battery.
Remove and replace weak batteries. Weak batteries can leak and damage your controller. Dispose
of batteries properly; never throw them into a fire.
Point your remote at the receiver on the center of the front of the TV. Make sure the receiver is not
blocked.
The remote control can operate up to 30 feet away from the TV, if you are directly facing the front
of the TV. Operating distance diminishes as you move to the sides of the TV.
6
CHAPTER
2
Chapter 2 :
Connecting an Antenna or Cable to Your TV
Connecting an Antenna or Cable to Your TV
Your TV will provide you with the best performance if you connect it to an external antenna or
cable system. Follow the directions below make this connection. Please note that you will normally
only have to make one of the connections shown below, not all of them.
All connections will be made to the antenna terminal on the back of your TV. The antenna terminal
is a silver metal post partially surrounded by two plastic tabs. For help in locating the antenna termi-
nal, see “Your TV’s Back Panel” on page 5.

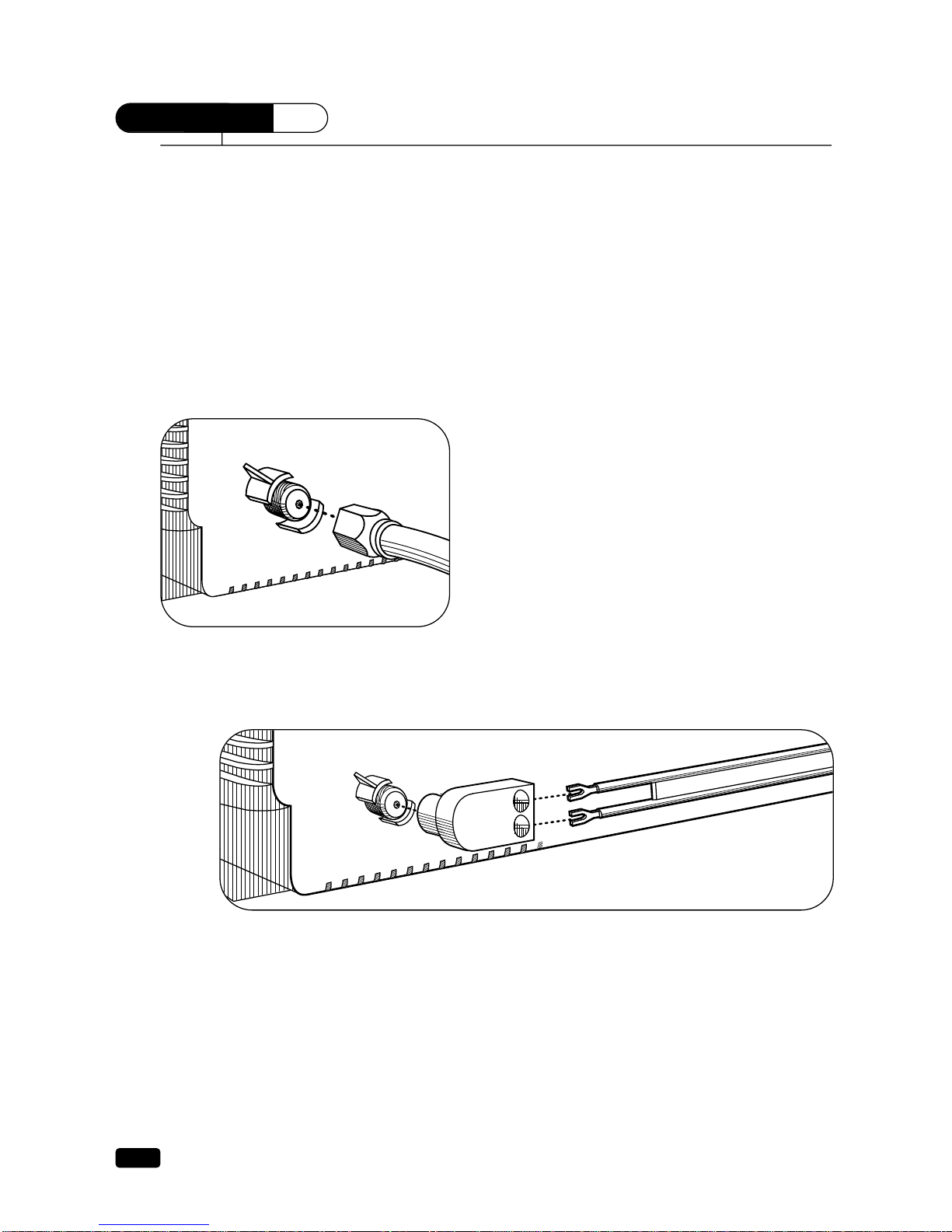

Connecting an Antenna
If your antenna ends in a single coaxial lead, simply
press or screw the cable onto the antenna terminal on the
back of your TV.
If your antenna ends in a pair of 300 ohm twin leads,you must use a 300-ohm/75-ohm
adapter(available at your local electronics store). Place the leads underneath the screws on the
adapter, tighten the screws, then press the adapter onto the antenna terminal on the back of the TV.
7
Chapter 2 :
Connecting an Antenna or Cable to Your TV
Antennas with two sets of leads
You might have two sets of leads from your antenna system, especially if you have one antenna for
VHF signals and one antenna for UHF signals.
If your antenna system has both a coaxial lead and twin 300-ohm leads
,you must obtain a combin-
er (available at your local electronics store). Press or screw the coaxial lead onto the combiner; place
the twin leads underneath the screws on the combiner and tighten the screws. Press the cable from
combiner onto the antenna terminal on the back of your TV.
If your antenna system has two sets of twin 300-ohm leads,
you must obtain a combiner (available
at your local electronics store). Place one set of twin leads underneath the screws on the combiner
and tighten the screws. Do the same with the other set of twin leads. Press the cable from the com-
biner onto antenna terminal on the back of your TV.
Connecting a cable system
If your cable set-up is not described below, please
contact your cable company for more information.
If your cable system does not require the use of a
cable box,
simply press or screw the incoming
cable onto the antenna terminal on the back your
TV.
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de TELEVISOR de Daewoo
Daewoo
Daewoo DTH-20D5FSN Manual de usuario
Daewoo
Daewoo DTA-14C4TFF Manual de usuario
Daewoo
Daewoo CN-150 Manual de usuario
Daewoo
Daewoo DTQ 29G1FC Manual de usuario
Daewoo
Daewoo DTQ-29U1SC Manual de usuario
Daewoo
Daewoo DUA-3270GB Manual de usuario
Daewoo
Daewoo DTQ-27U1SC Manual de usuario
Daewoo
Daewoo DTF-2950-100D Manual de usuario
Daewoo
Daewoo DTD-29U8ME Manual de usuario
Daewoo
Daewoo DTQ 14V1FCN Manual de usuario
Daewoo
Daewoo DTH-21S7NAV Manual de usuario
Daewoo
Daewoo CP-885 Manual de usuario
Daewoo
Daewoo DTQ-29S5SC Manual de usuario
Daewoo
Daewoo WP-895 Manual de usuario
Daewoo
Daewoo DTT-3250-100D Manual de usuario
Daewoo
Daewoo DTQ-2132SSS Manual de usuario
Daewoo
Daewoo DTQ-14D4SSPM Manual de usuario
Daewoo
Daewoo DTH-291F Manual de usuario
Daewoo
Daewoo DTQ 19U1SC Manual de usuario
Daewoo
Daewoo DWP-28W2ZLF Manual de usuario
Manuales populares de TELEVISOR de otras marcas
Philips
Philips Colour Television Manual de usuario
Toshiba
Toshiba 27A10 Manual de usuario
Philips
Philips 42PF9630A/37 Manual de usuario
Hitachi
Hitachi 32FX48B Manual de usuario
DAEWOO ELECTRONICS
DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario
Changhong Electric
Changhong Electric uhd55b6000is Manual de usuario
