Daewoo FR-2701 Manual de usuario

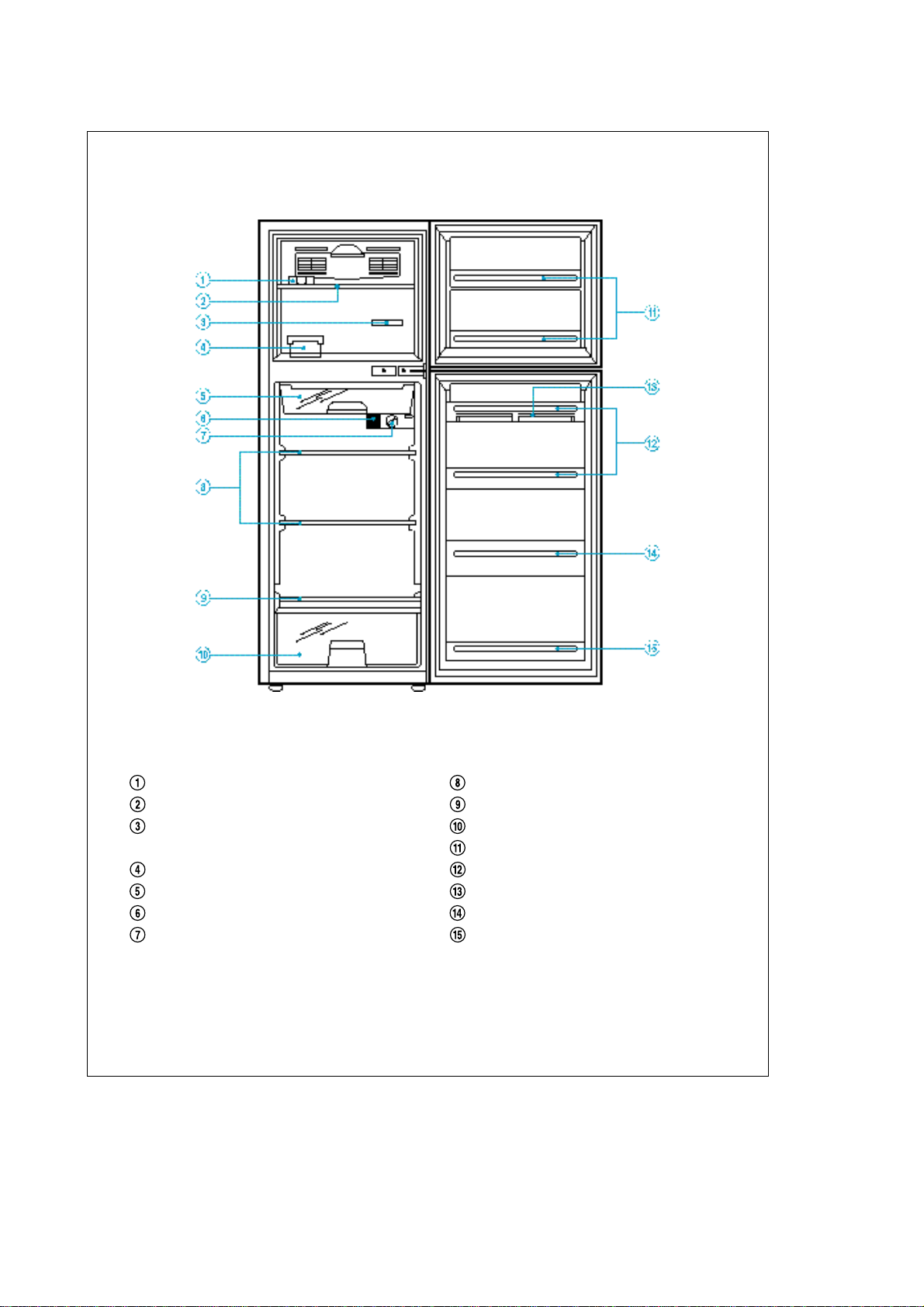

FEATURE CHART

ICE TRAY

FSHELF(MOVABLE)

FREEZER TEMPERATURECONTROL

KNOB

ICE BOX

CHILLEDCASE

LAMPCOVER

REFRIGERATOR TEMPERATURE

CONTROL SWITCH

R SHELF (MOVABLE)

VEGETABLE CASE COVER

VEGETABLE CASE

FREEZERPOCKET

UTILITY POCKET

EGG CASE

BOTTLE POCKET(LARGE)

BOTTLE POCKET(SMALL)

Here are the features of your new refrigerator.

Take a moment to know all the features designed for the convenience of the user.

Ice Tray

Fill3/4 oftheice tray with water, as the volume expandswhenthe waterisfrozen.Place the tray

in the freezercompartment. Toreleaseice cubes, twist the icetray slightly. Icecubeswillbe

easier to remove if it is held for a short while under running water.

Movable refrigerator and freezer shelves

Storage shelves should be adjusted depending onthe height of thefood stored. Todothis,pull

theshelvesslightlyforward.

Defrost-drain Vessel

Since dust accumulated on thedrain casedecreases the evaporation efficiency, you should clean

thedrain caseat regular intervals.

Lamp cover

Toremove thelamp cover

1.Push up the bottom end of lamp cover gently, then

pullout.

2.Reverse procedure to join together.

Vegetable case

May be used for fruit and vegetable storage. Both the

vegetable case and its cover shelf are removable for

easy cleaning. Simply slideforward to remove.

Utility Pocket (Top)

The Egg Case in this pocket can be turned upside

down for the use of smallsize goods.

For lock installed refrigerators only.

CAUTION: 1. Check your voltage before insertingthe power supply cord into the socket.

2. Contact the earthingconductor to thisunit with an attachment earthing screw.

3.Do not spillliquid on thisunit.

4. Do not use flammablespray,such as painting, near this unit.

5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., intothis

unit.

6. Take precautionsagainst leakageof any gasequipmentnear this unit.

7. Keep children from hangingon the doorof this unit.

8. Donot reinsert the powersupply cord within 5 minutes afterreleasing it from the

socket. If not, there may be problems with the compressor.

CAUTION

Whenyou putortake out food fromtherefrigerator, be careful not tohit yourhead on the lock

asthere isa protrusion on thedoor of your refrigerator.

METHODS OF SAFE INSTALLATION

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

•Placethe refrigerator on a

strong and level floor.

Unstable installationcan

produce noise and

vibration.

•Place your refrigerator

where thereis no heat

sourcenearby.

High atmosphere

temperature will lower

coolingefficiencyand

increase your electricity bill.

•Place the refrigerator in an

area where the humidity

level is low.

Splashing wateron the

refrigerator or installing the

unit in ahumid area may

cause short circuit and rust.

•Avoid places that are

exposedto coalgasor

smoke, or discoloring may

occur on the refrigerator.

•For good ventilation, keep

enoughspace between the

sidewalls and your.

Thishelpstocool efficiently

andlowers the electricity bill.

•Puttingthe refrigerator on

the carpetmay cause

temperature rise and result

in thediscoloringof the

carpet due to the

compressor heat.

Insuch a case,place a hard

woodenboard or a rubber

mat between the carpetand

the unit.

2. INSTALLATION STEPS

•Select a safe place to install

your refrigerator.•Level therefrigerator by

usingthe adjustable feet. •Install the parts intheir own

place.

•Check if thedoorsare

completelyclosed. •Check the voltage.

Thenwait about an hour

before pluggingthe power

cord intothe outlet.

•Put food in the refrigerator

afterrunning the refrigerator

for2~3hours.

3. WHAT YOU NEED TO KNOW BEFORE MOVING OR

RELOCATING THE REFRIGERATOR!

•Unplungthe power cord. •Remove the grille withdriver

and water from the defrost-

drainvessel located at the

rearofthe refrigerator.

•Do not detach the defrost

drainvessel from the

compressor.

•Take food out of the

refrigerator.

•Fasten the interior

components with adhesive

tape.

• Havetwo people carry the

refrigerator to move safely.

•Fasten the doors with

adhesive tape to prevent

from opening while moving.

4. CLEANING YOUR REFRIGERATOR

•Before you clean the

refrigerator, unplug the

powercord. To clean, use a

softpieceof cloth. Wash

withwarm, soapywater

rinseanddry.

•The refrigerator may smell

during theinitial operation,

but the odour willfade away

whenthe refrigerator is

cooledsufficiently.

•Use a soft cloth for cleaning

the interior andexterior of

the refrigerator.

•Do not sprinkle water

directlyon the refrigerator

itself.

•Putthe partsbackin their

originalpositions after

cleaning.

Leveling

Location

How to Install

Install the refrigerator in a convenient location away from extreme heat and cold. Allow at least 6cm

clearance between the refrigerator and side wall so that the door may open for a fully usable interior

and the refrigerator may have good air circulation. The refrigerator is not designed for recessed

installation.

Select a strong and level floor.

Keep 6cmof spacebetween therefrigerator

and thewalls.

Level the refrigerator so that it rests solidly on the floor without rocking. There are two leveling feet at

each front corner. Turn to the left to raise a corner, to the right to lower it. Use shims under the rear

corners, if necessary.

If you want the refrigerator door to close naturally, adjust the leveling feet so that the front of the

refrigeratorisraised by 5mm.

If you want the refrigerator to remain motionless when open, adjust the leveling feet so that all

fourcornersare leveled witheachother.

NOTE: All packing materials usedto ensure safety during transport should be removed. You

must remove the transport safty packing and wipeoff anypossibleadhesive tape

residues with a petroleum-based cleaner or similarsolvent.

1. Cleantherefrigeratorthoroughly.Wipetheoutsidewithadrycloth, andthe insidewithadamp cloth.

2. Set thetemperature controlknob at normal position.

3. Connect the power supply cord.

Many factors may influence the internal temperature of the refrigerator and freezer

compartments.

Thetemperatureandhumidity of the surrounding environment.

The openingfrequency of the doorsand theamount of warm foodplaced inthe refrigerator.

The combination offood andcontainers stored in the refrigerator.

For thesereasons, you may want to adjust the control tosuit the season and your needs.

To control temperature

How to operate

1. TEMPERATURE CONTROL

Temperature is controlled bythermostat automatically.

The Temperature Controlinside the refrigerator controls thedegree of cooling for each

compartment.

Freezer Temperature Control

Thecontrol has foursettings form MIN to

WINTER. The WINTER mode is available

only ifatmospheretemperature isbelow10°C.

Starting your new refrigerator

Refrigerator Temperature Control

The control has the four settings from MIN to

WINTER. The WINTERmode is available

onlyifatmosphere temperature isbelow 10°C.

Turn the temperature control inthe refrigerator and freezercompartments towardWINTER for

colder temperature and towardMIN forwarmer temperature.

Allowapproximately 12 hoursor overnight for the temperature to stabilize.

Thencheck to see if further adjustments are necessary.

Disconnect the power supply cord. Remove icing case and food. Leave doors ajar for ventilation and

dehumidification ofbothcompartments.

2. DEFROSTING THE REFRIGERATOR

You will never have to defrost your refrigerator as it is designed to defrost itself completely and

automatically.

3. RADIANT HEAT

With the Refrigerating System in operation, it is likely that the cabinet will feel warm at the front

edgesand sides.Thisdoes not indicatetrouble.

It is due to the hot-line used in this type of Refrigerating System which consists of piping hot gas

from the (motor-driven) compressor along the front edges, the sides of the cabinet and the center

partitionto prevent dewing. This has nothing to do withthe storage temperatureinside.

(The thick line indicates the hot-line)

To turn off the refrigerator

CAUTION

To avoid the risk of electric shock or death, unplug the power cord before replacing a

burned out light bulb or cleaning the inner parts.

NOTE: During spells of hot, humid weather and in rainy season,

moisture may develop on thecabinet, just as water condenses

around a cold glass of water. It is not an abnormal condition;

wipe off themoisture with a dry cloth.This can also happen

whenthe refrigerator is not installed in anappropriate place.
