Daewoo FR-142 Manual de usuario
Service Manual
Refrigerator
Model: FR-142
DAEWOO ELECTRONICS CO., LTD.
S/M No. : FR14200010
1.Specification-----------------------------------------------------------------------------------------------1
2.External view ----------------------------------------------------------------------------------------------2
3.Wire diagram---------------------------------------------------------------------------------------------3
4.Name of parts---------------------------------------------------------------------------------------------4
5.Refrigerant cycle diagram----------------------------------------------------------------------------5
6.Machine room view and part list-------------------------------------------------------------------6
7.Main components---------------------------------------------------------------------------------------7
8.Door color specification --------------------------------------------------------------------------------9
9.Exploded view and parts list -------------------------------------------------------------------------12
1. SPECIFICATION
MODEL NAME FR-142
Refirgerant R12 115g
R134a 105g
Cooling System Aluminumembossed Plat“Roll Bond” Type
Refrigeration System NaturalCold-airConvection
Defrost SystemNatural
DefrostOperation ManualStart& Stop
Cold Control Adjustable Dial
Capacity
Freezer -
Refrigerator -
Total122
External
Dimension
Height 858mm
Width 480mm
Depth531mm
NetWeight 31Kg
2
2. EXTERNAL VIEW
471
430
379
816
858
820
480
3
3. WIRE DIAGRAM
P-RELAY
COMPRESSOR
L/BLUE
PLUG
L/BLUEBLACKBROWN
BROWN
THERMOSTAT
YELLOW
LAMP
LAMP SWITCH
4

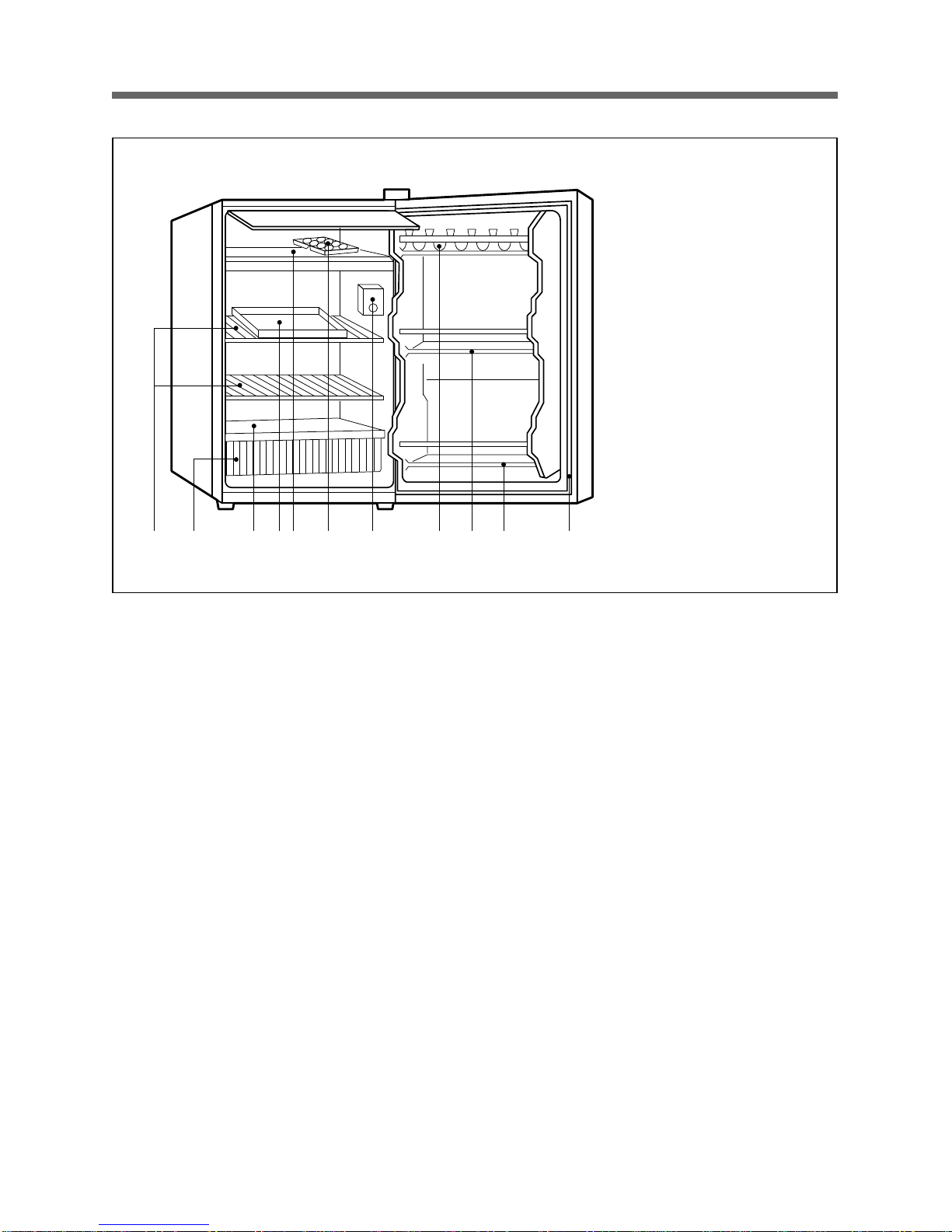

4. NAME OF PARTS
410 11 21735896
1Evaporator
2 Drain Pan
3 Control Box
4 Plastic Coated Shelf
5 Rack
6 Magnetic Door Seals
7 Ice Tray
8 Usable Rack
9 Bottle Rack
10 Crisper
11 Slide Out Crisper
Cover
5
EVAPORATOR
DRYER
CAPI-TUBE
SUCTION PIPE
COMPRESSOR
SIDE PIPE
C
O
M
P
R
E
S
S
O
R
S
I
D
E
P
I
P
E
D
R
Y
E
R
C
A
P
I
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
S
U
C
P
I
P
E
5. REFRIGERANT CYCLE DIAGRAM
6
6. MACHINE ROOM VIEW AND PART LIST
546
1
7
8
3
10
9
15
11
12
14 13
2
16
17
NO PART NAME NO PART NAME NO PART NAME
1CABINET 7SUCTION PIPE 13 WASHER *T
2REINFORCE *L 8PIPE CON 14 ABSORBER
3REINFORCE *R 9BASE COMP 15 WASHER *U
4COMPRESSOR 10 BOLT HEX 16 MACHINE SCREW
5DRYER 11 P RELAY AS 17 TAPPING SCREW
6 CAPI TUBE 12 POWER CORD
7
1. COMPRESSOR
2. RELAY ASSEMBLY
3. CONTROL SWITCH
4. DRYER
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz
115, 120V/60Hz
127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz
240V/50Hz
Comp. model FL7Y-1 FL5Y-1U SL7Y-5
Part code 3951105400 39511054U0 3954105470
Strating type RSIR RSIR
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz
115, 120V/60Hz
127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz
240V/50Hz
Comp. model HFL7Y HFL5Y-1H X HSL7Y-5 X HSL7Y-5
Part code 3951107F00 3951105F10 X 3954107F50 X 3954107F50
Strating type RSIR X RSIR X RSIR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz
115, 120V/60Hz
127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz
240V/50Hz
Relay model 213THB, S068 197SHB, S068 129SHB, S220 104NHB, S220 129SHB, S220
Part code 3018101910 3018102010 3018102110 3018101410 3018100110 3018106810 3018101710
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz
115, 120V/60Hz
127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz
240V/50Hz
Relay model 265THB, S068 174SHB, S068 174SHB, S068 X 129SHB, S220 X 129SHB, S220
Part code 3018101920 3018108020 3018102120 X 3018101940 X 3018101940
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz
115, 120V/60Hz
127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz
240V/50Hz
Spec.
PFN-110U-02A PFN-110U-02A
Part code 4004V70142 4004V70142
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz
115, 120V/60Hz
127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz
240V/50Hz
Spec.
PFN-110U-02A PFN-110U-02D PFN-110U-02D PFN-110U-02A PFN-110U-02A
Part code 4004V70142 3018301000 4004V70142 4004V70142 4004V70142
Refrigerant R12 R134a
Spec.
5 g 10 g
Part code 4019L04000 3016801300
7. MAIN COMPONENTS
8
POWER CORD SPECIFICATION
NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK
1 3011315000 CP-2PIN FOR EUROPEAN COUNTRY
2401RA17200 CP-2PIN FOR OTHER COUNTRY
34006D17101 KP-30 FOR AMERICA
4401PD17101 KP-211 FOR JAPAN & TAIWAN
53011300801 BP-3PIN
63011303010 #267 FOR CHILE
73011315310 FOR ISRAEL
83011303050 BS-1363A FOR U.K, MIDDLE ASIA
SINGAPORE & MALAYSIA
9 3011301200 KP-551/550 FOR CHINA & AUSTRALIA
* Upper power cord's part code is only for lead wire, without any kinds of terminal or housing.
