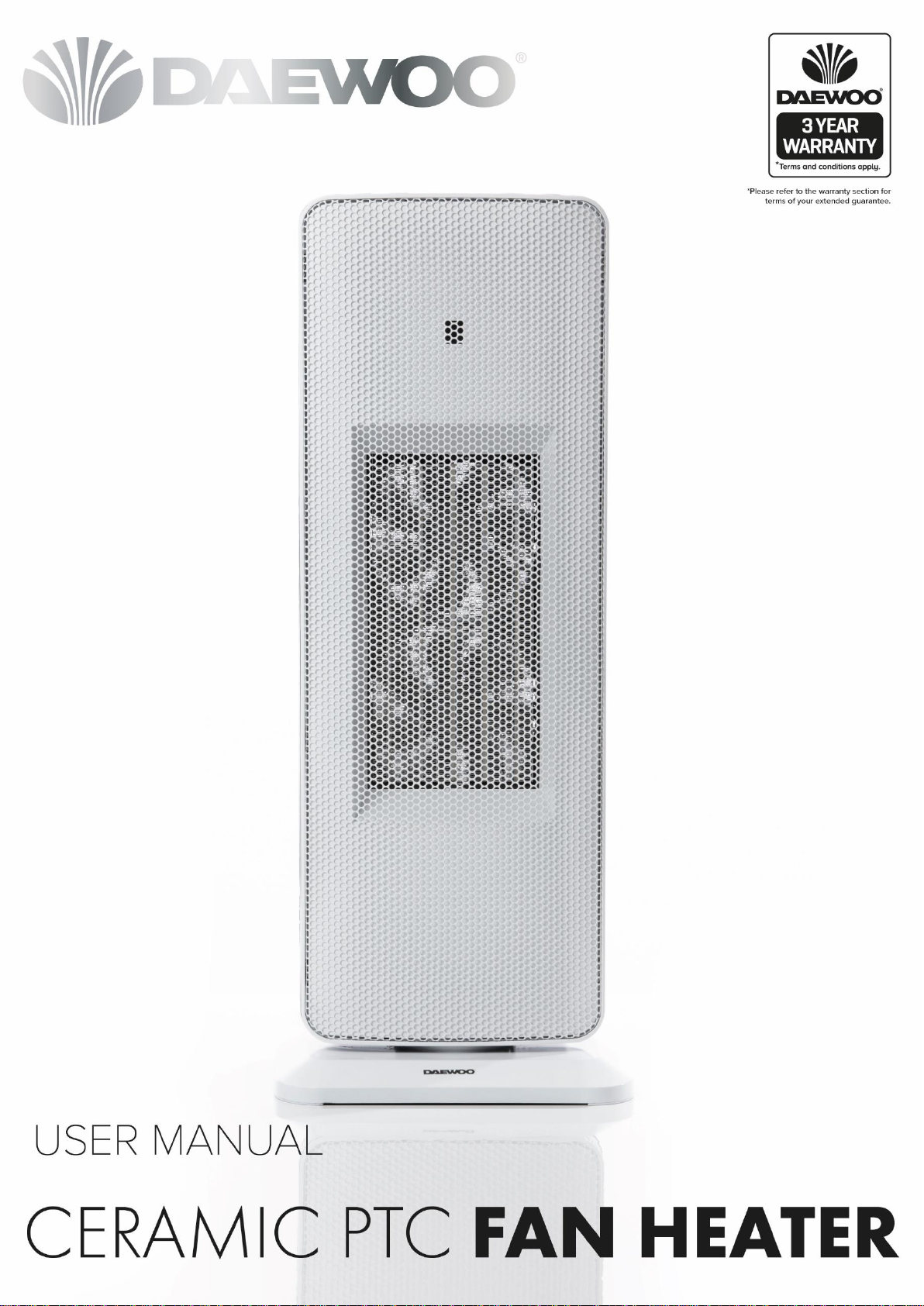

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

READING AND STORING THE USER MANUAL

Before using this product, please read through this manual

carefully paying particular attention to the safety instructions.

Failure to do so may result in personal injury or damage to the

product.

Carefully save this instruction manual for future reference. Ensure the

user manual is included when passing the product on to any third

parties.

IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE

When using electrical appliances, basic safety precautions should always

be followed.

Only use the product as described in this user manual. Any other use is

considered improper and may result in damage to property or persons.

The manufacturer or vendor cannot be held liable for damages or injury

incurred through improper or incorrect use.

•Read and familiarise yourself with all operating

instructions before using this PTC Heater.

•Before plugging your unit into the mains, visually check

that the unit is intact and has not suffered any transit

damage.

•WARNING! In order to avoid overheating, do not cover

the heater.

•DO NOT install the appliance directly below an electrical

socket.

•DO NOT use this heater with a programmer, timer,

separate remote-control system or any other device that

switches the heater on automatically, since a fire risk

exists if the heater is covered or positioned incorrectly.

•DO NOT use this heater with an extension cable.

•Check that the voltage indicated on the data plate

corresponds with that of the local network before

connecting the appliance to the mains power supply.

•Close supervision is required when using this appliance

near children.

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction

concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall

not be made by children without supervision.

•Children of less than 3 years should be kept away unless

continuously supervised.

•Children aged from 3 years and less than 8 years shall only

switch on/off the appliance provided that it has been

placed or installed in its intended normal operating

position and they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved.

•Children aged from 3 years and less than 8 years shall not

plug in, regulate and clean the appliance or perform user

maintenance.

WARNING! Some parts of this product can become very

hot and cause burns. Particular attention has to be given

where children and vulnerable people are present.

•DO NOT use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

•DO NOT immerse the appliance or its cord in water or any

other liquids.

•DO NOT leave the appliance unattended during use.

•DO NOT leave the appliance unattended whilst connected

to the mains supply.

•Always use this appliance on a solid, level, heat resistant

surface.

•DO NOT use this appliance outdoors.

•It is imperative to unplug the power cord after the

appliance has been used, before it is cleaned and whilst

being repaired.

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

•Repairs to electrical appliances should only be performed

by a qualified electrician. Improper repairs may place user

at serious risk.

•DO NOT operate this appliance with a damaged plug or

cord, after a malfunction or after being dropped or

damaged in any way.

•Regular, periodic checks should be carried out on the

mains cable to ensure no damage is evident. Should there

be any signs of damage the appliance should not be used.

•If the power cable is damaged, it should only be replaced

by the manufacturer or a suitable qualified after-sales-

service in order to avoid a hazard

•DO NOT allow the mains cable to hang over sharp edges

or come in contact with hot surfaces.

•DO NOT run the mains cable under carpets, rugs, etc.

•Allow the unit to cool before storage.

•Before cleaning, disconnect the appliance from the mains

supply and allow to cool.

•Never place the appliance near to flammable material or

high pressure containers. E.g. Paper, wood, petrol,

solvents, spray canisters.

•This appliance is intended for household use only and

should not be used for industrial purposes.

•DO NOT use any accessories or attachments with this

appliance other than those supplied or recommended by

supplier.

•DO NOT use this appliance for anything other than its

intended use.

•DO NOT push objects into any openings as damage to the

appliance and/or electric shock may occur.

•Ensure appliance is situated in an open area, do not allow

it to come in contact with Cupboards, Curtains, wall

coverings, clothing or other flammable materials.

•The appliance should not be installed in areas which have

a fire-risk, such as garages, stables or wooden sheds; this

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

is applicable also for rooms in which highly inflammable

gasses or dust can develop. Danger of fire!!

•Unplug after each use. Grasp the plug, not the cord.

CAUTION

Keep Hearth Rugs and other soft furnishings

away from the front of the heater. They could

obstruct the free flow of air from the fan and

damage both soft furnishings and heater.

The heater must stand on a solid, level non-

flammable surface such as stone, slate, ceramic

or concrete.

DO NOT Stand the heater on a carpet, rug or

other soft floor covering.

DO NOT COVER THE HEATER

This appliance has been ERP classified as a portable space heater and should

only be used for supplementary, secondary or temporary heating. It should not

be considered for primary permanent heating in a room or dwelling.

During the first few minutes of initial use, you may notice a slight odour

and a little smoke. This is normal and will quickly disappear, it is the coating

applied to the heating elements to prevent any corrosion during transit.

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

Explanation of Symbols

The following warning symbols or words are used in this instruction manual:

Products labelled with UK Conformity Assessment identifies

products conforming to UK statutory requirements.

Products labelled with this symbol conform to applicable provisions

of the European Economic Area.

This symbol indicates that the heater is double insulated and

therefore does not require an Earth connection.

You should now recycle your waste electrical goods and in doing

so help the environment. This symbol means waste electrical

products at the end of their useful life should not be disposed of

with normal household waste and not sent to landfill. Please

ensure it is taken to a suitable facility for disposal. Check with

your Local Authority or retailer for recycling advice or visit

www.recycle-more.co.uk enter your postcode to find out your

nearest recycling site.

This symbol provides useful additional information on the use of

this product.

This symbol indicates that the supply uses an alternating current

mains supply.

Safety Tip-Over Device

This heater is fitted with a safety tip-over device. The heater will not operate if

knocked over or placed on an uneven surface causing it to not stand upright.

If the safety tip-over device is triggered, unplug the heater from the mains and

check for any damage. If the heater is not damaged, place it on a solid, level,

nonflammable surface and ensure it is upright. Plug back into the mains and press

the On/Off/Standby Button (7) to restart the heater.

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Description of Parts –General

1.Control Panel

2.Remote Control Sensor

3.Air Outlet

4.Air Intake Filter (Rear)

5.Mains Switch (Rear)

6.Remote Control

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

Description of Parts –Control Panel

Before first use of Your PTC Fan Heater

Remove all packing materials and discard responsibly.

Operating Instructions

Ensure the heater is placed on a solid, level non-

flammable surface as described above and the

heater is vertical.

1.Ensure that the Mains Switch (5) on the rear of the

unit is in the OFF ‘O’position.

2.Insert the mains plug into the mains socket.

7.On/Off/Standby Button

8.Increase ᴧButton

9.Digital Display

10.High Heat Indicator

11.Power Indicator

12. Eco Mode Indicator

13. Low Heat Indicator

14. Timer Button

15. Heat Mode Button

16. Decrease ᴠButton

17.Timer Indicator

18.Oscillate Indicator

19.Oscillate Button

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

3.Press the Mains Switch (5) on the rear of the unit to

the ON ‘I’position, the unit will beep and the Digital

Display (9) will show the unit is in standby as below:

Powering Up

1. Press the On/Off/Standby Button (7) to

switch on the fan heater.

2. Once powered up the Digital Display (9)

will light to show the default set

temperature (30⁰C), the Power Indicator

(11) and the High Heat Indicator (10) will

also illuminate as shown right:

Setting the Heat Mode Press the Heat Mode Button (16) to select from:

a. High Heat (2000W) –the High Heat Indicator

(11) will illuminate.

b. Low Heat (1000W) –the Low Heat Indicator (14)

will illuminate.

c. Eco Mode –the Eco Mode Indicator (13) will

illuminate.

In Eco mode the heater will vary the power

between 1000W and 2000W automatically

whilst keeping the ambient temperature at 20⁰C.

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Ceramic PTC Fan Heater

Model No. HEA1897

User Manual

Setting the Temperature

1.Press the Increase ᴧ(8) and Decrease ᴠ(16)

buttons until the desired set temperature (in ⁰C),

is shown on the Digital Display (9).

2.Once the room has reached the set temperature,

the internal fan and oscillation mode (if selected)

will stop. The heater will restart when the

temperature has dropped below the set

temperature, this is quite normal.

Powering Off

Press the On/Off/Standby Button (7) to

switch the fan heater off and back into

standby.

After switching off the heater, there will

be a delay of 60 seconds whilst the internal

fan continues running to cool the unit down

before finally switching off.

If the heater is not to be used for a while or it is

to be left unattended, press the Mains Switch

(5) to the off ‘O’position to fully switch the unit

off as shown right:

Oscillation Mode

Press the Oscillate Button (19) to enable the

heater to rotate left and right and disperse

heat over a larger area. The Oscillate

Indicator (18) (Swing) will illuminate. Press

the button again to stop the unit oscillating,

the Oscillate Indicator (18) (Swing) will go

out.

Tabla de contenidos

Otros manuales de Calentador de Daewoo

Daewoo

Daewoo HEA1816 Manual de usuario

Daewoo

Daewoo HEA1139 Manual de usuario

Daewoo

Daewoo HEA1140 Manual de usuario

Daewoo

Daewoo HEA1145 Manual de usuario

Daewoo

Daewoo HEA1710 Manual de usuario

Daewoo

Daewoo HEA1812 Manual de usuario

Daewoo

Daewoo HEA1131 Manual de usuario

Daewoo

Daewoo HEA1840 Manual de usuario

Daewoo

Daewoo HEA1896 Manual de usuario

Daewoo

Daewoo HEA1138 Manual de usuario

Daewoo

Daewoo HEA1139 Manual de usuario

Daewoo

Daewoo HEA1130 Manual de usuario

Daewoo

Daewoo HEA1820 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
