Dacor DOC30M977D Series Manual de usuario

Installation Instructions

Modernist Built-In Microwave Combination Oven

DOC30M977D*

Part No. 112191 Rev A

English2

Contents

Before you begin... 3

Important 3

Customer-service information 4

If You Need Help... 4

Important safety instructions 5

Related equipment safety 5

Transport 5

Installation requirements 8

Checklist 8

Prepare to install the oven 9

Location requirements 10

Product dimensions - Combi. ovens 11

Cabinet dimensions - Combi. ovens 12

Electrical Connection 16

Installation instructions 18

Prepare built-in oven 18

Remove and replace oven door 19

Electrical connection 23

Install oven 27

Temp sensor & Heater check 29

Troubleshooting 30

Information codes 30

English 3

Before you begin...

Important

•The overall design and/or accessories may

differ with the model.

Installer

•To promote safety and minimize

problems, read this manual thoroughly

before starting the installation. Leave

this manual with the user.

•Write the appliance’s model/serial

numbers in this manual for service/

maintenance reference.

User

•Keep this manual for personal

reference and for that of inspectors,

service personnel, etc.

English4

Customer-service information

Customer-service information

If You Need Help...

If you have questions or problems with installation, contact your Dacor® dealer or the

Dacor Customer-Service team. If your Dacor appliance is under warranty, call Dacor

Distinctive Service. Have the appliance’s model/serial numbers available when you call.

Dacor Distinctive Service (repairs under warranty only)

Phone: (800) 793-0093 ex. 2822 (U.S.A. and Canada)

Monday — Friday 6:00 a.m. to 4:00 p.m. Pacific Time

Dacor Customer Service

Phone: (800) 793-0093 ex. 2813 (U.S.A. and Canada)

Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time

Web site: www.dacor.com

All specifications are subject to change without notice. Dacor assumes no liability for

changes to specifications.

English 5

Important safety instructions

Important safety instructions

Related equipment safety

Remove all tape and packaging before using the appliance. Dispose of the packaging

after unpacking the appliance. Never let children play with packaging material. Never

modify the oven (e.g., do not remove panels, wire covers, or screws).

Transport

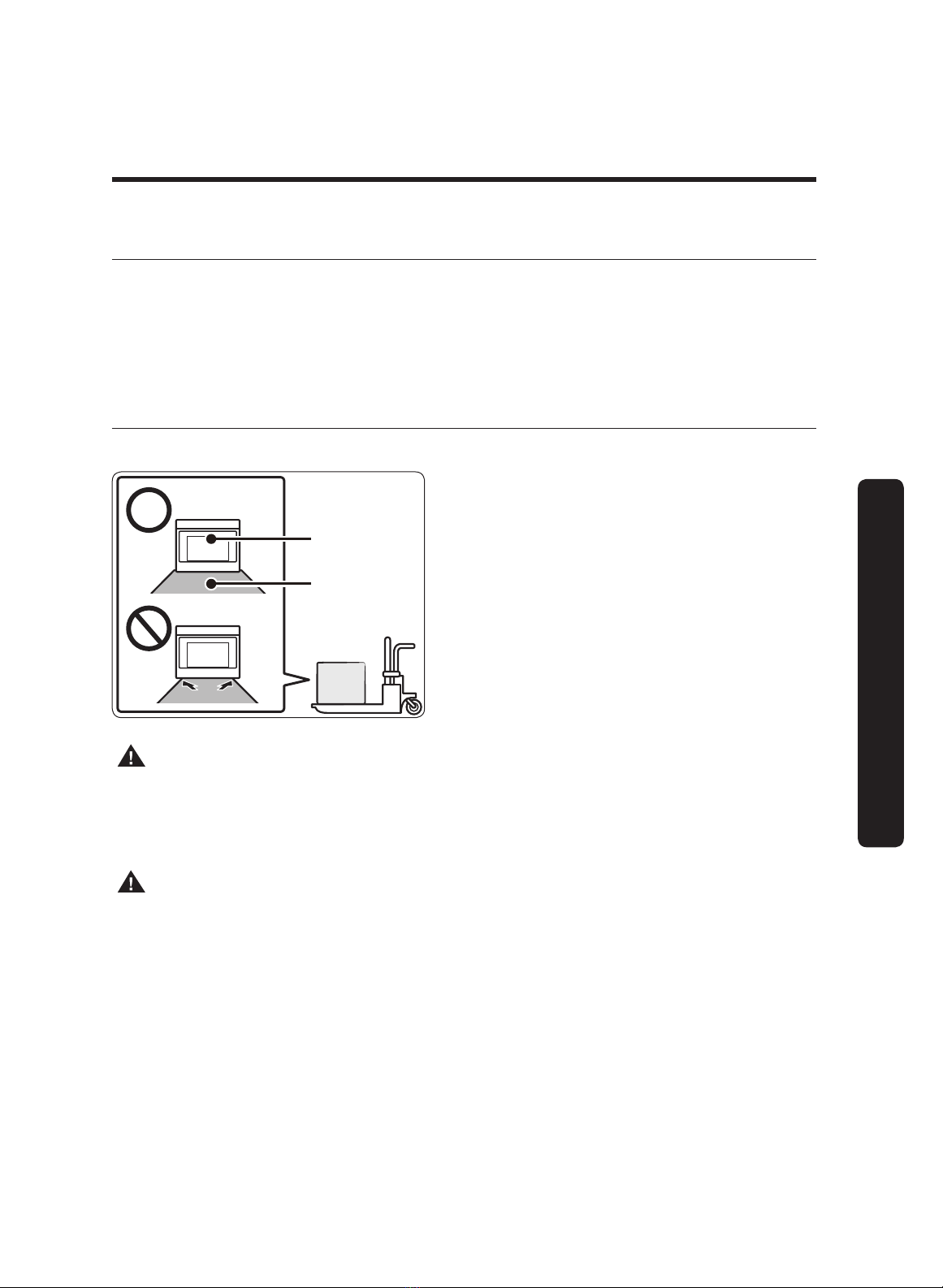

To avoid damage to the oven vent, use the transport method shown in the picture below.

Front

Pallet

DANGER

ELECTRICAL SHOCK HAZARD

To avoid risk of electrical shock, personal injury, or death; verify your appliance is

grounded according to local codes or in their absence, with the National Electrical Code

(NEC). ANSI/NFPA 70-latest edition.

WARNING

MOVING HAZARD

To avoid risk of severe personal injury; this appliance requires two or more people while

handling and moving. Use of appliance moving devices is recommended.

Support the bottom of the oven from

either side when moving it to the

installation site. Leave the unit attached

to the pallet until it is in front of the

cabinet opening and ready to be lifted

into place.

Important safety instructions

English6

Important safety instructions

WARNING

•The information in this manual should be followed exactly to avoid fire or electrical

shock that may cause property damage, personal injury, or death.

•Save this manual for local electrical inspector’s use.

•Ensure your appliance is properly installed and grounded by a qualified technician.

•New branch-circuit installations (1996 NEC), mobile homes, RVs, or installations

where local codes prohibit grounding through the neutral conductor require 4-wire

branch-circuit connection.

•Improper connection of aluminum house wiring to copper leads can cause an

electrical hazard or fire. Use only connectors designed for joining copper to

aluminum and follow the manufacturer’s recommended procedure closely.

•Mounting screws must be used. Failure to do so can result in the oven falling out of

the cabinet causing serious injury.

CAUTION

•The cabinets and wall coverings around the oven must be able to withstand the heat

(up to 194 °F [90 °C]) generated by the oven; otherwise, discoloration, delamination,

or melting may occur.

•DO NOT remove spacers on the side walls of the built-in oven. The spacers center the

oven in the space provided. The oven must be centered to prevent excess heat

buildup that may result in heat damage or fire.

English 7

Important safety instructions

WARNING

Follow the information in this manual exactly; otherwise, fire or electrical shock may

result causing property damage, personal injury, or death.

IMPORTANT NOTE

The installer shall ensure proper installation. Product failure due to improper installation is

NOT covered under warranty.

WARNING

DO NOT put weight on the oven door. Never let anyone to climb, sit, stand, or hang on

the oven door. The oven could tip, causing personal injury and property damage.

WARNING

Electricity must be off while the electrical connections are made. Failure to do so can

result in severe personal injury or death.

IMPORTANT NOTE

•Observe all governing ordinances.

•The oven must be properly grounded.

•Do not block oven vents (bottom-front of the oven) or leave combustible or heat-

sensitive items in front of them.

English8

Installation requirements

Installation requirements

Checklist

Use this checklist to verify that you have completed each step of the installation process:

1. Before installing the oven, verify the cabinet dimensions are correct and the

required electrical connections are present.

2. See this manual's content regarding Safety, Cabinet Dimensions, Removing

Packaging, Electrical Installation, Testing the Installation and Customer Service.

3. To lift the oven, hang the install handle onto the side hook of the unit.

4. Move the oven unit into place in front of the cabinet opening, leaving the bottom

packaging on the unit to avoid damaging flooring.

5. Team-lift the unit directly into the cabinet cutout, avoiding personal injury.

6. Ensure the electrical conduit reaches to the connection point properly.

7. Slide the unit fully into place, while routing the electrical conduit correctly.

8. With a Phillips screwdriver and supplied screws, anchor the oven to the cabinetry

opening.

9. Consult the complete installation instructions, and follow the other procedures

listed, including verifying proper oven function.

10. All product literature and accessories are supplied (may be wrapped or boxed)

with the oven.

English 9

Installation requirements

Prepare to install the oven

Tools you will need

Phillips Screwdriver Drill

Parts included

8 screws (M4 L16)

8 Wood Screws For Mounting (6 screws

needed for installation and 2 extra’s)

30” (76.2 cm)

Metal Bottom Trim

Tools you will need

Junction Box Wire Nuts

3/4” Conduit Connector Install Handle

English10

Installation requirements

Location requirements

IMPORTANT: Observe all governing ordinances.

•Specified cabinet-opening dimensions are minimums and must be followed.

•Cabinet recess must completely enclose all but the oven face.

•Grounded electrical supply is required. (See Electrical connection.)

•Locate the junction box no more than 3” (7.6 cm) below the support platform. A

1” (2.5 cm) minimum diameter hole should be drilled in the right or left rear corner

of the platform so the oven's power plug can access the junction box.

•The support platform must be solid, level, flush with bottom of cabinet cutout, and

able to support 287 lb (130 kg).

•Install the oven at least 12” (30 cm) away from other appliances.

IMPORTANT: Check with your builder or cabinet supplier to ensure the materials used

will not discolor, delaminate, or not be otherwise damaged. This oven is designed

according to the requirements of UL and CSA International and complies with the

maximum allowable wood cabinet temperatures of 194 °F (90 °C).
