Dacor DMT2420 Manual de instrucciones
DMT2420 Microwave Oven
Page Description
2 Door Assembly
3 Control Panel Assembly
4 Chassis and Electrical Assembly
5 Chassis and Electrical Parts
Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601
Revised 05-04-2012
Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601
Page 2

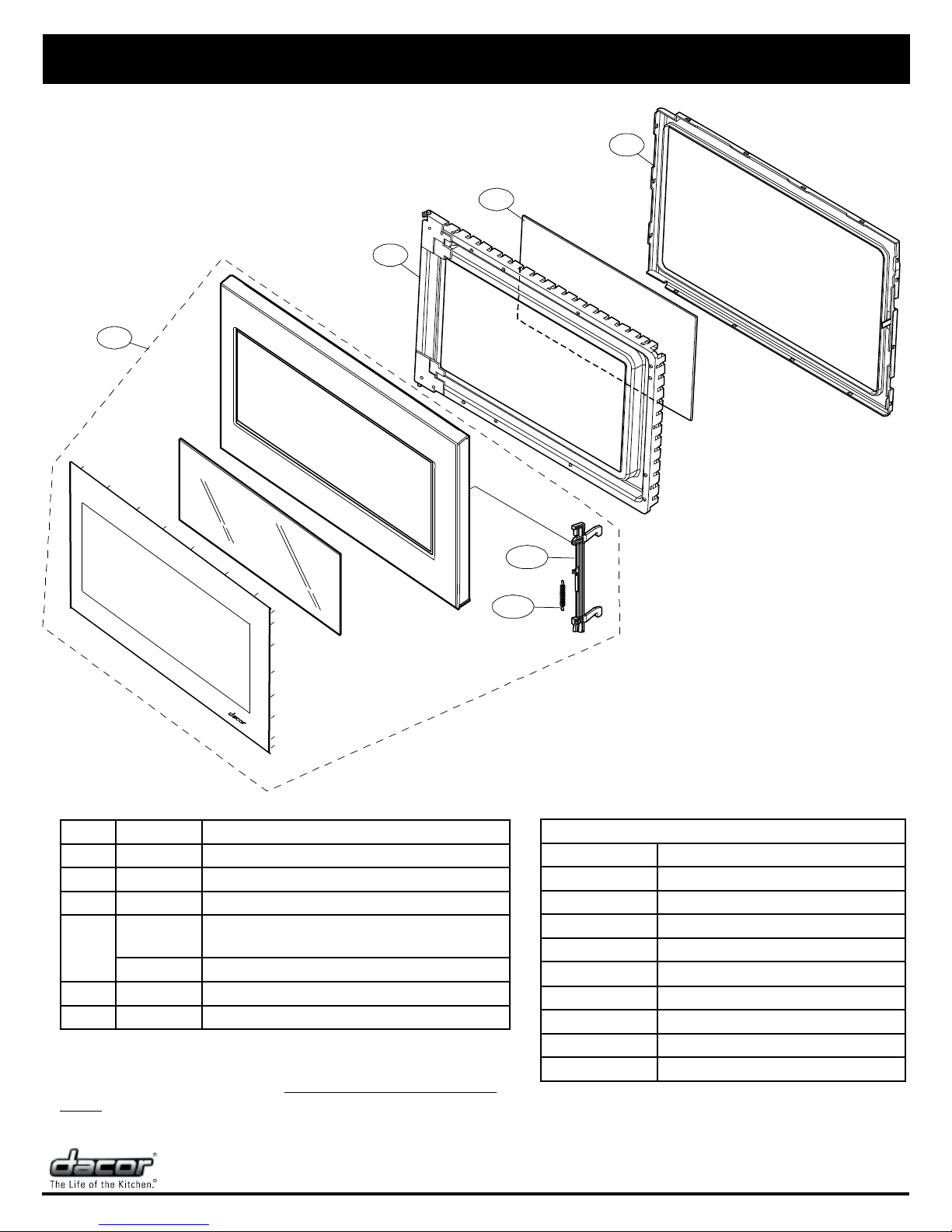

DMT2420 Microwave Door Assembly
Item Part # Description
5-1 See table* DOOR ASSEMBLY*
5-2 86785 LATCH HEAD
5-3 86786 LATCH SPRING
5-4 86783 DOOR PANEL, ALL MODELS EXCEPT
WHITE
66855 DOOR PANEL, WHITE
5-5 86788 SEALER FILM
5-6 86784 CHOKE COVER
* IMPORTANT: There are two different black styles and other
various color schemes. Be careful to match model number to the
correct part number in the table, otherwise the new part will not
match.
5-1
5-3
5-2
5-6
5-4
5-5
Door Style Table
Model Door Door Assembly Part #
DMT2420AG 86782AG
DMT2420B* 86782*
DMT2420BK* 86782BK*
DMT2420BU 86782BU
DMT2420GN 86782GN
DMT2420R 86782R
DMT2420S 86782
DMT2420SG 86782SG
DMT2420TS 86782TS
Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601
Page 3
3 -3 -1
3 -4
3 -3
3 -3 - 2
3 -3 - 3
3-2
3-5
3-5
3-1

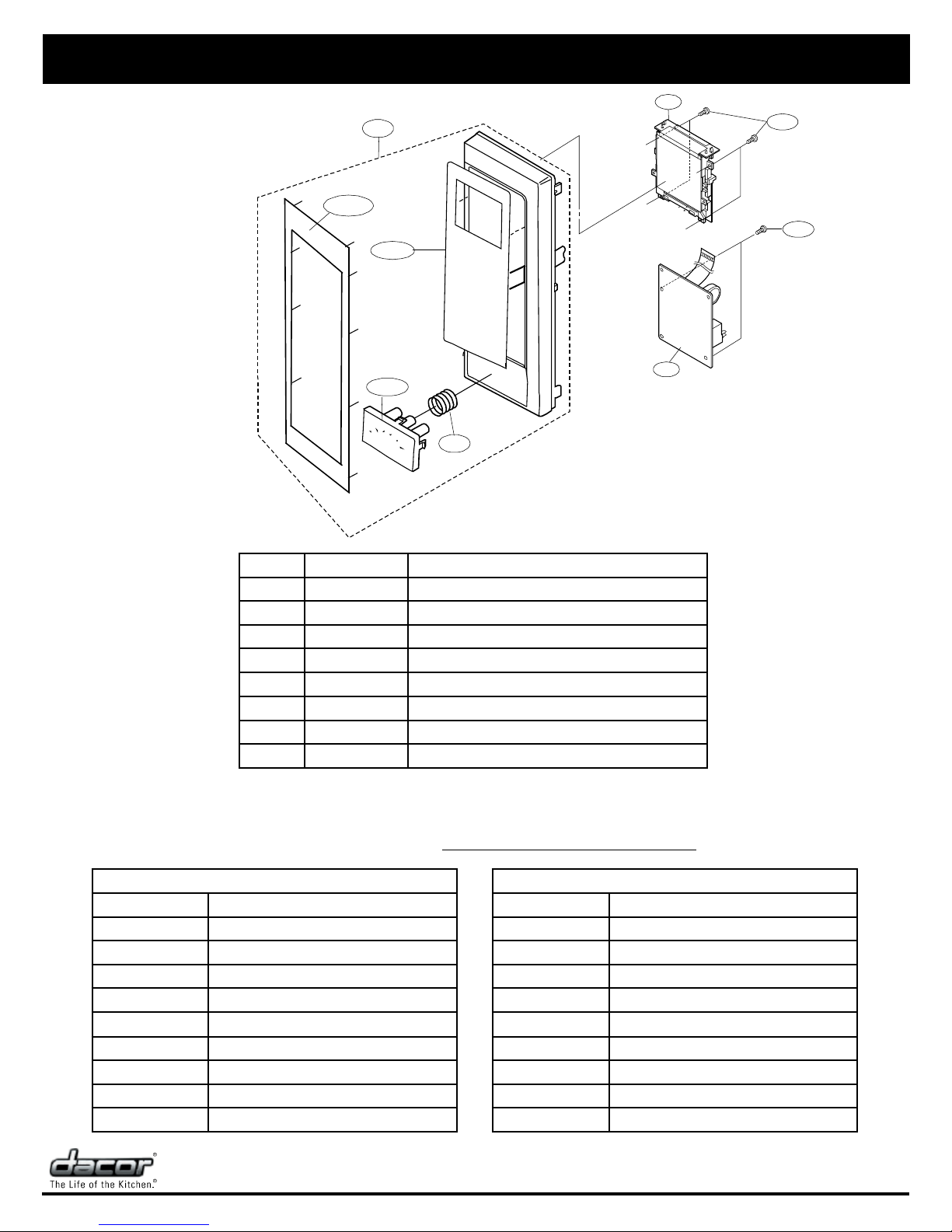

DMT2420 Microwave Control Panel Assembly
Item Part # Description
3-1 66852* POWER UNIT (N/A)*
3-2 101871 LSI/POWER SUPPLY UNIT ASSY
3-3 See table 1** CONTROL PANEL FRAME ASSEMBLY**
3-3-1 66859 KEY UNIT
3-3-2 See table 2** DOOR OPEN BUTTON**
3-3-3 66863 DECORATION PLATE
3-4 86779 OPEN BUTTON SPRING
3-5 86780 SCREW, 3 MM X 10 MM
* Replaced with PN 101871 (3-2), order PN 101871.
** IMPORTANT: There are two different black styles and other vari-
ous color schemes. Be careful to match model number to the cor-
rect part number in the table, otherwise the new part will not match.
Table 2 - Control Panel Style Table
Model Control Panel Assembly Part #
DMT2420AG 66858AG
DMT2420B* 66858B*
DMT2420BK* 66858BK*
DMT2420BU 66858BU
DMT2420GN 66858GN
DMT2420R 66858R
DMT2420S 66858S
DMT2420SG 66858SG
DMT2420TS 66858TS
Table 2 - Door Open Button Style Table
Model Door Open Button Part #
DMT2420AG 66337AG
DMT2420B* 66864*
DMT2420BK* 66337BK*
DMT2420BU 66337BU
DMT2420GN 66337GN
DMT2420R 66864
DMT2420S 66864
DMT2420SG 66337SG
DMT2420TS 66337TS
Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601
Page 4

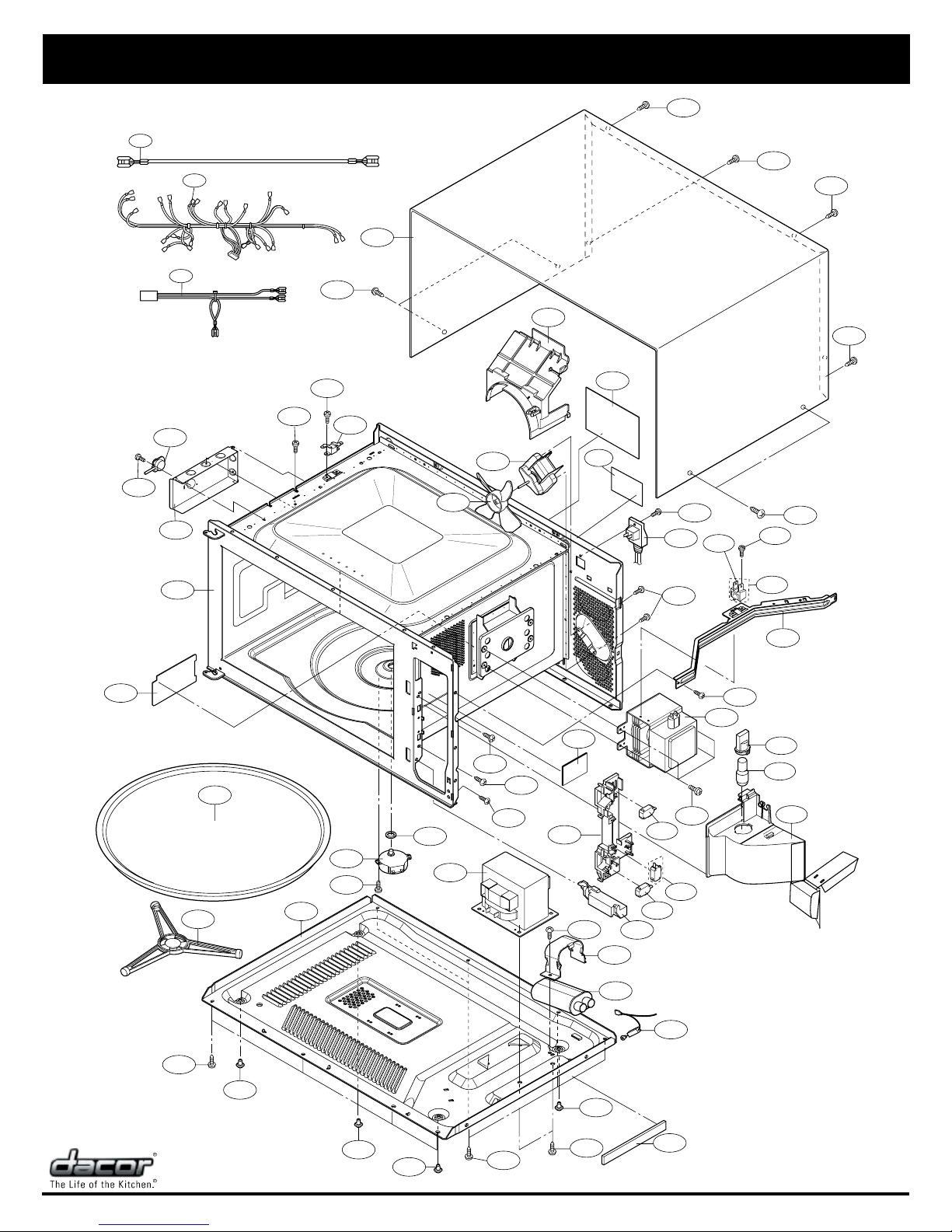

DMT2420 Chassis and Electrical Assembly
2-3
4-7
6-6
1-5
4-6
4-8
4-11
7-6
7-2
1-14
4-9
6-4
6-3 2-1
7-6
1-11
4-10
7-2
7-2
4-3
1-12
1-9
7-3
7-6
7-8
4-2
7-5
1-10
7-1
4-4
7-1
4-1
1-1
1-2
2-2
2-2
2-2
2-2
7-5
7-5 4-12
7-5
6-5
1-13
7-4
7-7
7-4
7-9
7-9
7-7
6-9
7-5
7-6
1-8
1-6
1-3
1-4
4-5
1-7
1-7
1-6
Actual wire harnesses may be different from illustration.
6-8
6-2
6-1
Dacor Technical Service • 14425 Clark Avenue Industry, CA 91745 • Phone 800-353-2267 • FAX 909-348-5601
Page 5
DMT2420 Chassis and Electrical Parts
Item Part # Description
1-1 66874 HI VOLTAGE CAPACITOR
1-2 66857 HI VOLTAGE RECTIFIER ASSEMBLY
1-3 86797 OVEN LAMP SOCKET
1-4 86800 OVEN LAMP
1-5 86805 FAN MOTOR
1-6 66890 MONITOR SWITCH
1-7 66236 INTERLOCK SWITCH
1-8 66872 C/T FUSE
1-9 86795 CAVITY TEMPERATURE FUSE
1-10 66354 MAGNETRON
1-11 66245 TURN TABLE MOTOR
1-12 76123 POWER TRANSFORMER
1-13 66854 POWER SUPPLY CORD
1-14 66856 AH SENSOR
2-1 66861 BASE PLATE
2-2 66862 FOOT
2-3
86813R OUTER CASE CABINET (WHITE UNITS)
86813 OUTER CASE CABINET (ALL OTHER
COLORS)
4-1 86817 H.V CAPACITOR BAND
4-2 66865 CHASSIS SUPPORT
4-3 66871 LATCH HOOK
4-4 86824 SWITCH LEVER
4-5 66870 MAGNETRON DUCT
4-6 66867 FAN BLADE
4-7 66868 FAN DUCT
4-8 ------- OVEN CAVITY (NOT REPLACEABLE)
4-9 1060741WAVEGUIDE COVER
4-10 86843 TURN TABLE MOTOR PACKING
4-11 66869 SENSOR DUCT
4-12 86836 CUSHION
1Use part number 66345 for units with the following part
numbers:
Model Serial Number
DMT2420B 7041987 and above
DMT2420R 7041955 and above
DMT2420S 7041301 and above
DMT2420BC NA
DMT2420RC 7041953 and above
DMT2420SC 7041300 and above
Item Part # Description
6-1 86792 STOP SWITCH HARNESS
6-2 66860 MAIN WIRE HARNESS
6-3 66184 TURNTABLE SUPPORT
6-4 66344 TURNTABLE TRAY
6-5 66876 MONITOR CAUTION LABEL
6-6 ------- DHHS/SCREW CAUTION LABEL
6-7 66877 OPERATION MANUAL
6-8 86799 HIGH VOLTAGE WIRE A
6-9 ------- UL SCREW CAUTION LABEL
7-1 86819 SPECIAL SCREW
7-2 86820 SPECIAL SCREW
7-3 86902 SCREW: 4 MM X 12 MM
7-4 66866 SPECIAL SCREW (TORX TAMPER
PROOF)
7-5 66888 SCREW: 4 MM X 12 MM
7-6 86847 SCREW: 3 MM X 8 MM
7-7 66889 SPECIAL SCREW
7-8 86901 SCREW: 4 MM X 8 MM
7-9 86946B SCREW: 4 MM X 12 MM (BLACK)
86905 SCREW: 4 MM X 12 MM
---- 106061 NOISE FILTER BOARD (NOT SHOWN)
