D-Link Wireless VPN Router DI-824VUP Instrucciones de uso

101

After you have tried other methods for troubleshooting your network, you

may choose to Reset the DI-824VUP to the factory default settings.

To hard-reset theD-LinkDI-824VUP to the FactoryDefault Settings, please

do the following:

Resetting the DI-824VUP to the

Factory Default Settings



Use a paper clip to press the Reset button and

power on.

Locate the Reset button on the back of theDI-824VUP.

After you have completed the above steps, theDI-

824VUP will be reset to the factory default settings.

Hold for about 5 seconds (do not hold for too long)

and then release. (Or, release when the status

LEDflashes.)

102

Technical Specifications

VPN Pass Through Function

PPTP

L2TP

IPSec



StandardsIEEE802.11b



IEEE802.3

LEDs Power

WAN

LAN

WLAN

Status

COM

USB



Operating Temperature

32°F to 131°F ( 0°C to 55°C)



Humidity 10-90%



Power 5VDC / 2.5A



IEEE802.3u 100BASE-TX Fast Ethernet

USB1.1

IEEE802.11g



L = 9.25 inches (233mm)

W = 6.5 inches (165mm)

H = 1.375 inches (35mm)



Dimensions

~2.0oz.(907g)

Weight



4x 10/100 LANPorts (MDI/MDIX)

1x 10/100 WAN Port (MDI/MDIX

1COM Port(Dial-up Modem)

1Parallel Port(DB25)

1 USB Port



Ports



LPT



103

Frequently Asked Questions

Whenentering the IPAddressof theDI-824VUP(192.168.0.1),you are not

connecting to the Internet or have to be connected to the Internet.The device has the

utility built-in to a ROM chip in the device itself. Your computer must be on the same

IP subnet to connect to the web-based utility.

To resolve difficulties accessing a Web utility, please follow the steps below.

Step 1

Verify physical connectivity by checking for solid link lights on the device. If

you do not get a solid link light, try using a different cable or connect to a different

port on the device, if possible. If the computer is turned off, the link light may not be

on.

Thefollowingconnections require aCrossoverCable:

ComputertoComputer

Computerto UplinkPort

Computer toAccess Point

ComputertoPrint Server

Computer/XBOX/PS2toDWL-810

Computer/XBOX/PS2toDWL-900AP+

Uplink Port to Uplink Port (hub/switch)

NormalPort toNormal Port(hub/switch)

Thefollowing connections requirea Straight-through Cable:

Computerto ResidentialGateway/Router

ComputertoNormal Port (hub/switch)

Access Point toNormal Port (hub/switch)

PrintServer toNormalPort (hub/switch)

UplinkPort toNormal Port (hub/switch)

RuleofThumb:

”If there is a link light, the cable is right.”

What type of cable should I be using?

Why can´t I access the Web-based configuration?

104

Frequently Asked Questions (continued)

What type of cable should I be using? (continued)

What´s the difference between a crossover cable and a straight-through

cable?

Thewiring incrossover andstraight-throughcablesaredifferent.The two types

ofcablehavedifferent purposes fordifferent

LANconfigurations.EIA/TIA568A/568B

definethewiring standardsandallow for

twodifferentwiring color codesas

illustratedin thefollowingdiagram.

*Thewires with colored backgrounds may

havewhite stripesand may be denoted

thatway in diagramsfoundelsewhere.

How to tell straight-through cable from

a crossover cable:

Themain way to tell the difference

between the two cable types is to compare

the wiring order on the ends of the cable. If

the wiring is the same on both sides, it is

straight-through cable. If one side has opposite wiring, it is a crossover cable.

All you need to remember to properly configure the cables is the pinout order of

the two cable ends and the following rules:

Astraight-through cable has identical ends

Acrossover cable has different ends

Itmakesnofunctionaldifferencewhichstandardyou followforstraight-through

cable ends, as long as both ends are the same. You can start a crossover cable

with either standard as long as the other end is the other standard. It makes no

functional difference which end is which. The order in which you pin the cable is

important. Using a pattern other than what is specified in the above diagram

couldcause connection problems.

When to use a crossover cable and when to use a straight-through cable:

Computerto Computer –Crossover

Computerto annormal port on aHub/Switch – Straight-through

Computerto anuplink port on a Hub/Switch – Crossover

Hub/Switchuplink port to anotherHub/Switch uplinkport – Crossover

Hub/Switch uplink port to another Hub/Switch normal port – Straight-through

Why can´t I access the Web-based configuration? (continued)

105

Step 3 Configure your Internet settings.

Step 2 Disable any Internet security software running on the computer. Software

firewalls like ZoneAlarm, Black Ice, Sygate,Norton Personal Firewall, etc. might

block access to the configuration pages. Check the help files included with your

firewallsoftware for moreinformation ondisabling or configuringit.

Frequently Asked Questions (continued)

Click to the Connection tab and set the dial-

up option to Never Dial a Connection. Click

theLAN Settings button.

Nothing should be checked. Click OK.

Go to the Advanced tab and click the

Restore Defaults buttonto restore

these settings to their facotry defaults.

Click OK.Go to the desktop and close any open

windows.

Go to Start > Settings > Control Panel.Double

click the Internet Options Icon. From the Security

tab, click the Default Level button to restore the

settings to their defaults.

Why can´t I access the Web-based configuration? (continued)

106

Frequently Asked Questions (continued)

Step 4 Check your IPaddress.Your computer must have an IP address in the same

range of the device you are attempting to configure. MostD-Link devices use the

192.168.0.Xrange.

How can I find my IP Address in Windows 95, 98, or

ME?

Step 1 Click on Start, then click on Run.

Step 2 The RunDialogue Box will appear. Type winipcfg in the text field and click

OK.

Step 3 The IP Configuration window will appear, displaying your Ethernet

Adapter Information.

Select your adapter from the drop down menu.

If you do not see your adapter in the drop down menu, your adapter is

not properly installed.

Step 4 After selecting your adapter, it will display your IPAddress, subnet

mask,anddefault gateway.

Step 5 Click OK to close the IP Configuration window

Why can´t I access the Web-based configuration? (continued)

107

Frequently Asked Questions (continued)

Step 4 (continued) Check your IPaddress.Your computer must have an IPAddress

in the same range of the device you are attempting to configure. MostD-Link devices

usethe192.168.0.X range.

How can I find my IP Address in Windows 2000/XP?

Step 1 Click on Start and select Run.

Step 2 Type cmd then click OK.

Step 3 From the Command Prompt, enter ipconfig. It will return your IP

Address, subnet mask, and default gateway

Step 4 Type exit to close the command prompt.

Why can´t I access the Web-based configuration? (continued)

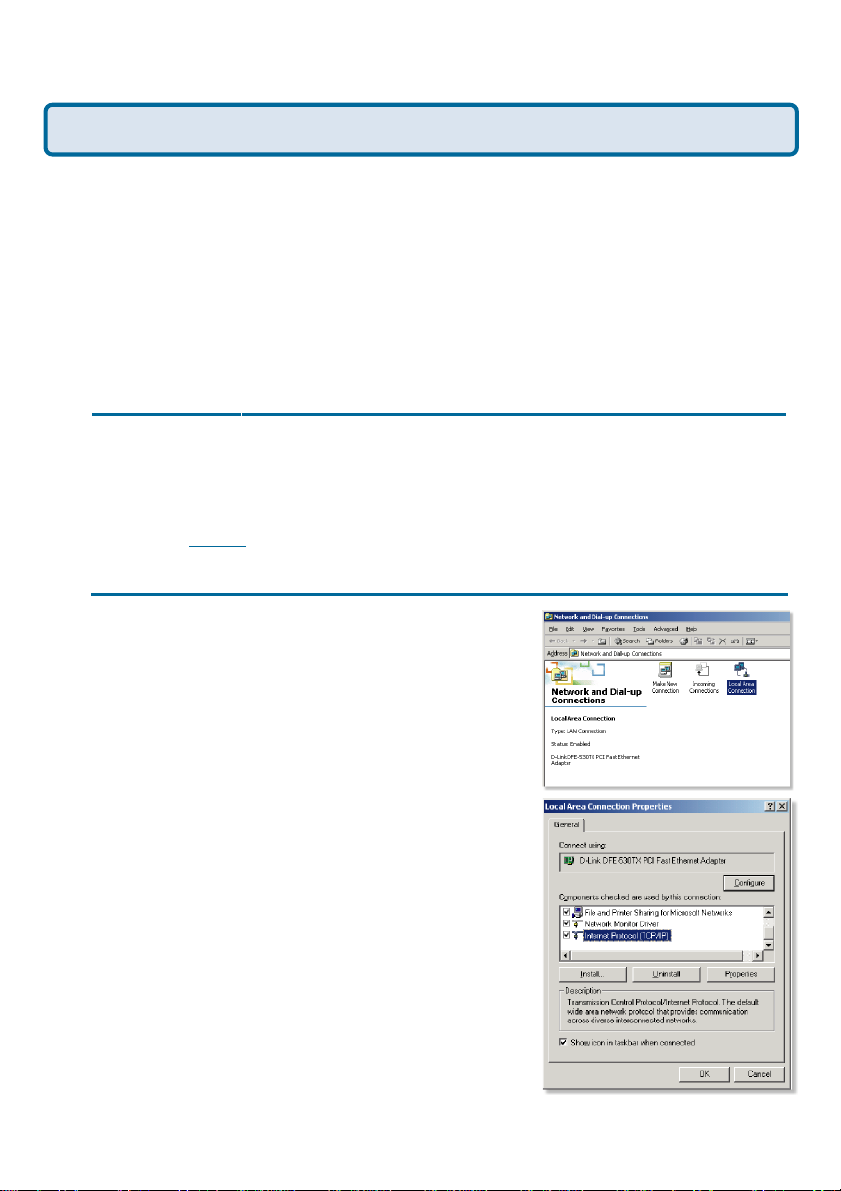

108

Frequently Asked Questions (continued)

Step 4 (continued) Check your IPaddress.Your computer must have an IP address

in the same range of the device you are attempting to configure. MostD-Link devices

usethe192.168.0.X range.

Make sure you take note of your computer´sDefaultGateway IPAddress.TheDefault

Gateway is the IPAddress of theD-Link Router. By default, it should be 192.168.0.1.

How can I assign a Static IP Address in Windows XP?

Step 1

Click on Start > Control Panel > Network and Internet Connections >

Network connections.

Step 2 See Step 2 forWindows 2000 and continue from there.

How can I assign a Static IP Address in Windows 2000?

Step 1 Right-click on My Network

Places and select Properties.

Step 2 Right-click on the Local

Area Connection which represents

your network card and select

Properties.

Highlight Internet Protocol (TCP/

IP) and click Properties.

Why can´t I access the Web-based configuration? (continued)

109

Frequently Asked Questions (continued)

How can I assign a Static IP Address in Windows 2000?

(continued)

Click Use the following IPAddress and

enter an IPAddress that is on the same

subnet as the LANIPaddress on your

router. Example: If the router´s LANIP

address is 192.168.0.1, make your IP

address192.168.0.Xwhere X =2-99.

Make sure that the number you choose is

not in use on the network.

Set the Default Gateway to be the same

as the LANIP address of your router

(192.168.0.1).

Set the Preferred DNS server to be the

same as the LANIPaddress of your

router(192.168.0.1).

The Alternate DNS server is not needed or enter aDNS server from your ISP.

Click OK twice. You may be asked if you want to reboot your computer. Click

Yes.

How can I assign a Static IP

Address in Windows 98/Me?

Step 1 From the desktop, right-click on the

Network Neigborhood icon (Win ME - My

Network Places) and select Properties

Highlight TCP/IP and click the Properties

button.If you have more thanone adapter,

then there will be a TCP/IP “Binding” for

each adapter. Highlight TCP/IP > (your

network adapter) and then click

Properties.

Why can´t I access the Web-based configuration? (continued)

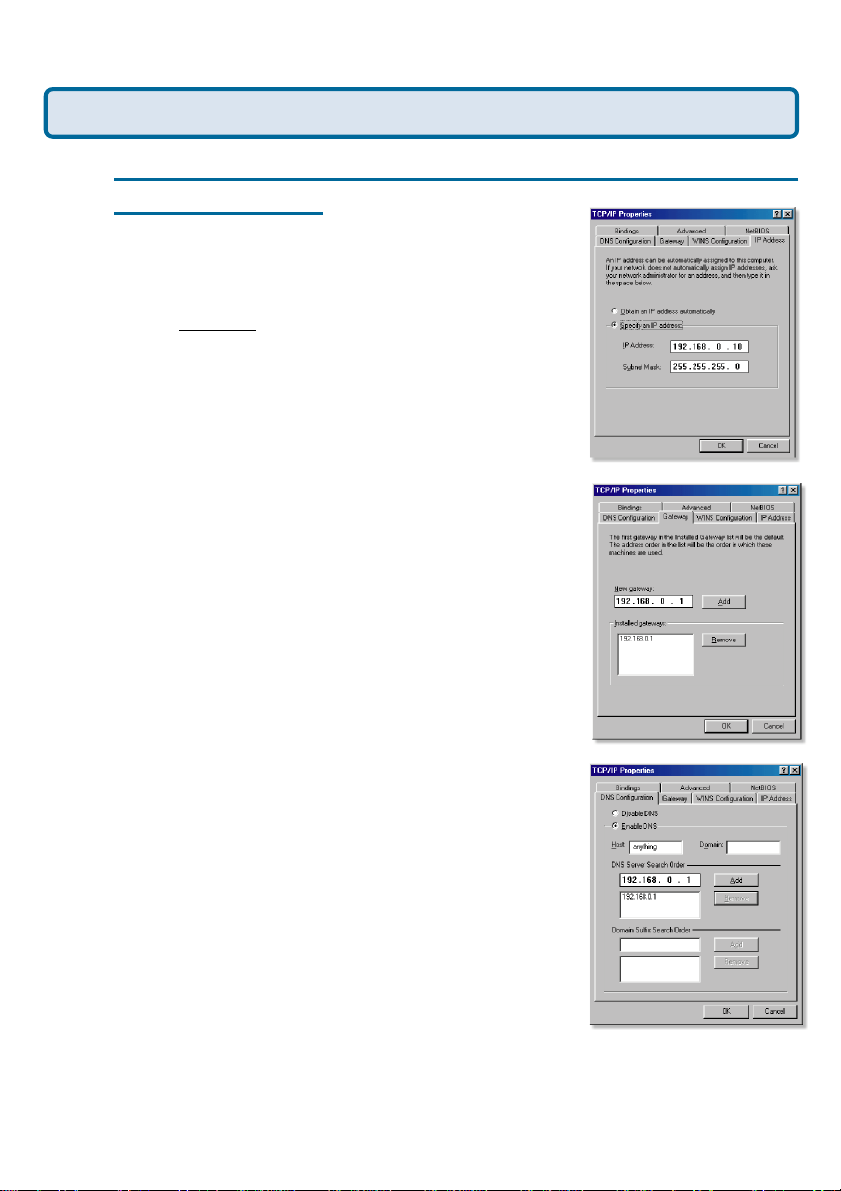

110

Frequently Asked Questions (continued)

How can I assign a Static IP Address in Windows 98/

Me? (continued)

Step 2 Click Specify an IP Address.

Step 3 Click on the Gateway tab.

Enter the LANIPAddress of your router

here(192.168.0.1).

ClickAdd whenfinished.

Step 4 Click on the DNS Configuration tab.

Enter in an IP Address that is on the same

subnet as the LANIPAddress on your router.

Example: If the router´s LANIPAddress is

192.168.0.1,makeyourIPAddress

192.168.0.Xwhere X isbetween2-99. Make

sure that the number you choose is not in

use on the network.

Step 5 Click OK twice.

Click EnableDNS. Type in a Host (can be

anyword).UnderDNS server searchorder,

enter the LANIPAddress of your router

(192.168.0.1). Click Add.

Whenprompted toreboot yourcomputer,

click Yes.

Afteryou reboot, the computer will now have

a static, private IPAddress.

Why can´t I access the Web-based configuration? (continued)

Step 5 Access the Web management. Open your Web

browserandenterthe IPAddressof yourD-Linkdevice in

the address bar. This should open the log-in page for the

web management. Follow instructions to log in and complete the configuration.

Otros manuales para Wireless VPN Router DI-824VUP

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de D-Link

D-Link

D-Link DIR-855 - Xtreme N Duo Media Router Wireless Manual de usuario

D-Link

D-Link DWR-730 Manual de usuario

D-Link

D-Link DIR-860L Manual de usuario

D-Link

D-Link DSL-2740R Manual de usuario

D-Link

D-Link DWR-512 Manual de usuario

D-Link

D-Link DIR-L1900 Manual de usuario

D-Link

D-Link DIR-450 - 3G Mobile Router Wireless Manual de usuario

D-Link

D-Link DIR-615 - Wireless N Router Manual de usuario

D-Link

D-Link DSL-2600U Manual de usuario

D-Link

D-Link DWR-732 Manual de usuario

D-Link

D-Link DI-724U - Wireless 108G QoS Office Router Manual de usuario

D-Link

D-Link DIR-860L Manual de usuario

D-Link

D-Link N 150 Manual de usuario

D-Link

D-Link DIR-905L Manual de usuario

D-Link

D-Link Covr Manual de usuario

D-Link

D-Link DWR-161 Manual de usuario

D-Link

D-Link DI-604UP - Broadband Router Plus USB Print... Manual de usuario

D-Link

D-Link DIR-400 Manual de usuario

D-Link

D-Link DVG-5802S Manual de usuario

D-Link

D-Link DSL-G624M Manual de usuario

D-Link

D-Link AC1200 Manual de usuario

D-Link

D-Link EXO AX DIR-X4860-US Manual de usuario

D-Link

D-Link DWR-720 Manual de usuario

D-Link

D-Link DWR-730 Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario
