D-Link DIR-620 Manual de usuario

Quick Installation Guide

DIR-620

Multifunction Wireless Router

Supporting WiMAX, 3G GSM/CDMA

ith Built-in S itch

DIR-620 Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Wireless router DIR-620

•Power adapter

•Straight-through Ethernet cable (C T 5E)

•CD-ROM with “User Manual” and “Quick Installation Guide”

•“Quick Installation Guide” (brochure)

If any of the items are missing, please contact your reseller.

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address o wireless router 192.168.0.1

Username (login) admin

Password admin

Name o wireless network (SSID) DIR-620

DIR-620 Quick Installation Guide

System Requirements and Equipment

• computer with any operating system that supports a web browser.

• web browser to access the web-based interface of the router: Windows

Internet Explorer, Mozilla Firefox, or Opera.

• NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•n 802.11b, g, or n Wi-Fi adapter to create a wireless network.

• USB modem to connect to the Internet1.

◦ WiM X USB modem to connect to the Internet via a WiM X

network.

Some WiM X operators require subscribers to activate their WiM X

USB modems prior to using them. Please, refer to connection

guidelines provided by your operator when concluding the agreement

or placed on its website.

◦ 3G USB modem to connect to the Internet via a 3G GSM or

CDM network.

Your USB modem should be equipped with an active identification

card (SIM or R-UIM) of your operator.

It is recommended to disable the PIN code check on the identification

card prior to connecting the USB modem to the router.

1 Contact your operator to get information on the service coverage and fees.

DIR-620 Quick Installation Guide

Supported USB Modems

GSM modems

•Huawei E150

•Huawei E1550

•Huawei E160G

•Huawei E169G

•Huawei E220

•ZTE MF626

•ZTE MF627.

CDMA modems

•nydata DU-500

•Celot CT-650.

WiMAX modem

•Samsung SWC-U200.

DIR-620 Quick Installation Guide

CONNECTING TO PC (OS WINDOWS XP)

PC wit Et ernet Adapter

1. Make sure that your PC is powered off.

2. Connect an Ethernet cable between any of L N ports located on the back

panel of the router and the Ethernet port of your PC.

3. To connect via a WiM X, 3G GSM or CDM network: connect your

USB modem to the USB port2 located on the front panel of the router.

If you need to connect or change a USB modem to another one when

the router is powered on, power off the router, connect the modem to

the USB port, and power on the router.

4. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

5. Turn on your PC and wait until your operating system is completely

loaded.

Now you should configure your PC to obtain an IP address automatically (as

DHCP client).

1. Click the Start button and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2 It is recommended to a USB extension cable to connect a USB modem to the router.

DIR-620 Quick Installation Guide

2. In the Network Connections window, right-click the relevant Local

Area Connection icon and select the Properties line in the menu

displayed.

3. In the Local Area Connection Properties window, on the General

tab, in the This connection uses the ollowing items section, select

the Internet Protocol (TCP/IP) line. Click the Properties button.

DIR-620 Quick Installation Guide

4. Select the Obtain an IP address automatically radio button. Click

the OK button.

Click the ОК button. Now your computer is configured to obtain an IP address

automatically.

PC wit Wi-Fi Adapter

1. To connect via a WiM X, 3G GSM or CDM network: connect your

USB modem to the USB port3 located on the front panel of the router.

If you need to connect or change a USB modem to another one when

the router is powered on, power off the router, connect the modem to

the USB port, and power on the router.

2. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

3 It is recommended to a USB extension cable to connect a USB modem to the router.

DIR-620 Quick Installation Guide

3. Turn on your PC and wait until your operating system is completely

loaded.

4. Turn on your Wi-Fi adapter. s a rule, modern notebooks with built-in

wireless NICs are equipped with a button or switch that turns on/off the

wireless adapter (refer to your PC documents). If your PC is equipped

with a pluggable wireless NIC, install the software provided with your

Wi-Fi adapter.

Now you should configure your Wi-Fi adapter.

1. Click the Start button and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. Select the icon of the wireless connection and make sure that your Wi-Fi

adapter is on.

3. Search for available wireless networks.

4. In the opened Wireless Network Connection window, select the

needed wireless network (DIR-620) and click the Connect button.

fter that the Wireless Network Connection Status window appears.

DIR-620 Quick Installation Guide

CONFIGURING ROUTER

Connecting to Web-based Interface

1. Start a web browser.

2. In the address bar of the web browser, enter the IP address of the router

(by default, the following IP address is specified: 192.168.0.1). Press

the Enter key.

3. On the opened page, enter the username (login) and password for the

administrator account (by default, the following username and password

are specified: admin, admin). Then click the Enter button.

If the error “ The page cannot be displayed ” (or “ Unable to display the

page ”/“ Could not connect to remote server ”) occurs upon connecting to

the web-based interface of the router, make sure that you have properly

connected the router to your computer.

DIR-620 Quick Installation Guide

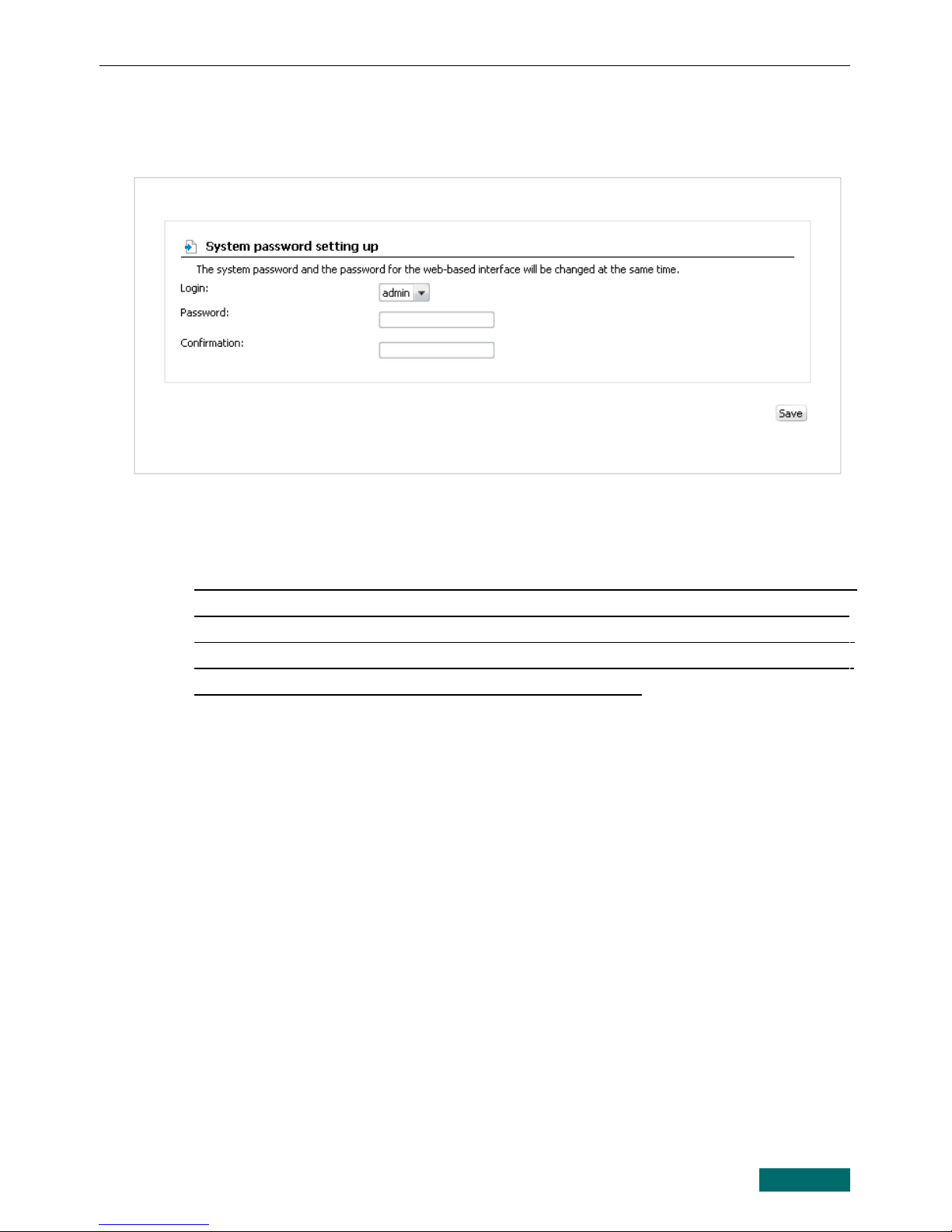

Right after the first access to the web-based interface you are forwarded to the

page for changing the administrator password specified by default.

Enter the new password in the Password and Con irmation fields. Then

click the Save button.

Remember or write down the new password for the administrator

account. In case of losing the new password, you can access the web-

based interface of the router only after restoring the factory default

settings via the hardware Reset button. This procedure wipes out all

settings that you have configured for your router.

fter successful registration the system statistics page opens. The page

displays general information on the router and its software.

The web-based interface of the router is bilingual (English/Russian). Select a

needed language from the menu displayed when the mouse pointer is over the

Language caption. You can change the language of the web-based interface

in any menu item.
