D-Link Wireless VPN Router DI-824VUP Manual de usuario

This product can be set up usingThis product can be set up using

This product can be set up using

anan

any curry curr

y curry curr

y currenen

enen

ent web brt web br

t web brt web br

t web browserowser

owserowser

owser, i.e, i.e

, i.e, i.e

, i.e.,.,

.,.,

Internet Explorer 6 or NetscapeInternet Explorer 6 or Netscape

Internet Explorer 6 or Netscape

Navigator 6.2.3.Navigator 6.2.3.

Navigator 6.2.3.

5V DC Power Adapter

Check Your Package Contents

DI-824VUP 2.4GHz Wireless VPN

Broadband Router and Print Server

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight-Through)

Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

DI-824VUP

specifications subject to change without notice. DI-824VUP. 12232003

1.1.

1. Thank you for purchasing this router to share your high-speed Internet connection

with other computers. For you to share high-speed Internet access, you must

have either an Ethernet-based Cable or DSL modem with an established Internet

account from an Internet Service Provider (ISP).

2.2.

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-824VUP Broadband VPN Router. The DI-824VUP acts as a DHCP server

and will assign all the necessary IP address information on your network. See

Appendix at the end of this Quick Installation Guide or the Manual on the CD-

ROM for setting each network adapter to automatically obtain an IP address.

2.4GHz Wireless VPN2.4GHz Wireless VPN

2.4GHz Wireless VPN

Broadband Router andBroadband Router and

Broadband Router and

Print ServerPrint Server

Print Server

Before You Begin

Connecting The DI-824VUP 2.4GHz Wire-

less VPN Router To Your Network

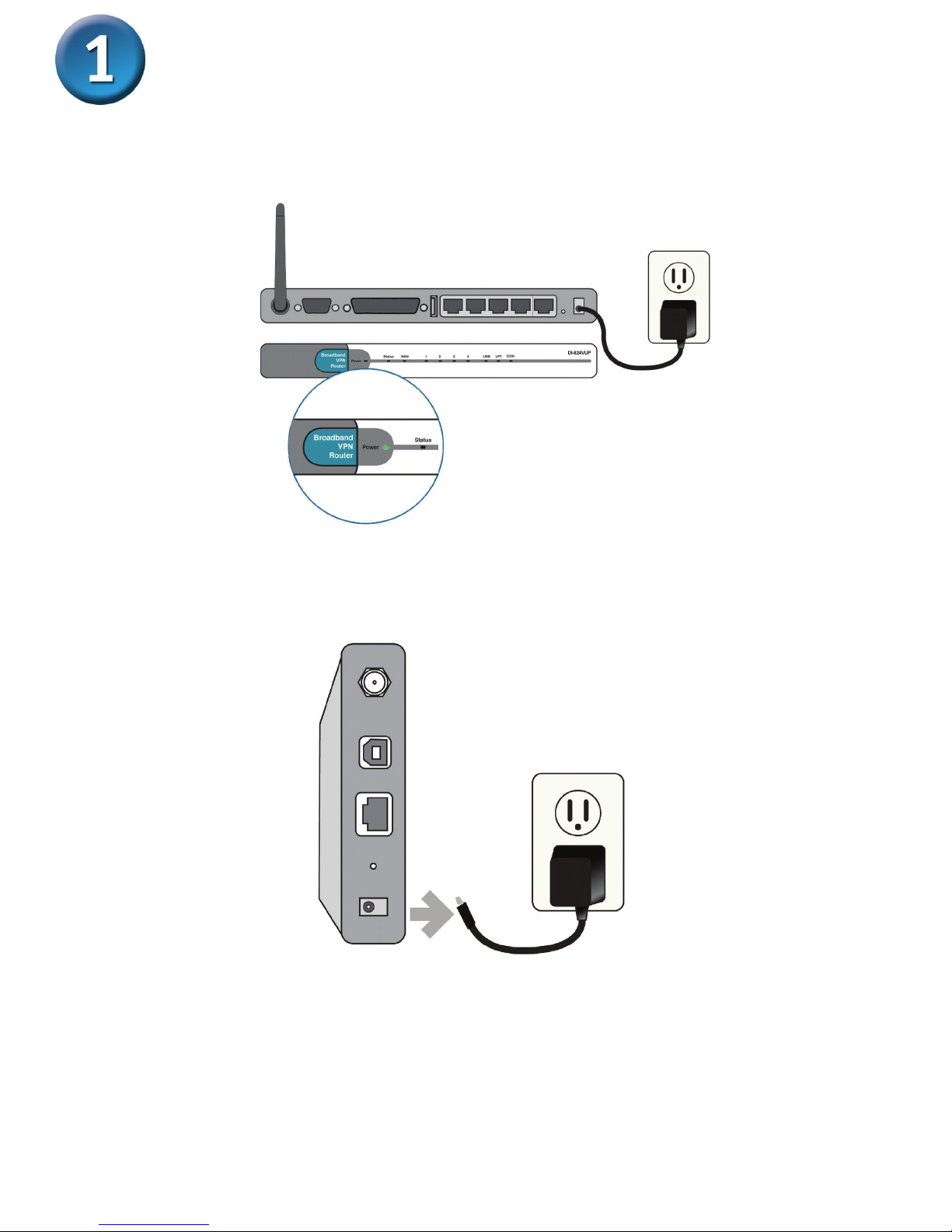

A. First, connect the power adapter to the receptor at the back panel of the

DI-824VUP and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED lights up indicating proper operation. (Fig. A)

(Fig. A)

B. 1. Power off your Cable or DSL modem; the devices that do not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-824VUP

should be powered on and the Cable / DSL modem should be turned off.

Cable / DSL modem (Power Off) – DI-824VUP (Power On) (Fig.B)

2.Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable / DSL

modem by turning on the unit or plugging in the power adapter.

Cable / DSL modem (Power On) – DI-824VUP (Power On)

3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel

of the DI-824VUP. The WAN LED light will illuminate to indicate proper

connection. If the WAN LED is not illuminated, please go back to step B1 and

repeat the steps. (Fig.C)

(Fig. B)

Continued...

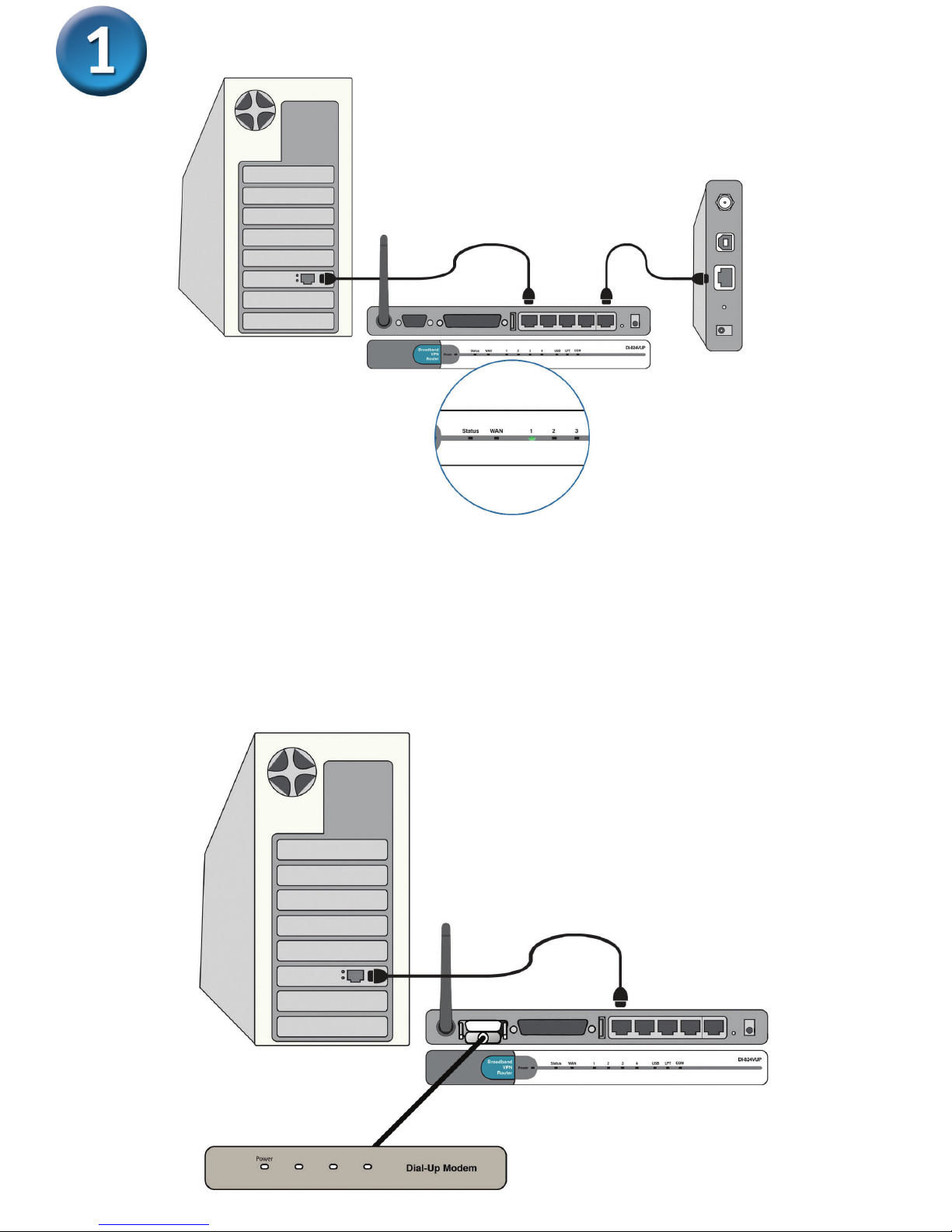

C. Insert an Ethernet cable to LAN Port 1 on the back panel of the DI-824VUP and

an available Ethernet port on the network adapter in the computer you are using to

configure the DI-824VUP. The LED light for LAN Port 1 illuminates to indicate

proper connection. (Note: The LAN Ports on the DI-824VUP are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable in the LAN

Ports.) (Fig.C)

D. COM Port for dial-up Internet connection (optional). (Fig.D)

(Fig. C)

(Fig. D)

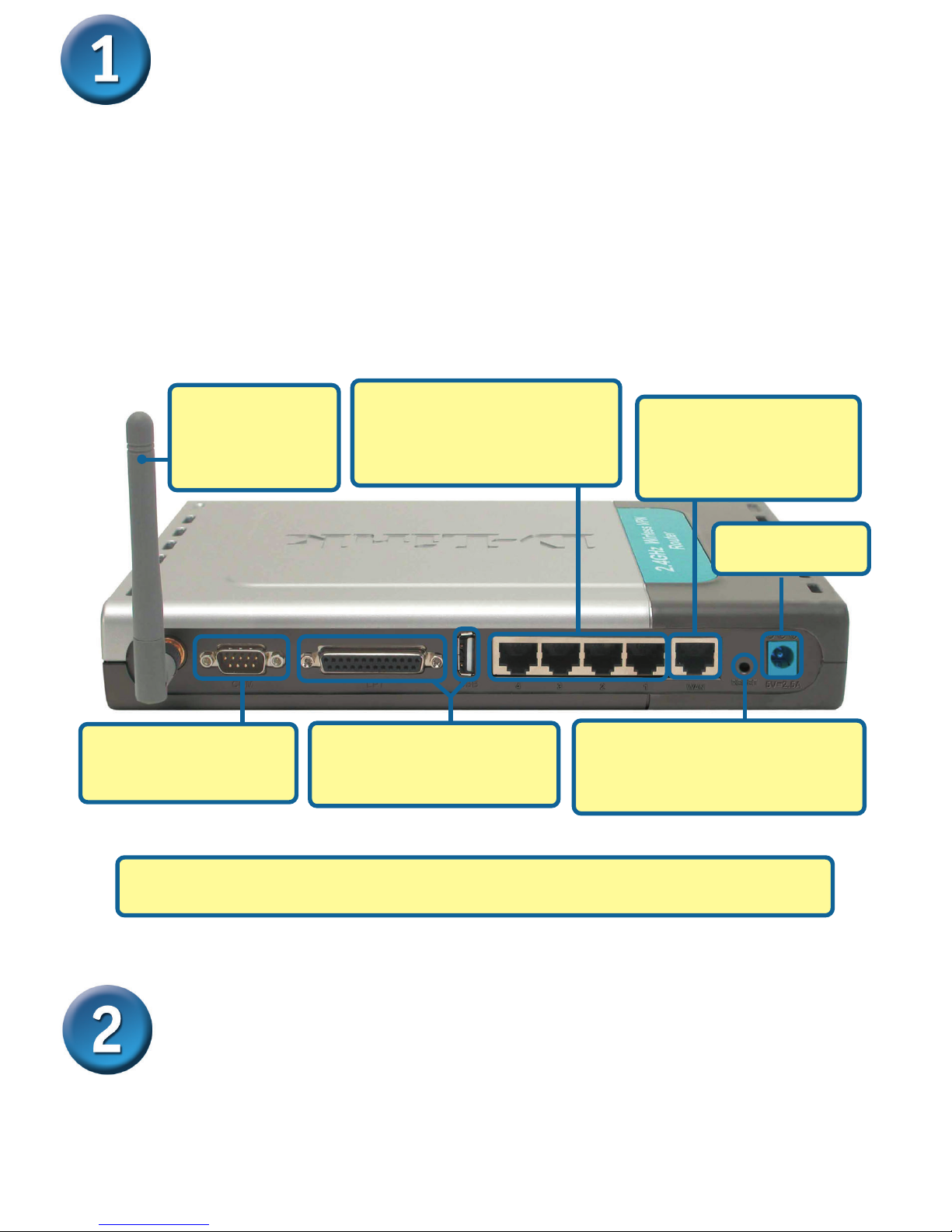

B. WAN PORT This is for

the connection of an

Ethernet cable to the

Cable or DSL modem.

C. LAN PORTS These are the

connections for Ethernet

cables to Ethernet enabled

computers.

A. Receptor for

Power Adapter.

Restart Your Computer

E. Antenna Used

to wirelessly

connect to

802.11g adapters.

Continued...

D. COM Port Used to

connect to an external

dial-up modem.

Reset Button

Pressing this button restores the

Router to its original factory

default settings.

F. Parallel and USB Printer

Port Used to connect to a

Printer.

Computers equipped with 802.11b or 802.11g wireless adapters will be able to

connect to the DI-824VUP. The DWL-G650 AirPlus Wireless Cardbus Adapter and

the DWL-G520 AirPlus Wireless PCI Adapter will be able to connect out of the box

with the router using their default wireless settings.

F. Connect your Parrallel or USB printer here.

The LAN Ports on the DI-824VUP are Auto MDI/MDIX. Meaning you can

use a straight-through or crossover Ethernet cable in the LAN Ports.)

Connecting Additional Computers To The

DI-824VUP 2.4GHz Wireless VPN Router

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DI-824VUP.

COM LED – a solid light

indicates a proper

connection to a dial-up

modem.

LOCAL NETWORK LEDs

– a solid

light on the port indicates a

connection to an Ethernet

enabled computer on ports 1-4.

This LED blinks during data

transmission.

POWER LED – a solid

light indicates a proper

connection to the

power supply.

WAN LED – a blinking light

indicates connection on the

WAN port. This LED blinks

during data transmission.

WLAN LED – will flash

consistently to indicate

that the DI-824VUP is

working properly.

Status LED – a steady

blinking light indicates

that the unit is working

properly.

USB and LPT LEDs – a solid

light indicates a proper

connection to a Printer.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

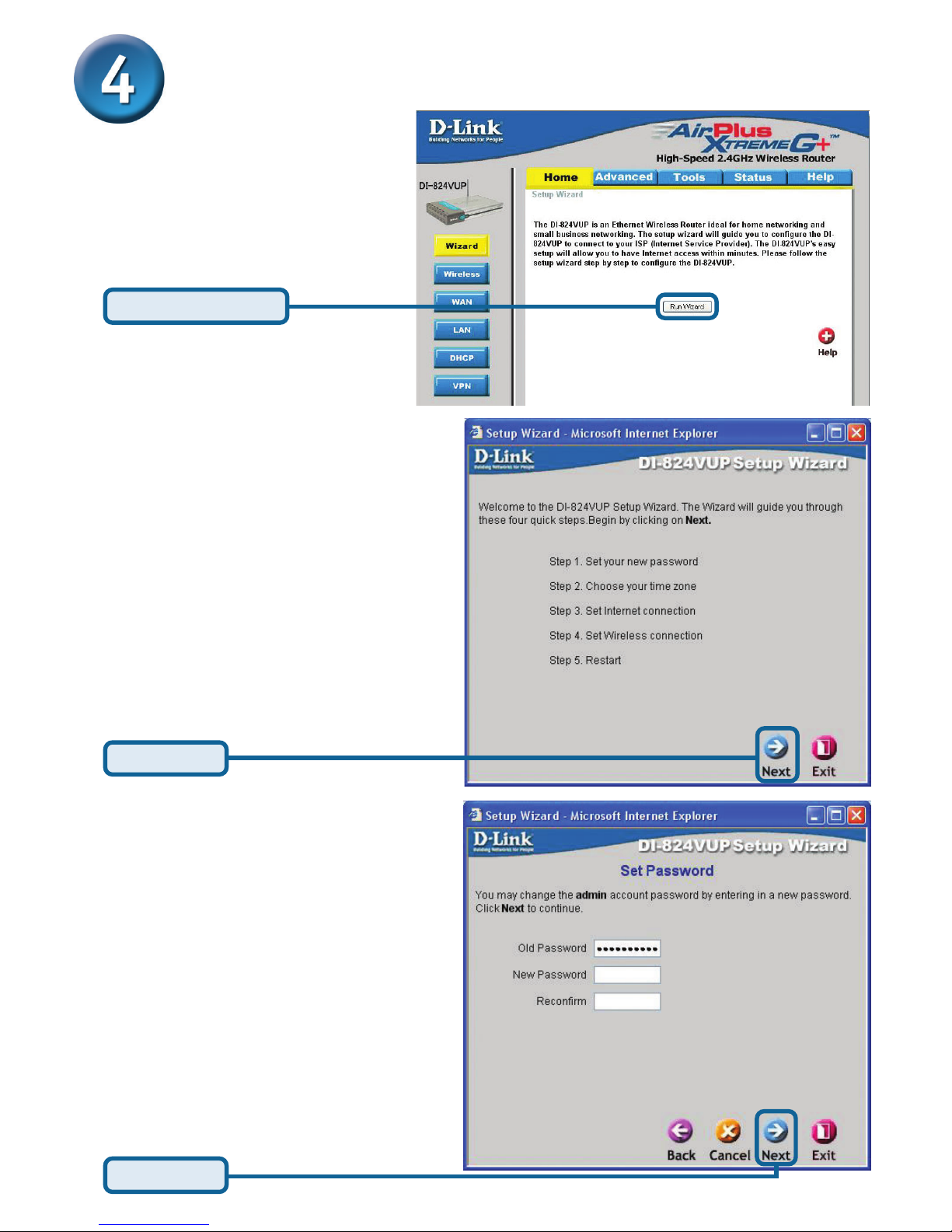

The Setup Wizard (continued)

Once you have logged in, the

Home screen will appear.

You will see the following screens.

Click Run Wizard

Click Next

Set up your new password.

You have the option to establish a

password.

The Setup Wizard (continued)

Select your Internet Connection.

You will be prompted to select the type of

Internet connection for your router.

Click Next

Choose your time zone from the drop

down list.

Click Next

If you are unsure of which

setting to select, please contact

your Internet Service Provider.

A this point, the setup wizard will try to

auto-detect your Internet connection

type. If you have a Dynamic or PPPoE

connection, you will be brought to the

corresponding page.

The Setup Wizard (continued)

If your ISP requires a Static IP

Address, and this option is selected,

then this screen will appear:

Enter the IP address information

originally provided to you by your ISP.

You will need to complete all the

required fields.

Click Next

If you selected Dynamic IP Address,

this screen will appear: (Used mainly

for Cable Internet service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

This setup should be done on the computer

that is registered on the ISP’s network.

Please continue to Wireless Setup.

The Setup Wizard (continued)

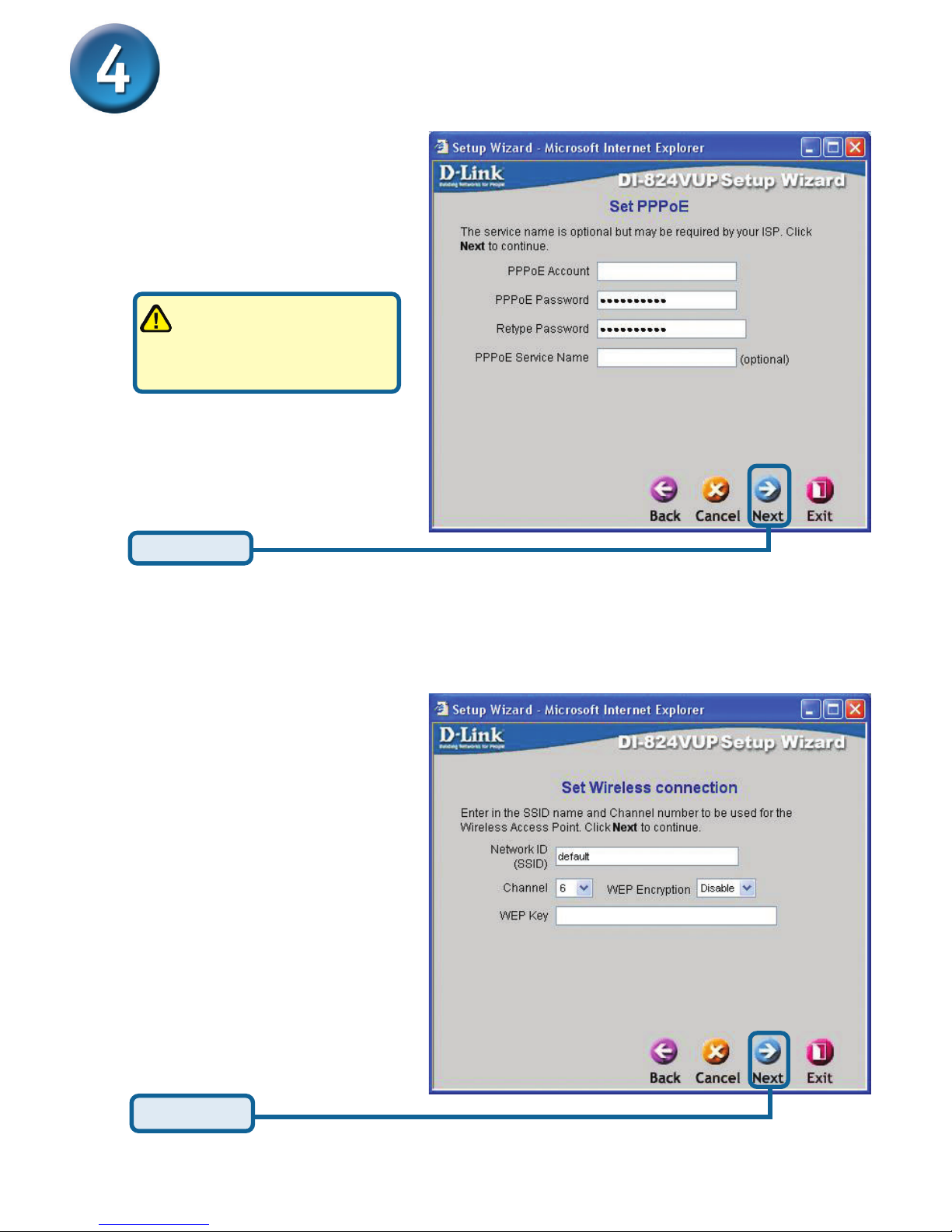

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet), and

this option is selected, then this

screen will appear: (Used mainly for

DSL Internet service.)

Please be sure to remove

any existing PPPoE client

software installed on your

computers.

Enter in the username and pass-

word provided to you by your ISP.

Click Next

If you wish to use encryption for your

802.11g network, the DI-824VUP is

capable of three levels of wireless

encryption - 64-bit, 128-bit, and 256-

bit. By default the encryption is

disabled. You can change the

encryption settings for more secure

wireless communication.

The default wireless settings for

your 802.11g wireless network are:

SSID = default

Channel = 6

You can change these settings to

match an existing wireless network.

Wireless Setup
