D-Link DIR-506L Manual de usuario

CONFIGURATION GUIDE

For DIR 506L Mobile Companion

www.dlink.co.in

Conﬁguration Guide

For DIR 506L

Mobile Companion

Product Highlights

ROUTER SETUP

WI-FI HOTSPOT MODE

REPEATER MODE

ACCESS POINT MODE

3G - 4G MODE

SHAREPORT ACCESS

Share any Internet connection

wirelessly

Share your 3G/4G dongle internet

connection wirelessly.

Stream Media to All of your Devices.

Repeat your existing wireless network.

True Portability

ROUTER SETUP

From your laptop, go to wireless utility to

display available wireless networks and

select the Wi-Fi name of device to

connect. (By default Wi-Fi name is

dlink_DIR-506L ) In default settings there

is no password for the wireless.

Once you are connected to Device

through Wi-Fi, Open your web browser,

and type http://192.168.0.1 in the

address bar to begin the Setup Wizard.

Follow the on-screen instruction to

complete the setup

Click Next to continue.4.

Choose the operation mode in which

you want to conﬁgure the router.

We will show you Router Mode

conﬁguration.

ROUTER SETUP

Select the type of connection which your

ISP has given you. Most cable modem

connections use DHCP and most DSL

modem connections use PPPoE.

Once you put the required information

click Next and it will take you to

wireless settings.

Note: If you are not sure which connection

type you use or what settings to enter,

contact your Internet service provider.

You can change the wireless network

name (SSID) as per your choice.

To protect your wireless network from

unauthorized access, enable the wireless

security and assign the wireless password

for your network and click Next.

It will show you the Setup Summary, click

on the Save button to save your

conﬁguration. Router will reboot to

activate the new settings and you will be

disconnected form the router. After

Reboot, use the new settings you created

to reconnect to the Router.

ROUTER SETUP

Connect to the router wirelessly and

shown in step 1 and 2 in router

conﬁguration and follow the on-screen

instruction to complete the setup.

Click Next to continue.

Select the Wi-Fi Hotspot Mode and

click Next.

It will show you the available wireless

networks, select the Wi-Fi hotspot to

connect to the internet with and

press select.

Put the Wi-Fi password of the

network to which you are connecting

and click Next.

Now, conﬁgure your Wireless LAN settings,

you can change your wireless network

name (SSID) and can secure your wireless

network by enabling the wireless security

and assigning password for your wireless.

Click Next once settings are over.

Next screen It will show you the Setup

Summary, click on the Save button to save

your conﬁguration. Router will reboot to

activate the new settings and you will be

disconnected form the router. After

Reboot, use the new settings you created

to reconnect to the Router.

WI-FI HOTSPOT MODE

Connect to the router wirelessly and login

into it from web browser as already shown

in step 1 and 2 in router conguration and

follow the on-screen instruction to

complete the setup.

Select Repeater mode and click Next.

Click Next to continue.

It will show you the available wireless

networks in your environment. Select the

wireless network which you want to

connect and click Select.

Put the Wi-Fi password of the network to

which you are connecting and click Next.

REPEATER MODE

Now, conﬁgure your Wireless LAN settings,

you can change your wireless network

name (SSID) and can secure your wireless

network by enabling the wireless security

and assigning password for your wireless.

Click Next once settings are over.

Next screen It will show you the Setup

Summary, click on the Save button to save

your conﬁguration. Router will reboot to

activate the new settings and you will be

disconnected form the router. After

Reboot, use the new settings you created

to reconnect to the Router.

REPEATER MODE

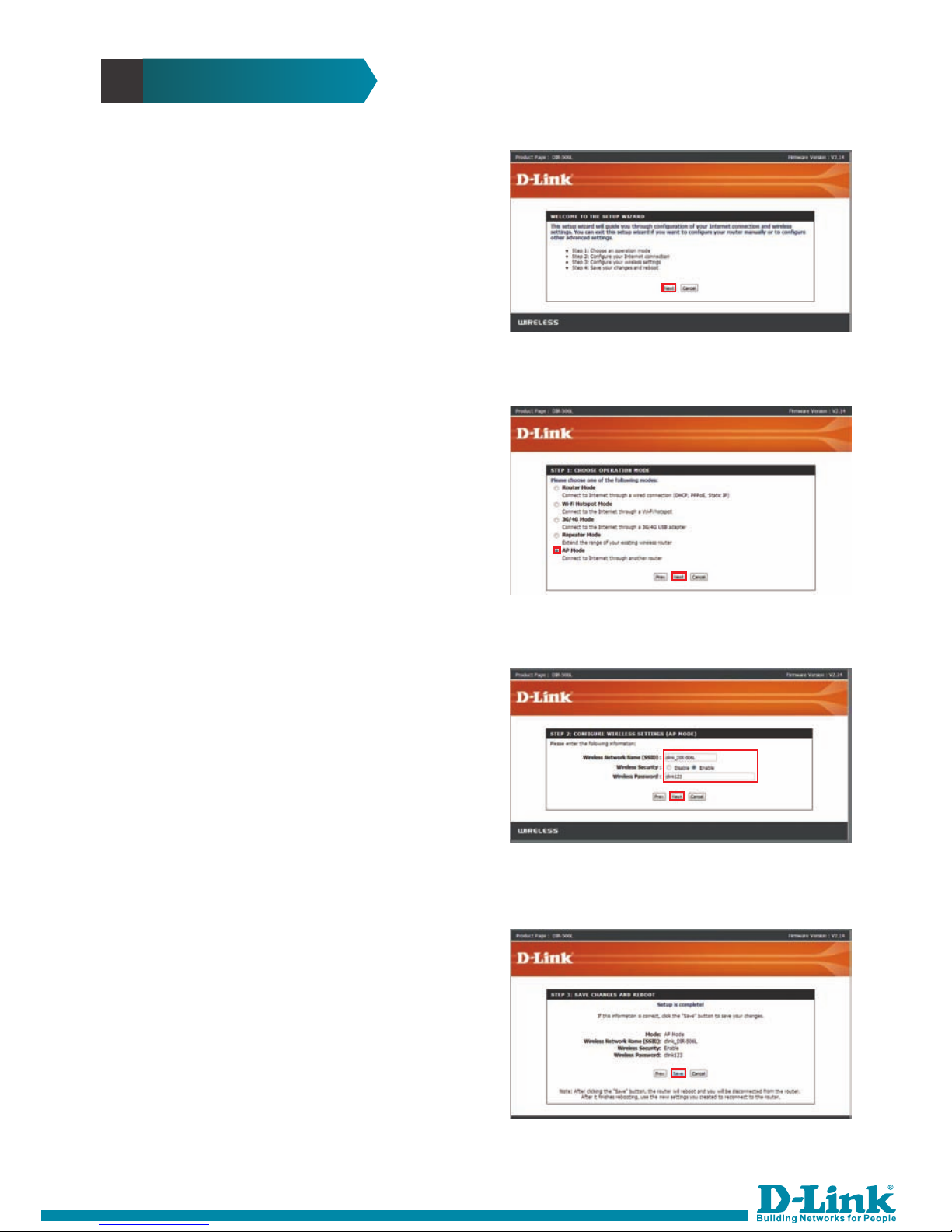

Connect to the router wirelessly and

shown in step 1 and 2 in router

conguration and follow the on-screen

instruction to complete the setup.

Click Next to continue.

Select AP Mode and click Next to continue.2.

Next screen It will show you the Setup

Summary, click on the Save button to save

your conﬁguration. Router will reboot to

activate the new settings and you will be

disconnected form the router. After

Reboot, use the new settings you created

to reconnect to the Router.

Now on next screen conﬁgure your

wireless settings. You can change the

wireless network name (SSID) as per your

choice, also you can secure your wireless

network from unauthorised access by

enabling the wireless security and by

assigning the wireless password. Once

conﬁguration is done click on Next button.

ACCESS POINT MODE
