D-Link DI-634M Manual de usuario
1
5VDC Power Adapter
©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-634M (08/18/2005) Version 2.0
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-634M 108G MIMO Wireless Router. The DI-634M acts as a DHCP server and
will assign all the necessary IP address information on your network. See Appendix
at the end of this Quick Installation Guide or the Manual on the CD-ROM for
setting each network adapter to automatically obtain an IP address.

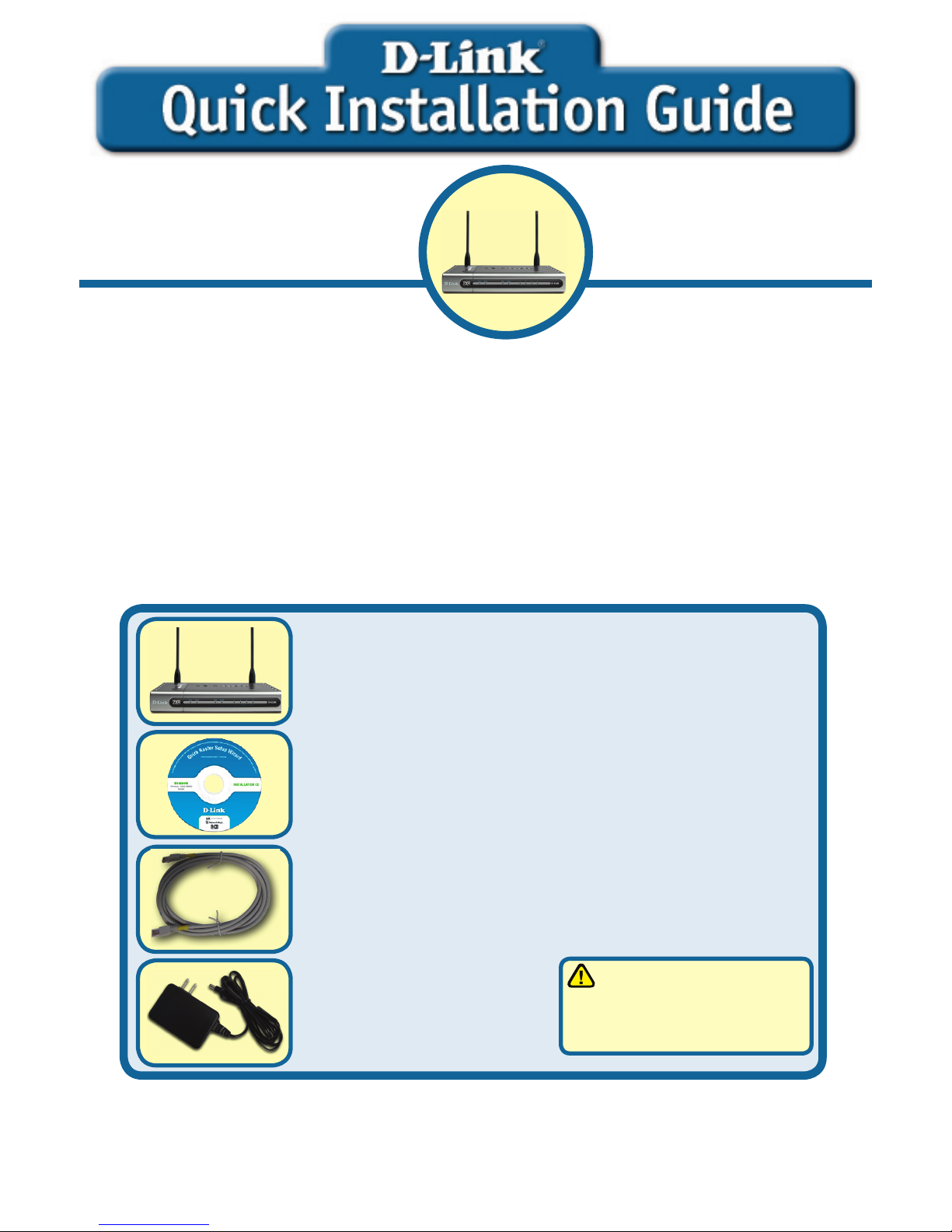

Check Your Package Contents
DI-634M 108G MIMO Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
Using a power supply with
a different voltage rating will
damage and void the warranty of
this product.
If any of the above items are missing, please contact your reseller.
This product can be set up using
any current java-enabled web
browser, i.e., Internet Explorer
or Netscape Navigator.
DI-634M
108G MIMO
Wireless Router
2
Connecting The DI-634M Wireless
Router To Your Network
A.
First, connect the power adapter to the receptor at the back panel of the
DI-634M and then plug the other end of the power adapter to a wall outlet or power
strip. The Power LED will turn ON to indicate proper operation.
B. 1. Power off your Cable or DSL modem; some devices may not have a on/off
switch and will require you to unplug the power adapter. Now, the DI-634M should
be powered on and the Cable / DSL modem should be turned off.
2. Cable / DSL modem (Power Off) – DI-634M (Power On)
Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem.
After the Ethernet cable is securely connected, power on the Cable / DSL modem
by turning on the unit or plugging in the power adapter.
3. Cable / DSL modem (Power On) – DI-634M (Power On)
Insert the other end of the Ethernet cable to the WAN PORT on the back panel of
the DI-634M. The WAN LED light will illuminate to indicate proper connection. If the
WAN LED is not illuminated, please go back to step B1 and repeat the instructions.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-634M and
an available Ethernet port on the network adapter in the computer you will use
to configure the DI-634M. The LED light for LAN Port 1 will illuminate to indicate
proper connection. (Note: The LAN Ports on the DI-634M are Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover Ethernet cable to the LAN
Ports.)
D. Computers equipped with 802.11g wireless adapters will be able to connect to the
DI-634M. The DWL-G650M 108G MIMO Wireless Cardbus Adapter and the
DWL-G520 AirPlus Xtreme G Wireless PCI Adapter will be able to connect out of
the box with the router using their default wireless settings.

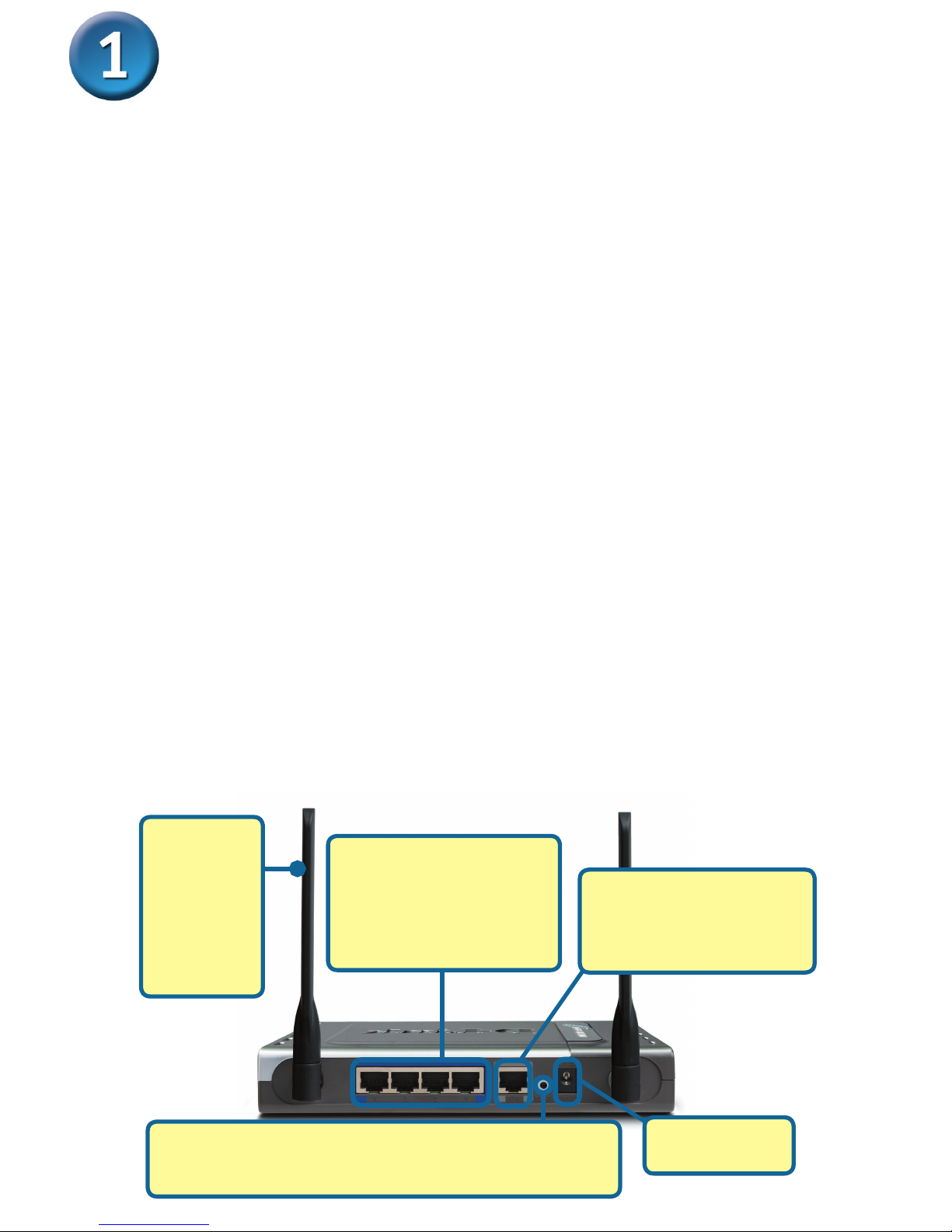

B. WAN PORT
This is for the connection
of an Ethernet cable to the
Cable or DSL modem
D. Antennas
Used to
wirelessly
connect to
802.11g or
802.11b
adapters.
C. LAN PORTS
These are the
connections for Ethernet
cables to Ethernet
enabled computers.
A. Receptor for
Power Adapter.
Reset Button
Pressing this button restores the Router to its original
factory default settings.
3
Restart Your Computer
Connecting Additional Computers
To The DI-634M
When you have completed the steps in this Quick Installation Guide, your connected
network should look similar to this:
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers
to the remaining Ethernet LAN ports on the back panel of the DI-634M.

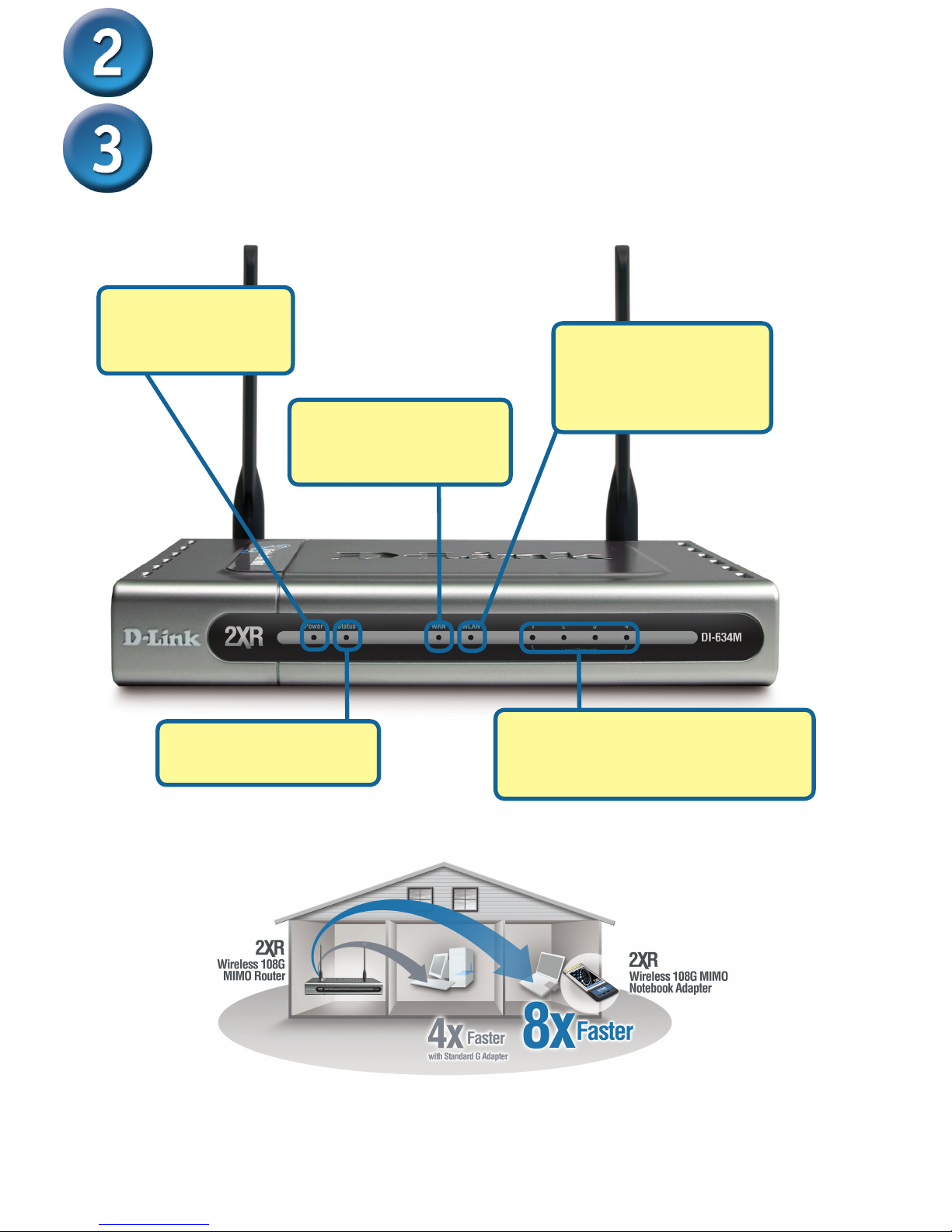

LOCAL NETWORK LEDs – a solid light
on the port indicates a connection to an
Ethernet enabled computer on ports 1-4.
This LED blinks during data transmission.
Power LED – a solid
light indicates a proper
connection to the power
supply.
WLAN LED – a solid light
indicates that the wireless
segment is ready. This LED
blinks during wireless data
transmission.
Status LED – a blinking light
indicates that the DI-624 is
functioning properly.
WAN LED – a solid light
indicates connection on the
WAN port. This LED blinks
during data transmission.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput
will vary. Network conditions and environmental factors, including volume of network traffic, building materials
and construction, and network overhead lower actual data throughput rate.
4
Once you have logged in, the
Home screen will appear.
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Select admin from the user
name drop-down menu
and leave the password
field blank. Click Log in to
continue.
Click Run Wizard
5
The Setup Wizard (continued)
You will see the following screens
Set up your new password.
You have the option to establish
a password.
Click Next
Click Next
Choose your time zone from
the drop-down menu.
Click Next
6
If you selected Dynamic IP Address, this
screen will appear:
Click the “Clone MAC Address” button
to automatically copy the MAC address
of the network adapter in your computer.
You can also manually type in the MAC
address.
The Setup Wizard (continued)
Select your Internet Connection. You will
be prompted to select the type of Internet
connection for your router.
If you are unsure of which setting
to select, please contact your Internet
Service Provider.
Click Next
Click Next
If your ISP requires a Static IP Address,
and this option is selected, then this screen
will appear:
Enter the IP address information originally
provided to you by your ISP. You will need
to complete all the required fields.
Click Next
Please continue to Wireless Setup on page 8.
Please continue to Wireless Setup on page 8.
7
The Setup Wizard (continued)

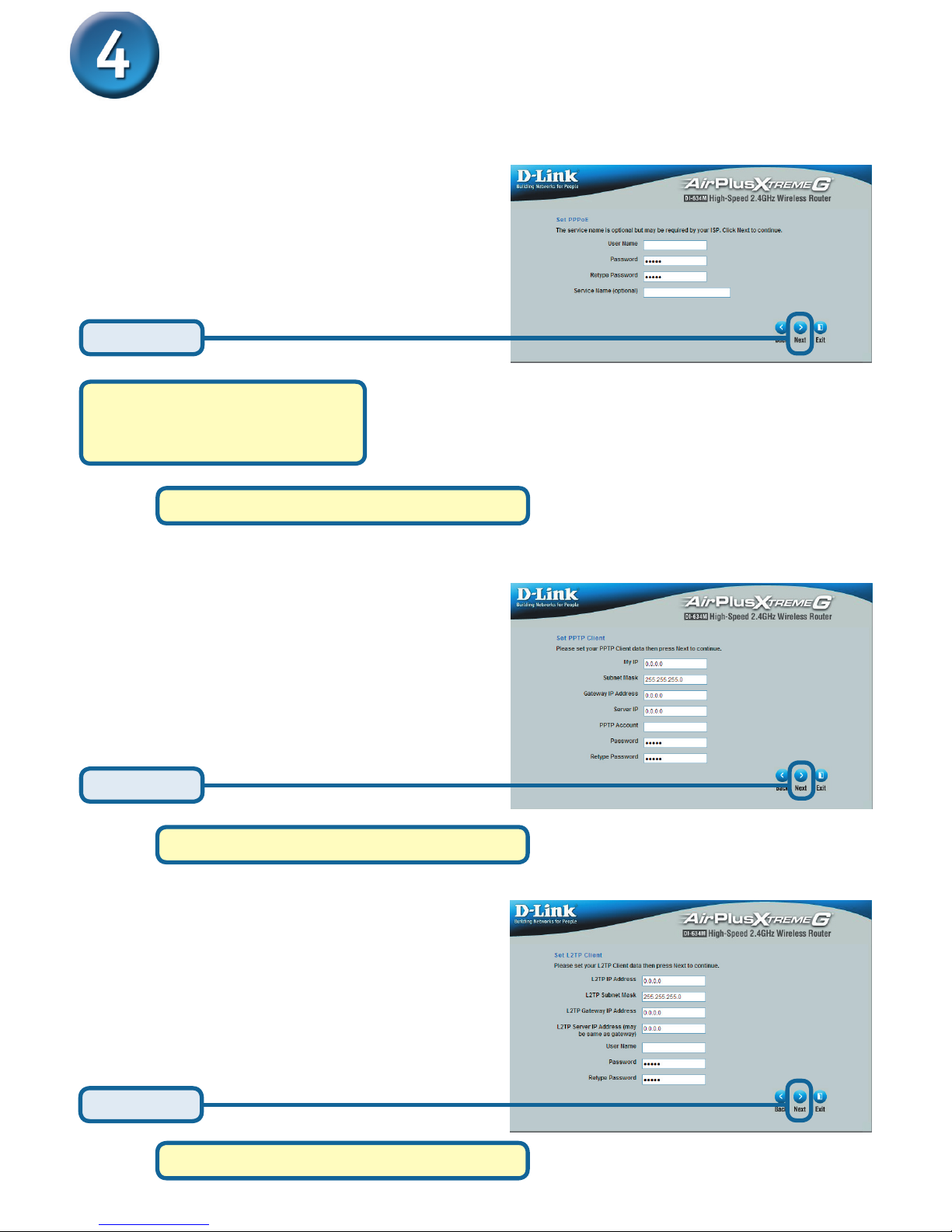

If your ISP uses PPPoE (Point-to-Point
Protocol over Ethernet), and this option is
selected, then this screen will appear:
Enter in the username and password
provided to you by your ISP.
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Please continue to Wireless Setup on page 8.
Click Next
If your ISP uses PPTP, and this option is
selected, then this screen will appear:
Enter the account information provided to
you by your ISP. You will need to complete
all the required fields.
Click Next
If your ISP uses L2TP, and this option is
selected, then this screen will appear:
Enter the account information provided to
you by your ISP. You will need to complete
all the required fields.
Click Next
Please continue to Wireless Setup on page 8.
Please continue to Wireless Setup on page 8.
8
If you wish to use encryption for
your 802.11g network, the DI-634M
offers WEP and WPA security. By
default the encryption is disabled.
You can change the encryption
settings for more secure wireless
communication.
The Setup Wizard (continued)
Enter the SSID and select a channel
from the drop-down menu.
Wireless Setup
If your ISP uses Big Pond, and this option is
selected, then this screen will appear:
Enter the account information provided to
you by your ISP. You will need to complete
all the required fields.
Click Next
Click Next
Click Next
9
Your Setup is Complete!
Click Restart
The Setup Wizard (continued)
If you wish to use WEP, select the
encryption level (64 or 128-bit) and
enter your WEP key. The key must
be the same on all your of wireless
clients.
Click Next
If you wish to use WPA-PSK, enter
your passphrase (between 8 - 63
characters). This passphrase must
be the same on all of your wireless
clients.
Click Next
10

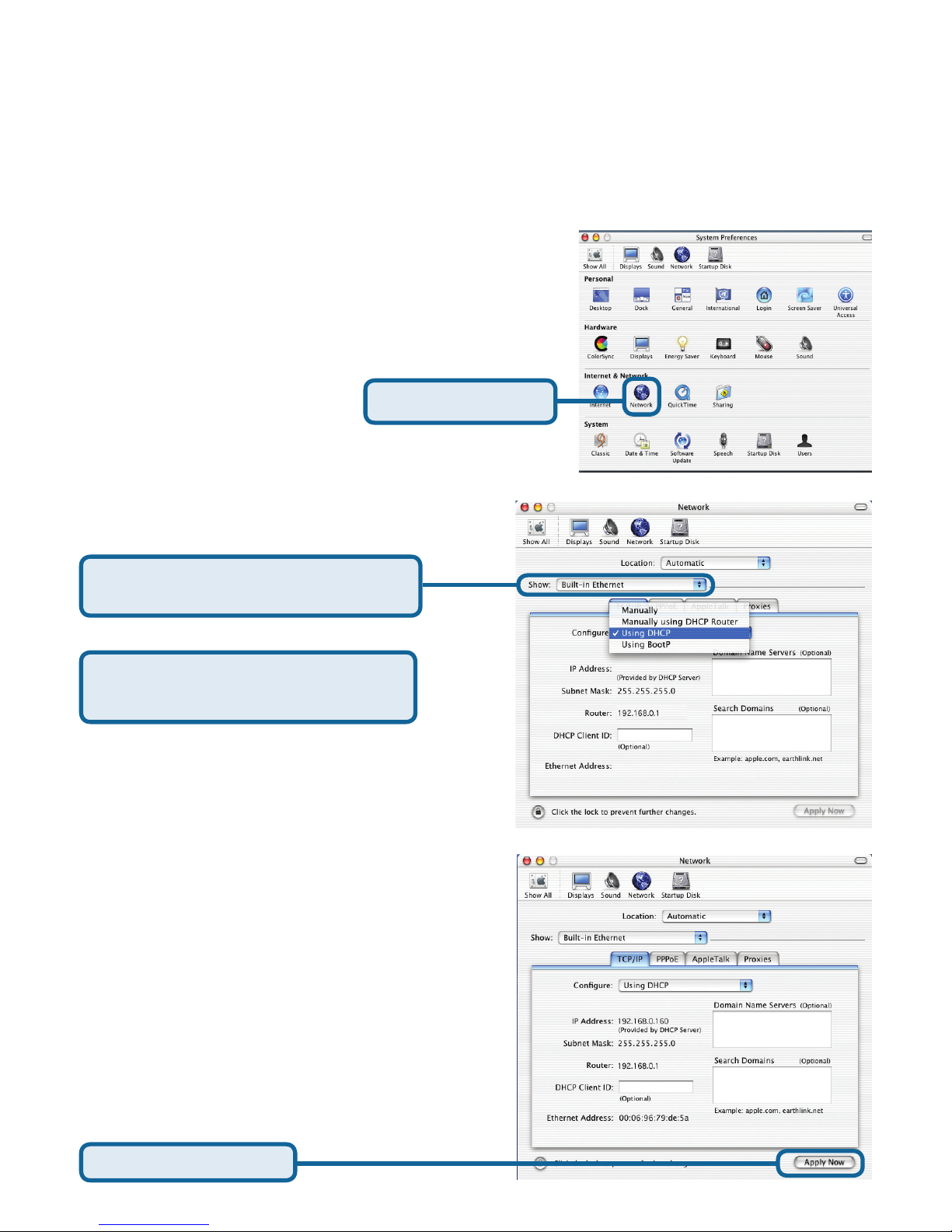

For Apple Macintosh OS X:
The IP address information, the Subnet
Mask, the Router’s IP address and the
Ethernet adapter address will appear
Select Built-in Ethernet in the
Show pull down menu
Click on Network
Click on Apply Now
Select Using DHCP in the
Configure pull down menu
To connect to the network, make sure the network adapter in your computer is configured
properly. Here’s how to configure the network adapter to obtain an IP address automatically
for the DI-634M Wireless Broadband Router.
APPENDIX
Go to the Apple Menu Click on System
Preferences and Select Network
