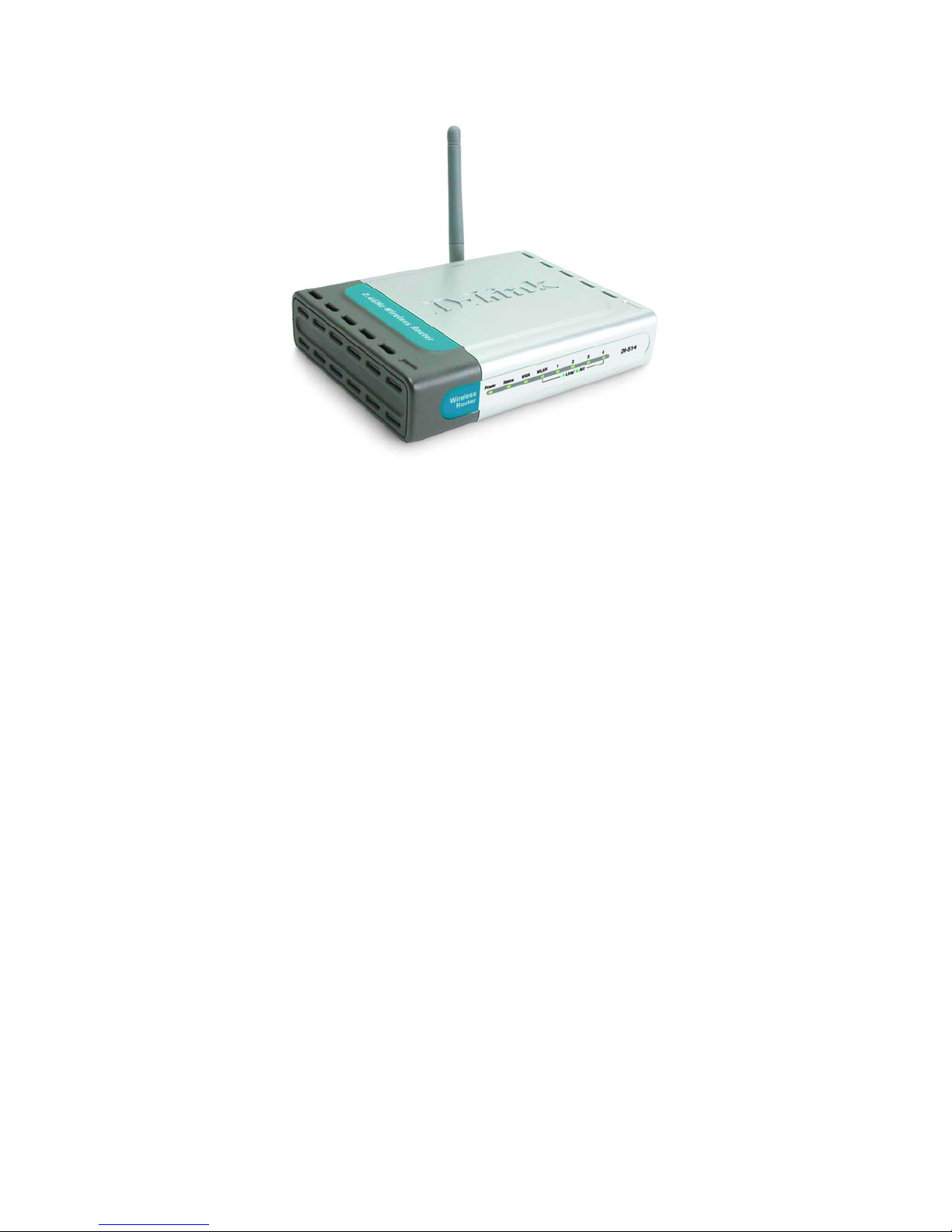

D-Link Air DI-514

2.4GHz Wireless Router

Manual

Building Networks for People

Contents

1. Package Contents ....................................................... 3

2. Introduction.................................................................. 4

3. Wireless Basics ........................................................... 8

4. Getting Started............................................................11

5. Using the Configuration Menu................................... 13

6. Troubleshooting......................................................... 35

7. Networking Basics..................................................... 40

8. Technical Specifications............................................. 55

9. Technical Support.......................................................... 57

10. Warranty...................................................................... 58

11. Registration................................................................. 62

1. Package Contents

Contents of Package:

• D-Link Air DI-514 2.4GHz Wireless Router

• Power Adapter – 5V DC, 2.5A

• Manual on CD

• Printed Quick Installation Guide

Note: Using a power supply with a different voltage rating than the one included with

the DI-514 will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

System Requirements for Configuration:

• Computer with a Windows, Macintosh, or Linux-based operating

system with an installed Ethernet adapter

• Internet Explorer Version 6.0 or Netscape Navigator version 6.0

and above, with JavaScript enabled

2. Introduction

The D-Link Air DI-514 Wireless Router is an 802.11b*wireless router with

the added benefits of myriad robust firewall features. It is ideal for those

creating their first wireless network, as well as for more advanced users

looking for additional management settings and policy-based content filtering.

Filters can be set based on MAC address, IP address, URL and/or Domain

Name.

A simple, yet intelligent, web-based setup wizard makes the DI-514 easy for

any user to quickly and securely connect computers to share a high-speed

Internet connection, files, resources, games or just to communicate. An

integrated 4-port switch allows direct connection of up to four computers.

Several wireless clients can also securely connect to the network using 64 or

128-bit WEP encryption.

Additional advanced features include pass-through of multiple concurrent

IPSec and PPTP VPN sessions for telecommuters or for anyone who needs

to transmit sensitive information more securely.

The D-Link Air DI-514 is the ideal networking solution for small offices, home

offices, schools, coffee shops and other small businesses that cater to the

public.

This manual provides a quick introduction to wireless technology and its

application as it relates to networking. Please take a moment to read through

this manual if you need to get acquainted with wireless technology.

*Maximum Wireless signal rate based on IEEE Standard 802.11b specifications. Actual data throughput

will vary. Network conditions and environmental factors, including volume of traffic, building materials and

construction, and network overhead lower actual data throughput rate.

Connections

Pressing the Reset

Button restores the

router to its original

factory default settings.

Auto MDI/MDIX

LAN ports

automatically sense

the cable type when

connecting to

Ethernet-enabled

com

uters.

The Auto MDI/MDIX

WAN port is the

connection for the

Ethernet cable to the

Cable or DSL modem. Receptor for the

Power Adapter.

Features and Benefits

• Built in 4-Port Switch - Connects multiple Ethernet-enabled

(Ethernet network adapters installed) computers and devices to a

Broadband (Cable or DSL) modem to share the Internet connection

• Wireless Connection – Computers and devices with 802.11b*

compliant wireless network adapters installed can connect with the

DI-514

• Advanced Firewall and Parental Control features, accessed

through the simple and comprehensive Web-based user interface,

include:

• Content Filtering – Easily applied content filtering based on

MAC Address, IP Address, URL and/or Domain Name

• Filter Scheduling - Content filters can also be scheduled to

be active on certain days or for a duration of hours or minutes

• Network Address Translation – NAT allows you to share a

single IP address and protects you from outside intruders

gaining access to your private network

• Multiple Concurrent VPN Sessions – Supports multiple and

concurrent IPSEC and PPTP sessions, so multiple users

behind the DI-514 can access corporate networks through

various VPN clients more securely

• Simple Setup Wizard for Easy Installation – The D-Link setup

wizard simplifies the installation process, getting you up and running

in just a few clicks

*Maximum Wireless signal rate based on IEEE Standard 802.11b specifications. Actual data throughput

will vary. Network conditions and environmental factors, including volume of traffic, building materials and

construction, and network overhead lower actual data throughput rate.

LEDS

WLAN LED -

solid light indicates

connection to

wireless clients.

POWER LED -

solid light indicates

a proper connection

to the power supply.

LAN LED -

A solid light

indicates a

connection to an

Ethernet-enabled

computer on ports

1-4. This LED blinks

during data

transmission.

STATUS LED -

Blinks constantly

to indicate device

is functioning

properly.

WAN LED -

A solid light indicates

connection on the

WAN port. This LED

blinks during data

transmission.

3. Wireless Basics

D-Link Air wireless products are based on industry standards to provide

easy-to-use and compatible high-speed wireless connectivity within your

home, business or public access wireless networks. D-Link wireless

products will allow you access to the data you want, when and where you

want it. You will be able to enjoy the freedom that wireless networking brings.

A WLAN (wireless local area network) is a cellular computer network that

transmits and receives data with radio signals instead of wires. WLANs are

used increasingly in both home and office environments, and public areas

such as airports, coffee shops and universities. Innovative ways to utilize

WLAN technology are helping people to work and communicate more

efficiently. Increased mobility and the absence of cabling and other fixed

infrastructure have proven to be beneficial for many users.

Wireless users can use the same applications they use on a wired network.

Wireless adapter cards used on laptop and desktop systems support the

same protocols as Ethernet adapter cards.

People use WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any

location within the operating range of the WLAN. Management decisions

based on real-time information can significantly improve worker efficiency.

Low Implementation Costs – WLANs are easy to set up, manage, change

and relocate. Networks that frequently change, both physically and logically,

can benefit from WLANs ease of implementation. WLANs can operate in

locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be

fast and easy and can eliminate the need to pull cable through walls and

ceilings. Wireless technology allows the network to go where wires cannot –

even outside the home or office.

Wireless Basics

Inexpensive Solution - Wireless network devices are as competitively

priced as conventional Ethernet network devices.

Scalability –WLANs can be configured in a variety of ways to meet the

needs of specific applications and installations. Configurations are easily

changed and range from peer-to-peer networks suitable for a small number

of users to larger infrastructure networks to accommodate hundreds or

thousands of users, depending on the number of wireless devices deployed.

The DI-514 is compatible with the following wireless products (the maximum

data transfer speed for the DI-514 is 11mbps):

 D-Link Air DWL-650, D-Link AirPlus™ DWL-650+,

D-Link AirPlus Xtreme™ G DWL-G650

Wireless Cardbus Adapters used with laptop computers

 D-Link Air DWL-520, D-Link AirPlus DWL-520+, D-Link

AirPlus Xtreme G DWL-G520

Wireless PCI cards used with desktop computers

 D-Link Air DWL 700AP, DWL-AirPlus DWL-900AP+,

DWL-2000AP+

Enhanced 2.4GHz Wireless Access Points

 D-Link AirPlus DWL-800AP+

Enhanced 2.4GHz Wireless Range Extender

 D-Link AirPlus DWL-810+

Enhanced 2.4GHz Ethernet-to-Wireless Bridge

Standards - Based Technology

The IEEE standard-based technology assures that the D-Link Air Products

are interoperable with existing compatible 2.4GHz wireless technology. This

means you will be able to transfer large files quickly or even watch a movie

in MPEG format over your network without noticeable delays.

The technology works by using multiple frequencies in the 2.4GHz range at

speeds up to 11 Mbps. D-Link Air products will automatically sense the best

possible connection speed to ensure the greatest speed and range possible

with the technology.

Installation Considerations

D-Link Air DI-514 lets you access your network, using a wireless connection,

from virtually anywhere within its operating range. Keep in mind, however,

that the number, thickness and location of walls, ceilings or other objects that

the wireless signals must pass thru may limit the range. Typical ranges vary

depending on the types of materials and background RF (radio frequency)

noise in your home or business. The key to maximizing wireless range is to

follow these basic guidelines:

1. Keep the number of walls and ceilings between the DI-514 and your

receiving device (e.g., the DWL-650) to a minimum - each wall or ceiling

can reduce your D-Link Air Wireless product’s range from 3 to 90 feet (1

to 30 meters.) Position your receiving devices so that the number of

walls or ceilings is minimized.

2. Be aware of the direct line between routers and computers. A wall that is

1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3

feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)

thick! Position devices so that the signal will travel straight through a wall

or ceiling (instead of at an angle) for better reception.

3. Building Materials can impede the wireless signal - a solid metal door or

aluminum studs may have a negative effect on range. Try to position

wireless devices and computers with wireless adapters so that the signal

passes through drywall or open doorways whenever possible.

4. Keep your product away (at least 3 to 6 feet or 1 to 2 meters) from

electrical devices or appliances that generate RF noise.

Otros manuales para DI-514 - Wireless Router

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de D-Link

D-Link

D-Link AirPremier DWL-1750 Manual de usuario

D-Link

D-Link DSR-150N Manual de usuario

D-Link

D-Link DSL-2740B Manual de usuario

D-Link

D-Link DSR-150N Manual de usuario

D-Link

D-Link DWR-932 Manual de usuario

D-Link

D-Link DWM-315 Manual de usuario

D-Link

D-Link DIR-890L Manual de usuario

D-Link

D-Link DIR-806A Manual de usuario

D-Link

D-Link DIR-868L Manual de instalación y operación

D-Link

D-Link DIR-810L Manual de usuario

D-Link

D-Link AirPlus DWL-G730AP Manual de usuario

D-Link

D-Link DGL-4500 - GamerLounge Xtreme N Gaming Router... Manual de usuario

D-Link

D-Link DSR-500AC Manual de usuario

D-Link

D-Link DIR-655 - Xtreme N Gigabit Router Wireless Manual de usuario

D-Link

D-Link DI-634M Manual de usuario

D-Link

D-Link DIR-850L Manual de usuario

D-Link

D-Link DVG-G1402S - Wireless Broadband VoIP Router Manual de usuario

D-Link

D-Link DI-711 - Gateway Manual de usuario

D-Link

D-Link DWR-925 Manual de usuario

D-Link

D-Link DIR-815 Manual de usuario

D-Link

D-Link DIR-640L Manual de usuario

D-Link

D-Link Ethernet Broadband Router DIR-100 Manual de usuario

D-Link

D-Link DIR-L1900 Manual de usuario

D-Link

D-Link SharePort DIR-825 Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario
