Before You Begin

1. If you purchased this Router to share your high-speed Internet connection with other

computers, you must have an established Internet account from an Internet Service

Provider (ISP).

DSL-G624T

Wireless ADSL Route

This product can be set up using any current

web browser, i.e., Internet Explorer 6x o

Netscape Navigator 7x.

2. It’s best to use the same computer that is connected to your router for configuring the

DSL-G624T Wireless ADSL Router. The DSL-G624T acts as a DHCP server and will

assign all the necessary IP address information on your network. See below in this Quick

Installation Guide or the Manual on the CD-ROM for setting each network adapter to

automatically obtain an IP address.

Check Your Package Contents

Using a power adapter with a

different voltage rating will

damage and void the

warranty for this product.

If any of the above items is missing, please contact your reseller.

Software and specifications subject to change without notice.

Connecting the Router to Your Computer

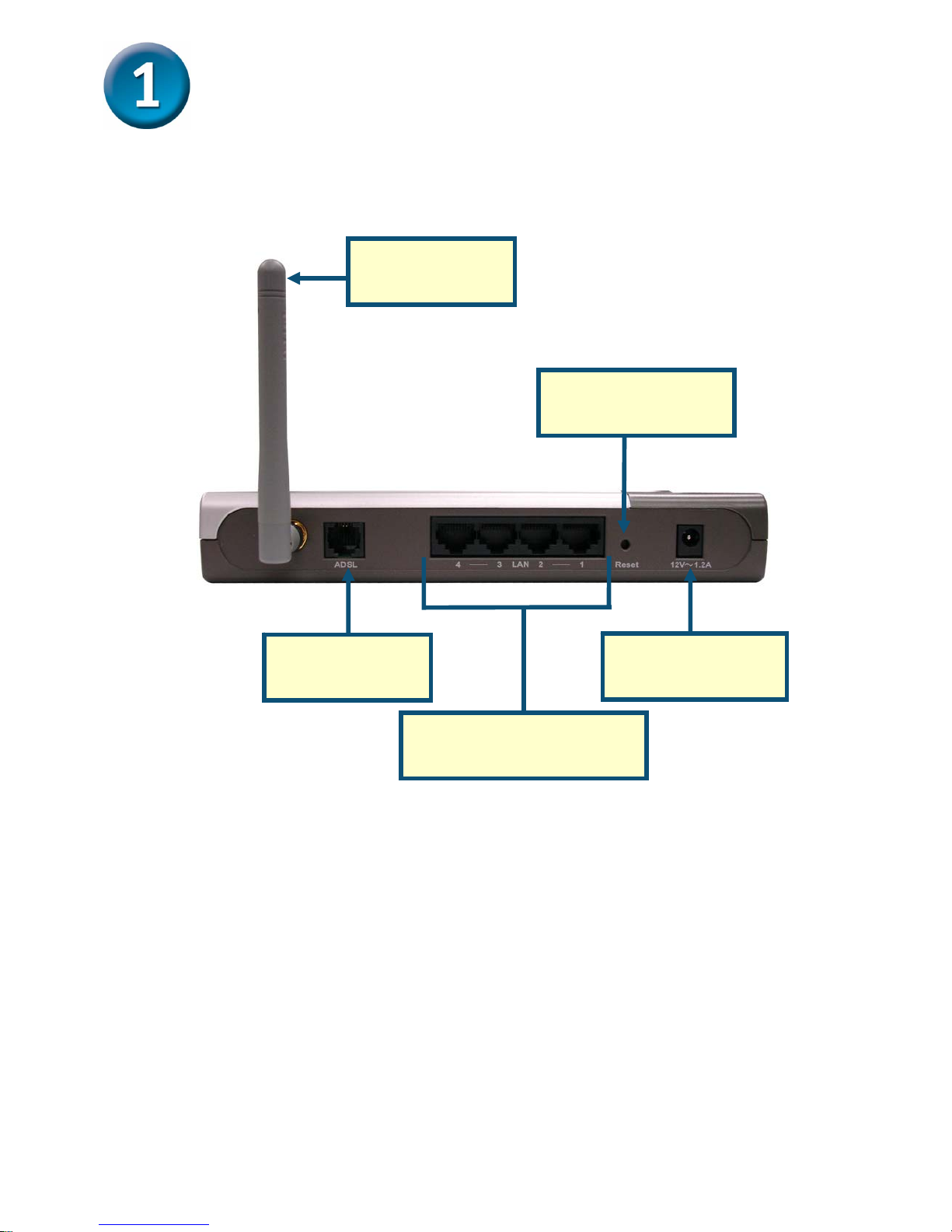

For good wireless reception

Antenna

Connects to your PC on the Ethernet LAN

Reset Button

Connect ADSL line here

ADSL Port

Push to return to default settings

LAN Ports

Power Input

Connect to AC power adapter

A. First, connect the power adapter to the power input at the back panel of the DSL-G624T, then plug the other

end of the power adapter to a wall outlet or power strip. On the front of the device, the Power LED will turn

ON to indicate proper operation.

B. Insert one end of the Ethernet cable into an Ethernet (LAN) port on the back panel of the DSL-G624T and

the other end of the cable to an EthernetAdapter or available Ethernet port on your computer.

C. Insert the ADSL (telephone) cable included with the Router into the ADSL port, then connect the cable to

your telephone line.

Configuring the Router

You can select two methods to configure your new router. The first method is by using D-Link

Click’n Connect Utility, which is included on the CD designed to run on Windows XP/2000. Just

follow the instructions step by step to configure your router for Internet access for the first time.

The second method is to use your Web browser to access the built in web server pages used to

setup the Router, your computer must be configured to “Obtain an IP address automatically”, that

is, you must change the IP network settings of your computer so that it is a DHCP Client. If you

are using Windows XP and do not know how to change your network settings, skip ahead to

Appendix and read the instructions provided. You may also read the User Manual for instructions

on changing IP settings for computers running Windows operating systems.

To connect to the network, make sure the network adapter in your computer is configured properly.

Read the Appendix at the end of this guide to read how to configure the network adapter to obtain

an IP address automatically using Windows XP.

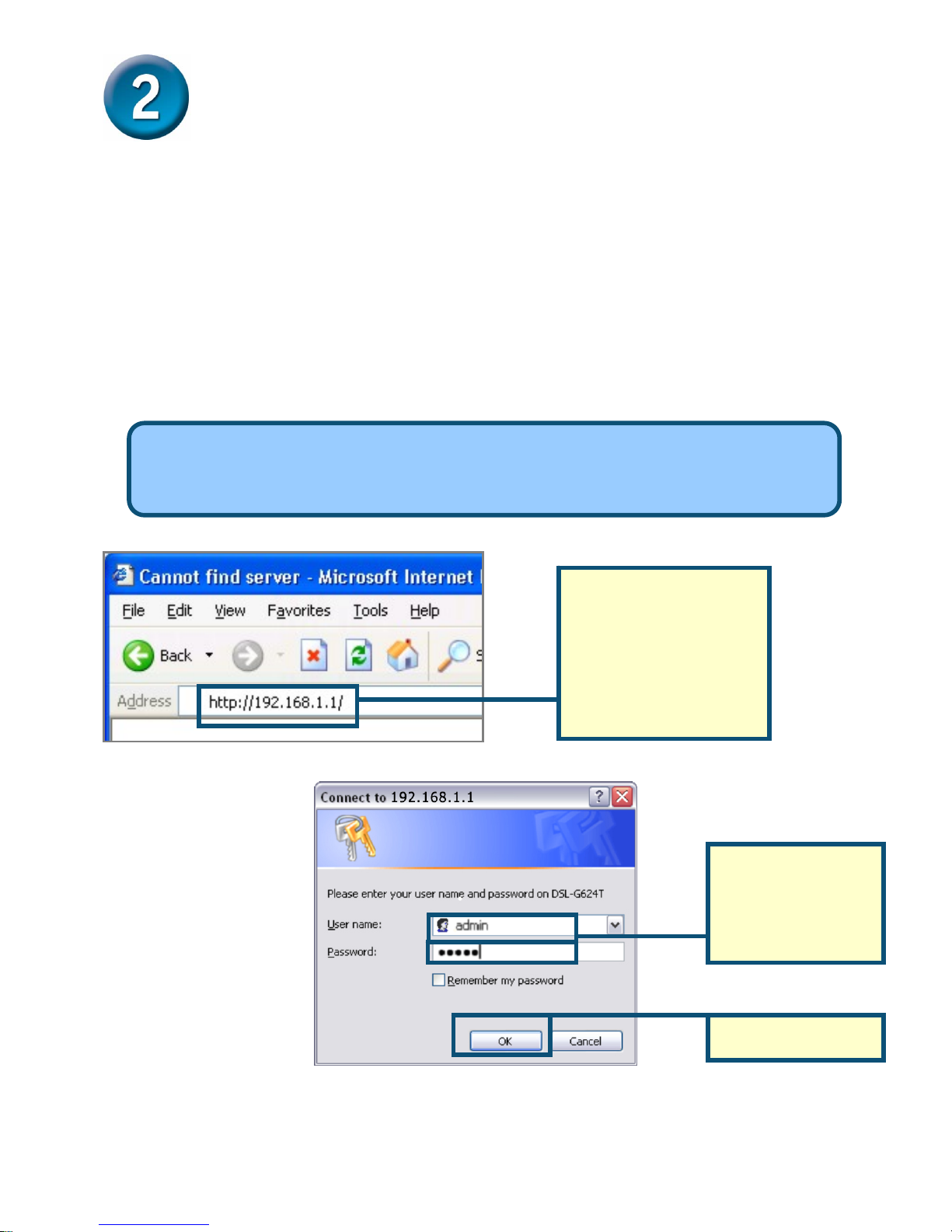

Thelogin prompt appears.

Open your Web browser

and type

“http://192.168.1.1” into the

URL address box. Thenpress

theEnter or Return key.

Type “admin” for the

User Name and

“admin” in the

Password field.

Click OK

Configuring the Router (continued)

Once you have logged in, the Home directory tab is prominent with the Setup Wizard menu

displayed. Most users will be able to use the Setup Wizard to establish the ADSL connection to

your ADSL Internet Service Provider (ISP). To begin using the Setup Wizard, click on the Run

Wizard button in the middle of the web page. A pop-up menu will appear. This pop-up menu is

the Setup Wizard. The Setup Wizard procedure consists of three general steps:

1. Choose your time zone

Please see the user manual for information on

setting up wireless operation.

2. Set Internet connection

3. Save & Restart

Click Run Wizard

Configuring the Router (continued)

The first Setup Wizard menu lists a summary of the steps required to complete the setup. Click

the Next button to begin setup.

Click Next

Now configure the Time Zone used for the Router’s system clock. Select the appropriate time

zone setting for your location.

Click Next

Select the Time

Zone in which you

are located.

Configuring the Router (continued)

Next you will Select the Internet Connection Type for the WAN interface. Your ISP has given

this information to you. If you do not know what type of connection to use, exit the Setup Wizard

and contact your ISP for the information. The Setup wizard menu that appears when you click

the Next button depends on what connection type you select. The connection types available in

the Setup Wizard menu are PPPoE/PPPoA, Dynamic IP Address, Static IP Address and Bridge

Mode. Follow the instructions below for the type of connection you are using.

Click Next

Select the

Connection Type

used for your

ADSL service.

Configuring the Router (continued)

PPPoE/PPPoA Connections

If you selected the PPPoE/PPPoA connection type in the previous menu, you will see the Setup

Wizard menu pictured here. Type in the Username and Password used to identify and verify

your account to the ISP. If you have been instructed to change the VPI number and VCI number,

type in the new values. Select the Connection Type used for encapsulation specific to your

service. Click Next when you are ready to continue the Setup Completed menu.

Type the Username

and Password for your

ISP account.

Click the Next button.

Skip ahead to the Set

Wireless LAN menu.

Select the Connection

Type used for your ADSL

service.

Change the VPI and VCI

numbers as instructed by

your ISP by Typing in the

new values.

The Set Wireless LAN Connection window is for the

wireless side of your router. Enter the WLAN name for

your network in the SSID field and choose the wireless

channel to be used for your WLAN from the Channel pull

down menu.

Click the Next button.

Skip ahead to the Setup

Completed menu.

Configuring the Router (continued)

Dynamic IP Address Connections

If you selected the Dynamic IP Address connection type, select the Connection Type used for

encapsulation. If you have been instructed to change the VPI number and VCI number, type in

the new values. Click Next when you are ready to continue the Setup Completed menu.

Change the VPI and VCI

numbers as instructed by

your ISP by Typing in the

new values.

Select the Connection

Type used for your ADSL

service.

The “Clone MAC

Address” button will

automatically copy the

MAC address of the

network adapter in your

computer. You can also

manually type in the MAC

address.

What is a MAC address? Each network adapter

has a discrete Media Access Control (MAC)

address. Note that some computers and

peripherals may already include built-in network

adapters.

Click the Next button.

Skip ahead to the Setup

Completed menu.

Some ISP’s store the MAC address of your computer’s Ethernet address on their DHCP

server. This can cause problems for the Router and other computers connecting

through the Router. To use the MAC address from your computer, type the MAC address

of your computer’s Ethernet adapter in the Cloned MAC Address entry field and click the

Clone MAC Address button to save to transfer it to the Router.

Configuring the Router (continued)

Static IP Address Connections

If you selected the Static IP Address connection type, change the WAN IP Address, Subnet

Mask, ISP Gateway Address and (if available) Secondary DNS Server IP address as

instructed by your ISP. Select the Connection Type used for encapsulation. If you have been

instructed to change the VPI number and VCI number, type in the new values. Click Next when

you are ready to continue the Setup Completed menu.

Change the VPI and VCI

numbers as instructed by

your ISP by Typing in the

new values.

Type the IP addresses for

the WAN IP Address,

WAN Subnet Mask, ISP

Gateway Address and

Primary/Secondary DNS

Server.

Select the Connection

Type as instructed by your

ISP.

Click the Next button.

Skip ahead to the Setup

Completed menu.

For some IPoA Static IP Address Connection Types, it may be necessary to enter an

IP address for an ARP server. Use the ARP Server Address entry field for IPoA

connections if necessary.

Configuring the Router (continued)

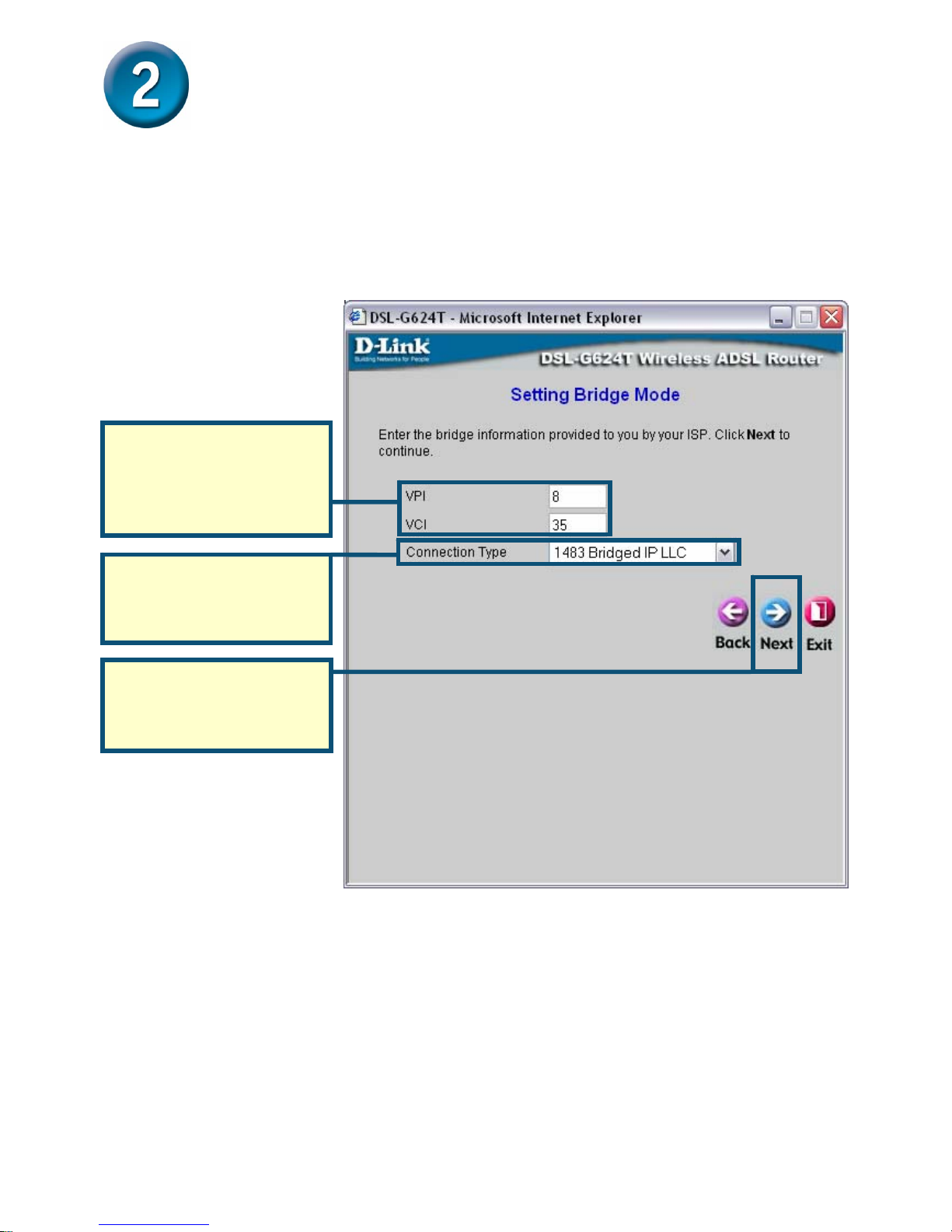

Bridge Connections

If you selected the Bridge connection type, select the Connection Type used for encapsulation.

If you have been instructed to change the VPI number and VCI number, type in the new values.

Click Next when you are ready to continue the Setup Completed menu.

Click the Next button.

Skip ahead to the Setup

Completed menu.

Click the Next button.

Skip ahead to the Setup

Completed menu.

Change the VPI and VCI

numbers as instructed by

your ISP by Typing in the

new values.

Select the Connection

Type as instructed by your

ISP.
