D-Link DCS-5615 Manual de usuario

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-6915

Quick Install Guide

High Speed Dome Network Camera

Краткое руководство по установке

Guía de Instalación Rápida

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

Documentation also available on

CD and via the D-Link Website

D-Link DCS-6915 Quick Install Guide

ENGLISH

DCS-6915

Quick Install Guide

1. Package Contents

° DCS-6915 Dome Network Camera

° Cap

° Software CD

° Waterproof Collar

° Lubricant

° Screws

° Power Cable

° Power Adapter

° Screwdriver

° Mini Pendant (Included Bugblocking sponge)

If any of the items are missing, please contact your re-

seller.

2. System Requirements

° CPU: Pentium 4 1.4GHz or above

° Hard Disk: 40GB or above

° Memory: 256MB or above

° Browser: Internet Explorer 6.0 or above

° Video Resolution: SVGA or XGA (1024x768 or above)

D-Link DCS-6915 Quick Install Guide 3

ENGLISH

Reset Button:The button can be used to reset the system or restore the factory default

settings. To reset, simply press and hold the button for 10 seconds.

Power Socket:This is 3 pin socket accepts the power cable.

RJ45 connector:Connect you category 5 ethernet cable to this port.

Mounting Point:This part of the cap is used to mount the dome camera enclosure.

Cap:This cap covers the Connection Panel.

Optical Cover:This clear dome protects the camera apparatus from.

Dome Camera

Mounting Point

Cap

Optical Cover

3. Hardware Overview

D-Link DCS-6915 Quick Install Guide

ENGLISH

Connections Panel

Ethernet (PoE)

Audio I/O Reset Button

Alarm I/O

Power Socket

Micro SD card slot

Alarm I/O:Support two digital alarm outputs and four digital alarm inputs.

Audio I/O:Support one audio input and one audio ouput.

Micro SD card slot:Support micro SD card storage.

3. Hardware Overview

D-Link DCS-6915 Quick Install Guide 5

ENGLISH

STEP 1

Unpack the DCS-6915 and remove the dome camera unit.

STEP 2

Remove the protective cover and PE sheet.

STEP 3

Apply some lubricant on the cover’s waterproof seal to make

the installation process smoother. Attach the optical cover to the

camera body.

The small protrusions on the cover must align with the four holes

on the camera body.

STEP 4

Gently press down the dome cover with two hands on the side of it.

Warning: DO NOT press down on the optical cover. This might

cause damage to the camera.

STEP 5

Screw the dome cover and body together.

4. Hardware Installation

D-Link DCS-6915 Quick Install Guide

ENGLISH

STEP 6

Insert the Power connector into the opening on the cap.

STEP 7

Connect the 3-pin connector to the slot on the camera enclosure. The

connector will lock into place.

STEP 8

Connect the power cable to the power adapter.

STEP 9

Connect one end of the CAT 5 Ethernet cable to the RJ-45 connector

of the camera enclosure, and the other end of the cable to your

network.

STEP 10

Insert the MicroSD card into the slot.

STEP 11

Plug the power cable into a wall outlet.

4. Hardware Installation

D-Link DCS-6915 Quick Install Guide 7

ENGLISH

Insert the DCS-6915 CD into the CD-ROM drive. If the CD Autorun function does not

automatically start on your computer, click Windows®Start > Run. In the Run command box

type “D:\autorun.exe”, where D: represents the drive letter of your CDROM. If it does start,

proceed to the next screen.

Click Setup Wizard

Click Next to continue.

Click Next

Click Yes to accept the License Agreement.

Click Yes

5. Software Installation

D-Link DCS-6915 Quick Install Guide

ENGLISH

Click Finish

Click Finish to complete the installation.

To start the installation click Next.

Note: The installation may take several

minutes to complete.

Click Next

5. Software Installation

D-Link DCS-6915 Quick Install Guide 9

ENGLISH

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.

The Setup Wizard will appear and show the MAC address of the DCS-6915 and

an IP Address (which may or may not be correct depending on what you have your

DCS-6915 connected to). If you have a DHCP server on your network, there will be a valid

IP Address displayed here.

Note: A DHCP server is a device that supplies IP addresses to your network devices

automatically.

00.ff.11.11.66.88 192.168.0.20 DCS-6915B1

Click the Wizard button

Your camera’s IP Address will be

displayed here along with its

corresponding MAC Address.

Select DHCP if you want to obtain a new IP

address every time the camera boots up, or

select static IP to use the same IP address

at each boot up.

Click Next

Enter the admin ID and password.

Note: The default Admin ID is admin with

the password left blank.

Click Next

6. Conguring Your Camera with the Installation Wizard

D-Link DCS-6915 Quick Install Guide

ENGLISH

This section shows your camera’s live

video. You can control your settings using

the buttons below. For more information on

using the web conguration, please refer to

the user manual.

Install the ActiveX control to

view live video.

Click the button labeled Link to access the web conguration. The Setup Wizard will

automatically open your web browser to the IP address of the DCS-6915, in this example it

is:http://192.198.0.20. Your camera may have a different IP Address.

Enter admin as the default username and

leave the password blank. Click OK to

continue.

00.ff.11.11.66.88 192.168.0.20 DCS-6915B1

DCS-6915

Click Link

Click OK

7. Viewing Your Internet Camera

Otros manuales para DCS-5615

Tabla de contenidos

Idiomas:

Otros manuales de Cámara de seguridad de D-Link

D-Link

D-Link SECURICAM Network DCS-5300G Manual de usuario

D-Link

D-Link DCS-H100 Manual de usuario

D-Link

D-Link SECURICAM DCS-910 Manual de usuario

D-Link

D-Link DCS-5009L Manual de usuario

D-Link

D-Link DCS?6010L Manual de usuario

D-Link

D-Link DCS-6616 Manual de usuario

D-Link

D-Link DCS-1130 - mydlink-enabled Wireless N Network... Manual de usuario

D-Link

D-Link DCS-5020L Manual de usuario

D-Link

D-Link DCS-2330L Manual de usuario

D-Link

D-Link DCS-930L Manual

D-Link

D-Link SECURICAM NETWORK DCS-5300 Manual de usuario

D-Link

D-Link SECURICAM DCS-5605 Manual de usuario

D-Link

D-Link DCS-5009L Manual de usuario

D-Link

D-Link DCS-6112 Manual de usuario

D-Link

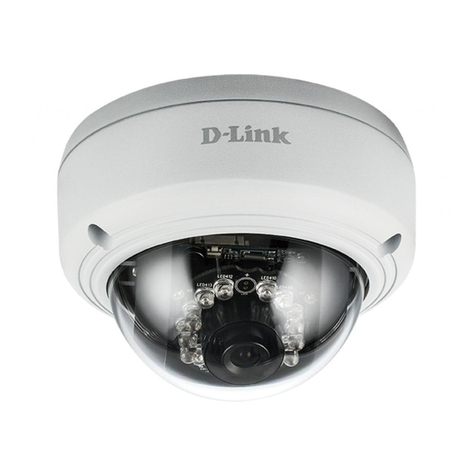

D-Link DCS-4602EV Manual de usuario
