D-Link DCS-2670L Manual de usuario

FULL HD 180° OUTDOOR WI-FI CAMERA

DCS-2670L

QUICK

INSTALLATION

GUIDE

INSTALLATIONSANLEITUNG

GUIDE D’INSTALLATION

GUÍA DE INSTALACIÓN

GUIDA DI INSTALLAZIONE

INSTALLATIEHANDLEIDING

INSTRUKCJA INSTALACJI

INSTALAČNÍ PŘÍRUČKA

TELEPÍTÉSI SEGÉDLET

INSTALLASJONSVEILEDNING

INSTALLATIONSVEJLEDNING

ASENNUSOPAS

INSTALLATIONSGUIDE

GUIA DE INSTALAÇÃO

ΟΔΗΓΟΣ ΓΡΗΓΟΡΗΣ ΕΓΚΑΤΑΣΤΑΣΗΣ

VODIČ ZA BRZU INSTALACIJU

KRATKA NAVODILA ZA UPORABO

GHID DE INSTALARE RAPIDĂ

DCS-2670L

ENGLISH

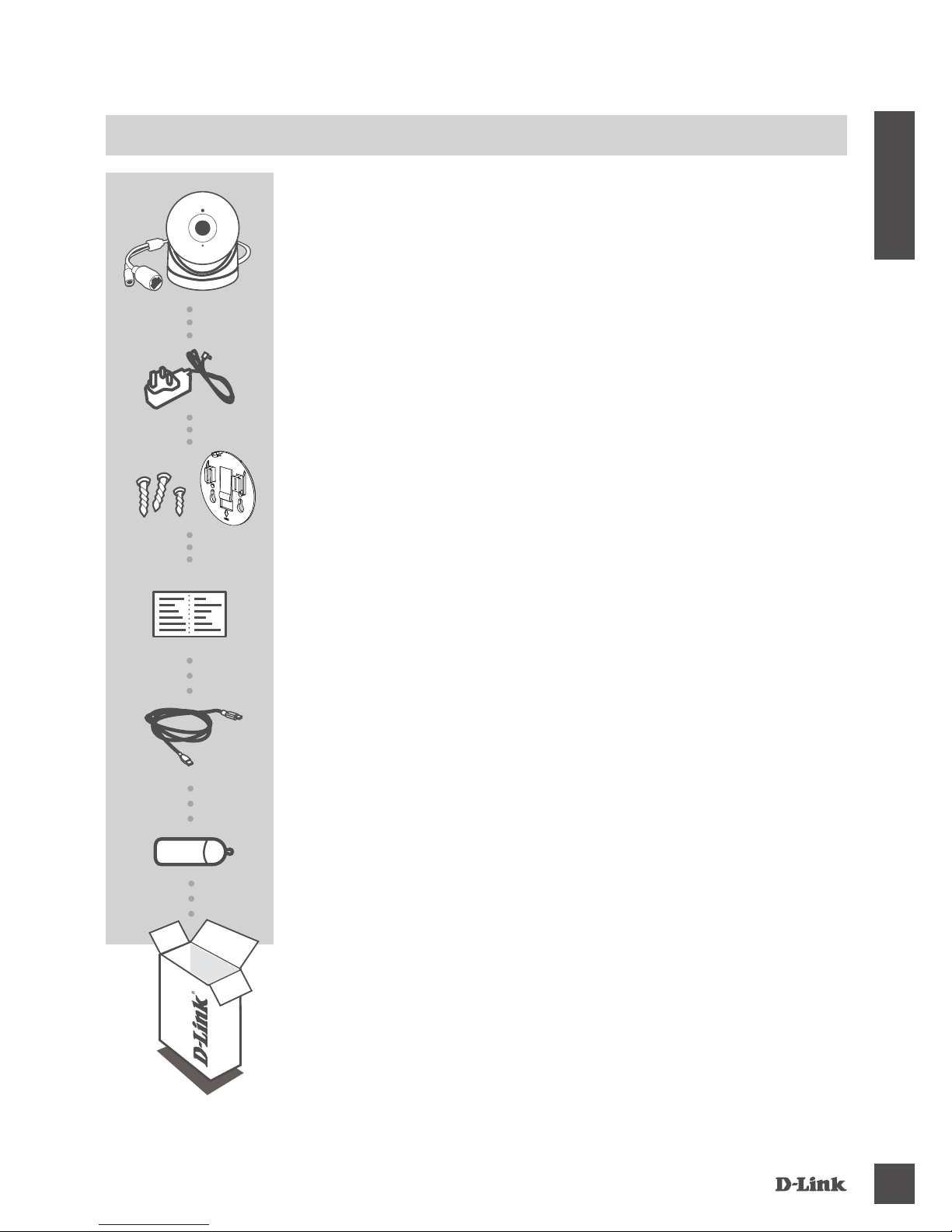

PACKAGE CONTENTS

FULL HD 180° OUTDOOR WI-FI CAMERA

DCS-2670L

MOUNTING KIT

POWER ADAPTER

If any of these items are missing from your package,

contact your reseller.

QUICK INSTALLATION CARD

ETHERNET CABLE

WATERPROOF CABLE CONNECTOR

DCS-2670L 3

ENGLISH

SYSTEM REQUIREMENTS

• A broadband Internet connection

• Existing 10/100 Ethernet-based network or 802.11 n/g/b router (a D-Link

router is recommended)

• iPhone®, iPad®, iPod®touch or Android™ smartphone or tablet (please refer to

the mobile app's store page to check whether your device is compatible)

• A mobile device with Bluetooth 4.0 is required for Bluetooth setup

Please follow the instructions below to set up your mydlink camera.

Congratulations, your DCS-2670L is now ready to use! Be sure to check the

mydlink.com website periodically for the latest firmware updates to keep your

product protected and up to date with the latest features.

Note: If you experience issues registering this camera with your mydlink

account, or if you purchased an open box or resold unit, perform a hard

reset by pressing and holding the Reset button on the device for 10

seconds while the device is powered on. If you are returning the device

to the place of purchase, please perform the hard reset procedure to

clear the device of any personal data.

Step 1: On your mobile device, download mydlink Lite by searching for

mydlink Lite in the iTunes App Store or Google Play.

Step 2: Launch the mydlink Lite app and create a new account or sign in to

your existing account.

Step 3: The app will guide you through the rest of the setup process. When

asked to scan the QR code, use the code on the provided Quick

Install Card or on the device label.

PRODUCT SETUP

SETTING UP YOUR CAMERA WITH MYDLINK LITE

DCS-2670L

ENGLISH

MOUNTING THE CAMERA

Please refer to the steps below to assist you with mounting the camera. It is

recommended that you configure the camera before mounting.

Step 1:

Open a web browser and go to www.mydlink.com,

then sign into mydlink.

Step 2:

Select your camera from the device list, and your

camera’s Live View will appear.

After registering your DCS-2670L camera with a mydlink account in the

mydlink Lite mobile app, you will be able to remotely access your camera from

the mydlink website.

mydlink PORTAL

Step 1:

Place the baseplate where you want to position the

camera and use a pencil to mark the holes. You can

use the large holes for a removable installation, or

the small holes for a fixed one. Make sure the lock

arrow on the plate is pointing down.

Step 2:

Depending on the material of the wall or ceiling, use

proper tools to drill holes 25 mm deep with a 6 mm

drill bit where you marked. If the wall is made out of

concrete, drill the holes first, then insert the plastic

anchors to support the screws.

DCS-2670L 5

ENGLISH

Step 4:

Place the camera over the baseplate and align the

nub with the hole on the camera. Attach the camera

by sliding it in the direction of the arrow. Then screw

the baseplate to the camera body.

MOUNTING THE CAMERA

Step 6:

Adjust the angles via the camera body and rotate the

silver base until you achieve your desired viewing

angle.

Step 5:

Once the camera is secured to the baseplate, use a

screwdriver to fasten the screw next to the hole at the

back of the camera body.

Step 3:

Place the baseplate over the holes that are in the

wall. Make sure to align the baseplate holes with the

holes in the wall. Use the supplied screws to attach

the baseplate to the surface of the wall.

DCS-2670L

ENGLISH

WATERPROOFING YOUR CAMERA

After configuring your camera, follow the instructions below to prevent water

from entering the camera's Ethernet and Power Cable connections.

Step 1:

Plug the power adapter into the dongle.

Step 2:

To waterproof the Ethernet socket, align the cap

according to the thread and twist it clockwise to seal

it.

WATERPROOFING YOUR CONNECTORS WHEN USING WI-FI

WATERPROOFING YOUR ETHERNET CONNECTOR

If you are using an Ethernet connection, follow the instructions below to

prevent water from entering the camera's Ethernet cable connector.

Step 1:

Connect the power and Ethernet cables.

DCS-2670L 7

ENGLISH

Caution: Due to its IP65 rating we recommend that you install your device

under a roof or a shelter to protect the Power and Ethernet connections from

water seepage. However, the cables and connections need to be located

away from all potential water hazards.

Wind waterproof tape, such as butyl rubber or vinyl

tape, around the individual cables and connectors

in a half-overlapping manner then wrap all the

connectors together. Be sure to cover all of the

connectors and any unsheathed cables.

Note: Butyl rubber tape should be wrapped by

stretching the tape to about twice its length, and

wrapping it around the cable. Failure to stretch the

tape sufficiently will result in insufficient waterproofing

performance.

USING WATERPROOF TAPE

WATERPROOFING YOUR CAMERA

DCS-2670L

ENGLISH

TROUBLESHOOTING

FREQUENTLY ASKED QUESTIONS

1. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT

VISION MODE?

The IR night vision lights on the camera may be reflecting off of a nearby

surface or window. Try repositioning your camera to avoid reflections or

glare.

2. WHAT CAN I DO IF I FORGET MY CAMERA PASSWORD?

If you forget your camera password, you will need to perform a hard reset

of your camera. This process will change all your settings back to the

factory defaults.

To reset your camera, please use an unfolded paperclip to press and hold

the RESET button for at least 10 seconds while your camera is plugged in.

3. WHAT CAN I DO IF MY DCS-2670L IS NOT WORKING CORRECTLY?

Reset the camera (see next step) and run the setup steps on page 3

again.

To make sure your hardware is installed correctly, make sure that:

- the power LED is green

- your Internet connection is working

- your router’s LAN & WAN connections are working

- your router supports UPnP®

- your camera is on the same network as your mobile device

- both your mobile device and camera have a working Internet connection

If your camera is still not working, check your router and make sure it has

the latest firmware.

TECHNICAL SUPPORT dlink.com/support

DCS-2670L 9

DEUTSCH

PACKUNGSINHALT

FULL HD 180° WLAN-AUSSENKAMERA

DCS-2670L

MONTAGESET

STROMADAPTER/NETZTEIL

Wenn eines dieser Elemente in Ihrer Packung fehlt,

wenden Sie sich bitte an Ihren Fachhändler.

KURZINSTALLATIONSKARTE

ETHERNET-KABEL

WASSERDICHTER KABELANSCHLUSS

DCS-2670L

DEUTSCH

SYSTEMVORAUSSETZUNGEN

• Eine Breitbandinternetverbindung

• Ein bestehendes 10/100 Ethernet-basiertes Netzwerk oder einen 802.11 n/g/b

Router (ein D-Link-Router wird empfohlen)

• Ein iPhone®, iPad®, iPod®Touch oder Android™ Smartphone oder Tablet (Auf

der Seite des mobilen App Store können Sie überprüfen, ob Ihr Gerät kompatibel

ist.)

• Ein Mobilgerät mit Bluetooth 4.0 ist für die Bluetooth-Einrichtung erforderlich.

Führen Sie die folgenden Schritte zum Einrichten Ihrer mydlink-Kamera durch.

Ihre DCS-2670L kann nun verwendet werden. Suchen Sie in regelmäßigen

Abständen auf der Website mydlink.com nach Firmware-Aktualisierungen, um

anhand neuer Firmware Ihr Produkt geschützt und, was seine Funktionen betrifft,

auf dem neuesten Stand zu halten.

Hinweis: Wenn Sie Probleme bei der Registrierung dieser Kamera in Ihrem

mydlink-Konto haben oder wenn Sie ein gebrauchtes Gerät gekauft haben oder

das Gerät weiterverkaufen, sollten Sie einen Hard Reset durchführen, indem

Sie die Reset-Taste am Gerät 10 Sekunden lang gedrückt halten, während

das Gerät eingeschaltet ist. Wenn Sie das Gerät am Kaufort zurückgeben,

führen Sie bitte den Hard Reset durch, um alle persönlichen Daten vom

Gerät zu löschen.

Schritt 1: Suchen Sie nach mydlink Lite im iTunes App Store oder bei Google

Play und laden Sie mydlink Lite auf Ihr Mobilgerät herunter.

Schritt 2: Starten Sie die mydklink Lite-App und erstellen Sie ein neues Konto

oder melden Sie sich mit Ihrem bestehenden Konto an.

Schritt 3: Die App führt Sie durch den weiteren Einrichtungsprozess. Wenn Sie

aufgefordert werden, einen QR-Code zu scannen, verwenden Sie den

Code oder auf dem Geräteaufkleber.

EINRICHTUNG DES PRODUKTS

EINRICHTEN IHRER KAMERA MIT MYDLINK LITE
