Quick Installation Guide for DSL-G604T Page 1 of 4 July 2004

Quick Installation Guide for DSL-G604T (July 2004)

(for Users in Thailand ONLY)

1. DSL-G604T is a 3-in1 802.11g 54Mbps wireless ADSL router, which has a built-in

ADSL modem. DSL-G604T has integrated 802.11g wireless access point and a four-port

(10/100Mbps) switch. Without additional equipment, DSL-G604T allows all of the

wired & wireless computers in your home or office network to access the broadband

Internet at the same time via a single ADSL telephone line.

Follow the steps below to configure DSL-G604T.

2. Configure your PC to “Obtain an IP Address Automatically” from DSL-G604T,

which is pre-configured as DHCP server. Connect you PC to DSL-G604T Ethernet port

as shown in Figure 1.

Click Network connection icon at the bottom right hand corner of Windows & follow

the steps from [i] to [vi].

Once it is completed, the computer is configured as DHCP client, which will obtain an

IP address from DSL-G604T automatically.

DSL

G604T

UTP Straight Cable

Figure 1

Step i

Step ii

Step iii

Step iv

Step v

Step vi

ADSL Telephone Line

Quick Installation Guide for DSL-G604T Page 2 of 4 July 2004

3. Run the IE and make sure under [Tools] -> [Internet Options] -> [Connections] ->

[LAN Settings], “Proxy Server” is un-checked.

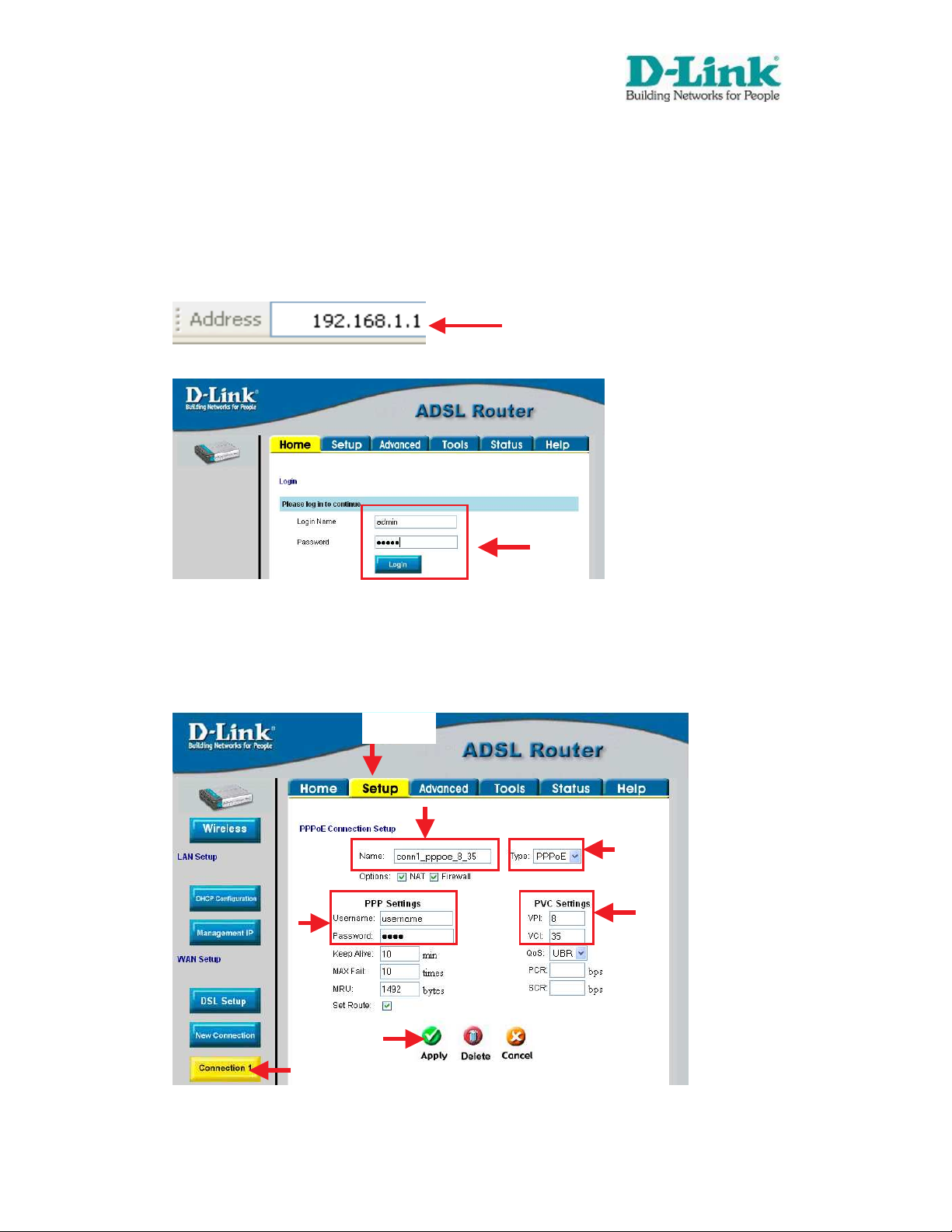

4. Step 1: Enter the default IP address 192.168.1.1 in the URL address field.

Step 2: Enter default Login Name “admin”, Password “admin” and click [Login].

Setup PPPoE Connection

5. Goto Section [7] for the configuration of PPPoA connection.

Step 3a/4a: Click [Setup] and choose [Connection 1].

Step 1

Step 2

Step 3a

Step 4a

Step 5a

Step 6a

Step 8a

Step 7a

Step 9a

Quick Installation Guide for DSL-G604T Page 3 of 4 July 2004

6. Step 5a: Rename the connection name.

Step 6a: Select PPPoE.

Step 7a: Enter Username & Password of ADSL broadband account.

Step 8a: Enter the VPI & VCI values.

Note:

Both VPI and VCI values are provided by ISP. Please obtain these values from your

ISP. For TA ADSL line, you may use VPI: 0 / VCI: 100 and Type: PPPoE.

ii.

Different ISP may have different VPI and VCI values.

Step 9a: Click Apply to save the changes & goto Section [9].

Setup PPPoA Connection

7. Step 3b/4b: Click [Setup] and choose [Connection 1]

8. Step 5b: Rename the connection name

Step 6b: Select PPPoA

Step 7b: Select LLC or VC (Please check with your ISP.)

Step 8b: Enter Username and Password

Step 9b: Enter the VPI and VCI values

Note:

i. Both VPI and VCI values are provided by ISP. Please obtain these values from your

ISP. For TA ADSL line, you may use VPI: 0 / VCI: 100 and Type: PPPoE.

ii. Different ISP may have different VPI and VCI values.

Step 10b: Click Apply to save the changes.

Step 3b

Step 4b

Step 5b

Step 6b

Step 7b

Step 8b

Step 9b

Step 10b

Quick Installation Guide for DSL-G604T Page 4 of 4 July 2004

9. Step 11: Click Tools.

Step 12: Click System Commands.

Step 13: Click Save All.

For any assistance, kindly access www.dlink.in.th or email us support@dlink.com.sg.

D-Link International Pte Ltd

Office: (65) 6774-6233

Fax: (65) 6774-6322

Step 11

Step 12

Step 13
