D-Link DSL-G604T Manual de usuario

Before You Begin

Make sure you have all the necessary information and equipment on hand before beginning

the installation.

DSL-G604T

WirelessADSLRouter

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6, Netscape

Navigator 6.2.3, Mozilla or Firefox.

Check Your Package Contents

Software and specifications subject to change without notice.

DSL-G604T ADSL Router

CD-ROM (containing User Manual)

Ethernet (CAT5 UTP) Cable

Telephone Cable

Power Adapter

Using a power supply

with a different voltage

rating will damage and void

the warranty for this product.

If any of the above items is missing,

please contact your reseller.

Connecting the Router to Your Computer

A. First, connect the power adapter to the power input at the back panel of the DSL-

G604T and then plug the other end of the power adapter to a wall outlet or power strip.

On the front of the device, the Power LED will turn ON to indicate proper operation.

B. Insert one end of the Ethernet cable into an Ethernet (LAN) port on the back panel of

the DSL-G604T and the other end of the cable to an Ethernet Adapter or available

Ethernet port on your computer.

C. Insert the telephone cable included with the Router into the ADSL port, then connect

the cable to your telephone line.

D. Check the LED display on the front of the Router to confirm that the connections have

been made.

Rear Panel Connections

All cable connections to the Router are made at the rear panel. Connect the power adapter

here to power on the Router. Use the Reset button to restore the settings to the factory

default values in the next chapter for instructions on using the reset button).

Antenna

For wireless operation,

mount the antenna on the

threaded antenna post.

Ethernet ports

Use the Ethernet ports to

connect the Router to

your Ethernet LAN or

Ethernet devices.

Power Insert

Use the adapter shipped

with the Router to connect

to power source.

ADSL Port

Use the ADSL cable to

connect to the your

port).

telephone line (RJ-11

Reset button

To manually reset,

depress button with the

power on for a few

Connecting the Router to Your Computer

(continued)

Front Panel LEDs

The LED indicators on the front panel include the Power, Status, ADSL, WLAN, and

Ethernet indicators. The ADSL and Ethernet indicators monitor link status and activity

(Link/Act).

Power

Steady green light indicates

the unit is powered on. When

the device is powered off this

remains dark.

Status

Lights steady green during

power on self-test (POST).

Once the connection status

has been settled, the light will

blink green. If the indicator

lights steady green after the

POST, the system has failed

and the device should be

rebooted.

ADSL (Link/Act)

Steady green light indicates a

valid ADSL connection. This

will light after the ADSL

negotiation process has been

settled. A blinking green light

indicates activity on the WAN

(ADSL) interface.

WLAN (Link/Act)

Steady green light indicates a

wireless connection. A

blinking green light indicates

activity on the WLAN

interface.

Ethernet (Link/Act)

1 - 4

A solid green light indicates a

valid link on startup. This light

will blink when there is

activity currently passing

through the Ethernet ports.

Connecting the Router to Your Computer

(continued)

Your setup should resemble the one shown below.

The illustration below shows the DSL-G604T connected to Ethernet LAN devices, Wireless

LAN devices and the Internet.

Configuring the Router

To use your Web browser to access the web pages used to setup the Router, your computer

must be configured to “Obtain an IP address automatically”, that is, you must change the

IP network settings of your computer so that it is a DHCP Client. If you are using Windows

XP and do not know how to change your network settings, skip ahead to Appendix and read

the instructions provided. You may also read the User Manual for instructions on changing IP

settings for computers running Windows operating systems.

Open your Web browser and type

Then press the Enter or Return key.

The Login page appears.

“http://10.1.1.1” into the URL address box.

“admin” for

“admin”

Type the

User Name and

in the Password field.

OKClick

Configuring the Router (continued)

Once you have logged in, the Home directory tab is prominent with the Setup Wizard menu

displayed. Most users will be able to use the Setup Wizard to establish the ADSL connection

to your ISP. To begin using the Setup Wizard, click on the Run Wizard button in the middle

of the web page. A pop-up menu will appear. This pop-up menu is the Setup Wizard. The

Setup Wizard procedure consists of four general steps:

1. Set the system password

2. Set the time zone

3. Set the Internet connection

4. Restart the Router

When you setup the Internet connection, you will need to enter information provided by your

ISP. The type of information you need depends on the type of connection you are setting up.

Click on the Run Wizard button.

Configuring the Router (continued)

The first window of the Setup Wizard menu lists a summary of the steps required to complete

the setup. Click the Next button to begin setup and go on to step 1.

Click the Next button.

Configuring the Router (continued)

Choosing the Time Zone

Now configure the Time Zone used for the Router’s system clock. Select the appropriate

time zone and Daylight Saving Time setting for your location.

Select the Time Zone you are located

in by using the pull-down menu.

Click the Next button.

Configuring the Router (continued)

Selecting the Connection Type

Next, you will Set the Internet Connection Type for the WAN interface. Your ISP has given

this information to you. If you do not know what type of connection to use, exit the Setup

Wizard and contact your ISP for the information. The Setup wizard menu that appears when

you click the Next button depends on what connection type you select.

Select the Connection Type

used for your ADSL service.

Click the Next button.

Configuring the Router (continued)

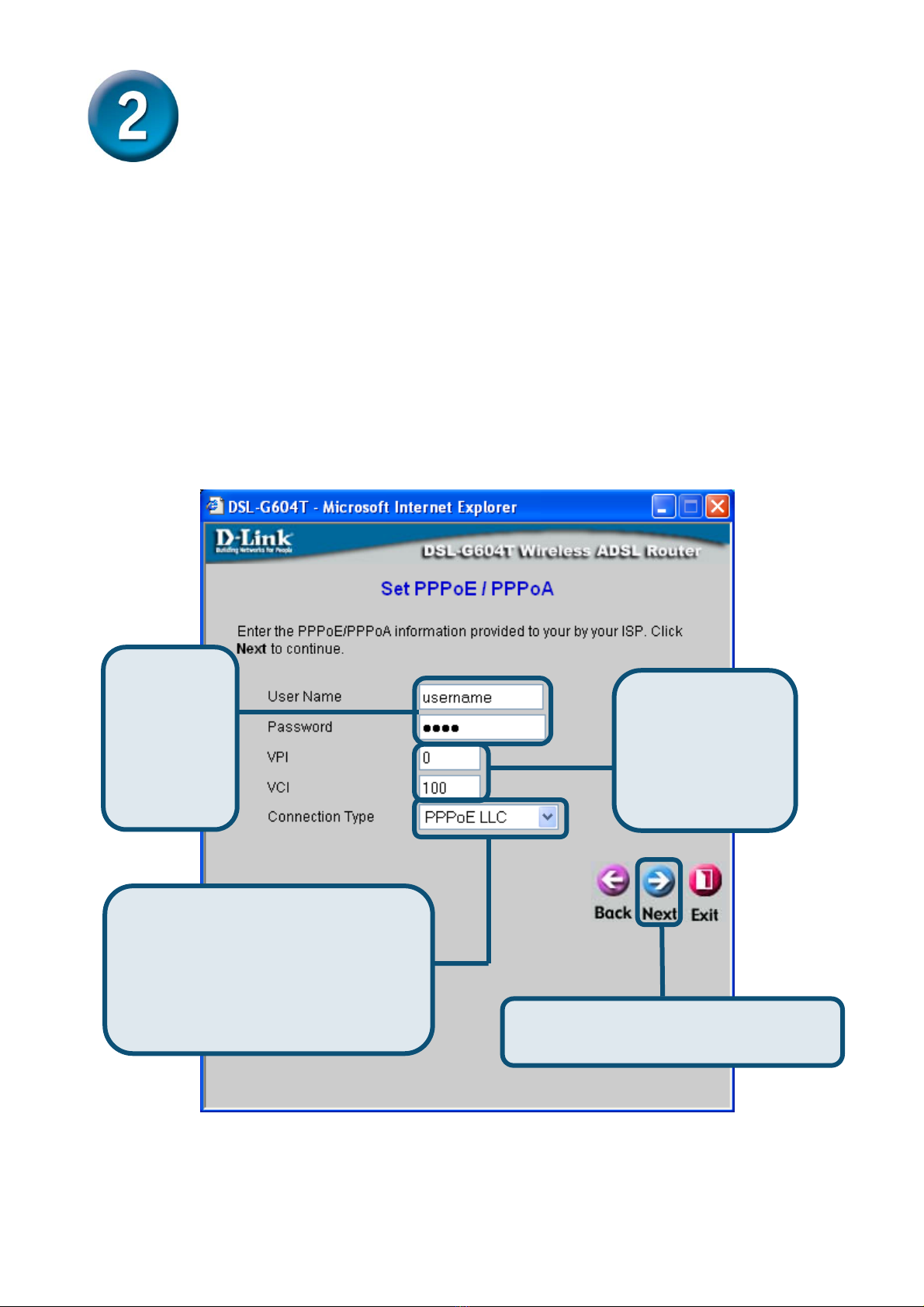

PPPoE/PPPoA Connections

If you selected the PPPoE/PPPoA connection type in the previous menu, you will see the

Setup Wizard menu pictured here. Type in the Username and Password used to identify

and verify your account to the ISP. The VPI number and VCI number should not be changed

unless you have been instructed to change them. Select the Connection Type used for

encapsulation specific to your service. Click Next when you are ready to continue to the

Setup Completed menu.

If you are not sure what Connection Type,VPI and VCI to use, please check with your ISP.

Type the If you have been

told by your ISP to

change the Type

the new values.

Username

Password

and

for your ISP

account.

VPI or

VCI number,

Click the ad to

the Setup Completed menu below.

Next button. Skip ahe

Use the pull-down menu to choose

the correct The

user may choose between

as instructed by your ISP.

Connection Type.

PPPoA

VC-Mux, PPPoE LLC PPPoA

LLC,
