SNMP Module for

Chassis-Based Media Converter

Manual

DMC-1002

ABLE OF

ONTENTS

ABOUT THIS GUIDE

.................................................................. 2

EATURES

........................................................................................................2

NPACKING

.....................................................................................................2

CONFIGURING THE SYSTEM

.......................................... 3

EDIA

ONVERTER

HASSIS SYSTEM

....................................................3

NSTALLING THE

ANAGEMENT

ODULE

......................................................3

ONFIGURE THROUGH

EB BROWSER

............................................................4

ONFIGURATION VIA

ERIAL

ORT

.................................................................4

UPPORT

SNMP

ANAGEMENT

.....................................................................5

LED

NDICATORS

............................................................................................5

MANAGEMENT SETTING THROUGH WEB

BROWSER

............................................................................................ 6

MANAGEMENT SETTING THROUGH

TERMINAL EMULATOR

...................................................... 13

HEN FORGOT THE PASSWORD

.....................................................................19

TECHNICAL SPECIFICATIONS

.................................... 20

BOUT

HIS

UIDE

This manual shows you how to configuring your DMC-1002 SNMP Module

for Chassis-Based Media Converter.

Features



Compliant with IEEE802.3u 100BASE-TX standards



Enabl to monitor th modul through t rminal mulation program and

W b brows r



Th n twork administrator can acc ss manag m nt softwar by

conn cting th manag m nt modul ith r to a t rminal mulation

program (through th RS232 int rfac ) or to a r mot n twork

manag m nt station (through th RJ45 int rfac and a hub)



Status indication includ :

1. Id ntification of: M dia Conv rt r typ ; Slot numb r occupi d

2. Status Indication of Chassis: R dundant Pow r status; Pow r Fail status;

Fan Fail status

3. Status Indication of Modul s: Unit Pow r; Link/Activity; Transmit; R c iv



LED Indication: Pow r/Pow r Fail/Fan Fail/MGM/Consol /Link/ACT



Support Hot-swappabl



Auto-n gotiation for half-dupl x/full-dupl x on TX ports



Equipp d with a 19” syst m chassis 16-conv rt r with R dundant Pow r

supply for optional Expansion us .

Unpacking

Open the shipping carton of the SNMP Module and carefully unpack its

contents. The carton should contain the following items:

One DMC-1002 SNMP Module for Chassis-Based Media Converter

One RS232 cable

This Manual

If any item is found missing or damaged, please contact your local reseller for replacement.

ONFIGURING

YSTEM

This chapter provides network managers and system administrators with

information about how to configure the Media Converter Chassis system.

The reader of this document should be knowledgeable about network

devices, device configuration, network management, and Internet browsers.

The user is assumed to be a network administrator or manager with an

understanding of network operations.

The Media Converter Chassis system

The chassis’s first slot is for the management module as illustration on figure

Figure 1. Slide in the management module in the first slot of the chassis system.

Installing the Management Module

Before Configure the chassis system, you must do the following:

Install the management module into the chassis. (Figure 1)

Connect the module to the network.

Boot up for SNMP management on Web browser or emulation terminal

program.

Configure through Web browser

The Media Converter chassis system is accessible using a Web browser (IE

explorer, Netscape Communications, etc.) to open up the chassis monitoring

system. The default IP Address for the chassis system is “192.168.1.1”, and

the default Login name and password is both “root”.

Configuration via Serial Port

The Media Converter chassis system can be accessible using a terminal or

terminal emulator attached to the RS232 serial port on the Switch too.

NOTE: (1) The serial port cable is attached directly with the device.

(2) It needs to upgrade the Terminal Emulator due to key

malfunction.

1. Locate correct DB9 serial port cable with female DB9 connector.

2. Attach the DB9 serial port female cable connector to the male DB9 serial

port connector on the chassis system.

3. Attach the other end of the DB9 serial port cable to a remote

workstation.

4. By default, the Switch uses the following serial port parameter values:

Bits per second 57600

Stop bits 1

Data bits 8

Parity NONE

Flow Control NONE

5. The default Login name and password is both “root”.

Support SNMP Management

The Media Converter Management Module support SNMP management.

LED Indicators

The LED indicators of the Switch include Power, ALERT, HTTP, ICQ,

SMTP, SPEED, LINK/ACT and FDX/COL. The following shows the LED

indicators for the Switch along with an explanation of each indicator.

DMC-1000i

Power On: Lights green when the power is inserted.

Power Fail: Lights Amber when the power is inserted and it is

fail.

Fan Fail: Lights Amber when the fan is fail.

MGM: Blinks green when the device CPU is working and

lights amber when the CPU works fail.

Console: Blinks green when the data is transmitting through

console port and blinks amber when transmitting the

wrong data.

Link/Act: Lights green when link to networking Ethernet and

blinks green for activity.

ANAGEMENT

ETTING

HROUGH

ROWSER

1 Main Menu

Figure (1) Main Menu

1-1 System Function

There are four items in System Function menu, “Software Reboot, Factory

Reset, Image Update and Configuration Update. (Figure 2)

1-2 Configuration

There are three items in Configuration menu, “General Configuration,

System Configuration and SNMP Configuration. (Figure 2)

Figure (2) Configuration

1-1-1 Software Reboot

To reboot for the software setting.

1-1-2 CPU Factory Reset

This function is to set the CPU (DMC-1002) back to the default setting in

case of the messy setting.

1-1-3 Factory Reset

This function is to set both CPU (DMC-1002) and all system (all smart

device installed in chassis) back to the default setting in case of the messy

setting.

1-1-4 Image Update

The section is to set the TFTP Server IP Address first, and the default address

was set to “192.168.1.2”. The Image File can be updated by uploading the

image file from the TFTP server. (Figure 3.1)

Note: The content of the image file will write the whole firmware of the

management module, please be sure that the image file is correct.

While the file is uploading to the system, it will appear a warning sign.

(Figure 3.2)

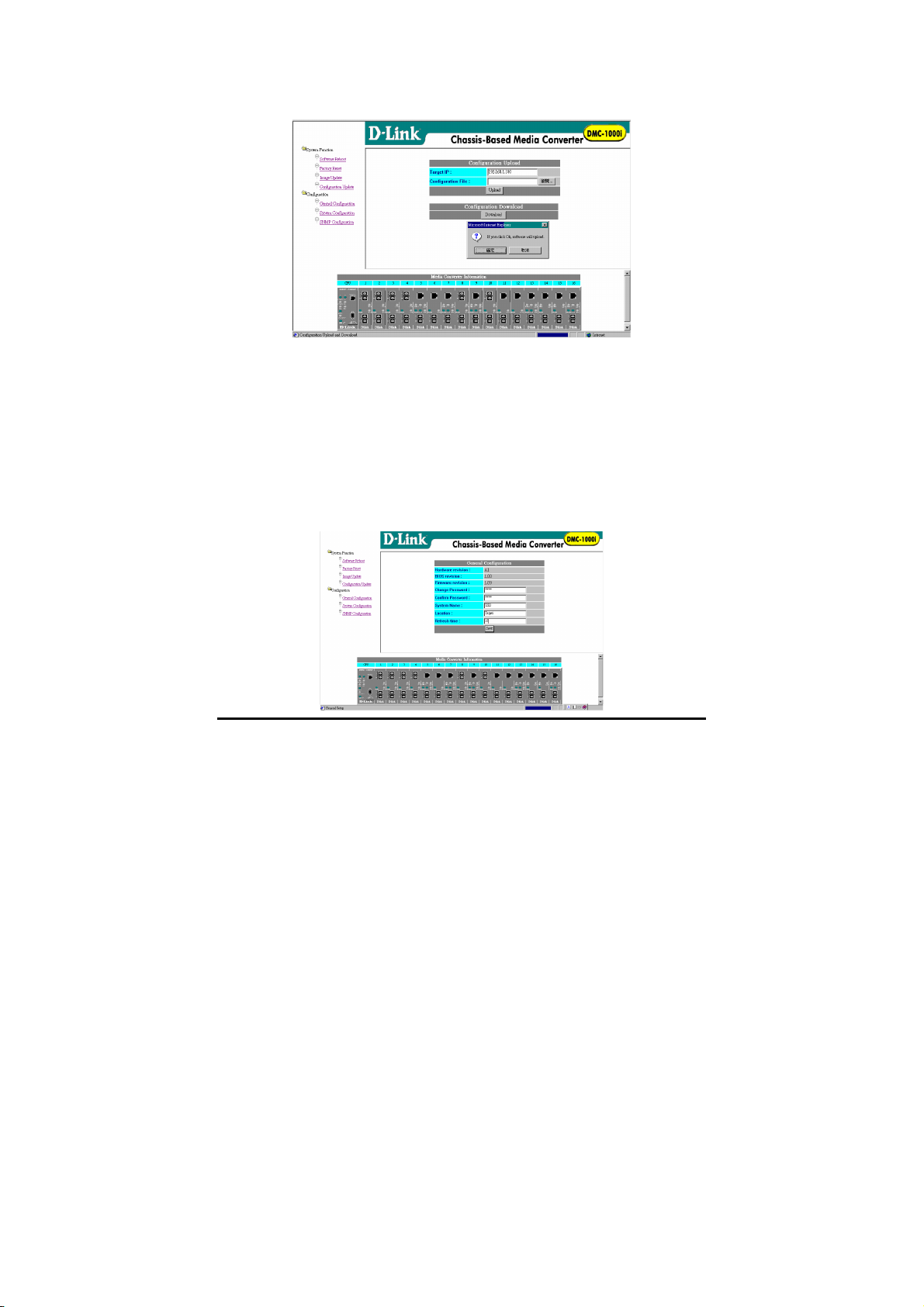

Figure (3.1)

Figure (3.2)

1-1-5 Configuration Update

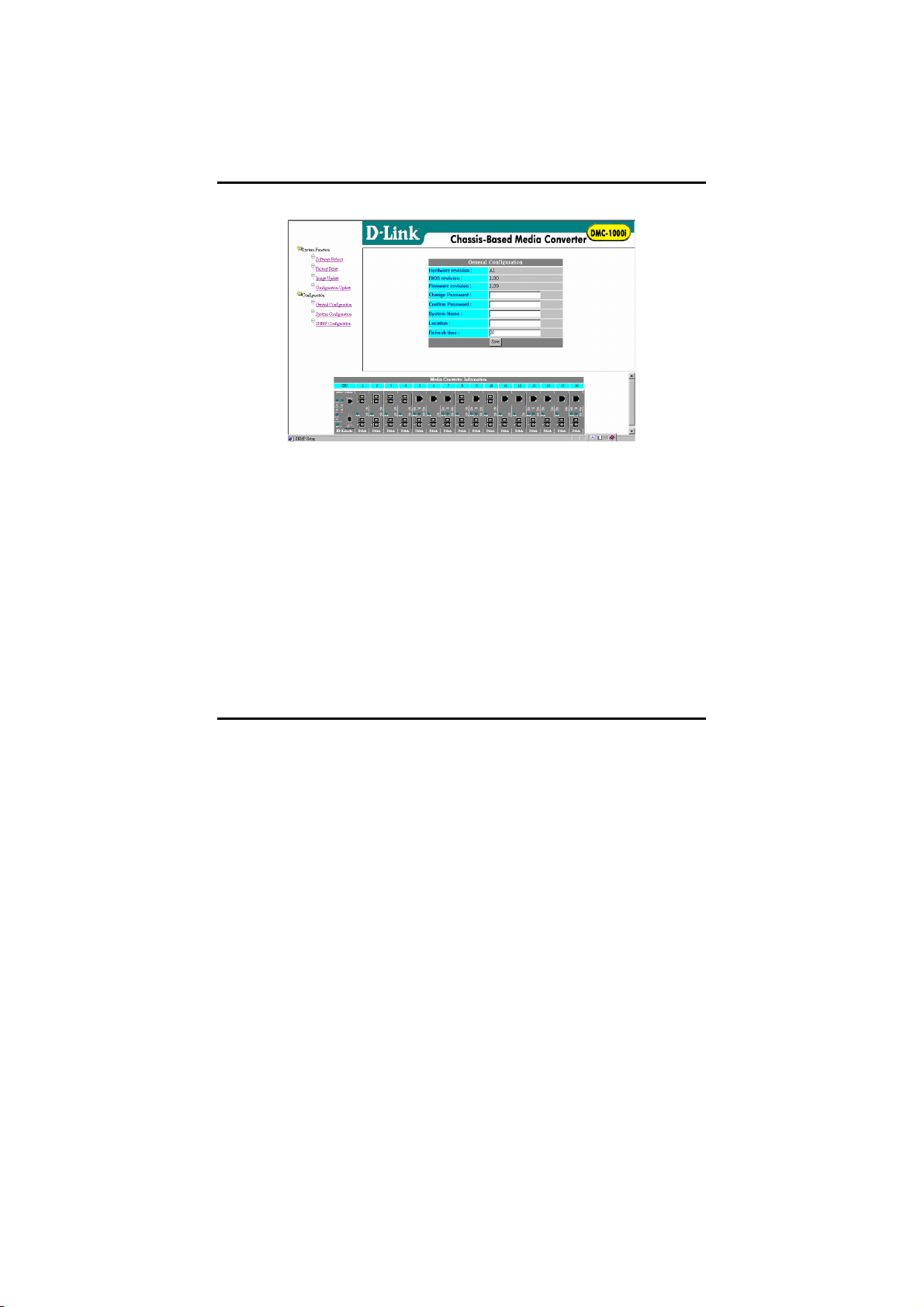

Figure (4)

The section is explaining how to upload and download the configure setting

of the module.

The Configuration Upload is to restore a setting file to the management

module.

The Configuration Download is to backup the setting from the management

module.

1-2-1 General Configuration
