Before Your Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DES-1252 Fast Ethernet Smart Switch. The model you have purchased may appear

slightly different from those shown in the illustrations. For more detailed information

about the switch, its components, making network connections and technical

specifications, please refer to the User’s Manual on the CD included with your switch.

Check Your Package Contents

These are the items included with your DES-1252 purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice.

• DES-1252

D-Link 48-Port 10/100Mbps Smart Switch with

4 10/100/1000Base-T ports and 2 Combo SFP

• CD-ROM (containing Manual and Utility

Installation)

• 100–240VAC 50/60Hz

Power Adapter Using a powe

supply with a

different voltage rating

will damage and void

the warranty for this

product.

DES-1252

D-Link 48-Port 10/100Mbps

with 4 10/100/1000Base-T

ports and 2 Combo SFP

Smart Switch

Setup for the DES-1252 Fast

Ethernet Smart Switch

Before physically installing the switch, please make note of the following

recommendations:

A. Install the DES-1252 in a fairly cool and dry place. Technical

Specifications such as operating temperatures and, other important

information can be found in the manual located on the supplied CD.

B. Install the DES-1252 in a site free from strong electromagnetic field

generators (such as motors), vibration, dust, and direct exposure to

sunlight.

C. Leave at least 10cm (about 4 inches) of space at the front and rear

of the switch for ventilation.

D. Visually inspect the DC power jack and make sure that it is fully

secured to the power adapter.

E. Install the DES-1252 on a sturdy, level surface that can support its

weight, or in an EIA standard-size equipment rack.

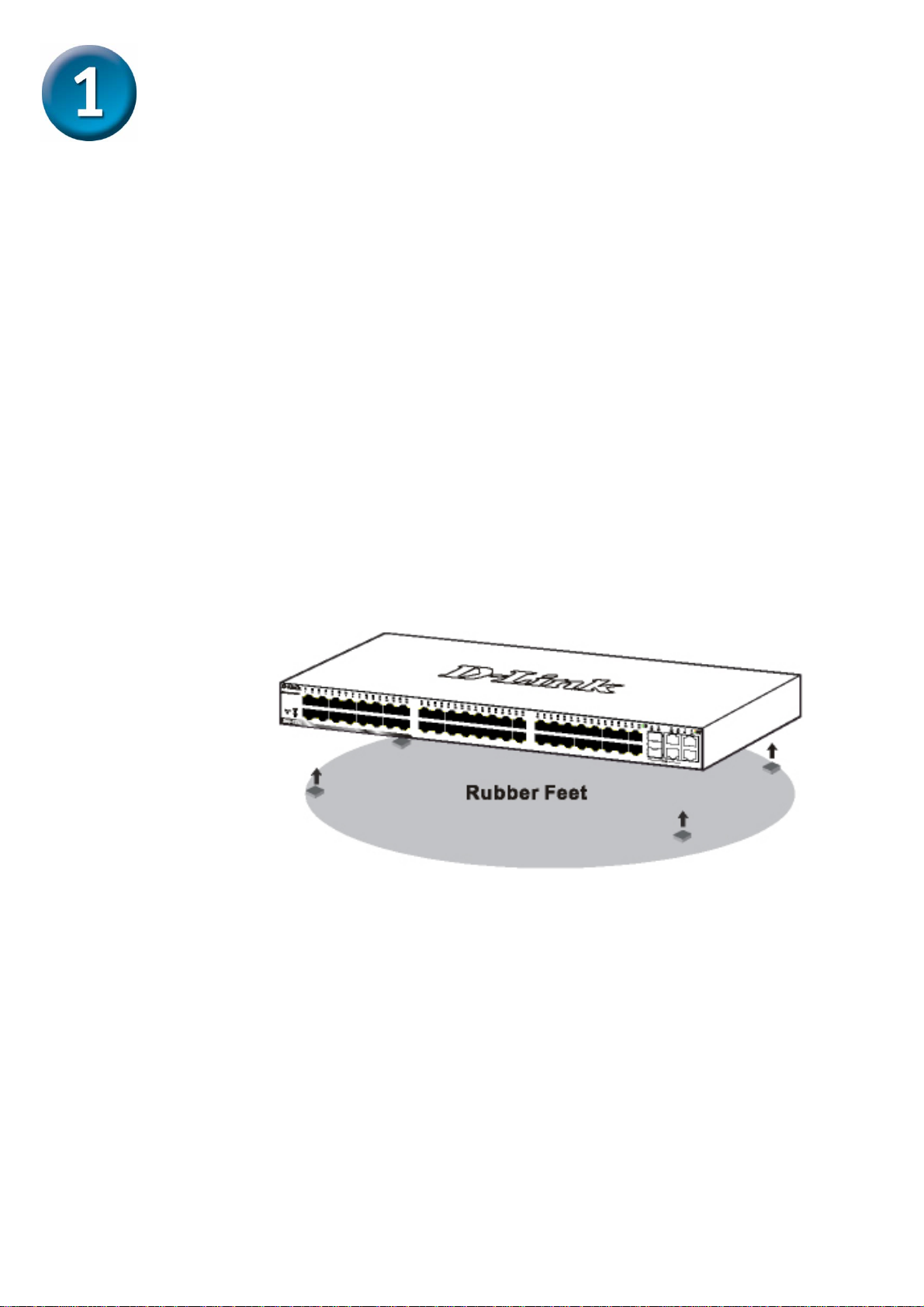

F. When installing the Switch on a level surface, attach the rubber feet

to the bottom of each device. The rubber feet cushion the switch

and protect the switch case from scratching.

Attach the adhesive rubber pads to the bottom

Rack Mounting

The DES-1252 can be mounted in an EIA standard-size, 19-inch rack,

which can be placed in a wiring closet with other equipment. Attach the

mounting brackets to both sides of the Switch (one at each side), and

secure them with the provided screws.

Use the screws provided. Then use screws provided

with the equipment rack to mount the Switch in the rack.

Mount the Switch in the rack

Connecting Network Cables

The DES-1252 has 48 ports that support 10/100Mbps Fast Ethernet;

it also has 4 10/100/1000Base-T Ports and 2 Combo SFPs. It runs

full/half duplex transfer mode for 10/100Mbps and full duplex transfer

mode for 1000Mbps. Each port on the DES-1252 supports Auto-

MDI/MDI-X. Auto-MDI/MDI-X is a feature that enables the switch to

auto sense what kind of cable is used on a port (straight or crossover).

This allows any type of cables to be used with the switch regardless

of what device is being connected.

AC Power

The Switch utilizes an AC power supply of 100~240V AC, 50~60Hz. The

power switch is located at the rear of the unit adjacent to the AC power

connector and the system fan. The switch’s power supply will adjust to

the local power source automatically and may be turned on without

having any or all LAN segment cables connected.

Connecting The DES-1252 Fast

Ethernet Smart Switch To Your

Network

Front Panel Twisted-Pair Ports Mini GBIC Ports

┌─────────────────────────────┐ ┌┘

└┘ └─┘

LED Indicators 10/100/1000 Base-T

Twisted Pair Ports

10/100 BASE-TX Twisted Pair Ports (Port 1~48)

The DES-1252 is equipped with 48 Fast Ethernet twisted pair ports

that are auto-negotiable 10/100Mbps and also support auto MDI/MDIX

crossover detection. All these 48 ports can operate in half- and full-

duplex modes.

10/100/1000 BASE-T / Mini GBIC Combo Ports (Option

Port 49~50)

The Switch is also equipped with two combo 10/100/1000 Base-T /

Mini GBIC ports, supporting optional 100BASE-FX or 1000BASE-

SX/LX Mini GBIC modules for fiber uplinks.

10/100/1000 BASE-T Twisted Pair Ports (Port 51~52)

Finally there are 2 Gigabit twisted pair ports that are auto negotiable

10/100/1000Mbps with full auto MDI/MDIX crossover detection support

that can also operate in half- and full- duplex modes.

[Note: If the port is set to “Forced Mode”, Auto-MDI/MDIX is

disabled]

LED Indicators

LED stands for Light-Emitting Diode.

The front panel LEDs provides instant status feedback and simplifies

monitoring and troubleshooting tasks.

LED indicators of the Switch

Power LEDs

On When the Power LED light is on, the Switch is

receiving power.

Off When the Power LED light is off, the power cord is

not or improperly connected.

CPU LEDs ( Management Indicator)

Blinking When the CPU is working, the CPU LED is blinking.

Off The CPU is idle.

Ports 1 ~ 48 Status LEDs

Link/Act

On When the Link/Act LED light is on, the respective

port is successfully connected to an Ethernet

network.

Blinking When the Link/Act LED is blinking, the port is

transmitting or receiving data on the Ethernet

network.

Off No link.

100Mbps

On When the 100Mbps LED light is on, the respective

port is connected to a 100Mbps Fast Ethernet

network.

Off When the respective port is connected to a 10Mbps

Ethernet or no link.

Option Ports 49~50 10/100/1000 Base-T / Mini-GBIC

Status LEDs

FX Link

On When the FX Link LED light is on, the respective

port is connected to a 100 or 1000Mbps Ethernet

network.

Off No link or linking the copper ports.

Link/Act

On When the respective combo port is connected to a

network, the Link/Act LED light is on.

Blinking When the LED is blinking, the respective combo

port is transmitting or receiving data on a network.

Off No link.

1000Mbps

On When the 1000Mbps LED light’s on, the respective

port is connected to a 1000Mbps Gigabit Ethernet

network.

Off When the respective port is connected to the

100Mbps Fast Ethernet or no link.

100Mbps

On When the 100Mbps LED lights on, the respective

port is connected to a 100Mbps Fast Ethernet

network.

Off When the respective port is connected to a

1000Mbps Gigabit Ethernet network or no link.

Ports 51~52 10/100/1000 Base-T LEDs

Link/Act

On When the Link/Act LED light is on, the respective

port is successfully connected to an Ethernet

network.

Blinking When the Link/Act LED is blinking, the port is

transmitting or receiving data on the Ethernet

network.

Off No link.

1000Mbps

On When the 1000Mbps LED light is on, the respective

port is connected to a 1000Mbps Gigabit Ethernet

network.

Off When the respective port is connected to a 10Mbps

Ethernet or 100Mbps Fast Ethernet network, or no

link.

100Mbps

On When the 100Mbps LED light is on, the respective

port is connected to a 100Mbps Fast Ethernet

network.

Off When the respective port is connected to a 10Mbps

Ethernet or 1000Mbps Gigabit Ethernet network.

Installing the SmartConsole

Utility

The SmartConsole Utility allows a user to monitor and configure multiple

D-Link Web-Smart Switches from a workstation connected to the network.

Follow these steps to install the SmartConsole Utility:

1. Insert the Utility CD in the CD-Rom Drive.

2. From the Start menu on the Windows desktop, choose Run.

3. In the Run dialog box, type D:\SmartConsole Utility\setup.exe

( where D:\ represents the drive letter of your CD-ROM)

your CD-Rom drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files -> SmartConsole Utility

and execute the SmartConsole utility. (Figure 1.)

Figure 1. SmartConsole Utility

Configuring the Switch

The DES-1252 has a Web GUI interface for smart switch configuration.

The Switch can be configured through the Web Browser. A network

administrator can manage, control and monitor the switch from the local

LAN. This section indicates how to configure the Switch to enable its

smart functions.

Note: Use Internet Explorer 5.5 or above to properly access and view the

configuration..

In order to login and configure the switch via an Ethernet connection, the

PC must have an IP address in the same range as the switch. For

example, if the switch has an IP address of 192.168.0.1, the PC should

have an IP address of 192.168.0.x (where x is a number between 2 and

254), and a subnet mask of 255.255.255.0.

Open your web browser and enter http://192.168.0.1 (the factory-default

IP address) in the address box. Then press <Enter>.

The web configuration can also be accessed through the SmartConsole

Utility. Open the SmartConsole Utility and double-click the switch as it

appears in the Monitor List. This will automatically load the web

configuration in your web browser.

When the following logon box appears, enter "admin" for the password.

Press Ok to enter the main configuration window. (Figure 3.)

ure 3

Figure 2

Once you have successfully logged in, the device status page will appear.

(Figure 4)

Setup Menu

All configuration options on the switch are accessed through the Setup

menu on the left side of the screen (Figure 5). Click on the setup item

that you want to configure. The menu contains the following options:

System Setting, Trap Setting, Port Setting, SNMP Setting, Password

Access Control, 802.1Q VLAN, Trunking, IGMP Snooping, 802.1D

Spanning Tree, Port Mirroring, 802.1p Default Priority, Safeguard Engine,

Broadcast Storm Control, 802.1X Setting, Static MAC, Dynamic

Forwarding Table and Statistics. (Figure 5).

Figure 5

Figure 4
