D-Link DAP-3760 Manual de usuario

Long Distance Wireless Outdoor Bridge

DAP-3760

Quick Installation Guide+

Руководство по быстрой установке+

Guía de Instalación Rápida+

Guia de Instalação Rápida+

快速安裝指南+

Petunjuk Pemasangan Cepat+

Quick Install Guide

DAP-3760

Long Distance Wireless

Outdoor Bridge

3 D-Link DAP-3760

be reproduced, adapted, stored in a retrieval system, translated into

any language, or transmitted in any form or by any means without

the written permission of the supplier.

This Installation Guide is intended to guide professional installer to

install the DAP-3760. It includes procedures to assist you in avoiding

unforeseen problems.

Warning:

This indicates a warning or caution that you have to abide.•

Note:

This indicates an important note that you must pay attention to.•

About the Installation Guide

Conventions

4D-Link DAP-3760

Introduction

The DAP-3760 is a high-performance outdoor-deployable wireless bridge that

provides wireless connectivity among multiple network locations. It supports PTP

and PTMP connectivity. Moreover, the DAP-3760 has a built-in 23dBi planar antenna

that can deliver up to a 40Km connection. With high throughput and long-distance

transmission, the DAP-3760 is an ideal backhaul solution for Carriers, Service

Providers and Enterprises!

Before Installation

Professional Installation Required

Safety Precautions

5 D-Link DAP-3760

Before Installation

Professional Installation Required

Safety Precautions

This chapter describes safety precautions and product information

you have to know and check before installing DAP-3760.

1. Please seek assistance from a professional installer who is well

trained in the RF installation and knowledgeable in the local

regulations.

2. The DAP-3760 is distributed through distributor and system installer

with professional technicians and will not be sold directly through

retail store.

To keep you safe and install the hardware properly, please read and

follow these safety precautions.

1. If you are installing an DAP-3760 for the rst time, for your safety as

well as others’, please seek assistance from a professional installer

who has received safety training on the hazards involved.

2. Keep safety as well as performance in mind when selecting your

installation site, especially where there are electric power and

phone lines.

3. When installing your antenna, note the following:

• Do not use a metal ladder;

• Do not work on a wet or windy day;

• Wear shoes with rubber soles and heels, rubber gloves, long

sleeved shirt or jacket.

4. When the system is operational, avoid standing directly in front

of the antenna. Strong RF elds are present when the transmitter

is on.

6D-Link DAP-3760

Product Package

Mounting Kit

The product package you have received should contain the following

items. If any of them are not included or damaged, please contact

your local vendor for support.

DAP-3760withintegrated23dBi antenna ×1•

Mounting Kit ×1•

PoE Injector & Power cord ×1•

Grounding Wire with Screw ×1•

Water Proof RJ-45 Connector Kit ×1•

Quick Installation Guide ×1•

Product CD ×1•

Wall/Pole Mounting Bracket•

1. T-Form Bracket ×1

2. Articulation Pole ×1

3. Pole Mount Bar ×1

Fasteners•

10. Wood Screw ×4 (for Wall Mount)

11. Wall/Gyprock Plug ×4 (for Wall Mount)

Note:

Product CD contains Management Tool, Quick Installation Guide• and User Manual!

4. M8×80 Screw ×2

M8×90 Screw ×1

5. M8 Washer ×3

6. M8 Spring Washer ×3

7. M8 Nut ×1

8. M5×16 Screw ×4

9. M5 Washer ×4

7 D-Link DAP-3760

Waterproof RJ-45 Connector Kit

1. Gland ×1

2. Sealing Nut ×1

3. Sealing ×1

8D-Link DAP-3760

System Installation

Assemble the Mounting Bracket

1. Place the main bracket into the seating and use a spanner to

fasten the bracket to the DAP-3760 with M5×16 screws ⑧ and

M5 washers ⑨ provided in the hardware packets;

2. Assemble the main bracket by placing articulation pole ②to the

T-form bracket ① via a M8×90 ④ screw through the insertion axe

and x with the M8 washer ⑤, spring washer ⑥ and M8 nut ⑦ ;

9 D-Link DAP-3760

System Installation

Assemble the Mounting Bracket

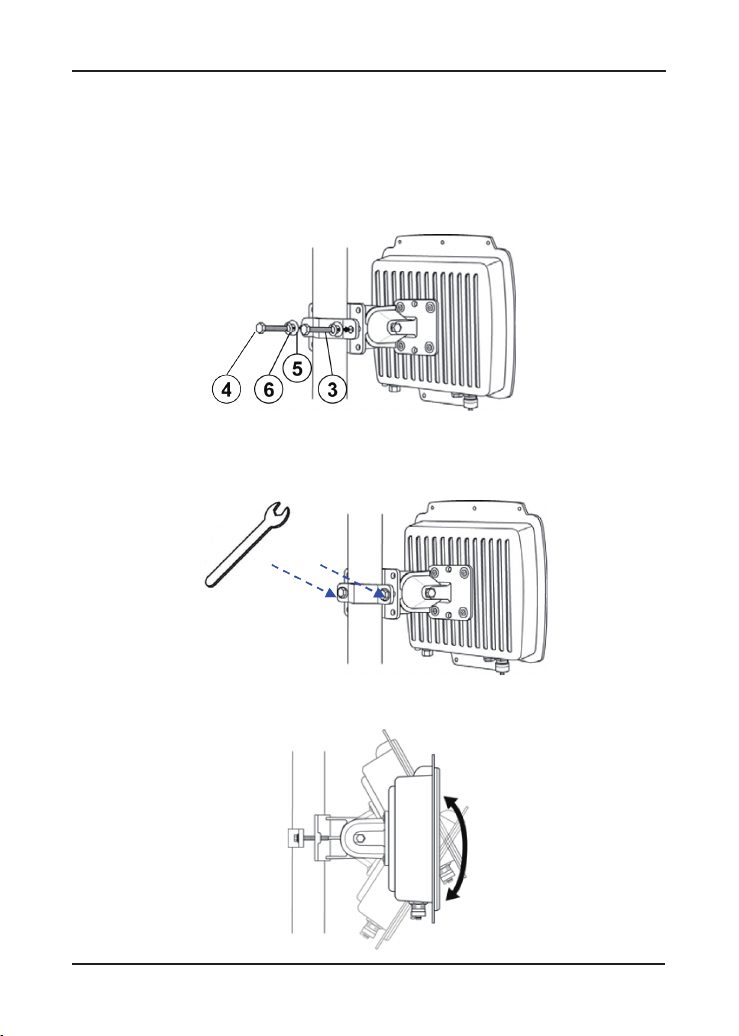

Pole Mounting

1. Install the main bracket and the pole mount bar ③ over the top of

the pole by securing the drill holes of the pole mount bar to the main

bracket ones and insert two M8×80 ④ screws, spring washers

⑤ and washers ⑥ through the drill holes and main bracket;

2. Fasten two M8×80 screws ④ and washers ⑤ through the drill

holes and main bracket with a spanner;

3. Adjust the antenna for appropriate tilt / vertical orientation.

10D-Link DAP-3760

Connect Up

Before installing the Ethernet cable with a waterproof RJ-45 connector,

it is recommended that the Cat-5 RJ-45 coaxial cable be used for the

bridge to power injector connections.

1. To connect to the hole labeled PoE+Data, open the black cover in

advance by using a coin or a slotted screwdriver and then screw

in the body of the gland and tighten.

2. Slide the sealing nut to the RJ-45 cable from its middle breach and

then insert the sealing into the cable.

3. Insert the RJ-45 connector and make sure that the locking tab

snaps home.

4. Screw the sealing on the gland and tighten.

Ground the wire

Power On
