D-Link DVG-2032 Manual de usuario

Before You Begin

You must have the following:

ΘʳA subscription with the service provider included in this package

ΘʳA Computer with a CD-ROM drive and an Ethernet port running Windows

ΘʳEthernet-based broadband modem

Check Your Package Contents

If any of the items below are missing, please contact your reseller.

These are the items included with your DVG-2032 purchase:

This product can be set up using Internet

Explorer or Netscape Navigator, 6.x or

above, with Javascript enabled

DVG-2032

DVG-2032 FXS VoIP Gatewa

FXS

oIP Gatewa

Centronics Cable x 2

CAT5 Ethernet Cable

CD-ROM

AC Power Cord

their respective holders. Software and specifications subject to change without notice. DVG-2032 FXS

VoIP Gateway

Hardware Overview

Front Panel

Connects to your broadband modem using an Ethernet

cable.

WAN Port

WAN LED When a connection is established, the 10 or 100 LED will

light up. The LED will blink to indicate activity. If the 10 or

100 LED does not light up when a cable is connected,

verify the cable connections and make sure your devices

are powered on.

LAN Port Connect to an Ethernet enabled computer using

Ethernet cabling.

LAN LED When a connection is established, the 10 or 100 LED

will light up. The LED will blink to indicate activity. If the

10 or 100 LED does not light up when a cable is

connected, verify the cable connections and make sure

your devices are powered on.

Reset This button is used to reset the unit to its factory default

settings.

Power LED Indicates the unit is powered on.

Run LED The Run LED will flash during the self-test/boot process

and light green if the self-test or boot fails.

The Alarm LED will light red if the self-test or boot fails.

The Alarm will flash red while the system is registering or

if registration fails.

Alarm LED

Phone LEDs

(1-32)

These LEDs display the VoIP status and Hook activity

on the phone ports that are used to connect normal

telephones. If a phone connected to a phone port is off

hook or in use, this LED will light up. When a phone is

ringing, the indicator will blink.

Rear Panel

RJ-21

Connector

to Phone

Ports

Connect up to thirty-two phones using (included)

Centronics cables.

Power

Switch Used to turn the unit on and off.

AC Input The power cord connects here.

Connecting the DVG-2032 directly

to a Modem and Computer

If your computer connects directly to a DSL or Cable modem and does

not connect to a router, follow the steps below to install your DVG-2032.

For any other configuration, please refer to the user manual located on

the CD-ROM. After the steps are completed, your setup should look

similar to the diagram below.

a. Turn off your Computer.

b. Disconnect the power to your Cable/DSL Modem (unplug it or turn off

the power switch).

c. Unplug the Ethernet cable that is connected to your Cable/DSL

Modem’s LAN or Ethernet port. Leave

the other end of this cable connected to

your PC.

d. Plug the Ethernet cable connector that

you just removed from the modem into

the LAN port on the front of the DVG-

2032. The other end remains

connected to the PC.

Connecting the DVG-2032 directly to

a Modem and Computer

(

continued

)

e. Connect one end of the Ethernet Cable provided in this package to

the LAN or Ethernet Port on the Cable/DSL Modem.

f. Connect the other end of the provided

Ethernet Cable to the WAN Port of the

DVG-2032.

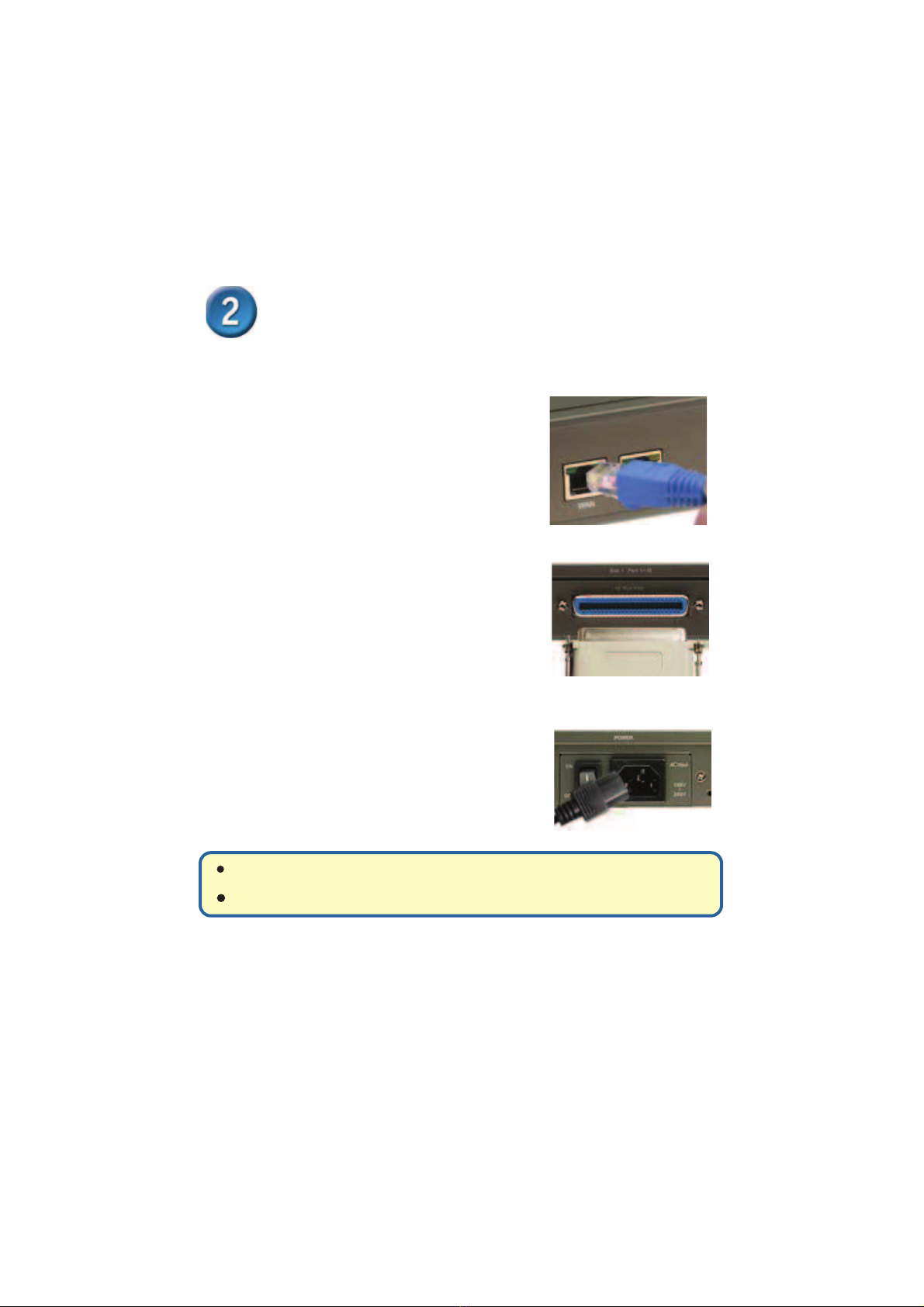

g. Connect one end of one of the provided Centronics phone cables to

a standard analog telephone.

h. Connect the other end of the cable to one

of the Centronics ports on the rear panel of

the DVG-2032.

i. Restore power to the Cable/DSL Modem (plug it in or turn on the

power switch).

j. Restart your PC.

If your ISP registers your computer’s MAC address, see the section labeled MAC

Cloning for Connections in the user manual on the CD-ROM.

PPPoE Users, please continue to the next page for additional configuration steps.

Hardware configuration is complete! If your VoIP service is already activated, you

can make phone calls now.

PPPoE Configuration

Some Internet Service providers use PPPoE as their method of

connecting clients. If you have a PPPoE connection, you must follow the

steps below to complete the configuration of your hardware. If you are

unsure of your connection type or do not know your username and

password, please check with your Internet Service Provider.

Open your Web browser and

type http://192.168.8.254 into

the URL address box. Press

the Enter or Return Key

Click OK to enter Web Site.

Click Network Settings.

Click PPPoE.

Enter PPPoE Account,Password

and Confirm Password.

PPPoE Configuration (continued)

Click Accept at the bottom of

this page.

Click System Operation in the

left menu.

Select Save Settings and

Restart.

Click Accept.

Once the unit reboots you will see

a message. Check to see if the

status LED light goes from

blinking green to solid green on

the front panel of the DVG-2032.

The information displayed on

the Device Information page is

necessary for VoIP service

registration
