VoIP Station Gateway

Gateway Series

DG-104S/SH

Key Features

VoIP Station Gateway for SOHO

The DG-104S/SH VoIP Station Gateway links traditional telephony networks to IP networks,

allowing reductions in toll charges and networkconsolidation. It offersa cost-effective wayto

leverage existing IP networks and provide alternative long-distance voice/fax services-

domestically, regionally and internationally.

Connect Data and Voice Network

IP Sharing

D-Link VoIP Station Gateway provides a

connection path between the POTS (plain

old telephone service) lines via global

Internet network with conventional

telephony equipment such as telephones

and fax machines using loop start foreign

exchange station (FXS) interfaces. It is a

complete solution for connecting existing

telephony equipment in homes and small

offices to private networks or the public

Internet.

The Gateway supports Network Address

Translator (NAT) protocol, which allows

multiple users to access the Internet using a

single shared IP address. This can greatly

reduce the costs associated with Internet

access and provide a degree of security to

your Internet connection.

4 Voice/Fax over IP Channels

Reduce Long Distance Phone

Charges

Reduce Leased Lines

The Gateway comprises 4 voice/fax over IP

channels with the female RJ-11 connectors

that provide voice/fax communication over

the existing IPdata network orthe Internet.

By routing calls over the Internet or any IP

network, this gateway can reduce or

eliminate long distance inter-office phone

charges.

Corporations can also enjoy the benefits of

network consolidation and reduction of

leased lines by relying on the Internet

service providers to deliver quality voice

communication over private and public IP

networks.

4 Foreign Exchange Subscriber (FXS) POTS

ports (RJ-11 Jacks)

2 Nway 10/100BASE-TX Fast Ethernet ports

Voice Activity Detection (VAD) /Comfort

Noise Generation (CNG)

Silence suppression to reduce bandwidth

consumption.

Adaptive jitter buffer for a smooth voice

Reception

IP address assignment using DHCP or static

Configuration

Lost packet recovery ability for improved

voice quality

Command port for easy configuration

Remote configuration and management over

the Internet using web browsers

Support QoS function to guarantee voice quality

GATEWAY

DG-104S/SH VoIP Station Gateway provides 4 RJ-11

analog loop-start FXS ports, 1 RJ-45 10/100 MbpsWAN port

and 1 RJ-45 10/100 Mbps LAN port, linking traditional

telephony networks to IP networks.

10/100BASE TX

WAN

LAN

Rev. 01 (Nov.1999)

Printed in Taiwan

7DCM20000010

RECYCLABLE

Technical Specifications

VoIP Station Gateway

General

Physical & Environmental

Protocol

- Call Control ProtocolsCompliant:

MGCP/ H.323 v2

- Internet Protocols Compliant:

TCP/IP,UDP,ARP, TFTP, ICMP, Telnet, SNMP, HTTP, NAT

- Fax Relay ProtocolsCompliant

T.38

- AvailableAudio Compression

G.711, G.723.1, G.729A

Standard

- IEEE 802.3 10BASE-T Ethernet Compliant

- IEEE 802.3u 100BASE-TXFast Ethernet Compliant

Analog

- Number of ports:4(FXS)

- Signal Format: DTMF

- Echo Cancellation: G.165/G.168

- DTMF tone detection/generation

LED Report

Ethernet

-WAN:Speed,Link/Act

-LAN:Speed, Link/Act

Phone

-Hook/Ringing

General

-Power

-Status

Number of Ports

Two 10/100BASE-TxFast Ethernet port(WAN & LAN)

Four loop-start FXSRJ-11 ports

One RS-232C, DB-9Console port

Power Supply

AC-to-DC power adapter(provided)

DC Input: 12VDC/ 1A

Dimensions

220(W) x 167.2(D)x 44.5(H) mm

Operating Temperature

0 - 50

Storage Temperature

-10 - 70

Humidity

5% - 95%non-condensing

Emission(EMI)

FCC class B

VCCI class B

BSMI class B

CE class B

C-Tick classB

Safety

UL/CUL

CSA

GATEWAY

Specifications subject to change

without prior notice.

D-Link is a registered trademark of

D-Link Corporation/D-Link System

Inc. All other trademarks belong to

their proprietors.

TEL: 1-949-788-0805

TEL: 1-905-829-5033

TEL: 44-181-235-5555

TEL: 49-(0)6192-97110

TEL: 33-1-30.23.86.88

TEL: 39-2-2900-0676

TEL: 46-8-700.62.11

TEL: 45-43-96.90.40

TEL: 65-774-6233

TEL: 61-2-9417-7100

TEL: 81-3-5434-9678

TEL: 86-10-86822166

TEL: 91-22-617-2478

TEL: 202-2456176

TEL: 56-2-232-3185

TEL: 886-2-2910-2626

TEL: 886-2-2916-1600

FAX: 1-949-753-7033

FAX: 1-905-829-5223

FAX: 44-181-235-5500

FAX: 49-(0)6192-971111

FAX: 33-1-30.23.86.89

FAX: 39-2-2900-1723

FAX: 46-8-21.96.40

FAX: 45-43-42.43.47

FAX: 65-774-6322

FAX: 61-2-9417-1077

FAX: 81-3-5434-9868

FAX: 86-10-68017990

FAX: 91-22-617-2476

FAX: 202-2456192

FAX: 56-2-232-0923

FAX: 886-2-2910-1515

FAX: 886-2-2914-6299

U.S.A.

Canada

Europe

U.K.

Germany

France

Italy

Sweden

Denmark

Singapore

Australia

Japan

China

India

Middle East

South America

Taiwan

D-Link Corp.

Ordering Information

DG-104S MGCP VoIP Station Gateway

DG-104SH H.323 VoIP Station Gateway

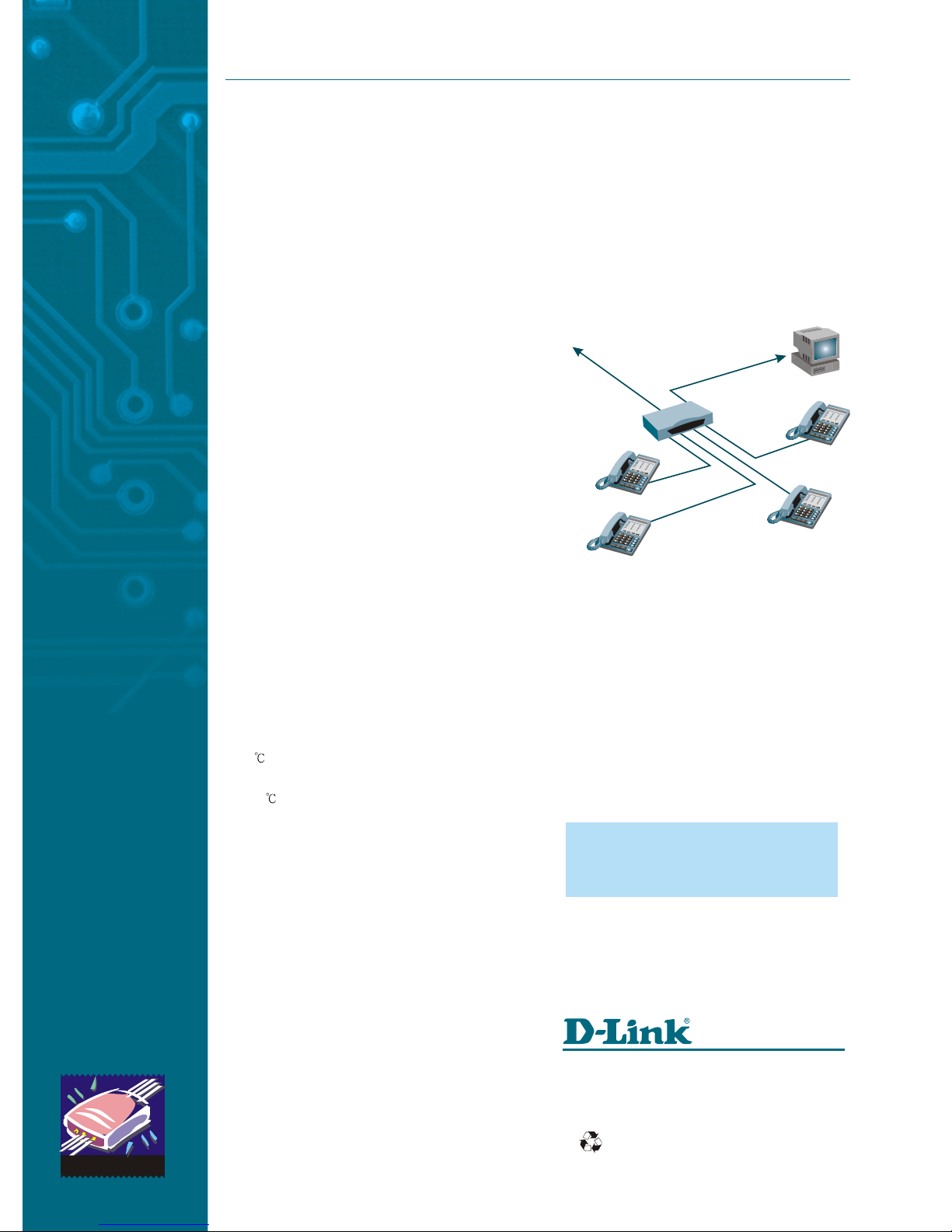

Telephone

D-Link VoIP

Station Gateway

10/100BASE-T
