D-Link DFL-800 - Security Appliance Manual de usuario

Network

Security Firewall

This Quick Guide will guide you through the installation Process. You are

only moments away from using your new D-Link Network Security Product

Building Networks for People

DFL-800

1.Before You Begin

1.1 Check Your Package Contents....................................................................1

2.Indentifying Components

2.1 Front View.................................................................................................2

2.2 LED Indicators...........................................................................................3

2.3 Default Interface Attribute Definition.........................................................3

3.Connecting the DFL-800

3.1 Setting up Firewall to your Network........................................................4

4.Configure DFL-800

4.1 Configure your Computer’s IP..................................................................5

4.2 Using the Setup Wizard.............................................................................6

5.Appendix

5.1 How to Configure Static IP Manually on Microsoft Windows XP..............14

5.2 How to Configure Static IP Manually on Apple MAC OS X...........................15

6.WARRANTY

DFL-800 Quick Installation Guide

1.1 Check Your Package Contents

Your NetDefend Network Security Firewall package should

contain all the items listed below. If any of these items is found

damaged or missing in your package, report it to your reseller

immediately for replacement.

One (1) DFL-800 NetDefend™ Network Security Firewall

One (1) Power Cord

One (1) 5V DC Power Adapter

One (1) Console Cable (RS-232 cable)

One (1) Ethernet (CAT5 UTP/Straight Through) Cable

One (1) Ethernet (CAT5 UTP/Cross-over) Cable

One (1) CD-ROM (containing QIG/Manual )

Two (2) Rack Mount Brackets

DFL-800

Before You Begin 1

DFL-800

Power Cord Power Adapter

Ethernet Cable

(Straight-Through)

Console Cable CD-ROM

Ethernet Cable

(Cross-over)

CD-ROM

Rack Mount Brackets

Identifying Components 2

The following illustrates the front panel of the DFL-800 and

explains the front panel’s key components:

2.1 Front View

1 2 3 4 5 6

1. Power LED

2. System LED

3. WAN Ports

4. DMZ Port

5. LAN Ports

6. Console Port

Power indication of the DFL-800.

System status indication of the DFL-800.

These are for the connection of an Ethernet cable to a Cable

or DSL modem.

This is for the connection of an Ethernet cable to an DMZ

network.

These are for the connection of Ethernet cables to the internal

network.

Connects to RS-232 console cable that connects to PC.

The console port is hidden behind a protection coverlid that

can be opened by pulling down the lid.

Note:

None of the WAN1 and WAN2 interfaces support Auto MDI/MDI-X

(Automatic cable detection for Straight-through and Crossover

function.

2.3 Default Interface Attribute definition

Note:

For security reason, default only allow LAN interface (192.168.1.1)

that can login into ﬁrewall GUI from Web browser. You also can

modify this conﬁguration after login into ﬁrewall GUI. About the

detail set up procedure, please refer to the user’s manual.

DFL-800 Quick Installation Guide

Wording on

Front plate

Default name

in ﬁrewall

Default interface

type deﬁnition

Default interface

IP Address

Default

DHCP Status

WAN1 WAN1 Static IP 192.168.110.254/24 Disable

WAN2 WAN2 Static IP 192.168.120.254/24 Disable

DMZ DMZ Static IP 172.17.100.254/24 Disable

Ports: 1~7 LAN Static IP 192.168.1.1/24 Disable

2.2 LED Indicators

Status

Solid green

Light off

Solid green

Light off

Blinking green

Light off

Solid Green

Blinking Green

Light off

Solid green

Description

The device is powered on.

The device is powered off.

System is operating properly.

The device is not working.

System is defective, such ﬁrmware

upgrade fail.

No link

Link present

Port is sending or receiving data.

Port is operating at 10Mbps.

Port is operating at 100Mbps.

Color

Green

LED

Power

System

Phone Jack LED

light (right)

Phone Jack LED

light (left)

3.1 Connecting Firewall to Your Network

A. First, connect the power cord to the receptor at the back panel of

the DFL-800 and then plug the other end of the power cord to a

wall outlet or power strip. Then powered on the DFL-800 using

the on/off switch. Now the Power LED will turn ON to indicate

proper operation.

B. 1. Powered off your Cable or DSL modem; some devices may

not have a on/off switch and will require you to unplug the power

adapter. Now, the DFL-800 should be powered on and the Cable

/ DSL modem should be turned off.

2. Cable / DSL modem (Powered Off) - DFL-800 (Powered On)

Connect an Ethernet cable to the Ethernet jack located on

the Cable / DSL modem. After the Ethernet cable is securely

connected, powered on the Cable / DSL modem by turning on

the unit or plugging in the power adapter.

3. Cable / DSL modem (Powered On) - DFL-800 (Powered On)

Insert the other end of the Ethernet cable to one of the Ethernet

ports on the front panel of the DFL-800. The LED light above the

Enternet port will illuminate to indicate proper connection. If the

LED light is not illuminated, please go back to step B and repeat

its instructions.

C. Insert an Ethernet cable to the LAN1 port on the front panel of

the DFL-800 and connect it to a port on your network hub or

switch. The LED light above the Ethernet port on the DFL-800

will illuminate to indicate proper connection

D. Connecting the computer that you will use to conﬁgure the

DFL-800 to the network hub or switch.

Connecting the DFL-800 3

4.1 Configure Your Computer’s IP Address

Make sure that the network adapter in your computer is conﬁgured

to use a static IP address with 192.168.1.1 as default gateway and

255.255.255.0 as netmask. Instructions on how to conﬁgure the

network adapter can be found in the appendix.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Configure DFL-800 4

Cable/DSL Modem

DFL-800

Switch

Internal

Network

DMZ

Network

(optional)

Computer1 Computer2

4.2 Using the Setup Wizard

The DFL-800 provides Web based conﬁ guration. You can

conﬁ gure your DFL-800 through Internet Explorer 6 or Firefox

1.0 browser in MS Windows, Macintosh or UNIX based

platforms.

Activate your browser. Then type the IP address of the

DFL-800 into the Location (for Netscape) or Address (for IE)

ﬁ eld and press “Enter.” For example: http://192.168.1.1.

(The IP Address shown in the example above is the default

setting. If you have changed the IP Address of the DFL-800

to conform to a network, then input that IP Address in the web

browser, instead of the default IP Address shown.)

Log on to the DFL-800 web interface.

To start using the DFL-800 web interface you need to log on

using the default username and password.

DFL-800 Quick Installation Guide

Open your Web

browser and type

http://192.168.1.1 /

into the URL address

box. Then press the

Enter or Return key.

Type the default

Username/Password

Username: admin

Pasword: admin

and click Login

Step1 - Welcome to the DFL-800 setup wizard!

Step2 - Set up ﬁ rewall administrator password

First Enter the

username that you want

to use for the admin

account.

Enter the password

that you want to use

for the admin account.

DFL-800 Quick Installation Guide

This wizard will guide

you through the setup of

your DFL-800

Click Next

Step 3 - Set up time and date

Click Set time and date

button for setting device

Click Next

Select the appropriate date

Enter the appropriate time

Click OK

DFL-800 Quick Installation Guide

Otros manuales para DFL-800 - Security Appliance

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortafuegos de D-Link

D-Link

D-Link DFL-700 - Security Appliance Manual de usuario

D-Link

D-Link NetDefend DFL-260E Manual de usuario

D-Link

D-Link DFL-1600 - Security Appliance Manual de usuario

D-Link

D-Link DFL-210 - NetDefend - Security Appliance Manual de usuario

D-Link

D-Link NetDefend DFL-260E Manual de usuario

D-Link

D-Link NetDefend DFL-860E Manual de usuario

D-Link

D-Link NetDefend DFL-260E Manual de usuario

D-Link

D-Link NetDefend DFL-260E Manual de usuario

D-Link

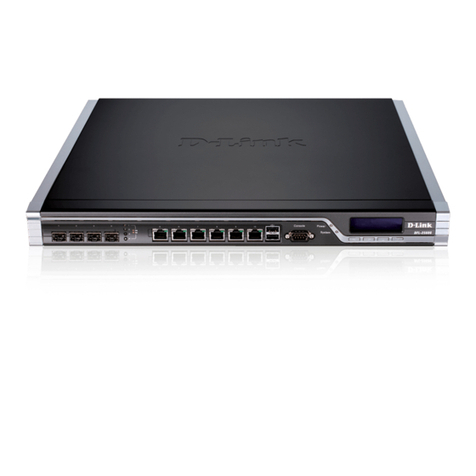

D-Link NetDefend DFL-2560G Manual
