D-Link DFL-80 Manual de usuario

DFL-80

4-Port Ethernet

VPN Firewall

5V DC Power Adapter

specificationssubjecttochangewithoutnotice.DFL-80. 03142003

Before You Begin

1. IfyoupurchasedthisFirewalltoshareyourhigh-speedInternetconnectionwith

othercomputers,youmusthaveeitheranEthernet-basedCableorDSLmodem

withanestablishedInternetaccountfromanInternet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DFL-80 VPN Firewall. The DFL-80 acts as a DHCP server and will assign all

the necessary IP address information on your network. See Appendix at the end

of this Quick Installation Guide or the Manual on the CD-ROM for setting each

network adapter to automatically obtain an IP address.

Check Your Package Contents

DFL-80 4-Port Ethernet VPN Firewall

CD-ROM (containing Manual and Warranty)

Ethernet (Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

PartNo. IG-BDFL80

Connecting The DFL-80 Firewall To Your

Network

Reset Button

Pressing this button restores

the Firewall to its original

factory default settings.

A.Receptorfor

Power Adapter.

B.EXTERNAL PORT

This is for the connection of an Ethernet

cable to the Cable or DSL modem

C. LAN PORTS These are

theconnectionsforEthernet

cablesto Ethernet enabled

computers.

D. DMZ Port

This is for the connection

toNetwork Servers.

A. First, connect the power adapter to the receptor at the back panel of the DFL-

80 and then plug the other end of the power adapter to a wall outlet or power

strip.The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices maynothave an on/off

switchandwillrequireyou to unplug the power adapter. Now,the DFL-80 should

bepowered on and the Cable / DSL modem should be turned off.

2.Cable/DSL modem (Power Off) – DFL-80 (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem.After the Ethernet cable is securely connected, power on the Cable /

DSLmodem by turning on the unit or plugging in the power adapter.

3.Cable / DSL modem (PowerOn) – DFL-80 (PowerOn)

Insert the other end of the Ethernet cable to the EXTERNAL PORT on the back

panelof the DFL-80. The EXTERNAL LED light will illuminate to indicateproper

connection. If the EXTERNAL LED is not illuminated, please go back to step B

and repeat its instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DFL-80 and an

available Ethernet port on the network adapter in the computer you will use to

configure the DFL-80. The LED light for LAN Port 1 will illuminate to indicate

properconnection. (Note:TheLAN Portson the DFL-80areAuto-MDI/MDIX.

Meaningyoucanusea straight-through or crossover-Ethernet cable to the LAN

Ports.)

D. DMZ port is used to connect to a DMZ network which contains Network Servers.

Restart Your Computer

Connecting Additional Computers To

The DFL-80

Usingadditional Ethernet (CAT5 UTP) cables, connect your

Ethernet-equippedcomputers to the remaining Ethernet LAN ports

on the back panel of the DFL-80

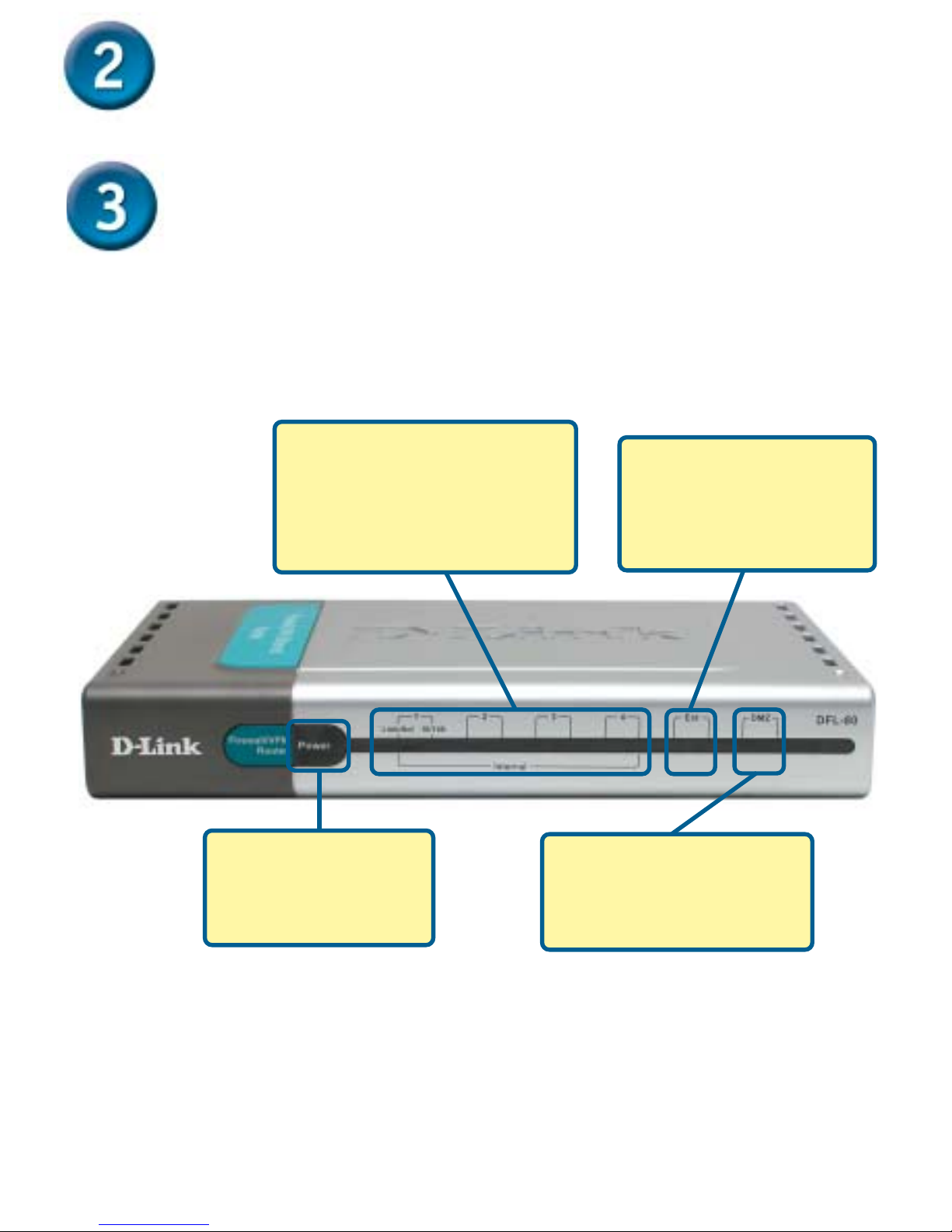

POWER LED – a solid

lightindicates a proper

connection to the

powersupply.

LOCALNETWORK LEDs – a

solid light on the port indicates

a connection to an Ethernet

enabledcomputer on ports 1-4.

This LED blinks during data

transmission.

External LED – a solid

light indicates connection

on the WAN port. This

LEDblinksduring data

transmission.

DMZ LED – a solid light

indicates connection on the

DMZ port. This LED blinks

duringdatatransmission.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

Thelog-on pop-upscreenwillappear.

Open your Web browser and

type “http://192.168.1.1” intothe

URLaddress box. Thenpressthe

Enter orReturn key.

Type “admin” for the username and

“admin” for the password

ClickOK

The Setup Wizard (continued)

Once you have logged in, the

Home screen will appear.

You will see the following screens

Set up your new password.

You have the option to establish

apassword, for theAdmin

account

Click Setup Wizard

Click Next

The Setup Wizard (continued)

Select your Internet Connection.

You will be prompted to select the

typeof Internet connection for your

network.

Click Next

Choose your time zone based

fromGMT time. Click onAssist to

select your time zone from the

availableselections.

Click Next

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

The Setup Wizard (continued)

If your ISP requires a Static IP

Address,and this option is

selected, then this screen will

appear:

Enterthe IP address information

originallyprovided to you by your

ISP. You will need to complete all

therequired fields.

If you selected Dynamic IP

Address,this screen will

appear: (Usedmainly for

CableInternetservice.)

This setup should be done on

the computer that is registered

on the ISP’s network.

Click the“Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

Please continue to the last part of step 4, Set Outgoing Policy.

The Setup Wizard (continued)

If your ISP uses PPPoE (Point-

to-PointProtocol over Ethernet),

and this option is selected, then

this screen will appear: (Used

mainlyfor DSL Internetservice.)

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and

passwordprovided to you by

your ISP.

Click Next

Set Outgoing Policy. You will be

prompted to select the type of

Internetconnection for your

network.

Make sure that Any Services

is selected.

Your Setup is Complete!

ClickRestart

Please wait for the DFL-80 to

savethe changes and reboot.

Whenthe DFL-80 has finished

rebooting,you will be brought

back to the main web page.

Test Internet Connection.

You will be returned to the main web page.

For additional settings or information, refer to the Manual located on the CD.

Then relaunch yourWebbrowser(i.e.,Internet Explorer or Netscape Navigator),

to link to your favorite Web site to test your Internet connection.

Click toExit
