D-Link DAP-1325 Manual de usuario

DAP-1325

Quick Install Guide

Mesh Wi-Fi Range Extender

2DAP-1325 Install Guide

Package Contents

DAP-1325 Mesh Wi-Fi Range Extender

Wi-Fi Conguration Card

Quick Install Guide

If any of the above items are missing, please contact your reseller.

• For setup, you will want your Range Extender to be plugged into

an available outlet as close to your Wi-Fi Router as possible. Once

setup is complete, you can plug it into an outlet in the area between

your Wi-Fi router and where you want improved coverage. See the

Troubleshooting section for tips on Wi-Fi Extender placement.

• If your wireless router or access point does not have a

WPS button ( , ), follow the steps under Method Two: QRS

Mobile Setup to set up your Range Extender.

Before You Begin

DAP-1325 Install Guide 3

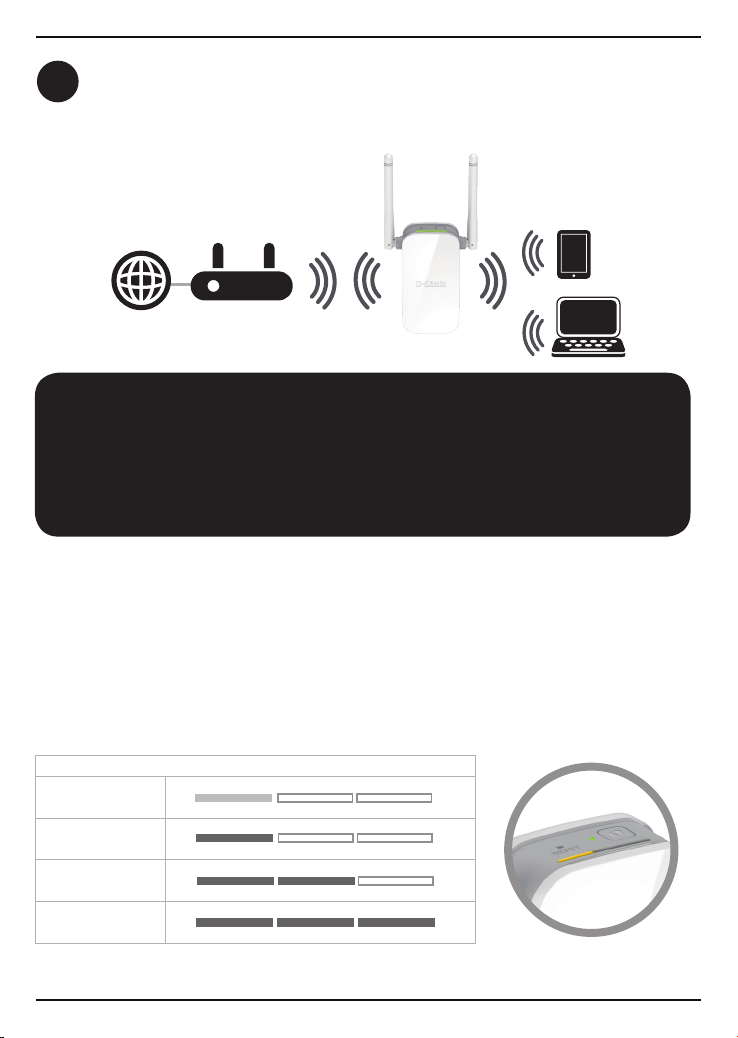

Product Overview

LED Color Status Description

Status LED

Red Solid The device is powering on.

Amber Blinking The device is ready but not connected to a router or

access point.

Green

Solid Indicates that the range extender is securely

connected to your wireless router or access point.

Blinking The WPS button has been pushed and the device is

establishing a connection.

Status LED

Signal

Strength

Indicator

Reset Button

WPS Button

Ethernet Port

Signal Strength Indicator

Very Weak (1 x Amber)

Weak (1 x Green)

Good (2 x Green)

Strong (3 x Green)

4DAP-1325 Install Guide

Once conrmed that the WPS light is blinking on

your router, within one minute, press the WPS

button on your Range Extender for 2-3 seconds.

The Status LED should start to blink green.

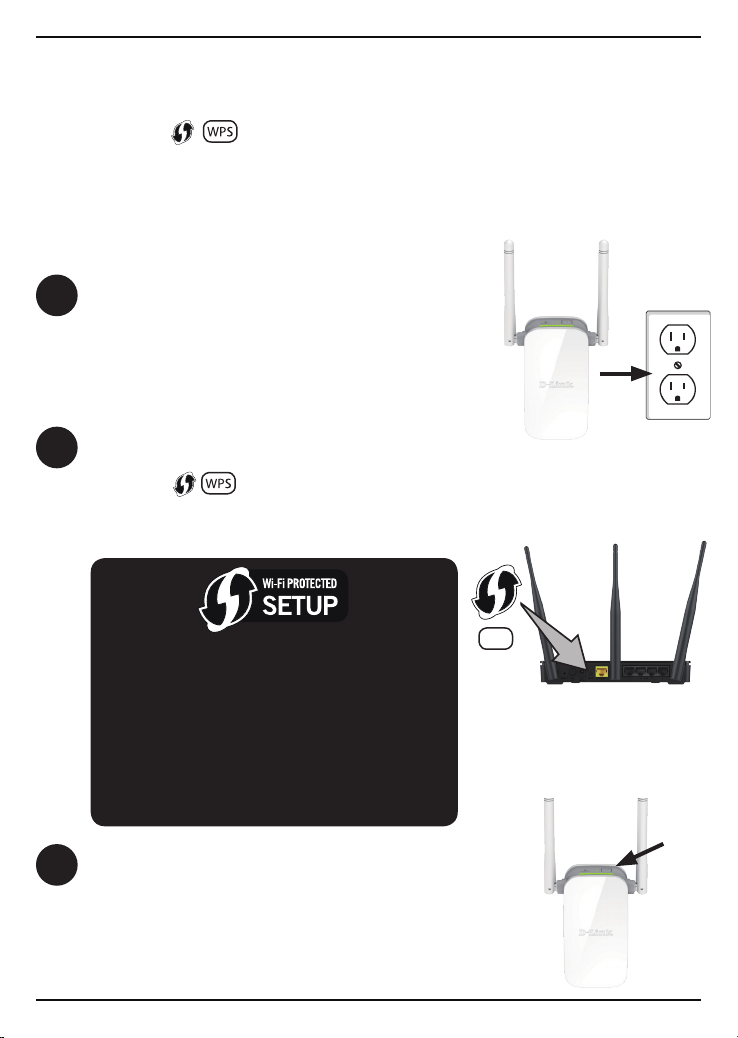

1Plug your Range Extender into an available outlet

near your wireless router and wait until the

Status LED is blinking amber (this may take up

to 3 minutes). You can move it to a more suitable

location after it is set up.

DAP-1320

2Press the WPS (Wi-Fi Protected Setup) button on

your wireless router for 3 seconds. Look for the

WPS light ( , ) on your router and make sure

it is blinking. If it does not blink, see the important

note below.

WPS

Method One: Quick WPS Setup

There are two easy ways to set up your Range Extender.

It is recommended that you use Method One. If your router does not have

a WPS button ( , ), see Method Two: QRS Mobile Setup, on page 6.

IMPORTANT

WPS may be disabled on some Routers or Modems.

If the WPS Status LED on your Router or Modem

does not start blinking when you have pressed the

WPS button, try again and hold it a little longer. If

it still does not blink, STOP, and congure your

Range Extender using Method Two: QRS Mobile

Setup, on page 6.

WPS

DAP-1325 Install Guide 5

4When the Status LED turns solid green (may take up to 3 minutes), this indicates

that your Range Extender is securely connected to your wireless router.

Note: If the Status LED on your Range Extender does not turn solid green

after running WPS setup, try resetting the unit (see Troubleshooting - What

if I forgot my Range Extender’s Admin password or want to reset my Range

Extender?) and try WPS setup again. If it still does not turn solid green after

following all the steps, see Method Two: QRS Mobile Setup, on page 6.

If after moving your Range Extender, the signal strength indicator is showing one single

amber bar or if your Range Extender LED does not turn solid green within 3 minutes,

move your Range Extender to a wall outlet closer to your wireless router.

Signal Strength Indicator

Very Weak (1 x Amber)

Weak (1 x Green)

Good (2 x Green)

Strong (3 x Green)

Your setup is complete! You can now unplug and move your Range Extender

to a location between your wireless router and the area where you want wireless

coverage. By default, your Range Extender will share the same name and

password as your Router.

6DAP-1325 Install Guide

Method Two: QRS Mobile Setup

1Search for “QRS Mobile” on the App Store or Google

Play and download the QRS Mobile App to your

iPhone, iPad, or Android device. Do not launch the

app until step 4. QRS Mobile App

You now need to connect to your Range Extender. Go to Wi-Fi Settings

on your mobile device. From the list of available Wi-Fi networks, select

the Wi-Fi Name (SSID) as listed on the supplied Wi-Fi Conguration card

and enter the Wi-Fi Password when prompted. Note: It is OK if you see an

“Internet may not be available” notication or similar during the setup process.

Wi-Fi Name(SSID):

dlink-xxxx

Password: xxxxxxxx

Wi-Fi Name(SSID):

Wi-Fi Password:

Your conguration

Username: “Admin”

Password:

Username: “Admin”

Password:”“ (leave the eld blank)

DCCAROOWIFI0020

2Plug your Range Extender into an available outlet

near your wireless router and wait until the

Status LED is blinking amber (this may take up to 3

minutes). You can move your Range Extender to a

more suitable location after it is set up.

DAP-1320

Once connected to your Range

Extender, launch the QRS Mobile

app, wait for the Introduction Screen

to change to the Welcome Screen

(this may take up to 30 seconds),

then tap Start to continue.

Up to 30

seconds

DAP-1325 Install Guide 7

Your setup is complete! You can now unplug and move your Range Extender

to a location between your Wireless Router and the area where you want

wireless coverage. By default, your Range Extender will share the same

name and password as your Router.

When prompted to select a Mode,

select Repeater (default), then tap

Next to continue. Please follow the

on-screen instructions to complete

the setup.

If after moving your Range Extender, the signal strength indicator is showing

one single amber bar or if your Range Extender LED does not turn solid green

within 3 minutes, move your Range Extender to a wall outlet closer to your

wireless router.

Signal Strength Indicator

Very Weak (1 x Amber)

Weak (1 x Green)

Good (2 x Green)

Strong (3 x Green)

8DAP-1325 Install Guide

Troubleshooting

Why can’t I connect to my wireless router or my wireless connection drops?

1. Verify that your Range Extender is within range of your wireless router. Try plugging

it into a location closer to the router and verify the Status LED is solid green.

2. Note that when extending a wireless signal from a router or access point, devices

connected to the Range Extender will not get the same speed/throughput as when

connected directly to the router.

How do I change the wireless settings on my Range Extender?

1. Open a web browser (e.g., Internet Explorer, Firefox, Chrome, or Safari) and go to

http://dlinkap.local./

2. At the login screen, enter your Admin Password (If WPS Setup was used, password

is blank by default - just leave blank) and click Log in.

3. Go to Settings > Extender..

4. Enter a new Wi-Fi Network Name (SSID) and modify the security (Wi-Fi password)

settings as needed.

5. Click Save.

Note: If you have changed the Wi-Fi Network name or Wi-Fi Password, the device you are currently

using to connect to your Range Extender will drop. You will need to go to your Wi-Fi Settings and

connect to your Range Extender using the new network name and password.

DAP-1325 Install Guide 9

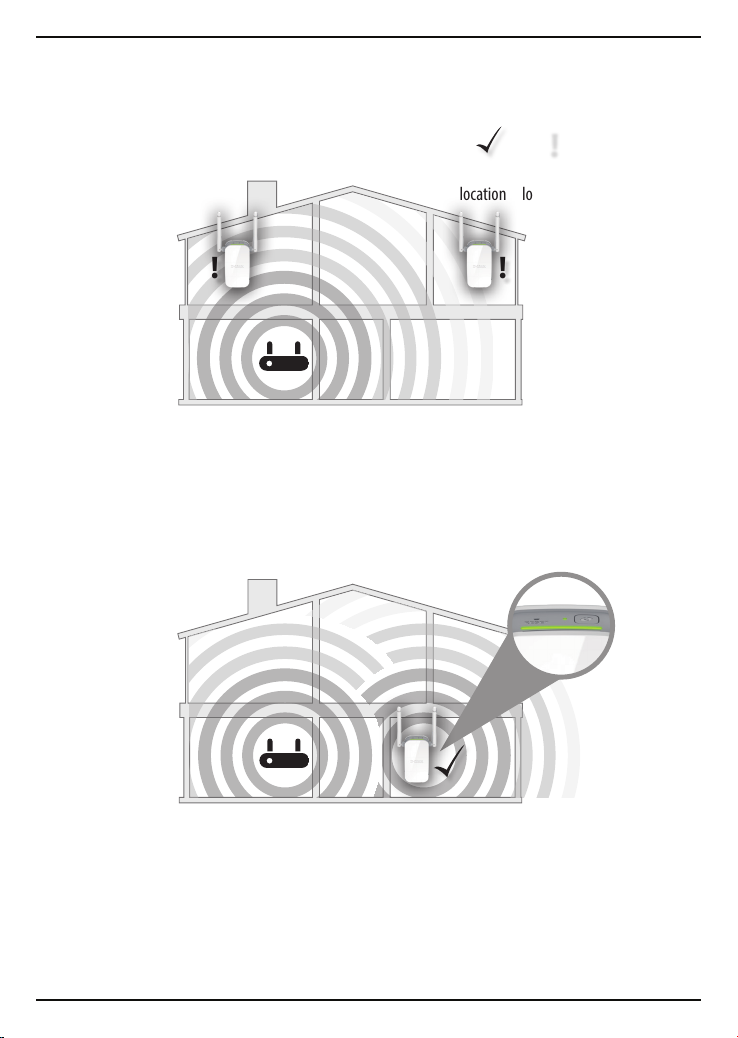

Where should I place my Range Extender for best performance?

A Range Extender only works as well as the signal it is extending.

Therefore, proper placement of your Range Extender is important

in achieving desired results.

For best performance, place your Range Extender in between

your router and your dead zone, making sure it is placed in a

location where theWi-Fi signal is still strong. Use the Smart Signal

Indicator to help nd a location with a strong signal. The more

bars lit on the signal indicator, the stronger the Wi-Fi signal is.

Poor

location

Ideal

location

Poor

location

Ideal

location

10 DAP-1325 Install Guide

What if I forgot my Range Extender’s Admin password or

want to reset my Range Extender?

1. If you forgot your Admin password or want to reset your

Range Extender back to the factory default settings, press

and hold the reset button on the bottom of the extender

using a paper clip and release after a minimum of 10

seconds. The Status light will turn red.

Note: This process will erase all your settings.

2. Setup your Range Extender using your preferred method.

Reset

Button

What if WPS setup is not working?

WPS may be disabled on some Routers or Modems. If the

WPS Status LED on your Router or Modem does not start

blinking when you have pressed theWPS button, try again

and hold it a little longer. If it still does not blink, STOP, and

congure your Range Extender using Method Two:

QRS Mobile Setup, on page 6.

What is Mesh Smart Roaming?

With Mesh Smart Roaming, your Wi-Fi device (e.g. SmartPhone, Tablet) will

automatically roam to the strongest Wi-Fi signal, eliminating the need to switch

between your Router’s and Range Extender’s Wi-Fi signal as you move around your

home.

Mesh Smart Roaming Requirements:

1. The Wi-Fi device (e.g. SmartPhone, Tablet) must support the 802.11k/v standard.

2. The Wireless Name (SSID) & Wireless Password must be the same on both

the Mesh Wi-Fi Range Extender and your Wireless Router.
