2D-Link DHP-300 User Manual
Table of Contents
Product Overview ........................................................3
Package Contents....................................................3
System Requirements ............................................. 3
Introduction..............................................................4
Features...................................................................5
Hardware Overview .................................................6
LEDs ..................................................................6
Connection......................................................... 7
Hardware Installation ..................................................8
Using the Setup Wizard...............................................9
Configuration............................................................. 13
Setup .....................................................................15
Security.................................................................. 17
QoS........................................................................18
Application QoS.....................................................19
Reset .....................................................................20
Troubleshooting.........................................................21
Technical Specifications...........................................22
Contacting Technical Support..................................23
Warranty .....................................................................24
Registration................................................................29
Table of Contents
3D-Link DHP-300 User Manual
Section 1 - Product Overview
• D-Link DHP-300 Powerline HD Ethernet Adapter
• CAT5 Ethernet Cable
• CD-ROM with Software and Manual
• Quick Installation Guide
System Requirements
• PC with 233MHz Processor, 64MB Memory
• Windows®XP SP2 or 2000 SP4
• Ethernet Adapter (100MBit/s)
Product Overview
Package Contents
4D-Link DHP-300 User Manual
Section 1 - Product Overview
Introduction
D-Link announces a fast, 200Mbps Powerline HD Ethernet Adapter which allows you to network your home computers,
networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines
- and share Internet connections, printers, transfer files, play games, and more. This kit can be used to network two
computers with a 10/100Base-T adapter through powerlines.
5D-Link DHP-300 User Manual
Section 1 - Product Overview
• Provides Ethernet to Powerline Connection
• Fast Data Transfer Rate of Up to 200Mbps
• One 10/100 Ethernet port
• Plug & Play, Easy Installation
• Easy to use Management Software
• Configurable QoS for video streaming, VoIP and Gaming
• Configurable encryption key for security
• Firmware Upgrade Support
Features
6D-Link DHP-300 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
Power LED
A solid light indicates that the
device is receiving power.
Powerline LED
A solid light indicates that the device has
detected another Powerline device on the
network.
Ethernet LED
A solid light indicates a connection on
the Ethernet port.The LED blinks during
data transmission.
7D-Link DHP-300 User Manual
Section 1 - Product Overview
Hardware Overview

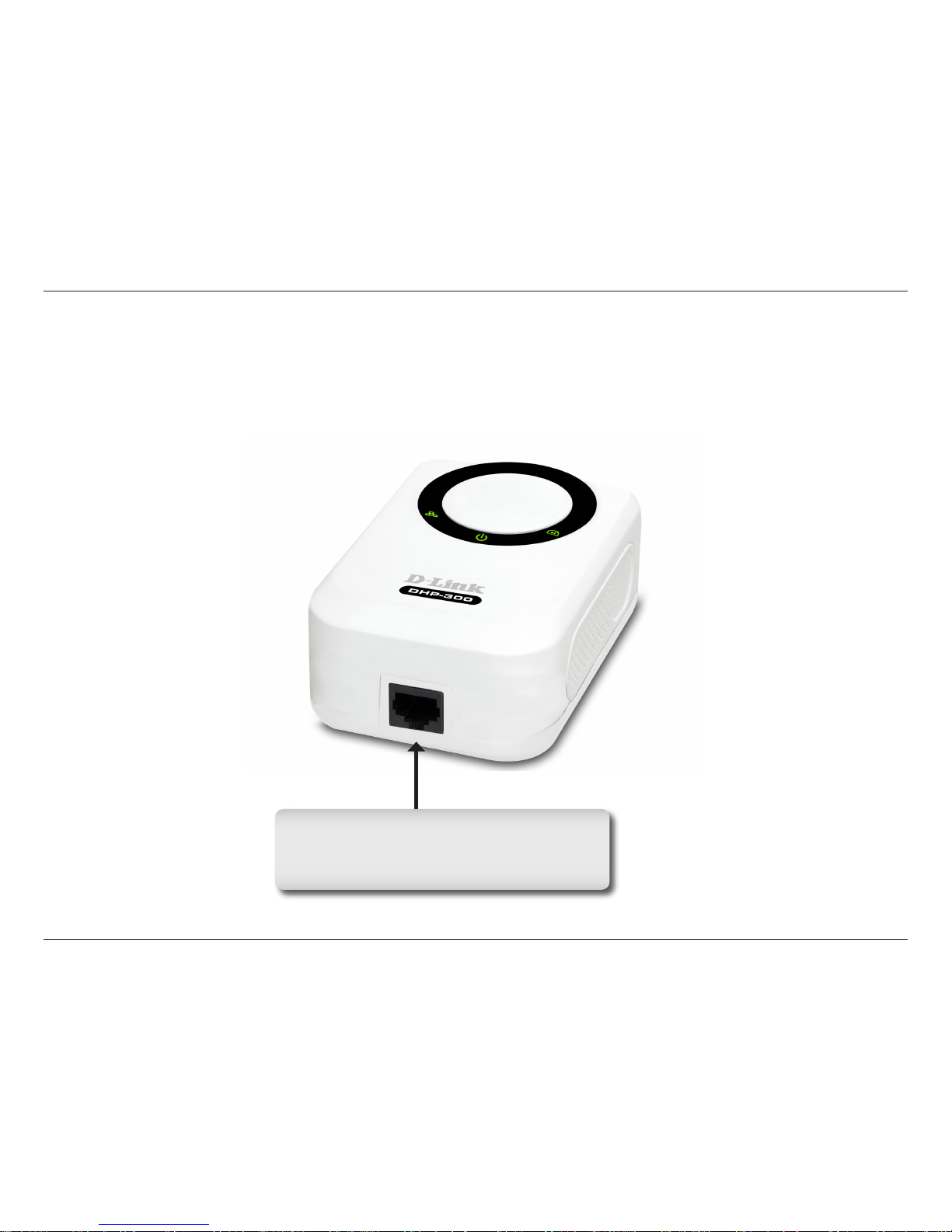

Connection
Ethernet
Connect the CAT5 Ethernet cable to the
DHP-300 Ethernet port.
8D-Link DHP-300 User Manual
Section 2 - Installation
Hardware Installation
Power
Plug in the DHP-300 into an AC wall outlet or power strip.
Note: Power source is confirmed when the green LED Power Indicator on the DHP-300 is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on the DHP-300 and attach the other end
of the Ethernet cable to the network or PC. Network Connectivity is confirmed when the green LED Indicator on the
DHP-300 located left of the Power LED is illuminated.
9D-Link DHP-300 User Manual
Section 2 - Installation
Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process.
Insert the D-Link DHP-300 CD into your CD-ROM drive. If the CD Autorun function does not automatically start on
your computer, click Start > Run.
In the Run command box type “D:\DHP300.exe”, where D: represents the drive letter of your CD-ROM. If it does start,
proceed to the next screen.
Click on Install Utility
Using the Setup Wizard
Click Next
The InstallShield Wizard will begin the DHP-300 software
installation.
10D-Link DHP-300 User Manual
Section 2 - Installation
Click Finish
Click Install
