D-Link DWA-542 Manual de usuario

2D-Link DWA-542 Quick Install Guide

Package Contents

D-Link DWA-542

RangeBooster N™Desktop Adapter

System Requirements

If any of the above items are missing, please contact your reseller.

Manual, QIG, software,

and warranty on CD

• A desktop computer with an available 32-bit PCI slot

• Windows®2000 or XP

• 300MHz processor and at least 64MB of RAM

• An 802.11n1or 802.11g access point (for Infrastructure mode),

or another 802.11n or 802.11g wireless adapter (for Ad-Hoc

networking mode.)

1Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n speciﬁcations. Actual data throughput will

vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and

network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

3 D-Link DWA-542 Quick Install Guide

Hardware Overview

WLAN LED

A solid light indicates that wireless is

ready. This LED blinks during wireless

data transmission.

4D-Link DWA-542 Quick Install Guide

Installation Considerations

The D-Link wireless adapter lets you access your network using a wireless

connection from virtually anywhere within the operating range of your wireless

network. Keep in mind, however, that the number, thickness and location of

walls, ceilings, or other objects that the wireless signals must pass through,

may limit the range.Typical ranges vary depending on the types of materials

and background RF (radio frequency) noise in your home or business. The

key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link adapter

and other network devices to a minimum - each wall or ceiling can

reduce your adapter’s range from 3-90 feet (1-30 meters.) Position

your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that

is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be

almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42

feet (14 meters) thick! Position devices so that the signal will travel

straight through a wall or ceiling (instead of at an angle) for better

reception.

3. Building materials make a difference. A solid metal door or aluminum

studs may have a negative effect on range. Try to position access

points, wireless routers, and computers so that the signal passes

through drywall or open doorways. Materials and objects such

as glass, steel, metal, walls with insulation, water (ﬁsh tanks),

mirrors, ﬁle cabinets, brick, and concrete will degrade your wireless

signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from

electrical devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products

such as ceiling fans, lights, and home security systems), your

wireless connection may degrade dramatically or drop completely.

Make sure your 2.4GHz phone base is as far away from your wireless

devices as possible. The base transmits a signal even if the phone

in not in use.

5 D-Link DWA-542 Quick Install Guide

You will need to turn off your PC

to install the card. Once your

computer is turned off, unplug the

power cord from the computer.

Open the case and insert the

D-Link adapter into an available

PCI slot. Once inserted, close the

case and insert the power cable

into the computer. Turn on your

computer.

Note: Before installing, write down

the serial number and hardware

revision (e.g. A1) in case you need

to contact technical support.

When your computer boots up you

may see the Found New Hardware

wizard screen.

Hardware Installation

Click Cancel

6D-Link DWA-542 Quick Install Guide

Adapter Installation

Note: Please install the DWA-542 Desktop Adapter into your computer

before installing the driver software from the D-Link CD. Refer to

page 5.

Insert the D-Link DWA-542 Driver CD in the CD-ROM drive. The

step-by-step instructions that follow are shown in Windows®XP.

The steps and screens are similar for the other Windows operating

systems.

If the CD Autorun function does not automatically start on your

computer, go to Start > Run. In the run box type “D:\DWA542.exe”

(where D: represents the drive letter of your CD-ROM drive).

When the autorun screen appears, click Install Drivers.

7 D-Link DWA-542 Quick Install Guide

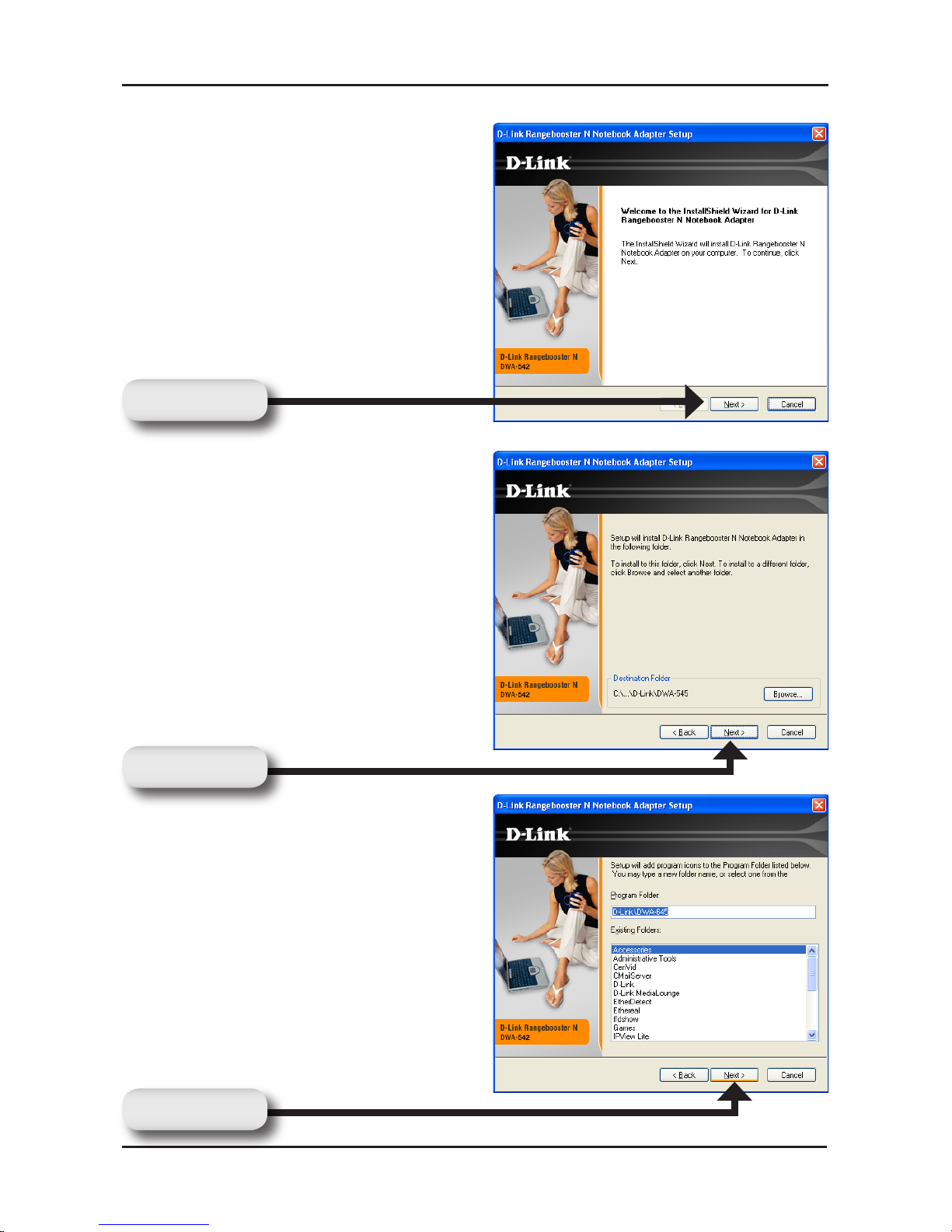

The InstallShieldWizard window

will appear.

Setup will install to the default

location: C:\Program Files\D-Link\

DWA-542, where C: represents

the drive letter of your hard drive.

To install to a different location click

Browse and specify the location.

Click Next

8D-Link DWA-542 Quick Install Guide

For Windows®XP: This Software

Installation alert screen will

appear.

Click Continue Anyway

Click Finish

The D-Link Conﬁguration Wizard

will now appear.

If you are using Windows®XP

(SP2), you will have the option to

use either the D-Link utility or the

built-in Windows®Wireless utility.

Click Next

9 D-Link DWA-542 Quick Install Guide

Click Yes, I want to restart my

computer now to finalize the

installation.

Click Finish

Enter the network name (SSID)

manually. If you enter the SSID

incorrectly, you will automatically

be brought to the site survey page.

Click Scan to display the site

survey page.

Click Next

Click on the network name (SSID)

and click Next.

Click Next

10D-Link DWA-542 Quick Install Guide

Connect to a Wireless Network

The D-Link DWA-542 uses the Wireless Connection Manager as

the management software. The manager provides the user an easy

interface to change any settings related to the wireless adapter. After

you have completed the installation of the DWA-542, the Wireless

Connection Manager is loaded on your desktop.

Double-click on the icon to start the Wireless Connection Manager.

If you are using Windows®XP, please skip to page 13.

This window will allow you to see available wireless networks in your

area. Simply click the network (SSID) you want to connect to and

click the Connect button.
