D-Link DVG-7111S Manual de usuario
.
Quick Installation Guide
DVG-7111S
VoIP Telephone Adapter
Check Your Package Contents
DVG-7111S
VoIP TA
Quick
Installation
Guide
Phone Cord Ether (CAT5
UTP) Cable
12VDC, 1A
Power Adapter
Using a
power
adapter with
a different
voltage rating
will damage
this product
and void the
warranty.
2

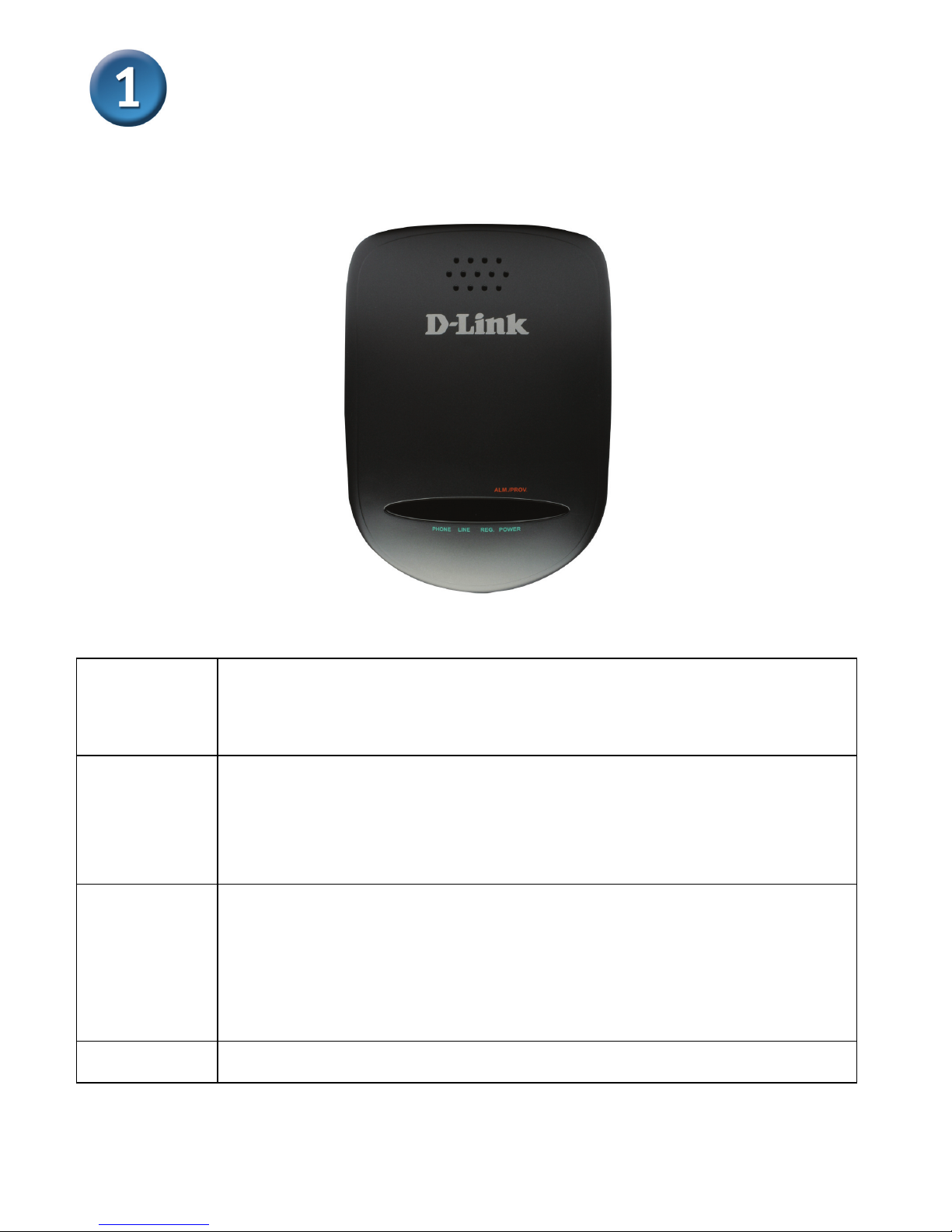

Front Panel
Power
Prov./Alm
Green light indicates a normal power supply. Red light
indicates when performing a self-test/booting up or the
DVG-7111S’s abnormal operation.
Reg. The Register LED will light up solid when the VoIP TA is
connected to a VoIP service provider. The LED will blink if
not connected to a service provider or failed to register to
a service provider.
Phone This LED displays the VoIP status and Hook activity on
the phone port that is used to connect your normal
telephone(s). If a phone connected to a phone port is off
hook or in use, this LED will light solid. When a phone is
ringing, the indicator will blink.
Line Light on means the line is in use (off-hook).
Hardware Overview
3
Rear Panel
1. WAN: Connect to your broadband modem using an Ethernet cable.
2. LAN: Connect to your Ethernet enabled computers using Ethernet
cabling.
3. Phone : Connect to your phones using standard phone cabling (RJ-
11).
4. Power Receptor: Receptor for the provided power adapter.
5. Line: Connect to your original telephone line on the wall jack with
RJ-11 cable.
Hardware Overview (continued)
4
A. Insert one end of the Ethernet cable into the Ethernet (LAN) port on
the back panel of the DVG-7111S and the other end of the cable to
an Ethernet Adapter or available Ethernet port on your computer.
LAN
B. Insert one end of the Ethernet cable into the WAN port on the back of
the DVG-7111S and the other into your cable/DSL modem or the
LAN port of your router.
WAN
C. Insert a telephone cable into the Phone port, and then connect the
cable to your telephone.
PHONE
Installing the Hardware
5
D. Insert your original telephone line on the wall jack (PSTN) into the
Line port.
LINE
E. Connect the power adapter to the power input at the back panel of
the DVG-7111S and then plug the other end of the power adapter to
a wall outlet or power strip. On the front of the device, the Power LED
will turn on to indicate proper operation.
POWER
F. Check the LED display on the front of the VoIP TA to confirm that the
connections have been made.
Installing the Hardware (continued)
6
After the installations are completed, your network should look similar to
the diagram below.
Hardware configuration is complete! If your VoIP service is already activated, you
can make phone calls now.
Installing the Hardware (continued)
7
Configuration
To access the web-based configuration utility, open a web browser such
as Internet Explorer and enter the IP address of the DVG-7111S.
Open your Web browser and
type http://192.168.8.254 into
the URL address box. Press
the Enter or Return Key.
Click Login to enter Web Site.
Click Setup Wizard.
8
Configuration (continued)
The username of admin and USER
have been defined and locked by
default. It is highly recommended to
create a login password to keep
your router secure.
Click Next.
Enter a NTP server or use the
default server.
Click Next.
Click Next.
9
Configuration (continued)
Select your Internet connection type:
DHCP – Most Cable ISPs or if you
are connecting the DVG-7111S
behind a router.
Static IP – Select if your ISP
supplied you with your IP settings.
PPPoE – Most DSL ISPs.
PPTP – Select if required by your
ISP.
Select Manual to manually enter IP
address of DNS or select Auto if
DNS is assigned by ISP.
Click Next.
Register to the SIP Proxy Server
by clicking Enable support of SIP
Proxy Server. Enter Proxy
Server IP/Domain and Port.
The Outbound Proxy Support is
optional. To register, please click
on the Outbound Proxy Support
check box and enter Outbound
Proxy IP/Domain and Port in it.
Registration by phone line: enter
Number, User ID/Account and
Password supplied by your ITSP.
Click on the Register check box to
register to Proxy Server.
Click Next.
10
Configuration (continued)
Setup is finished. Check the
summary of your settings. To make
new settings effective, you must
click on the Restart button to
reboot the DVG-7111S.
Click Restart.
