D-Link DG-102S Manual de usuario

Comwave Home Phone Adapter

Quick Start Guide

Important: This guide describes the supported conguration for Comwave Home Phone Service. When

calling Comwave’s Technical Support Team, your network must be congured as described.

Home Phone Adapter

Package Contents

Connections

1 2

1 2 3 456

1 Power Adapter

2 Serial Cable

Used only if instructed by

Comwave to assist with

troubleshooting.

3 WAN

Used to connect to your High

Speed Internet modem using

the Ethernet Cable provided in

your package.

4 LAN

Used to connect to your computer using

an Ethernet Cable (if you are not using a

wireless router).

5 Phone 1

Used to connect to your telephone

handset, using your existing telephone

cord.

6 Life Line

NOTE: Dial“#”to activate this port.

Used to:

a) Connect to an existing phone

jack to access the building

intercom functions in apartment

buildings.

b) Connect to a back-up non-VoIP

land line in the event of Internet

loss, if a back-up line is available.

Output:12v 1

Start Here

Cable High Speed Internet

Go to page 3

If you have:

DSL High Speed Internet

with USERNAME and PASSWORD

DSL High Speed Internet

without USERNAME and PASSWORD

Go to page 3Go to page 5

Installation with a Cable Modem or DSL modem (without USERNAME and PASSWORD)

step

To begin installation, turn o your computer and disconnect the power adapter to

your High Speed Internet modem.

high speed

internet modem PC

telephone

power outlet

existing

cable or phone

line

steP

step

steP

WAIT!!

2 min.

Connect an Ethernet cable from the High Speed Internet modem to the WAN

port of the Home Phone Adapter.

Connect a second Ethernet cable from the LAN port of the Home Phone Adapter

to your computer.

Connect your telephone handset to the PHONE 1 port of the Home Phone Adapter.

Connect the High Speed Internet modem to a power outlet.

Note: Please wait 2 minutes before continuing to the next step.

Connect the Home Phone Adapter to the power outlet . The Status light will blink

until it has successfully connected to the Comwave network. Once the Status

light stops ashing and becomes solid green, your phone is ready for use.

Your phone should now work.

Start your computer.

step

Remember to dial “1” before ALL calls, including local calls (example: 1-416-555-1234).

You will NOT be charged long distance for local calls.

Remember to dial “1” before ALL calls, including local calls (example: 1-416-555-1234).

step

To begin installation, turn o your computer and disconnect the power adapter to

your High Speed Internet modem.

Installation with a DSL modem (with USERNAME and PASSWORD)

high speed

internet modem PC

telephone

power outlet

existing

phone

line

steP

step

steP

WAIT!!

2 min.

Connect an Ethernet cable from the High Speed Internet modem to the WAN port

of the Home Phone Adapter.

Connect a second Ethernet cable from the LAN port of the Home Phone Adapter

to your computer.

Connect your telephone handset to the PHONE 1 port of the Home Phone Adapter.

Connect the High Speed Internet modem to a power outlet.

Note: Please wait 2 minutes before continuing to the next step.

Connect the Home Phone Adapter to the power outlet.

Start your computer. Open a browser window, type “http://192.168.122.1:8089”

into the address eld and press the “Enter” key.

step

Continue to Step 8

step

Installation with a DSL modem (with USERNAME and PASSWORD)

Enter the following User Name

and Password, and click “OK”:

step

In the left menu, click on “Cong IP”

and then select “Cong Device IP Address”.

USER NAME: root

PASSWORD: admin

In the bottom right corner of the main

window, click the “Save” button . Then

on the left menu, select “Save Changes”

step

In the main window (under the section

called “PPPoE Settings”), ensure that the

dropdown menu is set to “enabled” .

Fill in the User Name and Password

provided by your Internet Service

Provider.

Note: It is important to be very accurate.

The user name and password are case

sensitive. Any mistakes will prevent your

Comwave Home Phone from working.

step

Installation with a DSL modem (with USERNAME and PASSWORD)

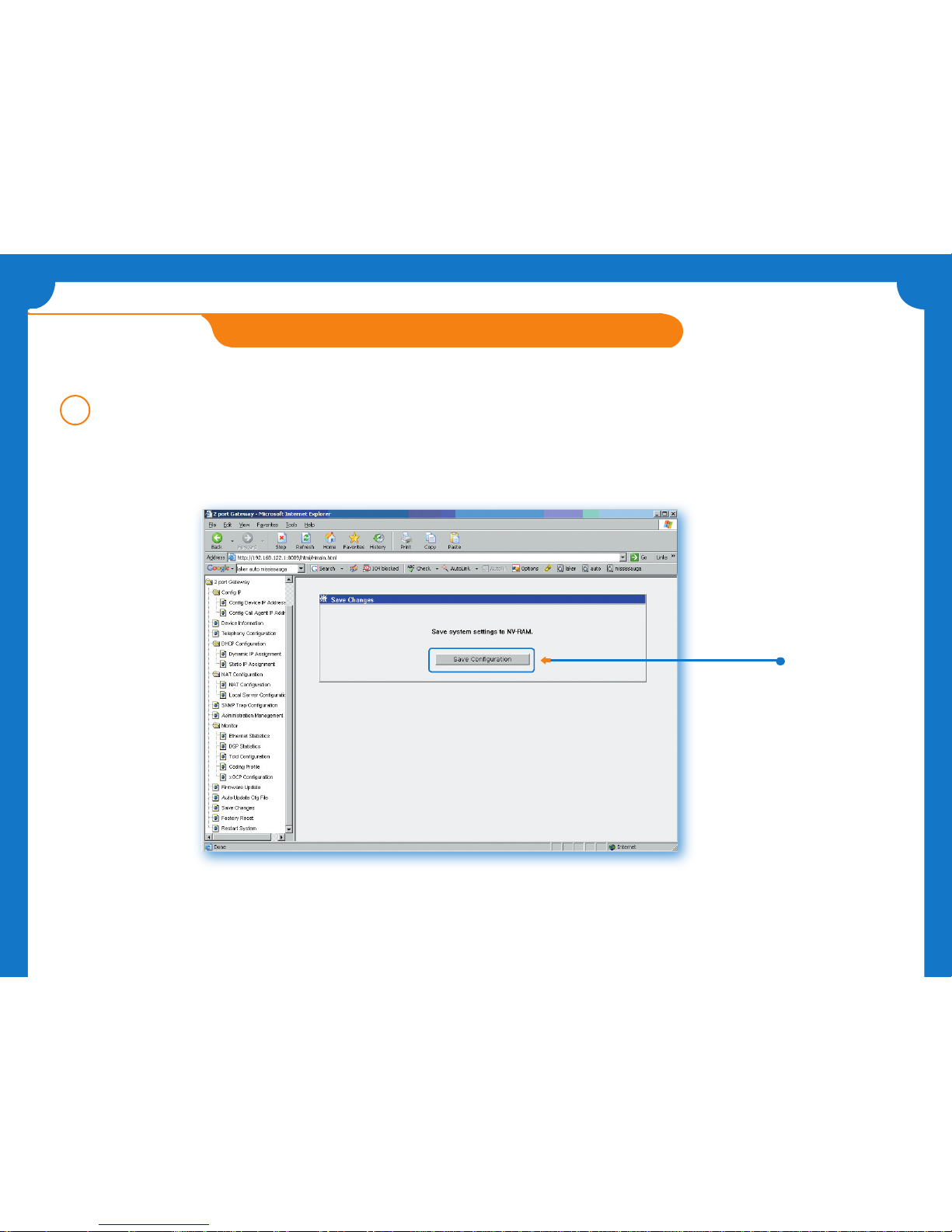

In the main window, click on the “Save Conguration” button. Your Comwave Home

Phone will reboot.

step
