D-Link DBT-122 Manual de usuario
Version 1.0

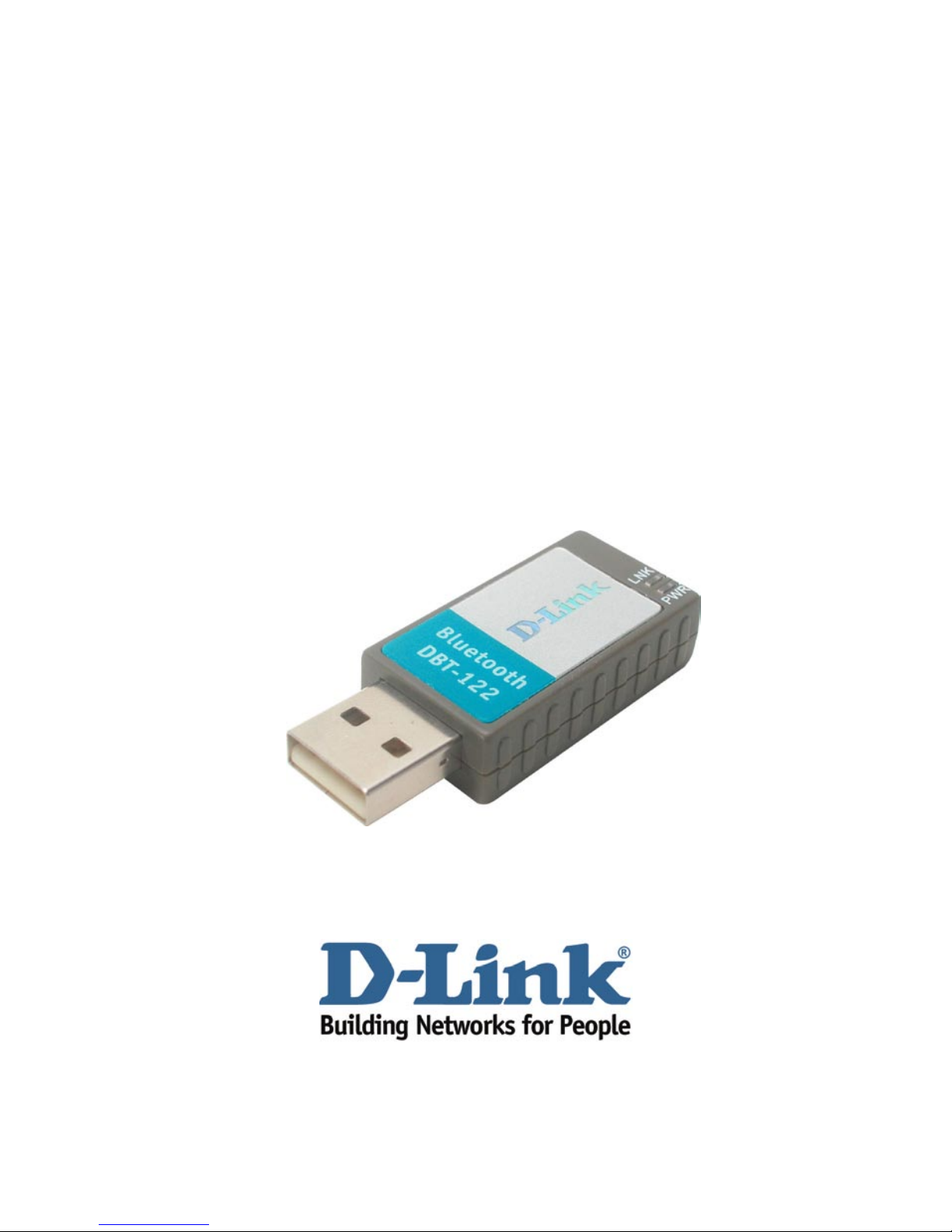

D-Link DBT-122
Bluetooth USB Adapter
Manual
(01/01/2005)
2
Contents
Package Contents ................................................................ 4
System Requirements .......................................................... 4
Introduction ........................................................................... 5
Installing the Bluetooth Software .......................................... 6
Using the Bluetooth Configuration Wizard ......................... 10
Introduction to the Bluetooth Software ............................... 13
Bluetooth Tray ...................................................... 13
Access My Bluetooth Places ................................ 13
Icons Used for Bluetooth Devices and Services ... 14
Bluetooth Software Basic Operations ................................. 17
Start or Stop Bluetooth ......................................... 17
Create a Connection ............................................. 17
Find Bluetooth Devices ......................................... 18
Find A Service ...................................................... 19
Bluetooth Connection Status ................................ 20
Send to Bluetooth ................................................. 21
Bluetooth Configuration ...................................................... 22
Access the Bluetooth Configuration Panel ........... 22
Bluetooth Services versus Bluetooth Applications 22
Bluetooth Exchange Folder .................................. 22
Bluetooth Applications Overview .......................... 23
Applications > Human Interface Device (HID) ...... 24
Applications > HID, Audio Gateway ...................... 25
Applications > Serial Port ..................................... 26
3
Applications > Dial-up Networking ........................ 27
Applications > Fax, Headset ................................. 28
Applications > Headset, File Transfer ................... 29
Applications > Network Access ............................ 31
Applications > PIM ................................................ 32
Bluetooth Services ................................................ 36
Services > Notifications ........................................ 37
Services > Audio Gateway Service ...................... 38
Services > Bluetooth Serial Port Service .............. 39
Services > Dial-up, Fax, File Transfer Service ..... 40
Services > Headset .............................................. 41
Services > Network Access ................................. 42
Hardware Settings ................................................ 47
Advanced Settings ................................................ 48
Accessibility Settings ............................................ 49
Discovery Settings ................................................ 50
Security .............................................................................. 52
Troubleshooting .................................................................. 54
Contacting Technical Support ............................................. 57
Warranty ............................................................................. 58
Contents (cont’d)
Bluetooth Configuration (cont’d)
4
Package Contents
These items are included with your purchase:
D-Link DBT-122 USB Bluetooth Adapter
USB Extension Cable
Installation CD with Driver, Manual, Quick Installation Guide, & Bluetooth
Software
If any of the above items are missing, please contact your reseller.
System Requirements
Windows XP/Me/2000/98SE
One Available USB Port
CD-ROM Drive
•
•
•
•
•
•
5
Introduction
Introduction to Bluetooth
The term “Bluetooth” refers to a worldwide standard for the wireless
exchange of data between two devices within a Personal Area Network.
In order to exchange data, two Bluetooth devices must establish a
connection. Before a connection is established, one device must request a
connection with another, where the second device accepts (or rejects) the
connection. The originator of the request is known as the client. The device
that accepts (or rejects) the request is known as the server. Many Bluetooth
devices can act as both client and server. A client Bluetooth device runs a
software program that requests a connection to another device as part of
its normal operation. For example, the program may request a connection
to a remote computer, a printer, or a modem.
Becoming a Bluetooth client normally requires an action by the device
operator, such as an attempt to browse a remote computer, print a file,
or dial out on a modem. Every Bluetooth device that provides a service
must be prepared to respond to a connection request. Bluetooth software
is always running in the background on the server, ready to respond to
connection requests.
Introduction to the DBT-122 Bluetooth USB Adapter
The D-Link Bluetooth USB Adapter is the perfect wireless solution for quick
and easy access to Bluetooth enabled devices. It is a class 2/3 low power
device and is bundled with Bluetooth Software which allows you to connect
to several Bluetooth devices at once. The wireless transmission range of
the D-Link DBT-122 Bluetooth USB Adapter is about 10 meters (30 feet). A
PC configured as the Bluetooth server can support up to seven Bluetooth
client devices with IP addresses being automatically assigned upon a
successful connection. The Bluetooth Software also provides Internet
sharing and security access between the server and clients.
After finishing the steps outlined in this manual, you will have the ability
to share information, obtain network access, and take full advantage of a
wireless connected environment.
6
Installing the Bluetooth Software
Uninstalling a previous version of the Bluetooth
software:
If you are installing the Bluetooth software for the first time, please skip this
section.
Any previous versions of the Bluetooth software must be uninstalled before installing
an upgraded version.
Please uninstall the software by completing these steps:
1) Close any open programs and insert the Driver CD into your CD-ROM Drive.
2) The Autorun screen will appear. Click on Install Bluetooth Software.
3) The Welcome screen will indicate the previous version of BTW that is
currently installed. Click on the Next button to continue.
4) Click on the Remove button from the Remove the Program screen.
5) When the files have been removed, you will be presented with a screen
informing of its completion.
a. Click on the Finish button
b. Click on the Yes button when the pop-up dialog box appears on the
screen to reboot your PC.
You have now removed the previous version of the Bluetooth software.
Installing the Bluetooth Software
Install the driver and software located on the D-Link CD that came with your
purchase BEFORE installing the DBT-122 USB Bluetooth Adapter into your
computer.
Click Install
Driver
Insert the D-Link PersonalAir DBT-122 Driver CD in the CD-ROM drive.
If this Autorun screen does not
automatically appear, click on Start >
Run, enter “D:\Autorun.exe” and click
OK. “D” represents the letter of your
CD-ROM drive.
7
Click Next
Click Next
Installing the Bluetooth Software (cont’d)
Click Accept
Click Next
8
Click OK
Installing the Bluetooth Software (cont’d)
Click Install
Only Windows XP and
Windows 2000 Users will
see this screen.
9
Installing the Bluetooth Software (cont’d)
Click OK
When this screen appears,
connect the DBT-122 to an
available USB port on your
USB host adapter or USB hub.
10
Click Finish
Installing the Bluetooth Software (cont’d)
Click Yes
After you have completed the driver and software installation and reboot your
computer, a Bluetooth icon will appear on your desktop and in the bottom right hand
corner of your desktop screen (systray). The Bluetooth icon gives you access to My
Bluetooth Places, for configuring your Bluetooth settings.
Double-click the Bluetooth icon for access to
My Bluetooth Places.
Using the Bluetooth Configuration Wizard
Only Windows 2000,
Windows Me, and Windows
98SE Users will see this
screen.
