D-Link DHP-311AV Manual de usuario

2D-Link DHP-311AV User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Systems, Inc.

Revision Date Description

1.0 April 27, 2011 • Initial release

Preface

3D-Link DHP-311AV User Manual

Table of Contents

Preface ................................................................................2

Manual Revisions .......................................................................... 2

Trademarks ..................................................................................... 2

Product Overview .............................................................. 4

Package Contents ......................................................................... 4

System Requirements .................................................................4

Introduction ................................................................................... 5

Features ............................................................................................ 5

Hardware Overview .....................................................................6

LEDs ........................................................................................... 6

Connection ............................................................................. 7

Simple Connect Button ...................................................... 8

Hardware Installation ....................................................... 9

Simple Connect Button ...................................................10

Using the Setup Wizard ...................................................12

Conguration ...............................................................................13

Security ..........................................................................................15

Troubleshooting ..............................................................17

Technical Specications ..................................................18

Contacting Technical Support ........................................19

Warranty ...........................................................................20

Registration .....................................................................25

Table of Contents

4D-Link DHP-311AV User Manual

Section 1 - Product Overview

Two D-Link DHP-310AV PowerLine AV Mini Adapters

Two CAT5 Ethernet Cable

CD-ROM with Software and User Manual

Quick Install Guide

System Requirements

Product Overview

Package Contents

Software Requirements*

• Windows® 7, Windows Vista®, XP (with Service Pack 3)

• PC with 233MHz Processor, 64MB Memory

• Ethernet Adapter (10/100Mbps)

Network Requirements

• Router/Gateway with available Ethernet port (If sharing an Internet connection)

• Ethernet device(s) (such as a computer, game console, NAS device, media player, wireless access point, etc.)

• Two available electrical outlets

* The D-Link PowerLine AV Utility is optional but is required for rmware upgrades; and is used to manually congure your security/encryption settings,

reset your PowerLine adapters to default settings, and display information such as rmware version, security settings, and connection quality/speed.

5D-Link DHP-311AV User Manual

Section 1 - Product Overview

Introduction

D-Link announces a fast, 200Mbps* PowerLine AV Mini Adapter Kit that allows you to connect your home computers, networking devices and

gaming devices through the most pervasive medium in your house - the electric power lines. With the DHP-310AV PowerLine AV Mini Adapters,

you may access the Internet, transfer les, play games, and stream HD video.

Features

• Use your home’s electrical wiring by plugging into existing power outlets

• Speeds of up to 200Mbps*

• One 10/100 Ethernet port

• Plug & Play, Easy Installation

• QoS support helps prioritize Internet trac

• Supports 128-bit AES encryption for network security

• Push and secure encryption button

• Power Saving mode

• Compact size

* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac

and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect

the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that

do not follow the HomePlug AV standard.

6D-Link DHP-311AV User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

1Power LED

A solid light indicates that the device is receiving electrical power.

A blinking light indicates that the device is setting itself up after reset or security button was pressed or

power saving mode enabled. When the light is O, The device is not receiving electrical power.

2PowerLine LED

• Solid - The device is connected to a PowerLine network.

• Blinking - The device is transmitting data.

• O - The device has not found any other compatible PowerLine devices using the same encryption key.

The color indicates the PowerLine link rate:

• Green - The PowerLine link rate is faster than 80 Mbps.

• Amber - The PowerLine link rate is between 50 Mbps and 80 Mbps.

• Red - The PowerLine link rate is less than 50 Mbps.

3Ethernet LED

• Solid - The Ethernet port is linked but there is no data trac.

• Blinking - The device is transmitting data.

• O - There is no Ethernet connection.

7D-Link DHP-311AV User Manual

Section 1 - Product Overview

Hardware Overview

Connection

1Reset Button Press and hold the button for 1 second to reset to factory default.

2Ethernet Port Connect the CAT5 Ethernet cable to the DHP-310AV Ethernet port.

8D-Link DHP-311AV User Manual

Section 1 - Product Overview

Hardware Overview

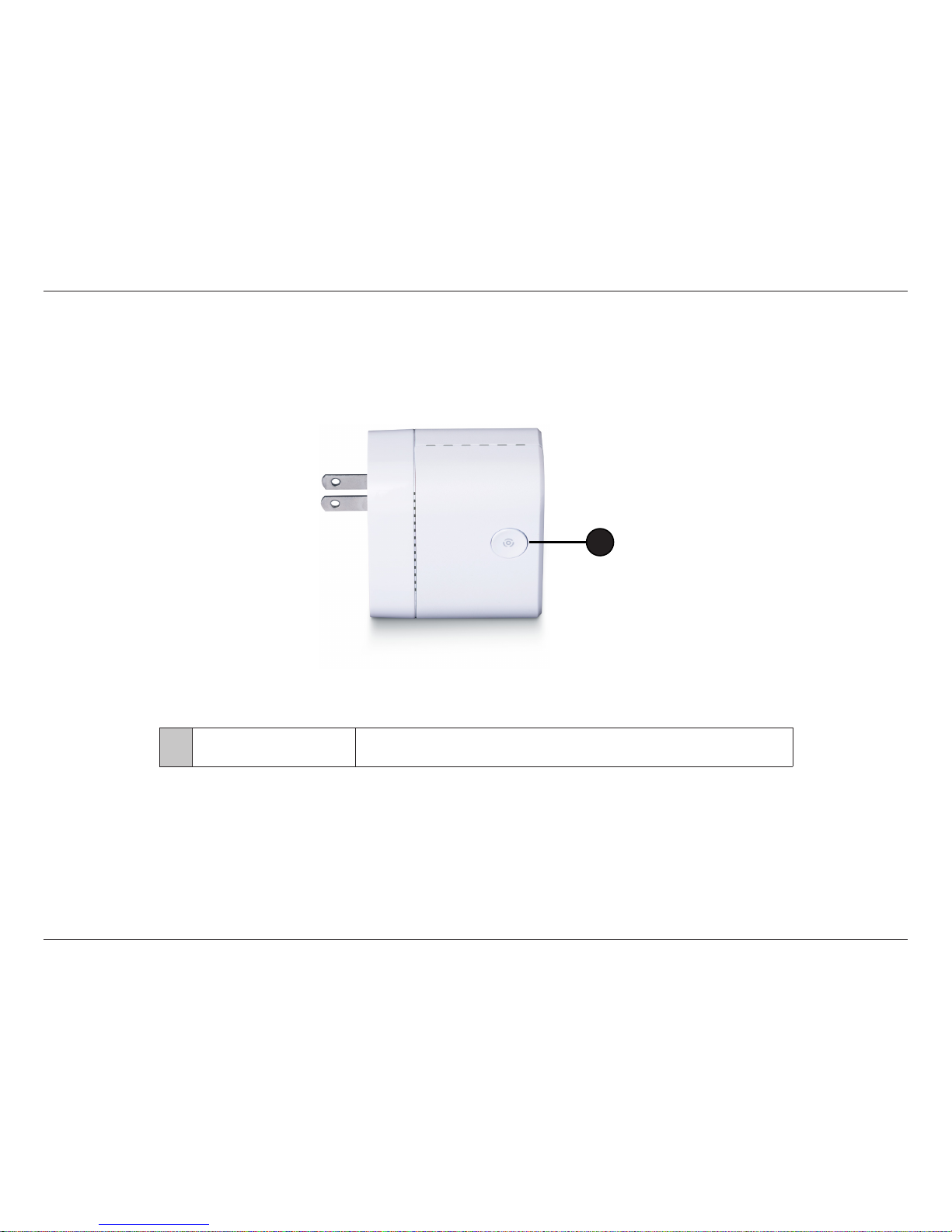

Simple Connect Button

1Simple Connect Button Press and hold the button for 2 seconds to secure your PowerLine network.

Refer to page 10 for more information.

9D-Link DHP-311AV User Manual

Section 2 - Installation

Hardware Installation

Power

Plug in the DHP-310AV into an AC wall outlet.

Note: Power source is conrmed when the Power LED on the DHP-310AV is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable connector located on the DHP-310AV and attach the other end of the Ethernet cable to the

network (e.g. router or switch) or PC. Network connectivity is conrmed when the PowerLine and Ethernet LEDs on the DHP-310AV are illuminated.

Recommendations

• For best results, use in a regular wall outlet without any other product plugged into the same outlet. Connecting this product to a power strip or

a surge protector may adversely aect the performance of this product.

• Avoid using the PowerLine AV Mini Adapters in an electrical outlet that is located near an appliance that uses a lot of power such as a washer,

dryer, refrigerator, microwave, hair dryer, or air conditioning system.

• To verify connectivity or if you are having connection problems, plug the adapters in the same room to verify whether your home’s electrical

wiring is contributing to the issue. The adapters’ PowerLine LED indicators will illuminate if the connection is established.

Wireless Router Cable/DSL Modem

DHP-310AV (Included)

5V- - - 3A

1 2 LAN 3 4 INTERNET USB

RESET

INTERNET

DHP-310AV (Included)

10D-Link DHP-311AV User Manual

Section 2 - Installation

Simple Connect Button

Understanding PowerLine AV Network Security

The PowerLine AV Network Starter Kit on the same network must use an identical encryption key. The default encryption key of each PowerLine AV

Network Starter Kit is HomePlug AV. All PowerLine AV Network Starter Kits with default encryption key can communicate with each other.

It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to protect your network

from unauthorized access via the PowerLine network. To create a private encryption key instead of the default encryption key, please follow below

steps:

1. All Adapters

Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlug AV (default

value). If the encryption key is not set to the default value, press the Reset button for 1 second or use the PowerLine AV

Utility on your CD for resetting it to the default value.

2. First Adapter

Press the Simple Connect Button of the rst adapter for no more than 2 seconds. The Power LED will start blinking after

you release the button. The adapter will create a private, randomly generated encryption key that each PowerLine AV

adapter will use.

3. Second Adapter

Within 2 minutes of pushing the Simple Connect Button of the rst adapter, press Simple Connect Button of second adapter

in your PowerLine network for no more than 2 seconds. The Power LED will start blinking after you release the button.

Note: Both Simple Connect Buttons must be pressed within 2 minutes.

4. PowerLine Network

After above network security setup steps, your PowerLine network will be securely congured with the same network encryption key. The adapters

will memorize the security settings even if they are unplugged.

Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Reset button for 1 second and then

follow the security setup procedure above.
