Feature:

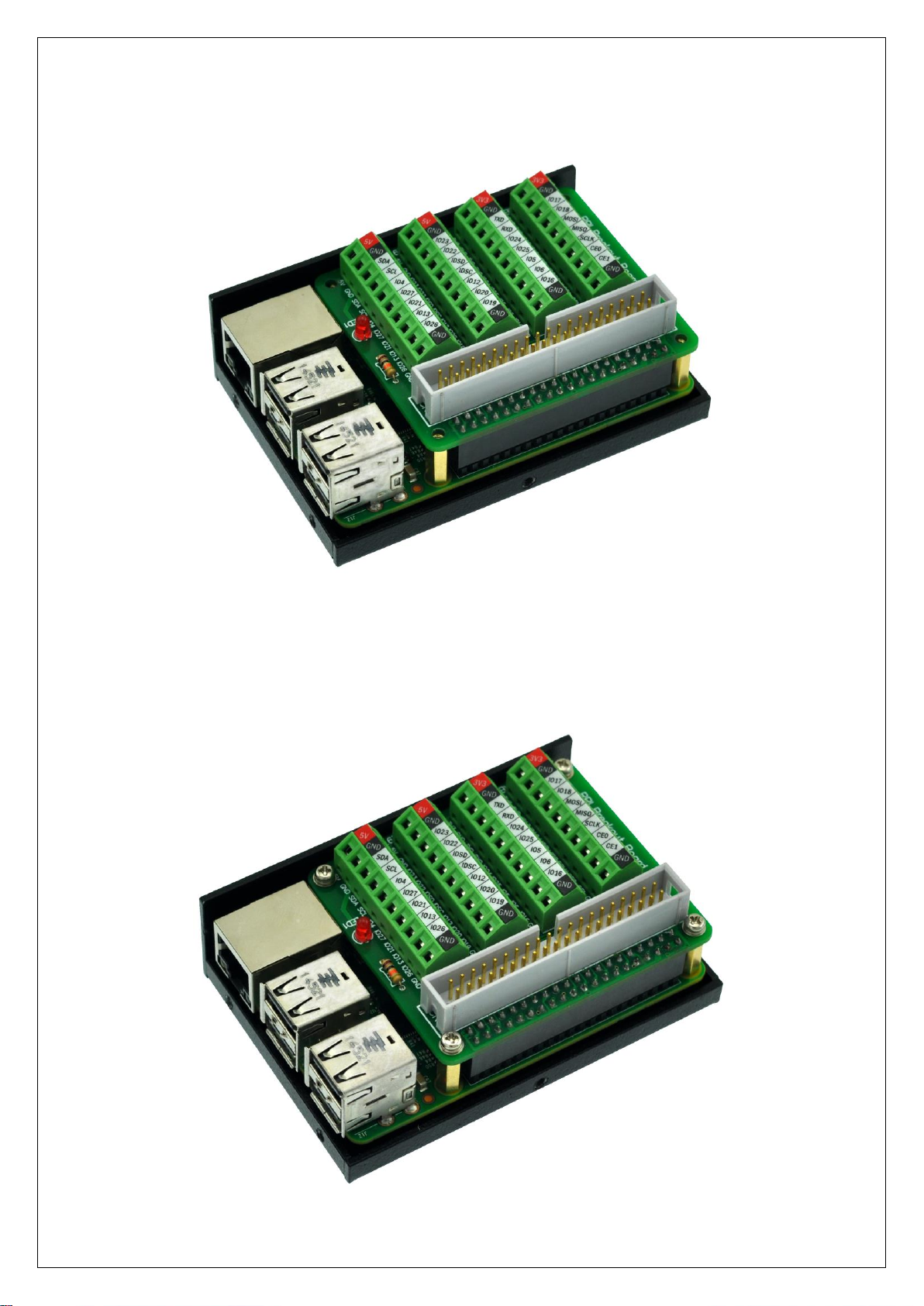

RPi Screw Terminal Block Breakout Module withAluminum Enclosure. With the
adapter module you can easily extend Raspberry-Pi projects to industrial control
applications. Applications for Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B,
Pi 3 Model B+ (NOTE: the item not include Raspberry Pi).
Terminal block pitch 3.5mm/0.138", wire size range 26AWG to 16AWG, strip length

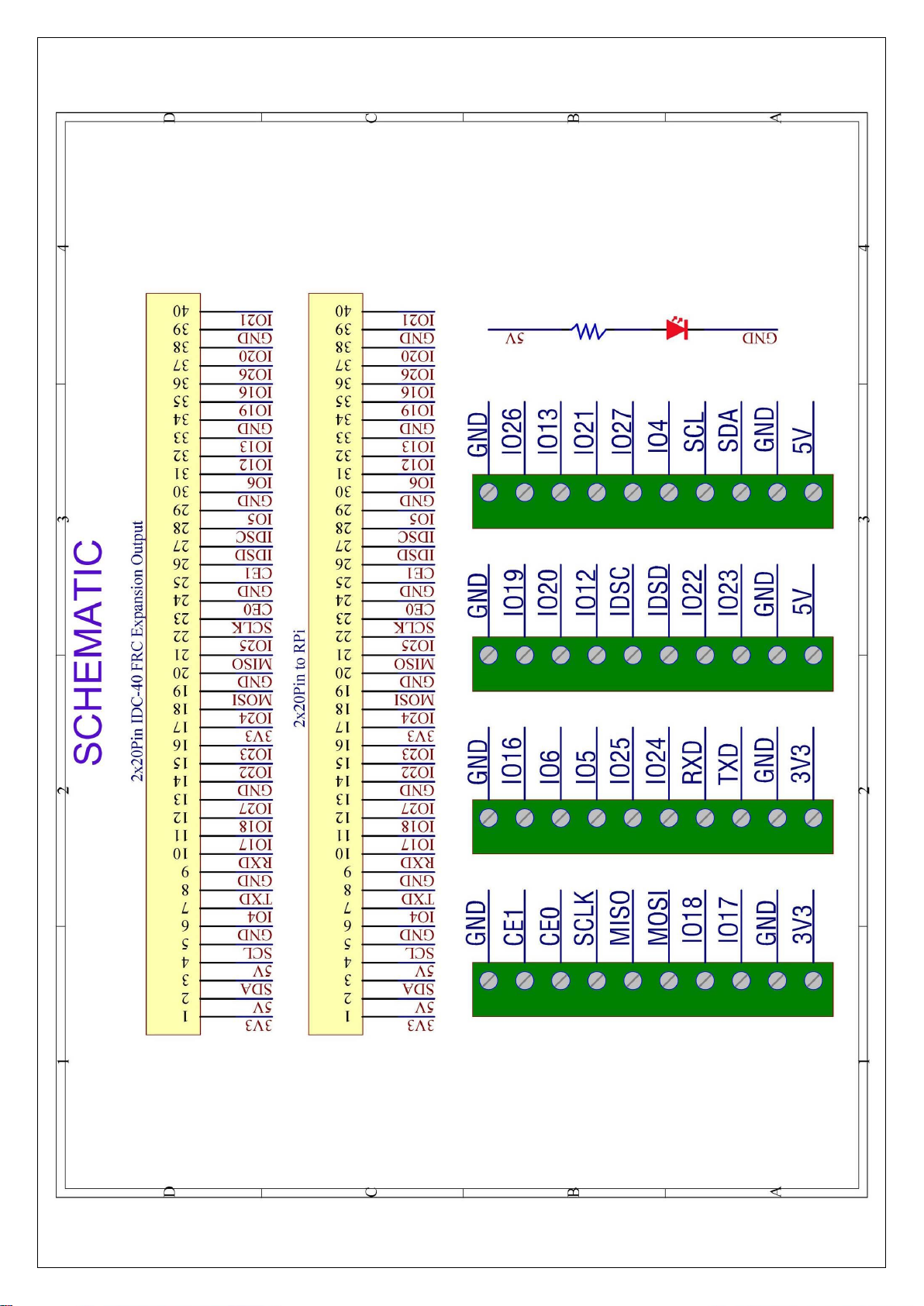

5mm, screw M2 steel, pin header and cage copper. Standard IDC40 pitch 0.1"
header, you can use 40pin FRC(flat ribbon cable) connector cable connect all
Raspberry Pi pins to peripheral equipment.
Support for Desktop, Panel mount, Wall-mount or DIN rail mount. DIN rail mount
supports vertical or horizontal place mounting. Can support width 35mm / 32mm /
15mm rail.
Enclosure: High quality aluminum enclosure, thickness 1.5mm/0.06", with attractive
and extremely durable powder coat painting and clear laser marking labels. FR-4
fiber glass PCB, dual copper layers.
Packing list: 1x Terminal Block Board, 1x Aluminum enclosure(top and bottom
covers), 2x DIN rail adapter Bracket, 4x Brass standoff, 5x M3x4mm Flat head
screws(for top and bottom cover), 4x M2.5x8mm Pan head screw(for terminal block
board), 4x M3x10mm Flat head tapping screw(for DIN rail adapter bracket).
