Cypress CY15FRAMKIT-002 Manual de usuario

CY15FRAMKIT-002 Features:

•Excelon 108MHz QSPI F-RAM

•ST NUCLEO-433LC-P compatible Morpho headers (J9, J10)

•Arduino UNO R3 compatible I/O Header (J1 - J4)

•Headers J8 (1A-8A), J8 (1B-8B), J8 (1C-8C) to select Arduino or

Morpho connector signal connectivity to F-RAM device

•J5 header for 1.8-V/3.3-V F-RAM device VDD power supply selection

•J6 header for 1.8-V/3.3-V selection for level shifters. Set this to

the base board's power supply value

CY15FRAMKIT-002 SERIAL F-RAM DEVELOPMENT KIT

QUICK START GUIDE

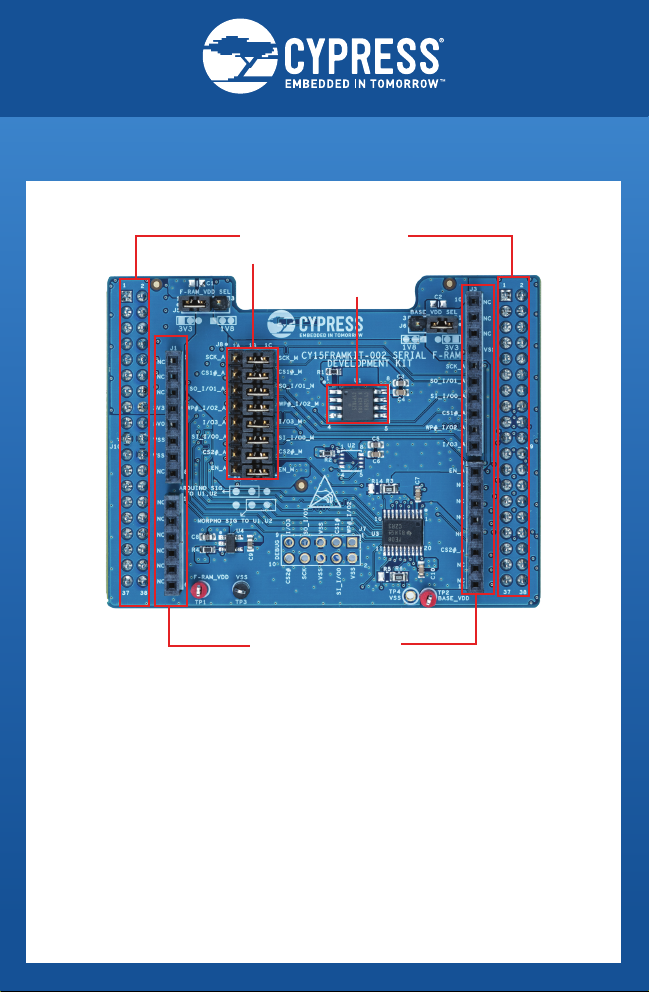

Morpho Headers (J9, J10)

Headers (J8)

Excelon 4-Mbit F-RAM

Arduino Headers (J1-J4)

• This kit is designed to work with the ST NUCLEO-433LC-P board or an Arduino

UNO R3 compatible board

•Download the kit rmware from: www.cypress.com/CY15FRAMKIT-002

• Follow the Kit Operation Chapter 3 in CY15FRAMKIT-002 User guide for MCU

conguration and programming

• Ensure that Jumpers J5 and J6 on Kit are set for 3.3V operation

• Ensure that Jumpers J8 (1B-8B) and J8 (1C -8C) are all shorted

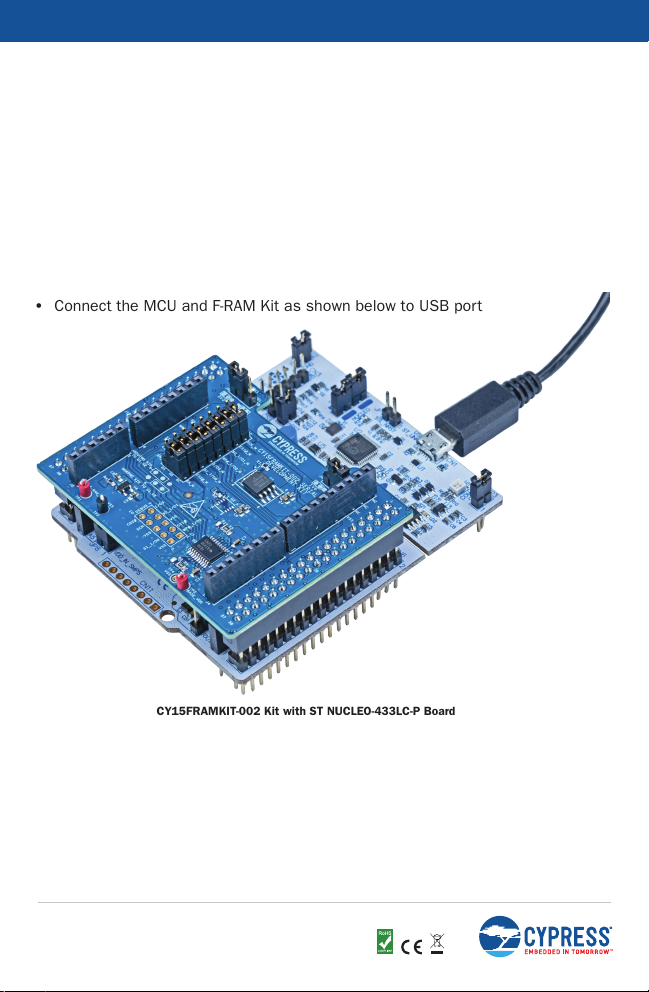

• Connect the MCU and F-RAM Kit as shown below to USB port

• Open a UART terminal, select the Nucleo board and press B2 (Reset button)

on the Nucleo board

• On Successful programing, a GUI menu will be displayed on the terminal as

shown in Appendix B of User Guide

CY15FRAMKIT-002 SERIAL F-RAM DEVELOPMENT KIT

QUICK START GUIDE

© 2019 Cypress Semiconductor Corporation. All rights reserved.

All trademarks or registered trademarks referenced herein are the

properties of their respective owners. Doc.# 002-27301 Rev.*A

Download the kit User Guide, driver, and hardware les from:

www.cypress.com/CY15FRAMKIT-002

For technical support, visit www.cypress.com/support

CY15FRAMKIT-002 Kit with ST NUCLEO-433LC-P Board
