CP-295NN
CV/SV to HDMI Scaler
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2014 by Cypress Technology.
All Rights Reserved.
Version 1.0 July 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 12/08/14 Preliminary Release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 OSD Menu.........................................5
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
9. Acronyms ............................................... 7
1
1. INTRODUCTION
This Scaler Box is designed to upscale analog video signal from CV/
SV input source to digital HDMI output of wide-range HDTV and PC
resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler
box also converts digital/analog audio signal to digital/analog
formats, then output to HDMI combining with the video, Optical and
phone jack (L/R audio) simultaneously. This unit has a comprehensive
OSD menu that allows user to select a variety of output resolutions and
adjust for best picture quality.
2. APPLICATIONS
• Displaying video contents on to HDMI display
• Analog video signal enlargement on to HD screen
• Lecture room/Showroom/Meeting room/Classroom signal display
3. PACKAGE CONTENTS
• 1 x CV/SV to HD Scaler
• 1 x Stereo Audio Cable (2RCA)
• 1 x Composite Video Cable
• 1 x 5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as DVD/video tape player and output
display with HDMI input jack.
2
5. FEATURES
• HDMI, HDCP and DVI compliant
• Supports full range of video resolution from NTSC, NTSC4, PAL,
PAL-M, PAL-N and SELCAM
• Scales resolution to PC (VGA~WUXGA)/HD(480p~1080p)
• Automatically detect the factory setting of the connected display
and output the corresponding resolution with refresh rate, when the
NATIVE output is selected
• Supports 50/60Hz frame rate conversion
• Supports 3-D motion video adaptive, 3-D de-interlacing and 3:2/2:2
pull down detection and recovery
• Provides output picture adjustment on contrast, brightness, hue,
saturation, sharpness, RGB (color tone) level and aspect ratio size
• Supports stereo analog/digital audio input and stereo analog/
digital output by selecting among the audio input sources in the
OSD menu and simultaneously output to HDMI, Optical and phone
jack
3
6. OPERATION CONTROLS AND FUNCTIONS

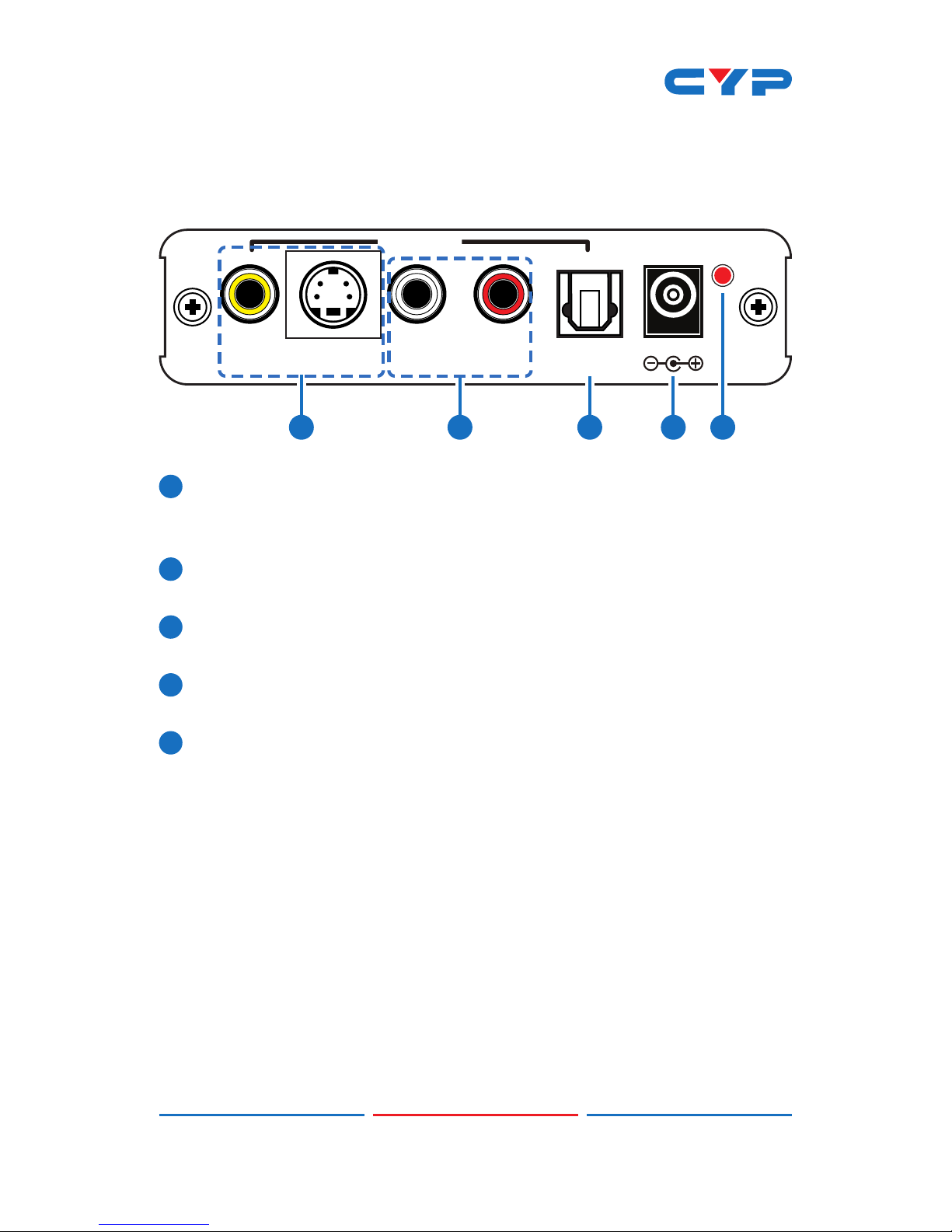

6.1 Front Panel
DC 5V
OPTICALRLSVCV
INPUT
31 2 4 5
1CV/SV INPUT: Connect from source equipment such as DVD/Video
player with composite or S-video cable or DVD player with D-Sub
to RCA adaptor.
2L/R INUPT: Connect from the audio source equipment such as
DVD/PC with stereo audio jack for analog audio signal input.
3OPTICAL INPUT: Connect from the audio source equipment such as
DVD/Blu-ray player with optical cable for digital audio signal input.
4DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
5Power LED: This LED will illuminate once the device is connected
with power supply.
4
6.2 Rear Panel
HDMISERV. AUDIO
OPTICAL
OUTPUT MENU +
-
31 2 4 5 6
1SERV.: This port is reserved for rmware update only.
2HDMI OUTPUT: This slot is to connect with HDMI TV/Monitor for
output image display.
3OPTICAL OUTPUT: Connect to an amplier or active speaker with
optical cable for PCM 2 channel audio output.
4AUDIO OUTPUT: Connect to an amplier or active speaker with
3.5mm phone jack for audio output.
5MENU: Press this button to enter into the OSD menu and press it
again to enter into the selection.
6+/- button: Press these buttons to
a. move up/down the OSD selection,
b. to adjust the value,
¾Under normal operation (outside of OSD selection)
c. Press “+“ button to switch input between CV & SV,
d. Press “+“ together with “MENU” to switch output resolution to
XGA@60 (1024x768) instantly,
e. Press “-” together with “MENU” to switch output resolution to
720P@60 instantly
f. Press both “+” together with “-“ to set the device back to
factory reset setting.
5
6.3 OSD Menu
Main Menu 1st Layer 2nd Layer
SETTING
CONTRAST 0~100 (50)
BRIGHTNESS 0~100 (50)
EXIT
FINETUEN
HUE 0~100 (50)
SATURATION 0~100 (50)
SHARPNESS 0~100 (50)
NR OFF/LOW/MIDDLE/HIGH (OFF)
EXIT
COLOR
SETTING
RED 0~100 (50)
GREEN 0~100 (50)
BLUE 0~100 (50)
EXIT
OUTPUT
SETTING
SIZE
FULL/OVERSCAN/UNDERSCAN/
LETTER BOX/ PANSCAN/ASPECT
(FULL)
RESOLUTION
640x480@60 / 800x600@60 /
1024x768@60 / 1280x1024@60 /
1400x1050@60 / 1600x1200@60
/ 1280x800@60 /1440x900@60 /
1680x1050@60 / 1920x1200@60RB
/ 1600x900@60 / 480P / 576P /
720P@50/ 720P@60 / 1080I@50 /
1080I@60 / 1080P@50 / 1080P@60
EXIT
AUDIO
SETTING
DELAY(Analog only) OFF/40mS/110mS/150Ms (OFF)
INPUT ANALOG/OPTICAL (ANALOG)
SOUND ON/MUTE (ON)
EXIT
6
Main Menu 1st Layer 2nd Layer
OSD
SETTING
H-POSITION 0~100 (10)
V-POSITION 0~100 (90)
TIMER 0~100 (50)
BACKGROUND 0~100 (50)
DISPLAY INFO/ON/OFF (INFO)
EXIT
7. CONNECTION DIAGRAM
DC 5V
OPTICALRLSVCV
INPUT
HDMISERV. AUDIO
OPTICAL
OUTPUT MENU +
-
DVD or Blu-ray Player
Power
Supply
HDMI
Amplier
TV
