Cypress CA-USBHUT Manual de usuario

CA-USBHUT &

CA-USBHU100R

Multi-functioning HDMI/USB/

RS-232 & IR over single CAT5e/6

Transmitter and Receiver

Extender Box

Operation Manual

CA-USBHUT & CA-USBHU100R

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer ﬁle, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 March 2011

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

VR0 20110330 Preliminary Release

VR1 20110609 Add EDID Function

VR2 20110913 WUXGA @ RB

VR3 20120204 Power adaptor, Dimensions &

Weight

Table of Contents

1. Introduction ……………………..……………………...…........….…….

2. Applications …………………..………………….……...................…..

3. Package Contents ………………………...........……….................…

4. System Requirements ……………..……….........………............…….

5. Features …………………………………………......……........…...……

6. Specications ………………………………...……..........………....….

7. Operation Controls and Functions ……………...……..............……

7.1 Transmitter’s Front Panel ........................................................

7.2 Transmitter’s Rear Panel .……………………..….......…...….…

7.3 Receiver’s Front Panel ............................................................

7.4 Receiver’s Rear Panel .………………...…..…….......…...….…

8. D-Sub 9Pin Denitions ….………………….........….............…..…......

9. Connection and Installation ….………………….........…..…..…......

10. Acronyms …......................................................................................

1. Introduction

With HDMI & USB over CAT5e/6 connectivity are becoming popular

nowadays. The growing need for their ﬂexibility has likewise risen in demand.

The HDMI & USB over a CAT5e/6 transmitter and receiver box solution is

developed for any household and/or commercial environment. This pair of

devices allows HDMI and or USB host device to send data within a 100-meters

distance while offering expandability for up to 4 USB outputs to perform

tasks. In addition, this pair of devices can also save data from the output

port devices or allow remote control through the display side even when

there's 100 meters apart separating the devices. Furthermore, this pair of

devices includes extra functions like IR, line-out and microphone features that

allows user to enjoy control over distance and audio sound over favor audio

equipments. Moreover, the device allowing user with cascade with the same

family type of device to extend the transmission distance up to as long as it

demand and without signal loss or delay, or with multi pairs of the extender

box up to 16 for matrix usage from a IP for data sharing within the connected

device of sources and displays. The HDMI & USB over a CAT5e/6 transmitter

and receiver box are the ideal choices to your HDMI & USB extension and

data sharing needs.

2. Applications

 HDMI, USB, RS-232 & IR Extender

 Broadcasting system over single CAT5e/6

 Multimedia display and multi-data sharing

 Long distance data sending with cascade

 Matrix network system

 System control over RS-232 and equipment control over IR

 KVM control

3. Package Contents

 HDMI & USB over single CAT5e/6 Transmitter

 HDMI & USB over single CAT5e/6 Receiver

 5V / 3A DC power supply x 2

 IR Blaster x 1

 Operation manual

4. System Requirements

 Input HDMI and or USB source equipment such as DVD, Blu-Ray player

and or PC/Notebook with connection cables.

 Output display such as HD TV, monitor and active speaker or ampliﬁer

with connection cables.

 CAT5e/6 cable up to 100Ms in between of transmitter and receiver.

5. Features

 HDMI v1.2 and HDCP v1.1 compliant

 Support USB 2.0 high-speed devices

 Operate with USB 2.0 high speed host controllers

 True plug and play without any driver installation required

 Display and control of the host device and source equipment

 Save and share data into a separate room

 Tested CAT5 cable distance of up to 100 meters or cascade up to as

long it require or link up to 16 pairs for matrix system

 Supports digital display output resolution up to 1920 x 1080@60Hz &

WUXGA@RB

 Automatic display mode detection and DDC synchronization

 Simple set up with easy to use

 LED indicators for easy viewing

 Data transmission rate 1G bit/s

 Can cascade over Giga Ethernet hub base on TCP/IP

6. Specications

Transmitter

Input Port 1 x USB (B type)

1 x HDMI

1 x IR Blaster

1 x RS-232

Output Port 1 x RJ45

Receiver

Input Port 1 x RJ45

1 x 3.5Ø Audio In

Output Ports 4 x USB (A type)

1 x HDMI

1 x RS-232

1 x IR Receiver

1 x 3.5Ø Audio Out

ESD Protection Human body model: ±10kV (air-gap discharge)

±6kV (contact discharge)

Power Supply 5V / 3A (US/EU standards, CE/FCC/UL certiﬁed)

Dimensions (mm) 180 (W) x 110 (D) x 25 (H) / each

Weight(g) 382 / Transmitter, 384 / Receiver

Chassis Material Aluminum

Silkscreen Color Black

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Power Consumption 5W / Transmitter, 12W / Receiver

Relative Humidity 20~90% RH (non condensing)

7. Operation Controls and Functions

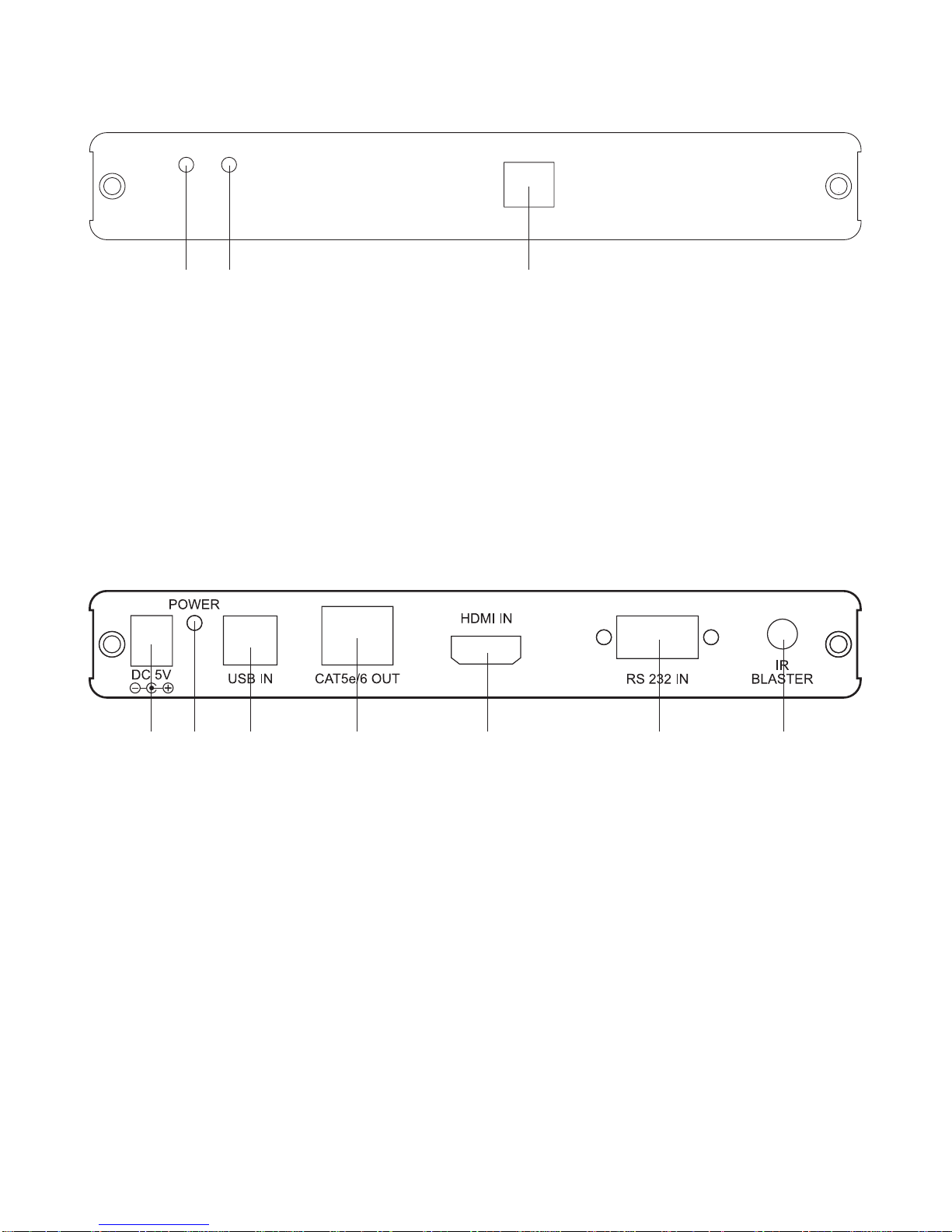

7.1 Transmitter’s Front Panel

① ② ③

USBLINK

HDMI/USB/IR/RS232 to CAT5e/6 Transmitter

LINK PAIR SEL

① This LED will illuminate when the transmitter is linked with receiver's signal.

② USB LED: This LED will illuminate when the transmitter has linked with

receiver's USB signal. User are only able to control the USB in (the source

device) when this LED is not illuminated.

③LINK PAIR SELECT: This dip switch allows user with matrix setting for link up

to 16 pairs of the devices with single IP router. Each pair must have

the same dip switch setting in order to pair to the right device setting. The

factory default setting is at 0000.

7.2 Transmitter’s Rear Panel

① ② ③ ④ ⑤ ⑥ ⑦

① DC 5V: Plug the DC power supply into the unit and connect the adaptor

to AC wall outlet. Power LED will illuminate when the power is on.

② Power LED: The red LED will illuminate when the device is connected with

power.

③ USB IN: This slot is to connect with PC/Notebook for input source signal

with USB B type cable.

④CAT5e/6 OUT: This slot is to connect with CAT5e/6 cable with receiver

side’s CAT5e/6 input.

⑤HDMI IN: This slot is to connect with input source such as DVD or Blu-Ray

player with connection cable.

⑥RS 232 IN: This slot is to connect with D-Sub 9pin female null moden cable

from PC’s system for controlling both the input source and output display

over RS-232.

⑦IR BLASTER: This slot is to connect with IR blaster cable included in the

package for IR signal sending and controlling the HDMI input source

equipment.

7.3 Receiver’s Front Panel

① ② ③ ⑤④ ⑥

LINK

CAT5e/6 to HDMI/USB/IR/RS232 Receiver

LINK PAIR SEL USB

① Link LED: The LED red will illuminate when the device has received output

display’s single and input source’s data.

②IR: receiver: This IR reciever can accept IR signal of the HDMI input source

device with frequency between 20~60Hz and can send the signal over

CAT5e/6 to transmitter side to control the input source equipment.

③LINK PAIR SELECT: This dip switch allows user with matrix setting for link up

to 16 pairs of the devices with single IP router. Each pair must have

the same dip switch setting in order to pair to the right device setting. The

factory default setting is at 0000.

④VIDEO MODE: Press this button to switch in between the video and

graphic mode. The OSD will display your selection every time when the

button is pressed.

For EDID update: Connect both transmitter and receiver box together

with CAT5e/6 cable and power on the transmitter side, then press this

button constantly before powering on the receiver side. The LINK LED

will light up instantly and go disappear, when the LED is light up again

with blinking this button may be released. Under multiple link of receivers

the EDID update will always be stored with the last update setting.

⑤LINK button: Press this button once or twice to allow the receiver to be link

up or unlink with the transmitter and the OSD will show "Starting USB" or

"Stopping USB" on the HDMI output display.

Under multiple link of receivers on a single transmitter, press it for 3sec to

get the host control of USB on the receiver. When the LED illuminate it

means the device has obtain the USB authority.

⑥USB 1~4: These slots are for users to connect with keyboard, mouse, HDD,

USB ﬂash drive and…etc. for USB hub function and KVM usage.

7.4 Receiver’s Rear Panel

① ② ③ ④ ⑤ ⑥ ⑦

① DC 5V: Plug the DC power supply into the unit and connect the adaptor

to AC wall outlet. Power LED will illuminate when the power is on.

② Power LED: The red LED will illuminate when the device is connected with

power.

③ RS 232 OUT: This slot is to connect with D-Sub 9pin female null moden

cable from PC’s system for controlling both the input source and output

display over RS-232.

④CAT5e/6 IN: This slot is to connect with CAT5e/6 cable with transmitter

side’s CAT5e/6 output

⑤AUDIO IN: This slot is for extra audio input source signal to be connected

with 3.5Ø phone jack cable.

⑥AUDIO OUT: This slot is for external audio output equipment to be

connected with active speaker and connection cable.

⑦HDMI OUT: This slot is to connect with output display such as HD TV or

monitor with connection cable.

8. D-Sub 9 Pin Denitions

Pin Dene

1 N/C

2 RX

3 TX

4 N/C

5 GND

6 N/C

7 N/C

8 N/C

9 N/C

* RS-232 transmission format:

Baud Rate: 115200bps

Data Bit: 8 bits

Parity: None

Stop Bit: 1 bit

Flow Control: None

Otros manuales para CA-USBHUT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de Cypress

Cypress

Cypress Suprex WMR-9600MAN Manual de usuario

Cypress

Cypress DCT-32TX Manual de usuario

Cypress

Cypress Suprex SPX-7200 Manual de usuario

Cypress

Cypress Suprex SPX-1300 Manual de usuario

Cypress

Cypress Suprex RS-485 Manual de usuario

Cypress

Cypress CIR-03 Manual de usuario

Cypress

Cypress CLUX-SDI2HC Manual de usuario

Cypress

Cypress Suprex SPX-5600 Series Manual de usuario

Cypress

Cypress Suprex SPX-7500 Manual de usuario

Cypress

Cypress Suprex SPX-5631 Manual de usuario

Cypress

Cypress CLUX-SDI2HC Manual de usuario

Cypress

Cypress Suprex SPX-5631 Manual de usuario

Cypress

Cypress CY3242-IOXlite Manual de usuario

Cypress

Cypress Suprex SPX-7400 Series Manual de usuario

Cypress

Cypress Suprex SPX-1300 Manual de usuario

Cypress

Cypress Suprex RF SPX-5631R Manual de usuario

Cypress

Cypress DPX-5500 Series Manual de usuario

Cypress

Cypress Suprex SPX-7200 Manual de usuario

Cypress

Cypress CIR-12 Manual de usuario

Cypress

Cypress SPX-1200 Manual de usuario

Cypress

Cypress CMDP-13MDPI Manual de usuario

Cypress

Cypress PU-515PL-KIT HDBaseT Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
