CyberPower PR3000 Manual de usuario

User’s Manual

Professional Rack Mount UPS

PR3000

K01-3000SCA-04

TABLE OF CONTENTS

SAFETY WARNINGS ............................................................................................................................2

BLOCK DIAGRAM................................................................................................................................2

INSTALLATION ....................................................................................................................................3

UNPACKING ......................................................................................................................................... 3

HOW

DETERMINE

THE

POWER

REQUIREMENTS

YOUR

EQUIPMENT ........................................3

ESTIMATE

POWER

REQUIREMENTS................................................................................................3

HARDWARE

INSTALLATION.................................................................................................................. 3

BASIC OPERATION..............................................................................................................................6

FRONT

PANEL

DESCRIPTION ................................................................................................................6

REAR

PANEL

DESCRIPTION ................................................................................................................... 8

TROUBLESHOOTING ......................................................................................................................... 10

TECHNICAL SPECIFICATIONS ............................................................................................................. 11

DEFINITIONS FOR ILLUMINATED LED INDICATORS............................................................................ 12

BATTERY REPLACEMENT .................................................................................................................. 13

LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE................................................... 14

PRODUCT REGISTRATION ................................................................................................................. 14

1 YEAR LIMITED WARRANTY ............................................................................................................ 14

CONFORMANCE APPROVALS............................................................................................................ 1

Safety warnings

This manual contains important safety instructions. Please read and follow all

instructions carefully during installation and operation of the unit. Read this

manual thoroughly before attempting to unpack, install, or operate.

The AC power outlet must be installed near the UPS and must be easily

accessible.

Attention, risk of electric shock. Disconnecting this unit from the power mains,

does not remove the risk. Voltage may still be present from the battery pack.

The battery pack quick connectors should be disconnected before performing

maintenance or service work on the UPS.

When replacing the batteries, use the same number and type of batteries

Do not open or mutilate the battery or batteries. Electrolyte is harmful to the

skin and eyes.

A battery can present a risk of electric shock and high short circuit current.

The following precaution should be observed when working on batteries

- Remove watches, rings or other metal objects.

- Use tools with insulated handles.

- Never short circuit the battery terminals.

Block diagram

installation

UNPACKING

Inspect the UPS upon receipt. The box of PR3000 should contain the following: (1)

UPS Unit; (1) User’s Manual; (2) Rack Mount Brackets; (2) Stands; (1)

PowerPanel Plus Software Disk; (1) PowerPanel Software Disk; (1) Telephone

Cable; (2) Serial Interface Cables (RS232); (1) Serial-to-USB cable

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR

EQUIPMENT

1. Insure that the equipment plugged into the seven battery power- supplied

outlets does not exceed the UPS unit’s rated capacity (3000VA/2200W for

PR3000). If rated unit capacities are exceeded, an overload condition may

occur and cause the UPS unit to shut down or the circuit breaker to trip.

2. If the power requirements of your equipment are listed in units other than

Volt-Amps (VA), convert Watts (W) or Amps (A) into VA by doing the

calculations below. Note: The below equation only calculates the maximum

amount of VA that the equipment can use, not what is typically used by the

equipment at any one time. Users should expect usage requirements to be

approximately 60% of the maximum value.

TO ESTIMATE POWER REQUIREMENTS

1. ______Watts (W) x 2.0 = _____VA or _____Amps (A) x 120 =____VA

2. Add the totals up for all pieces of equipment and multiply this total by 0.6 to

calculate actual requirements. There are many factors that can affect the

amount of power that your computer system will require. The total load that

you will be placing on the battery-powered outlets should not exceed 80% of

the unit’s capacity.

HARDWARE INSTALLATION

1. Your new UPS may be used immediately upon receipt. However, recharging

the battery for at least four hours is recommended to insure that the batteries

are fully charged. Charge loss may occur during shipping and storage. To

recharge the battery, simply leave the unit plugged into an AC outlet. The unit

will charge in both the on as well as the off position.

2. If you wish to use the software, connect the enclosed serial interface cable to

the serial port on the UPS and an open serial port on the computer. If you

would like to use USB interface, please connect the USB adapter with the

serial cable then connect the USB adapter to your computer.

3. With the UPS unit off and unplugged, connect your computer, monitor, and

any other devices into the battery power supplied outlets. DO NOT plug a laser

printer, copier, space heater, vacuum, paper shredder or other large electrical

device into the UPS. The power demands of these devices will overload and

possibly damage the unit.

4. To surge protect a network connection, connect a network cable from the wall

jack outlet to the IN jack of the UPS. Then connect a network cable from the

OUT jack on the UPS to the network device.

5. Plug the UPS into a wall outlet. Make sure the wall branch outlet is protected

by a fuse or circuit breaker and does not service equipment with large

electrical demands (e.g. refrigerator, copier). Avoid using extension cords. If

used, the extension cord must be rated for 30 Amps.

6. Depress the power switch to turn the unit on. The power on indicator light will

illuminate.

7. Your UPS is equipped with an auto-charge feature. When the UPS is plugged

into an AC outlet, the battery will automatically recharge.

8. To maintain optimal battery charge, leave the UPS plugged into an AC outlet

at all times.

9. To store your UPS for an extended period, cover it and store with the battery

fully charged. Recharge the batteries every three months to insure battery life.

10. To connect auxiliary battery pack:

(a.) Remove the protection cover on the UPS rear panel.

(b.) Connect the black wire and the red wire of the Battery Pack to the

negative (-) / black terminal and the positive (+) / red terminal of

the PR3000 respectively. (See Figure 1)

**Note: Due to the large current, make sure to connect the positive to positive and

the negative to negative. Otherwise, it may cause a short circuit and the unit may

be irreversibly damaged.

Figure 1: Connecting PR3000 with Battery Pack

Basic operation

FRONT PANEL DESCRIPTION

Power Switch

Press the power button to turn the UPS ON or OFF

Test Switch

The PR-UPS performs a self-test automatically when power on. If

the UPS passes the test, it returns to on-line operation. If the UPS

fails the self-test, please recharge the battery for 4 hours and

perform another self-test. If it fails after recharging the battery,

please replace the battery.

Battery Indicators

This indicator shows a visual indication of the battery charge. If

battery capacity is under 20%, no indicator LED will illuminate and

UPS starts beeping.

Load Level Indicators

This indicator shows a visual depiction of the UPS load. The load

indicator LED will turn orange if the load is between 80 and 100%.If

the load is under 20%, no indicator LED will illuminate.

Power On Indicator

This LED is illuminated when the utility condition is normal and the

UPS outlets are providing “clean power”, free of surges and spikes.

Battery Indicator

This illuminates during utility failure, indicating that the battery is supplying

power to the battery-power supplied outlets.

AVR Indicator

This LED indicates that the UPS is operating in automatic voltage

regulation mode. When the LED is illuminated continuously, it indicates

input over-voltage and the UPS unit bucks the voltage. When the LED

is flashed in rotation, it indicates that the UPS unit is boosting input

voltage.

REAR PANEL DESCRIPTION

Circuit Breaker Reset for Overload Protection

Re-settable circuit breakers provide optimal overload protection.

USB Port

Through USB communication port to manage software

Battery Backup and Surge Protection Outlets

Provides six battery powered, surge protected

and AVR outlets for connected equipment and

insures uninterrupted operation of connected

equipment during a power failure.

Individual Backup Power for Critical Load

Provides a battery powered, surge protected and AVR outlet

for the most critical connected equipment and insures

uninterrupted operation of connected equipment during a

power failure.

** NOTE: When the UPS is overloaded, the other six minor outlets will not provide

power to equipments, prior to the Individual Backup Power Outlet.

Dual Serial Ports

Communication Protection Ports

Ethernet RJ-45 Network Protection Ports protect standard network

cables.

The Primary computer (with PowerPanel Plus installed) is the computer that you

will use to control the UPS and make any change to the operation of the UPS. The

Secondary computer (with PowerPanel installed) is unable to exhibit any control

over the UPS. When power failure occurs, one of the following shutdown

sequences will be executed.

If the Primary and Secondary serial ports are both in use: the Primary

computer will start to count down (user controlled delay) for shutdown (User

Control delay can be set in the PowerPanel Plus software. Recommended

time is 5 minutes).Once the Primary computer is shutdown, the UPS will

signal the Secondary computer and initiate the Secondary to shutdown. The

UPS default shutdown time is 2 minutes. Therefore, it is recommended that

Secondary computer is set to shutdown within 1 minute in PowerPanel

Software.

If only the Secondary serial port is in use: the Secondary computer will shut

down following the user settings in PowerPanel Software. However, the

Secondary computer will not be able to signal the UPS to shutdown.

Therefore, the UPS will only power off when it is in low battery.

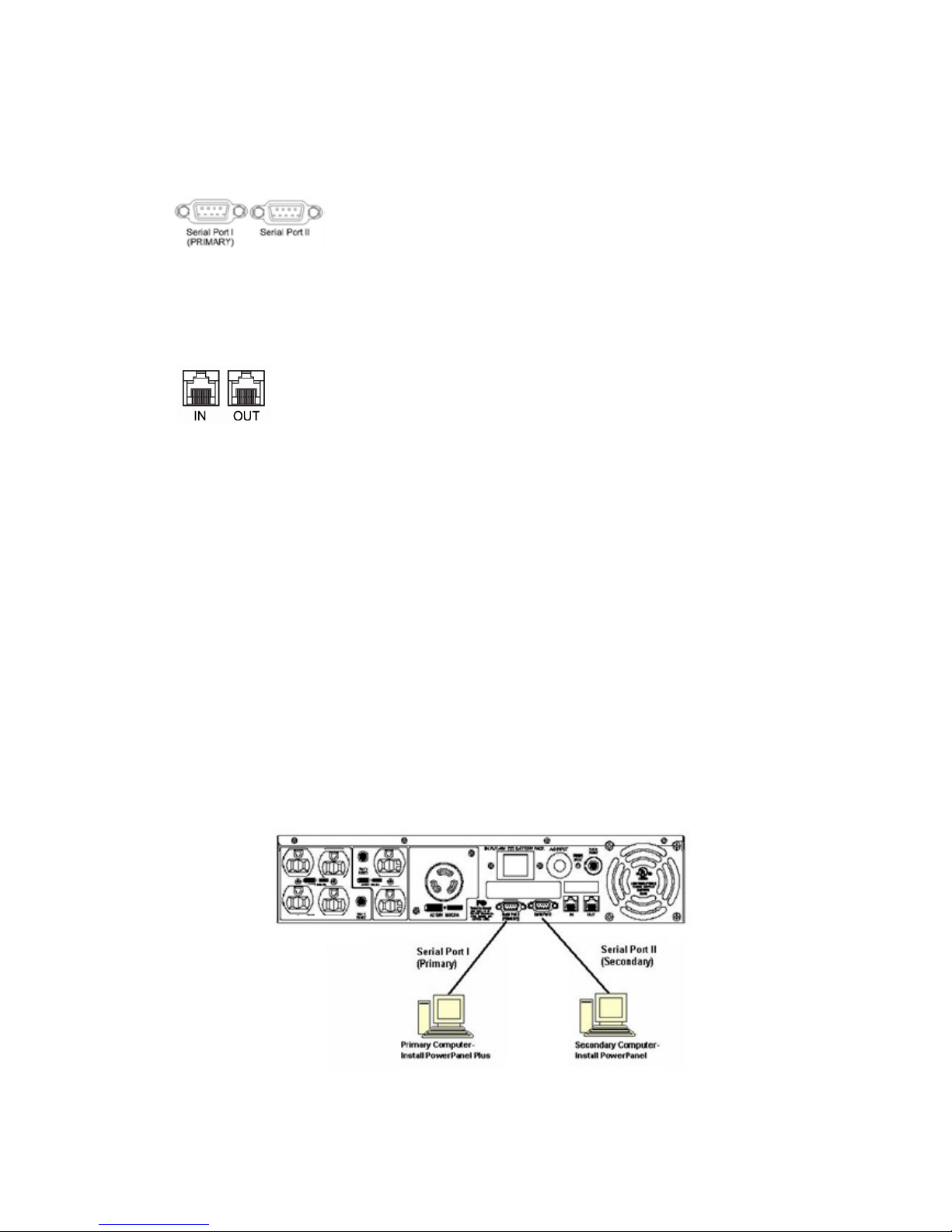

Figure2: Dual Serial Port and Software Installation

The PR3000 provides two serial ports to allow

connection and communication between the UPS and

two computers. (See Figure 2) This allows the

simultaneous shutdown of two computer systems.

These interfaces are also compatible with the UPS

service provided by Windows 2000, Windows,

Windows NT, Windows XP, Windows Server 2003 and

Mac OS 10X.

Otros manuales para PR3000

Tabla de contenidos

Otros manuales de Unión Postal Universal de CyberPower

CyberPower

CyberPower OL6KERT3UDPM Manual de usuario

CyberPower

CyberPower OM500A Manual de usuario

CyberPower

CyberPower INTELLIGENT UPS Series Manual de usuario

CyberPower

CyberPower AVRG750U Manual de usuario

CyberPower

CyberPower PR750ELCD Manual de usuario

CyberPower

CyberPower Value1200ELCD Manual de usuario

CyberPower

CyberPower BR650ELCD-UK Manual de usuario

CyberPower

CyberPower 600ELCD Manual de usuario

CyberPower

CyberPower VP700EILCD Manual de usuario

CyberPower

CyberPower Value1200ELCD Manual de usuario

CyberPower

CyberPower 649532015856 Manual de usuario

CyberPower

CyberPower UT650EG Manual de usuario

CyberPower

CyberPower PR1500LCDRTXL2U Manual de usuario

CyberPower

CyberPower CPS700AVR Manual de usuario

CyberPower

CyberPower BU1100E Manual de usuario

CyberPower

CyberPower BC900C Manual de usuario

CyberPower

CyberPower Value1200EILCD Manual de usuario

CyberPower

CyberPower GX1500U Manual de usuario

CyberPower

CyberPower CPS1100AVR Manual de usuario

CyberPower

CyberPower 649532005024 Manual de usuario

CyberPower

CyberPower CST1500SUC Manual de usuario

CyberPower

CyberPower STANDBY UPS Series Manual de usuario

CyberPower

CyberPower 649532010066 Manual de usuario

CyberPower

CyberPower PR1000LCDRTXL2Ua Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario

ZincFive

ZincFive BC Series Manual de usuario

BPC

BPC 1.5K SMART Manual de usuario

IBM

IBM 5595-1AX Manual de usuario
