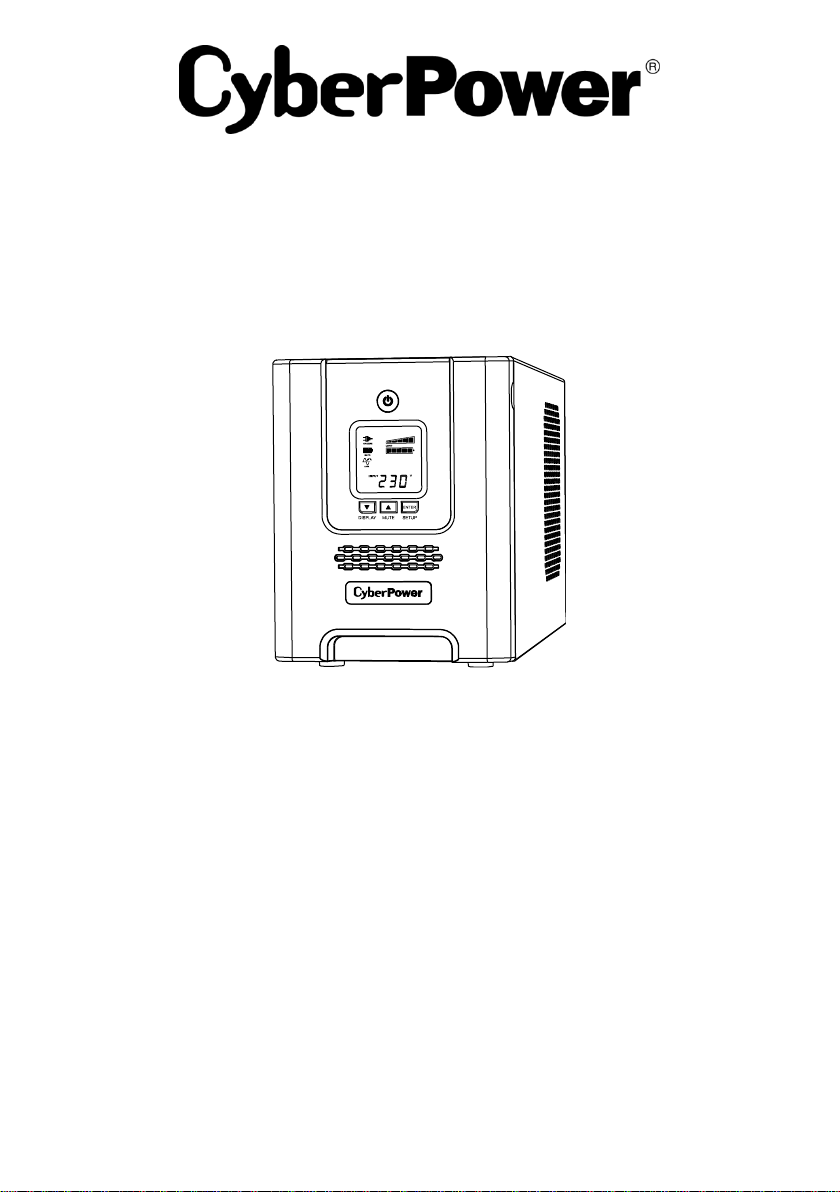

CyberPower PR2200ELCDSL Manual de usuario

K01-0000391-01

PR2200ELCDSL / PR3000ELCDSL

PR2200ELCDSXL / PR3000ELCDSXL

User’s Manual

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,

install, or operate your UPS.

CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker

protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this

equipment, turn off and unplug the UPS.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems

does not sell products for life support or medical applications. DO NOT use in any circumstance that

would affect the operation and safety of life support equipment, medical applications, or patient care.

CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power

is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled

indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature

and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery.

There are no user serviceable parts inside, except for the battery.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before

servicing the battery or installing a computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or

near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts

and cause the machine to short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following:

(1) UPS Unit x 1; (2) Emergency Power Off Cable (gray) x 1; (3) Serial Cable x 1; (4) USB Cable x 1 (5)

User Manual x 1; (6) Function Setup Guide x 1; (7) Power cord x 4

*PowerPanel® Business Edition software is available on our website. Please visit

www.cyberpower.com and go to the Software Section for free download.

OVERVIEW

The PR2200/3000ELCDSL, PR2200/3000ELCDSXL provides automatic voltage regulation for

inconsistent utility power. The PR2200/3000ELCDSL, PR2200/3000ELCDSXL features 405 Joules of

surge protection, and provides battery backup during power outages. The PR2200/3000ELCDSL,

PR2200/3000ELCDSXL ensures consistent power to your computer system and its included software

will automatically save your open files and shut down your computer system during a utility power loss.

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR

EQUIPMENT

1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral

equipment does not exceed 2200VA/3000VA.

2. Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed

the UPS unit's rated capacity (2200VA/1980W for PR2200ELCDSL/PR2200ELCDSXL,

3000VA/2700W for PR3000ELCDSL/PR3000ELCDSXL). If the rated unit capacities are exceeded,

an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to trip.

Communication Ports

See Installat ion Instructions

Supply

TVSS GND

Bef ore Connecting To The

Provides SNM P Card Communication

Expansion Port

Input

MUTEDISPL AY SETU P

ENTER

48VDC 70A MAX

BASIC OPERATION

DESCRIPTION

1. Power Switch

Used as the master on/off switch for equipment connected to the battery power supplied outlets.

2. Power On Indicator

This LED is illuminated when the utility power is normal and the UPS outlets are providing power,

free of surges and spikes.

3. LCD Module Display

Intelligent LCD display shows all the UPS information using icons and messages. For more

information please review the “Definitions for Illuminated LCD Indicators”section below.

4. Down/Display Button

The button can be used to select the LCD display contents including Input Voltage, Output Voltage,

and Estimated Run Time. Short press the button to scroll down the function menu. Pressing the

button for 2 seconds will keep the LCD display always on or turn the LCD display off while in

AC/Utility power mode. For more information about the Down/Display Button, please refer to the

Function Setup Guide.

5. Up/Mute Button

Short press the button to scroll up the function menu. Holding the button for more than 2 seconds

will silence the alarm. For more information about the Up/Mute Button, please refer to the Function

Setup Guide.

6. Enter/Setup Button

Press the button for 2 seconds to enter the setup menu and then select the functions for

configuration. For more information about the Enter/Setup Button, please refer to the Function

Setup Guide.

7. Battery and Surge Protected Outlets

The unit has nine battery powered/surge suppression outlets for connected equipment to ensure

temporary uninterrupted operation of your equipment during a power failure. (DO NOT plug a laser

printer, paper shredder, copier, space heater, vacuum, sump pump or other large electrical devices

into the “Battery and Surge Protected Outlets”. The power demands of these devices may overload

and damage the unit.)

8. Serial / USB Ports to PC

The Serial and USB ports allow connection and communication between the computer and the

UPS unit. Note: Only one port can be used at a time.

9. EPO Port

Use the provided gray EPO cable to connect to a provided EPO contact switch. Follow the

appropriate circuit diagram to the right to wire the cable to your EPO configuration. The EPO

remote switch is a switch installed in an outside area, connected to the unit via the Emergency

Power Off cable. In case of an emergency, it can be used to immediately cut-off power from the

UPS.

10. SNMP/HTTP Network Slot

Remove the cover panel to install an optional RMCARD to remotely monitor and manage your UPS

over a network.

11. Extended Battery Module Connecter (Except for PR2200ELCDSL/PR3000ELCDSL)

Use to connect optional CyberPower external battery pack (BP48VPT01) for extended runtime.

12. Circuit Breaker

Located on the back of the UPS, the circuit breaker provides overload and fault protection.

13. AC Input

Connect theAC power cord to a properly wired and grounded outlet.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at

least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved.

Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit

plugged into an AC outlet. The unit will charge in both the on and off position.

Note: This UPS is designed with a safety feature to keep the system from being turned on

during shipment. The first time you turn the UPS on, you will need to have it connected to

AC power or it will not power up.

2. If you will use the software, connect the USB cable to the USB port on the UPS.

3. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered

data storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets.

DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large

electrical device into the battery power supplied outlets. The power demands of these devices will

overload and possibly damage the unit.

4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch

outlet is protected by a fuse or circuit breaker and does not service equipment with large electrical

demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using extension cords.

5. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the

unit will "beep".

6. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To

correct this, turn the UPS off and unplug at least one piece of equipment from the battery power

supplied outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the

UPS on.

7. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet,

the battery will automatically recharge.

8. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

9. To store your UPS for an extended period, cover it and store with the battery fully charged.

Recharge the battery every three months to ensure battery life.

CYBERPOWER GREENPOWER UPS™ TECHNOLOGY

CyberPower’s Green Commitment

CyberPower is dedicated to the development of green products, and has adopted

Green practices throughout its business, including: membership in Climate Savers

Computing Initiative (CSCI), accordance with the Restriction on Hazardous

Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols,

as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the

advanced energy solution for the environment and become a leading eco-friendly

organization in the UPS industry.

Reduce Energy Cost with GreenPower UPSTM Technology

CyberPower’s goal is not only to provide eco-friendly products but also to bring the best value for

consumers. The advanced energy-saving design improves the operating efficiency and eliminates

waste energy consumption.As a result, consumers will enjoy significant energy cost savings with the

adoption of GreenPower UPSTM technology.

BATTERY REPLACEMENT

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the

battery. Service the battery under the supervision of personnel knowledgeable of

batteries and their precautions.

CAUTION! When replacing batteries, replace with the same type and number of batteries or battery

packs.

CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.

CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in

a fire, as they may explode. Follow all local ordinances regarding proper disposal of batteries.

CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to the skin

and eyes and may be toxic.

CAUTION! A battery can present a high risk of short circuit current and electrical shock. Take

the following precautions before replacing the battery:

1. Remove all watches, rings or other metal objects.

2. Only use tools with insulated handles.

3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.

4. Disconnect the charging source prior to connecting or disconnecting battery terminals.

5. Wear rubber gloves and boots.

6. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of

ground. CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL

SHOCK! The likelihood of such shock will be reduced if such grounds are removed during

installation and maintenance (applicable to a UPS and a remote battery supply not having a

grounded circuit)

CAUTION - RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

BATTERY REPLACEMENT PROCEDURE:

1. Turn off and unplug all connected equipment.

2. Turn the UPS off and unplug it from the AC power source.

3. Remove the front panel of the UPS.

4. Remove two screws from the battery compartment cover and slide the cover completely off of

the unit.

5. Remove the batteries from the compartment.

6. Disconnect the battery wires from the batteries.

7. Install the replace batteries by connecting the red wire (+) and black wire (-) to the same color

connectors from the battery pack.

8. Put the batteries back into the compartment.

9. Re-install the battery compartment cover and tighten the retaining screws.

10. Put the front panel back on the UPS.

11. Connect to AC power and charge the new batteries for up to 16 hours to insure a full charge.

REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly.

Almost any retailer that sells lead-acid batteries collects used batteries for recycling.

DEFINITIONS FOR ILLUMINATED LCD INDICATORS

1. ONLINE: The UPS is supplying utility power to connected

equipment.

2. BATTERY: During a severe brownout or blackout, this

icon appears and an alarm sounds (two short beeps

followed by a pause) to indicate the UPS is operating

from its internal batteries. During a prolonged brownout

or blackout, the alarm will beep rapidly every 1/2 second

(and the BATT.CAPACITY meter shows one 20%

capacity segment shaded. The capacity depends on how

much load added and the runtime left.) to indicate the

UPS’s batteries are nearly out of power. You should

save files and turn off your equipment immediately or

allow the software to shut the system down.

3. Energy-Saving: The UPS in energy-saving bypass

mode. When the utility power is normal and the battery is

fully charged, the UPS will go into energy-saving bypass mode automatically. See “CyberPower

GreenPower UPSTM Technology” section for more information.

4. LOAD capacity / Sensitivity setup: This meter displays the approximate output load level (in 20%

increments) of the UPS battery outlets. It can also be sensitivity setup meter if you are in Setup

mode. It is to control the sensitivity of the UPS to switch to Battery Mode by selecting UPS

shutdown voltage range. When the sensitivity is increased, the UPS will switch to Battery Mode

with less input power variation.

5. BATTERY capacity: This meter displays the approximate charge level (in 20% increments) of the

UPS’s internal battery. During a blackout or severe brownout, the UPS switches to battery power,

the BATTERY icon appears, and the charge level decreases.

6. FAULT: This icon appears if there is a problem with the UPS. Press the POWER button to turn off

the UPS.

F01: Battery Mode or AC/Utility Power Mode Overload fault (Shut off non-essential equipment. If

this solves the overload problem, the UPS will transfer to normal operation.)

F02: Battery Output Short fault (The connected equipment may have problems, please remove

them and check again.)

F03: Charger Fault (Contact CyberPower Systems for support.)

F04: Internal Fault (Contact CyberPower Systems for support.)

F05: Fan Abnormal (Contact CyberPower Systems for support.)

7. OVER LOAD: This icon appears and an alarm sounds to indicate the battery-supplied outlets are

overloaded. To clear the overload, unplug some of your equipment from the battery-supplied

outlets until the icon turns off and the alarm stops.

8. SCHEDULE: Users can setup the schedule to turn on and shut down the computer and UPS

through PowerPanel® Personal Edition software. The LCD display will show how much time is left

before the UPS will turn back on or shut down.

9. ESTIMATED RUNTIME: This displays the run time estimate of the UPS with current battery

capacity and load.

10. OUTPUT meter: This meter measure, in real time, the AC voltage that the UPS system is providing

to the computer, such as normal AC line mode, AVR mode, and battery backup mode. (Note: The

OUTPUT meter shows the status of the battery backup outlets in terms of load, frequency, and

voltage.)

11. INPUT meter: This meter measures the AC voltage that the UPS system is receiving from the utility

wall outlet. The UPS is designed, through the use of automatic voltage regulation, to continuously

correct output voltage to connected equipment to a safe voltage output range. In the event of a

complete power loss, severe brownout, or over-voltage, the UPS relies on its internal battery to

supply consistent output voltage. The INPUT voltage meter can be used as a diagnostic tool to

identify poor-quality input power.

12. EVENT: This meter records the number of power outages.

13. MUTE: This icon appears whenever the UPS is in silent mode. The alarm does not beep during

silent mode until the battery reaches low capacity.

14. AVR (Automatic Voltage Regulation): This icon appears whenever your UPS is automatically

correcting low AC line voltage without using battery power. This is a normal, automatic operation of

your UPS, and no action is required on your part.

For more information about functions setup, please refer to the Function Setup Guide.

TECHNICAL SPECIFICATIONS

Model

PR2200ELCDSL

PR2200ELCDSXL

PR3000ELCDSL

PR3000ELCDSXL

Capacity (VA)

2200VA/1980W

3000VA/2700W

Input

Frequency Range

50/60Hz +/-3 Hz (Auto Sensing)

AVR Function

Yes

Output

On Battery Output

Voltage

230Vac +/-10%

On Battery Output

Frequency

50/60Hz +/-1%

Overload Protection

On Utility: Circuit Breaker & Internal Current Protection

On Battery: Internal Current Limiting

Surge Protection

Lightning / Surge

Protection

Yes

Operating Temperature

+32F to 104F ( 0C to 40C )

Physical

Total # of UPS outlets

IEC x 9

Maximum

Dimensions(LxWxH)

221 x 170 x 432 mm

Weight (kg)

23.3

24.5

Battery

Sealed Maintenance Free LeadAcid Battery

Typical Recharge Time

8 hours

Charging Current(Max.)

User Replaceable

Yes

Status Indicators

Indicators

Power On, LCD Display, Online, On Battery, Fault, Replace Battery

Audible Alarms

On Battery, Low Battery, Overload

Communication

PowerPanel®Business

Edition Software

Windows 10/8/7/Vista/XP/2000/Server 2003, Linux

Management

Self -Test

Yes

Auto-Charger

Yes

Auto-Restart

Yes

USB interface

Yes

Expansion Port

Yes

EPO Port

Yes

Certifications

TROUBLESHOOTING

Problem

Possible Cause

Solution

Circuit breaker button is

projecting from the back of

the unit.

Circuit breaker has

tripped due to an

overload.

Turn the UPS off and unplug at least one

piece of equipment. Wait 10seconds, reset

the circuit breaker by depressing the

button, and then turn the UPS on.

The UPS does not perform

expected runtime.

Battery not fully

charged.

Recharge the battery by leaving the UPS

plugged in.

Battery is slightly worn

out.

Contact CyberPower Systems about

replacement batteries at

support@cpsww.eu

The UPS will not turn on.

The on/off switch is

designed to prevent

damage by rapidly

turning it off and on.

Turn the UPS off. Wait 10 seconds and

then turn the UPS on.

The battery is worn

out.

Contact CyberPower Systems about

replacement batteries at

support@cpsww.eu

Mechanical problem.

Contact CyberPower Systems at

support@cpsww.eu

PowerPanel® Business

Edition is inactive.

The USB cable is not

connected.

Connect the USB cable to the UPS unit

and an open serial port on the back of the

computer. You must use the cable that

came with the unit.

The unit is not

providing

battery power.

Shutdown your computer and turn the

UPS off. Wait 10 seconds and turn the

UPS back on. This should reset the unit.

The fault LED is

illuminated.

Overload

Remove excessive load and restart the

UPS.

Output Short

Contact CyberPower Systems at

support@cpsww.eu

Battery Overcharge

Contact CyberPower Systems at

support@cpsww.eu

Over Temperature

Contact CyberPower Systems at

support@cpsww.eu

Additional troubleshooting information can be found at www.cpsww.eu

For more information, visit www.cpsww.eu or contact

Cyber Power Systems, Inc.

E-MAIL: sales@cpsww.eu

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de CyberPower

CyberPower

CyberPower 649532005505 Manual de usuario

CyberPower

CyberPower UT650EG Manual de usuario

CyberPower

CyberPower CP900AVR / BC900 Manual de usuario

CyberPower

CyberPower CP900EPFCLCD Manual de usuario

CyberPower

CyberPower EC550G Manual de usuario

CyberPower

CyberPower 649532018253 Manual de usuario

CyberPower

CyberPower CPS1500AVR Manual de usuario

CyberPower

CyberPower PR1000LCD Manual de usuario

CyberPower

CyberPower CP350SLG Manual de usuario

CyberPower

CyberPower Value600E Manual de usuario

CyberPower

CyberPower PR1500LCD Manual de usuario

CyberPower

CyberPower 649532006854 Manual de usuario

CyberPower

CyberPower OL1000RTXL2U Manual de usuario

CyberPower

CyberPower BU650E Manual de usuario

CyberPower

CyberPower BU600E Manual de usuario

CyberPower

CyberPower CyberShield DTC36U12V Manual de usuario

CyberPower

CyberPower 649532008001 Manual de usuario

CyberPower

CyberPower Paragon UPS Manual de lista de piezas

CyberPower

CyberPower OR1500LCDRTXL2U Manual de uso y cuidado

CyberPower

CyberPower OL6000RT3UTAA Manual de usuario

CyberPower

CyberPower CP600 Manual de usuario

CyberPower

CyberPower OR1000LCDRM1U Manual de usuario

CyberPower

CyberPower CP1000AVRL Manual de usuario

CyberPower

CyberPower Value1200ELCD Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario

ZincFive

ZincFive BC Series Manual de usuario

BPC

BPC 1.5K SMART Manual de usuario

IBM

IBM 5595-1AX Manual de usuario
