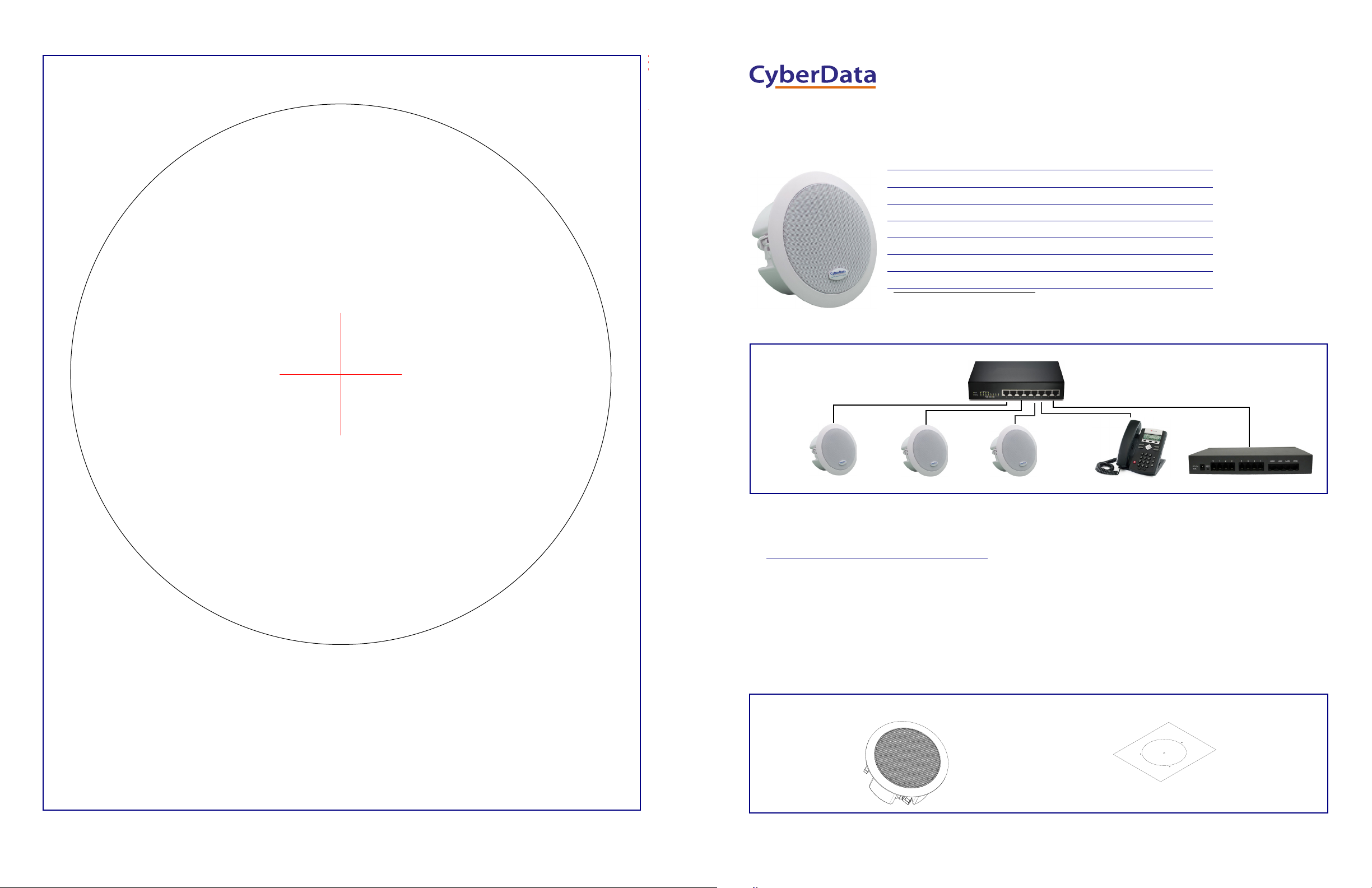

CyberData 011504 Manual

Dimensions are in Inches [Millimeter]

Ceiling Hole

Wall Cutout Diameter: Ø6.7 in. [Ø170 mm]

The wall thickness must not exceed 1.0 in. [25 mm]

Mounting Template

Dimensions are in Inches [Millimeter]

Typical System Installation

Getting Started

• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:

https://www.cyberdata.net/products/011504/

• Create a plan for the locations of your speakers.

• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.

• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation

instructions.

• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.

• WARNING: This enclosure is not rated for any AC voltages!

Parts

Parameter Factory Default Setting

IP Addressing DHCP

IP Addressa

a. Default if there is not a DHCP server present.

IPv4 Link Local

Web Access Username admin

Web Access Password admin

Subnet MaskaIPv4 Link Local

Default GatewayaIPv4 Link Local

802.3af/at Compliant Ethernet Switch

Speaker IP Phone InformaCast ServerSpeaker Speaker

*More installation options are

illustrated in the Operations Guide.

(1) Template for Speaker*(1) Speaker Assembly

* See the last page of this document

The IP Endpoint Company

Installation Quick Reference

InformaCast Enabled Ceiling Speaker

011504

Mounting

Contacting CyberData

Joist

Eyebolt

Ceiling Tile

Template

Speaker

Seismic

Tether Bracket

Assembly

Steel Wire

(Pre-Installed)

Tools Required for Installation:

• (1) Sheetrock Saw or Drywall Cutter

• (1) #2 Phillips Screw Driver or Powered

Screw Driver with #2 Phillips Hex Bit

To mount the speaker:

1. Loosen the Four (4) flag nuts with a #2

Phillip Screw Driver or Powered Screw

Driver.

2. Use the TEMPLATE on the back of this

document to cut a hole in the wall* or

ceiling.

*Skip the seismic tether mounting when

mounting it to the wall.

3. Tighten the Four (4) flag nuts with a #2

Phillip Screw Driver or Powered Screw

Driver.

4. Replace the speaker grill to the speaker

housing.

Flag Nut

Channel

Remove the Speaker Grill out of the Speaker

Housing:

1. Turn and line up at least two of the flag nuts

with their channel.

2. Grasp the speaker grill with your index,

middle, and ring fingers.

3. Place your thumb over the flag nut. At the

same time, slowly push out the speaker

grill.

Sales: 831-373-2601 ext. 334

Support: 831-373-2601 ext. 333

Support Website: https://support.cyberdata.net/

RMA Department Contact and Status: https://support.cyberdata.net/

Warranty Information: https://support.cyberdata.net/

Corporate Headquarters

CyberData Corporation

3 Justin Court

Monterey, CA 93940, USA

Phone: 831-373-2601

Fax: 831-373-4193

https://www.cyberdata.net/

Dimensions

Features

Connecting Power

Ø6.70 [Ø170]

Ceiling Cutout

3.52 [89.4]

Dimensions are in Inches [Millimeter]

4 x Flagnut

Ethernet

RTFM

0.35 [8.9]

Ø7.93 [Ø201.5]

RTFM Switch

To broadcast a device’s current IP address, use a paper

clip or a similar instrument to press and release the

RTFM switch within a five second window.

To restore a device’s factory default settings, press and

hold the RTFM switch for more than five seconds.

Network 100 Mb (Yellow)

The yellow 100 Mb LED is illuminated when the network

100 Mb link to the speaker is established.

Speaker Network Link/Activity (Green)

The green Network Link/Activity LED comes on

immediately to show that there is a good network

connection, and then blinks to show network activity.

Ethernet Port

PoE Injector

Non PoE Switch

802.3af Compliant PoE Switch

(Part #011124)
