CyberData 011201 Manual

The IP Endpoint Company

Quick Reference 930483D © 2018, CyberData Corporation, ALL RIGHTS RESERVED.

Installation Quick Reference

Ceiling Tile Auxiliary Analog Speaker



011201

The Ceiling Tile Auxiliary Analog Speaker is an adapter that is built for a CyberData Ceiling speaker.

Parts

(1) Perforated Faceplate (24" [610mm] L x 12" [305mm] W)

FIts 12-inches x 24-inches and 24-inches x 48-inches ceiling tile

(1) Cross Tee

Dimensions

4.40 [112.0]

23.75 [603.3]

23.94 [608.0]

12.00 [304.8]

12.19 [309.5]

Dimension are in Inches [Millimeter]

4.40 [112.0]

23.94 [608.0]

23.75 [603.3]

12.00 [304.80]

DIMENSIONS ARE IN

INCHES [MILLIMETERS]

with screws, dimensions

are approximate

12.19 [309.5]

Procedure

To install the Ceiling Tile Auxiliary Analog Speaker, refer to the drawing in the "Installing the Ceiling Tile Auxiliary

Analog Speaker" section on the other side of this document. Complete the following steps:

1. Remove the ceiling tile from the ceiling (T-tracks).

2. For 2ft. x 4 ft. tile space, cut the ceiling tile to 35-1/2" long or for a 2 ft. x 2ft. tile space, cut to 11-1/2" long.

3. Place the speaker in the ceiling with the tile support rail crossbar facing the ceiling tile opening.

4. Drop in the tile.

© 2018, CyberData Corporation, ALL RIGHTS RESERVED. 930483D Quick Reference

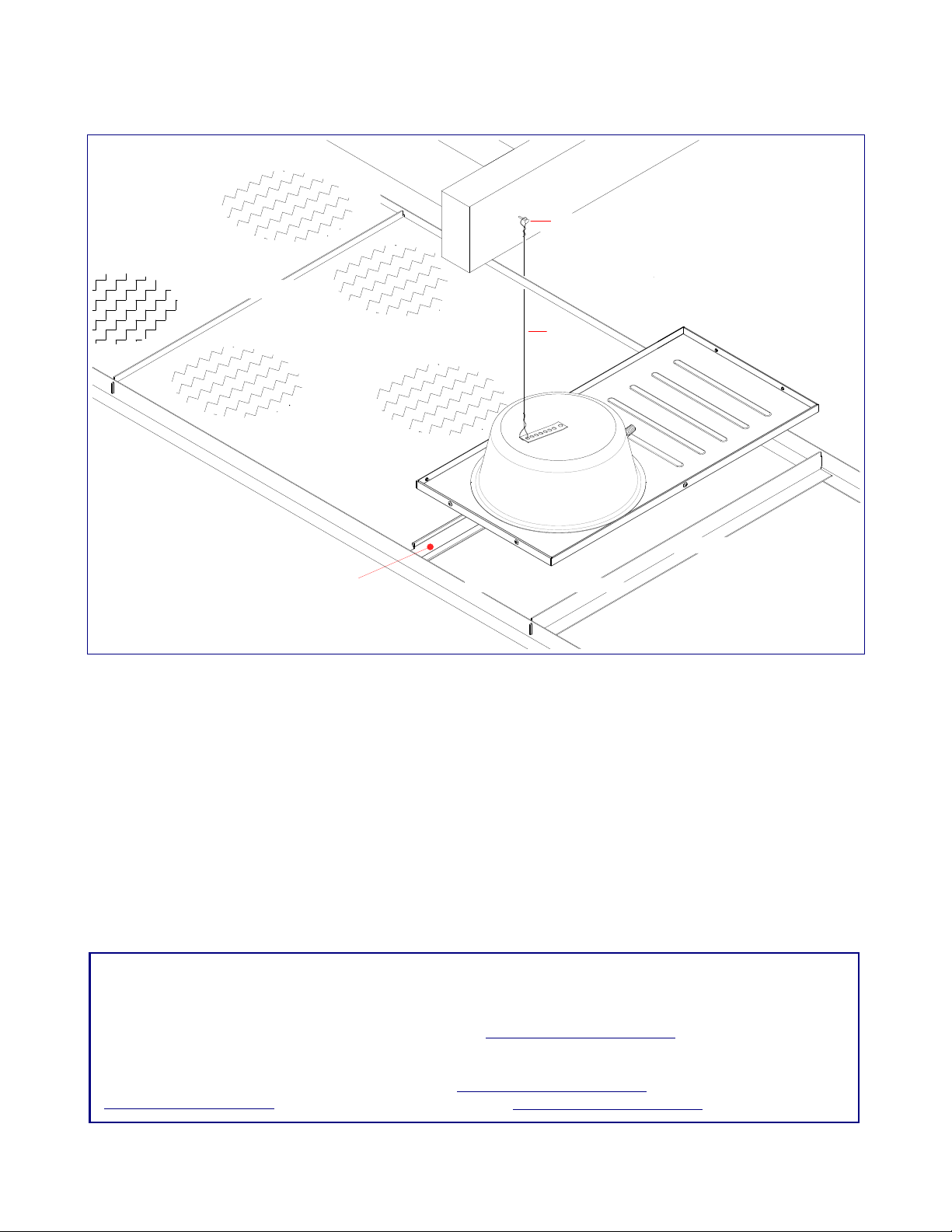

Installing the Ceiling Tile Auxiliary Analog Speaker

Ceiling Tile

Ceiling Grid

Ceiling Grid

Cross Tee

(One Included)

Opening (See

Quick Reference Guide)

Joist

Joist

Fastener

Wire

[Fastener & Wire are Not Provided]

Contacting CyberData

Sales: (831) 373-2601 ext. 334

Support: 831-373-2601 ext. 333

Support Website: http://support.cyberdata.net/

RMA Department: (831) 373-2601 ext. 136

RMA Email: [email protected]

RMA Status: http://support.cyberdata.net/

Warranty Information: http://support.cyberdata.net/

Corporate Headquarters

CyberData Corporation

3 Justin Court

Monterey, CA 93940, USA



Phone: 831-373-2601

Fax: 831-373-4193

http://www.cyberdata.net/
